Blizzard Lighting Komply™ DMX / DISCONTINUED & NO LONGER AVAILABLE

blizzard LIGHTING

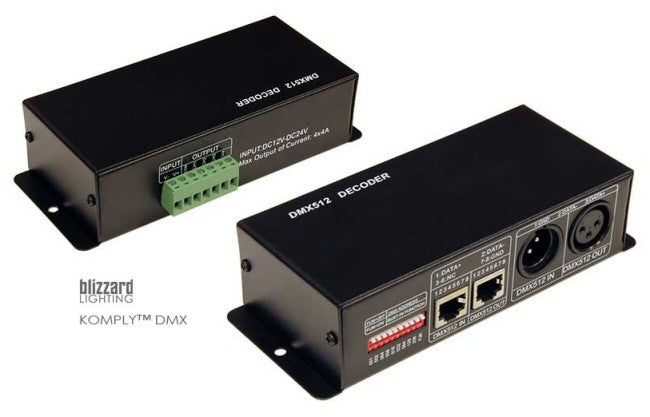

Komply™ DMX Low Voltage DMX Decoder

The RGB5050 color changing LED strip (sold separately) requires either the Komply™ DMX controller, which will give you a wide array of creative lighting options for any situation, the Komply™ Remote (sold separately), which gives you wireless remote ability with 11 built-in programs, or the Komply™ Knob 3 (sold separately), which simply puts precise RGB color mixing at your fingertips.

And of course, all Komply™ products are backed by our 2-year warranty!

Komply™ DMX Decoder Main Features

Low voltage DMX Decoder (12/24VDC). The Kontrol™ DMX converts to the universal standard DMX512/1990 signal into analog signal. Uses 4 channels and can also be used to dim single color with 256 shades of brightness.

Komply™ DMX Decoder Specifications

• Operating temperature: -20 to 50 C Indoor (dry location)
• Supply voltage: 5V to 24VDC
• Output: 4 channels
• Grayscale: 256/channel
• External dimension: 6.5 x 2.7 x 1.6 inches (165 x 68 x 40 mm)
• Weight: .71 lbs. (320g)
• Static power consumption: <1W
• Output current: each channel 3 Amps (max)
• Maximum Input: 5 Amps 12VDC / 8 Amps 24VDC
• Output power: 5VDC:<60W, 12VDC:<108W, 24VDC:<192W (maximum)
• Certifications: CE, Rohs

Warranty

• 2-year limited warranty, does not cover malfunction caused by damage to LEDs

Manual

• Komply™ DMX Cutsheet
