Colorise RGBALC
Next-Level Color Mixing
Indoor Brilliance

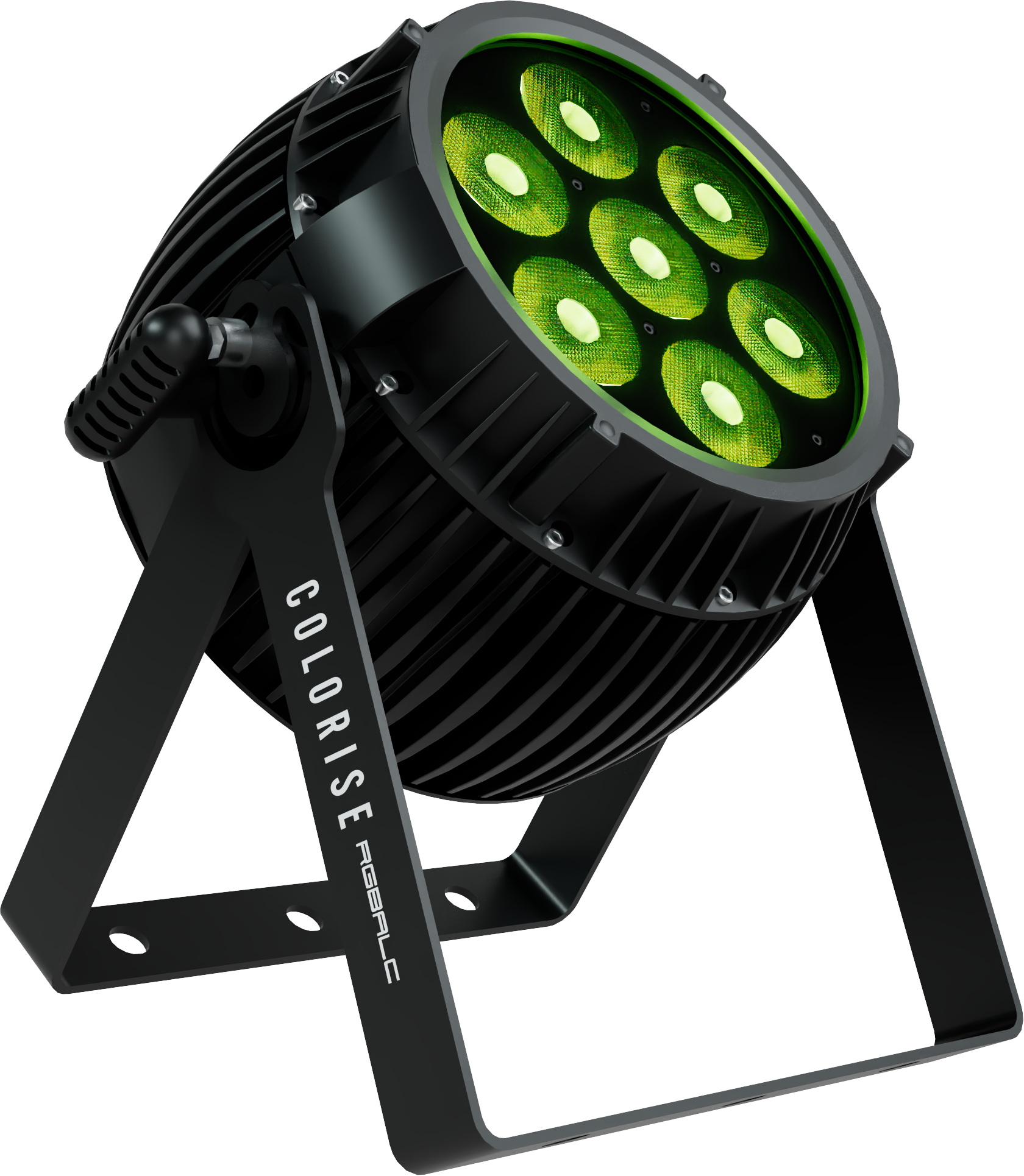

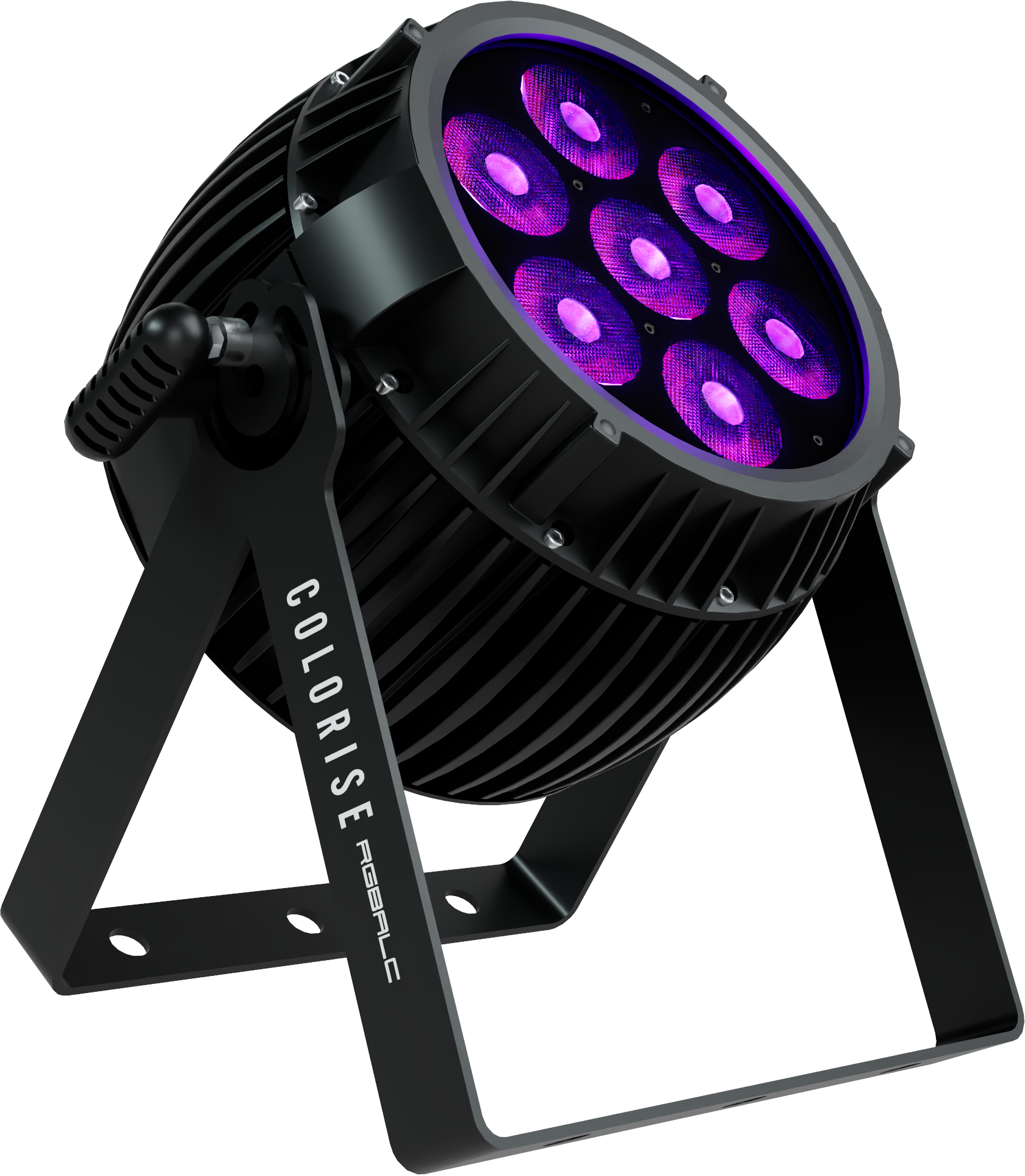

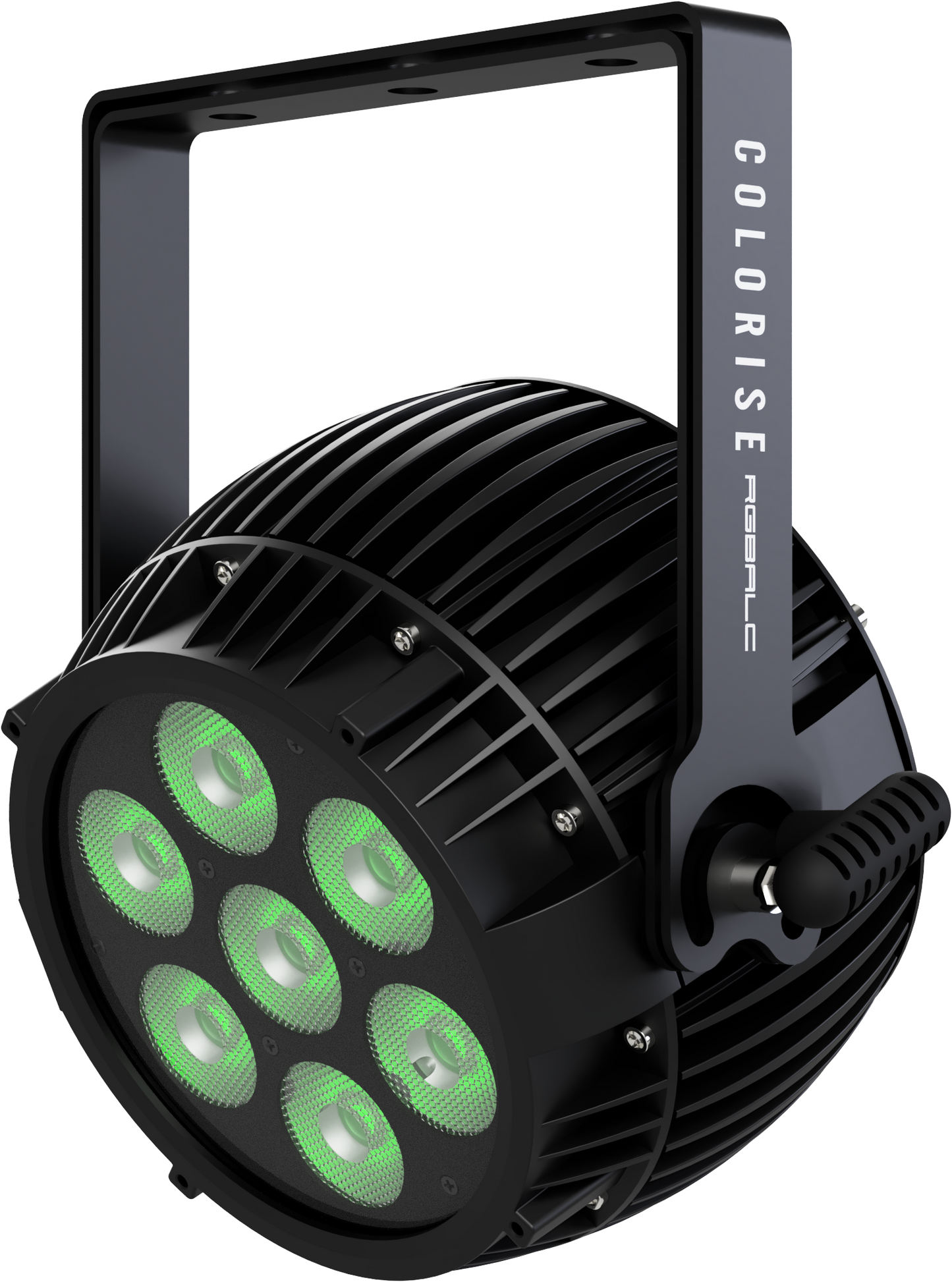

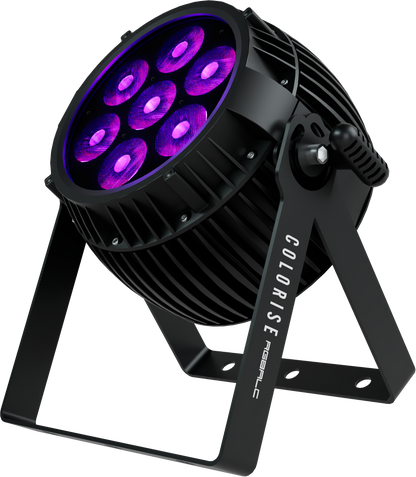

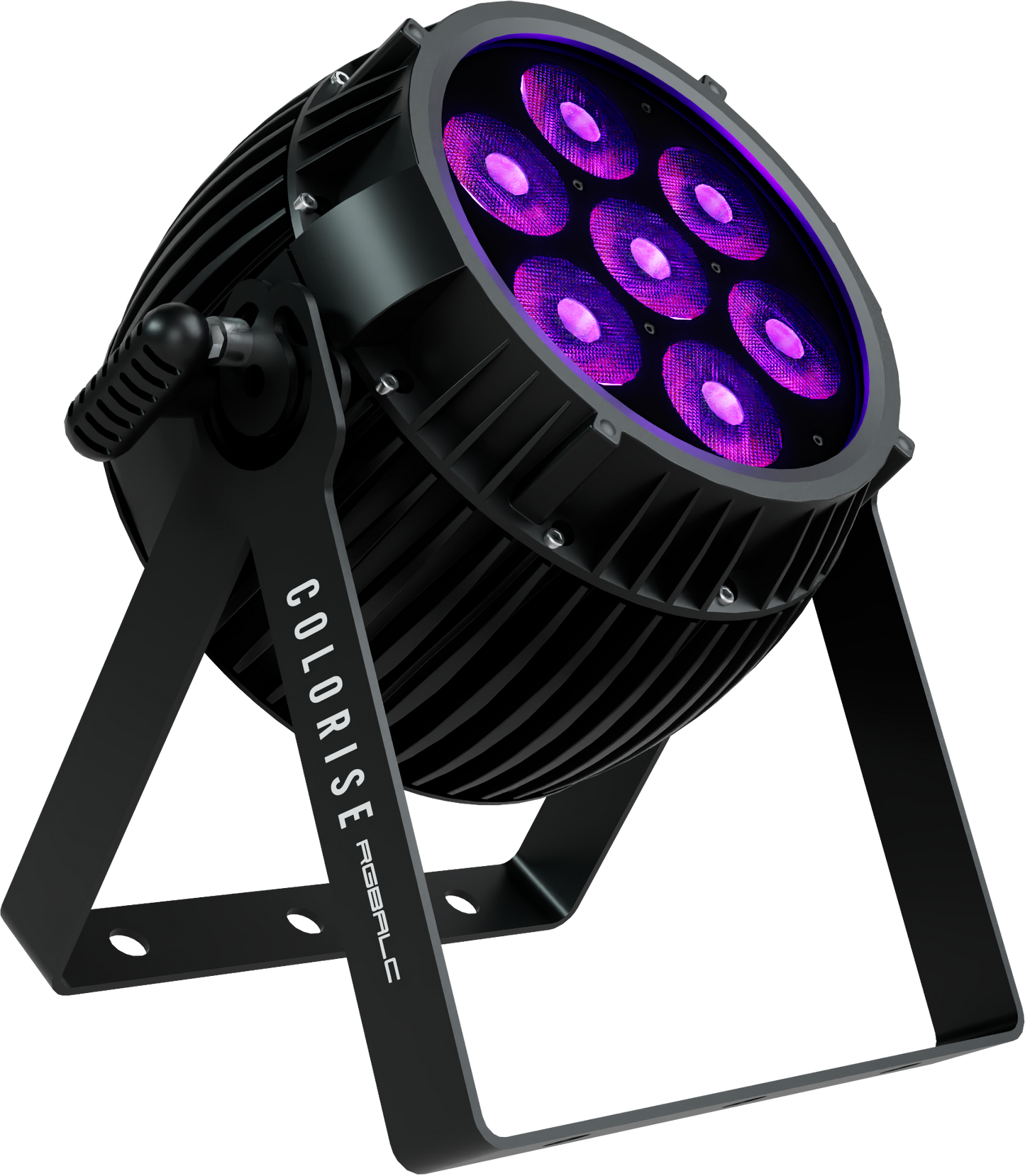

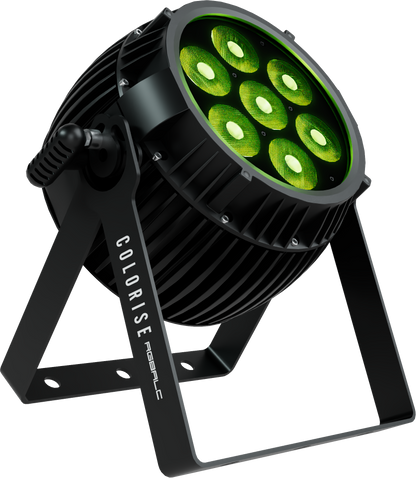

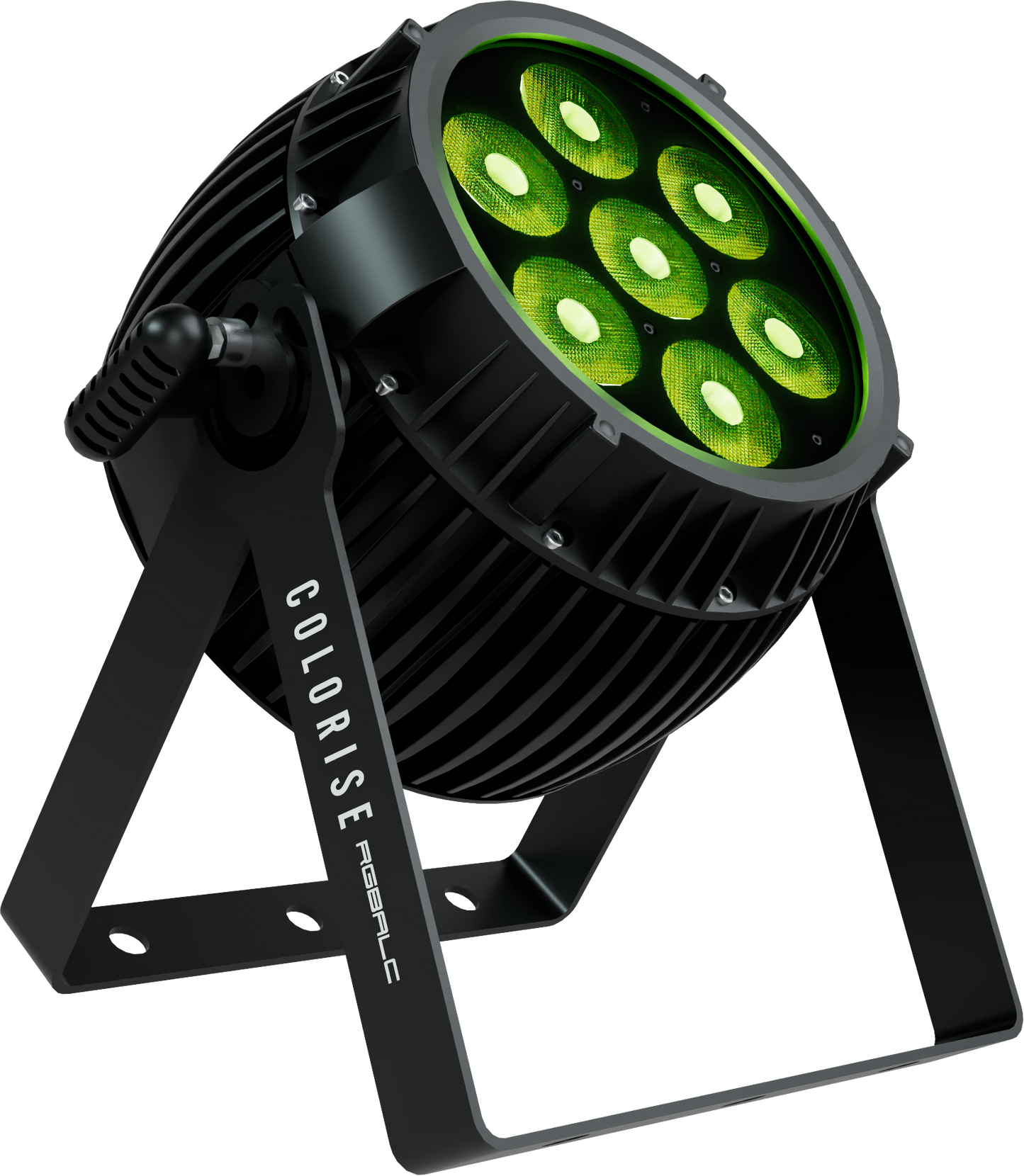

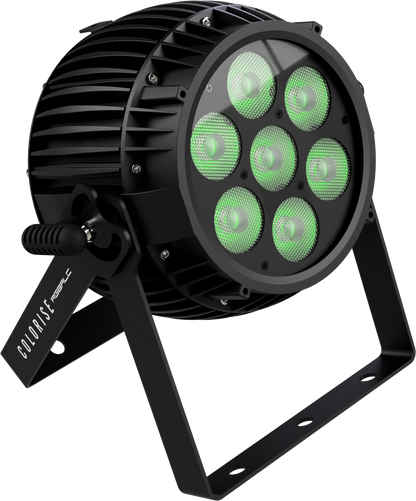

Colorise™ RGBALC is an IP20 rated indoor LED wash fixture
with 7x 20W RGBALC 6-in-1 LEDs and exceptional lighting
capabilities. It delivers dynamic color mixing and smooth virtual
color wheel effects. With its precise 25° beam angle, variable
electronic dimming, and eye-catching strobe effects, this fixture
offers unparalleled versatility and captivating brilliance. Crafted
for indoor performance, it stands as a top choice for any indoor
lighting application, from concerts to theatrical productions.
Control & Design

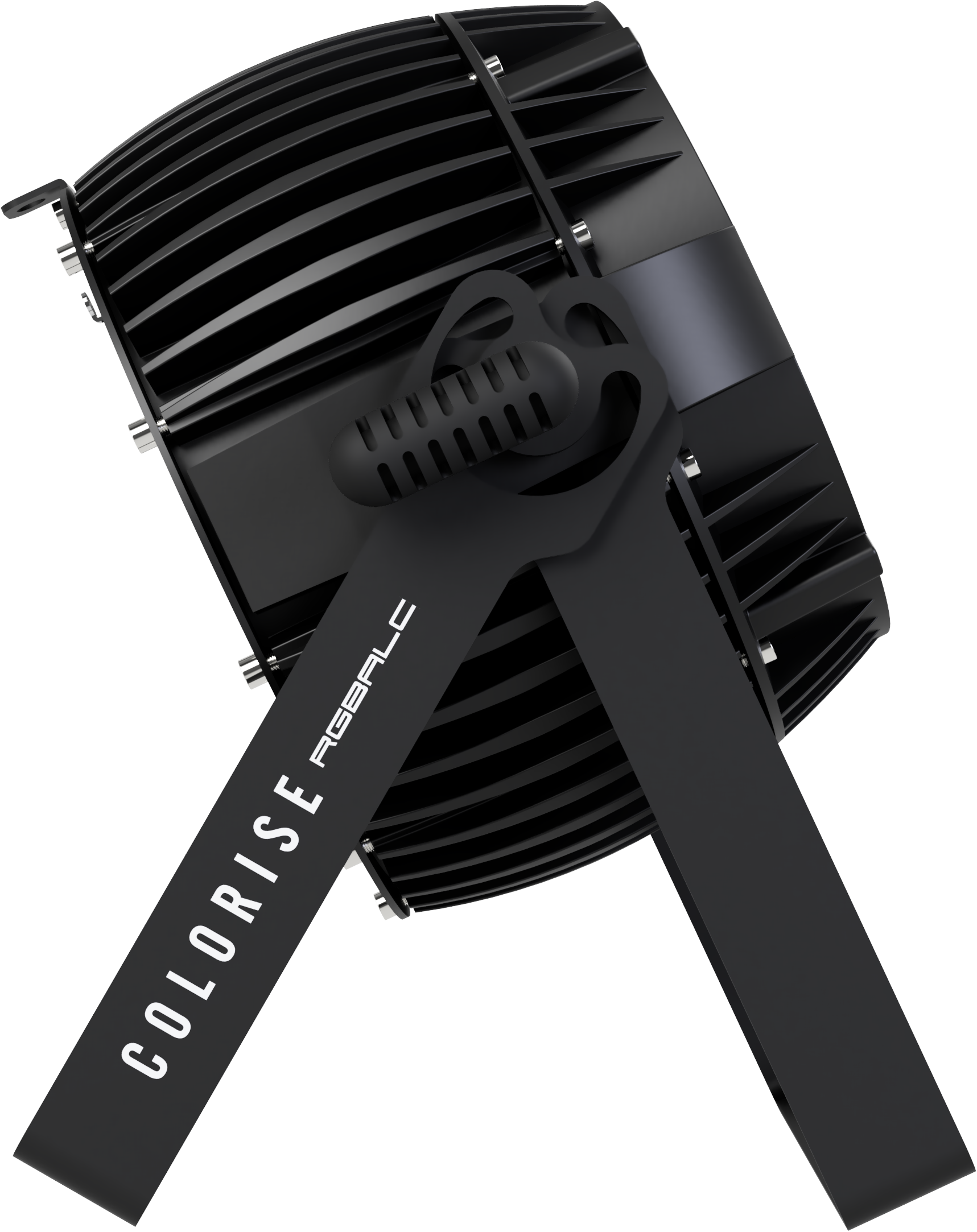

Designed for durability and user-friendly control, the Colorise™
RGBALC is housed in convection-cooled cast aluminum and
equipped with locking AC connections. Its OLED menu with touch
sensitive buttons ensures intuitive operation, while dual mounting
brackets add mounting flexibility. With flicker-free LEDs, it’s
perfect for video applications, and its multiple dimming curves and
user-customizable effects enhance adaptability, making it a reliable
and innovative solution for diverse indoor lighting scenarios.
Main Features
• Color mixing via 7x 20W RGBALC 6-in-1 LEDs
• Variable electronic dimming & strobe
• Auto mode and custom macro effects
• Virtual color wheel effects
• Color presets and custom colors
• 2700K to 6500K white presets
• 4x user-selectable dimming curves
• Flicker-free constant-current LED driver
• OLED menu with 4x touch-sensitive buttons
• IP20 rated, suitable for indoor use
• Dual mounting brackets
• Convection cooled cast aluminum housing
• Locking power and 3/5-pin DMX connections
Optical
7x 20W RGBALC 6-in-1
LEDs (100,000 hrs.)
25° beam angle
Flicker-free LEDs
Weight & Dimensions
11.4” x 6.25” x 12.5” (289 x 158 x 317 mm)
9.7 lbs. (4.4 kg)
Control
Protocol: USITT DMX-512
3/5-pin DMX in/out
6/8/12-channel DMX
4-button menu with
OLED display DMX512, M/S, standalone,
auto mode
Power + Current
100-240VAC, 50-60 Hz
Consumption: 112W,
1.48A, PF: .65 PowerCON-compatible in/out
Warranty & Certifications
2-year limited warranty / cETLus certified
