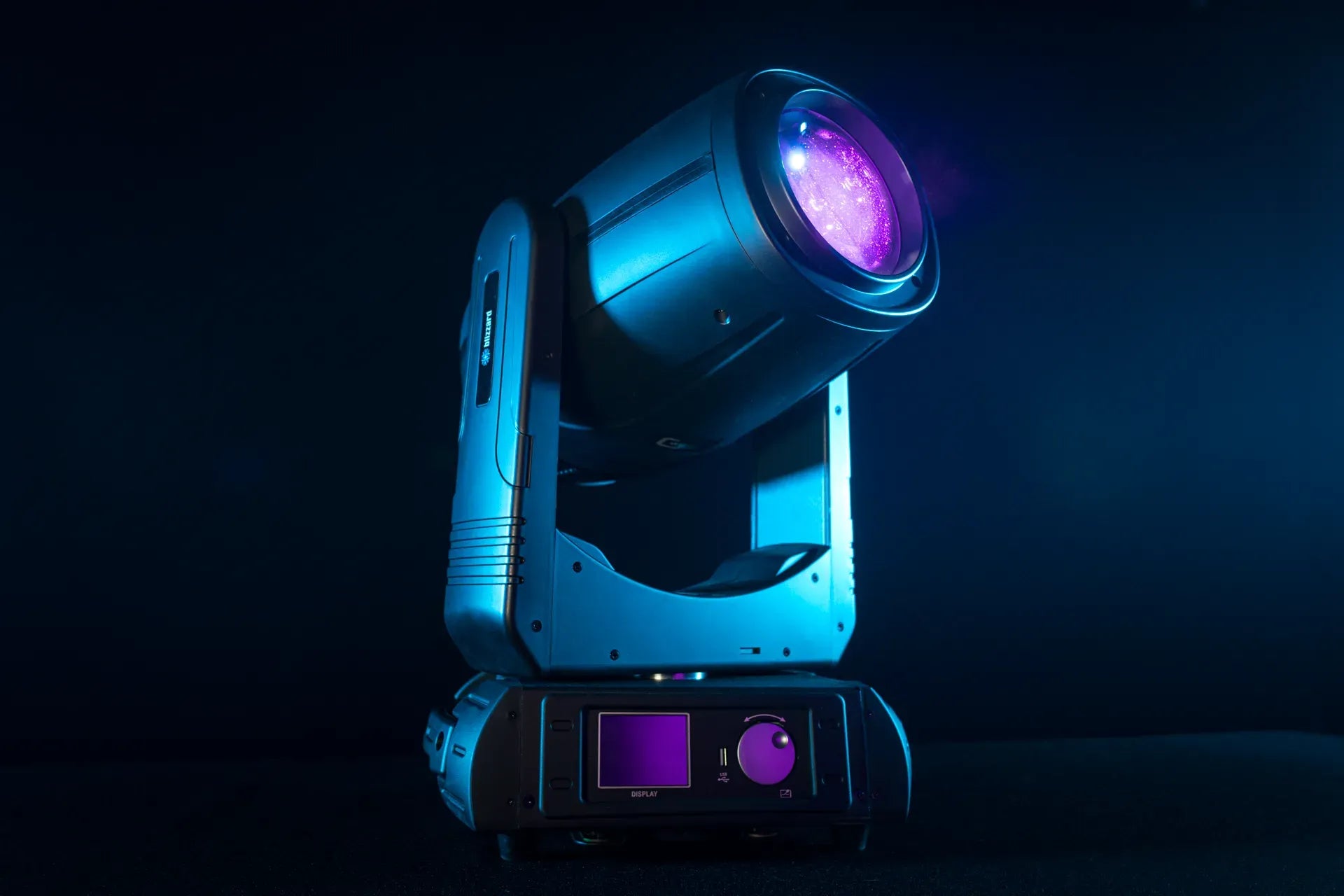

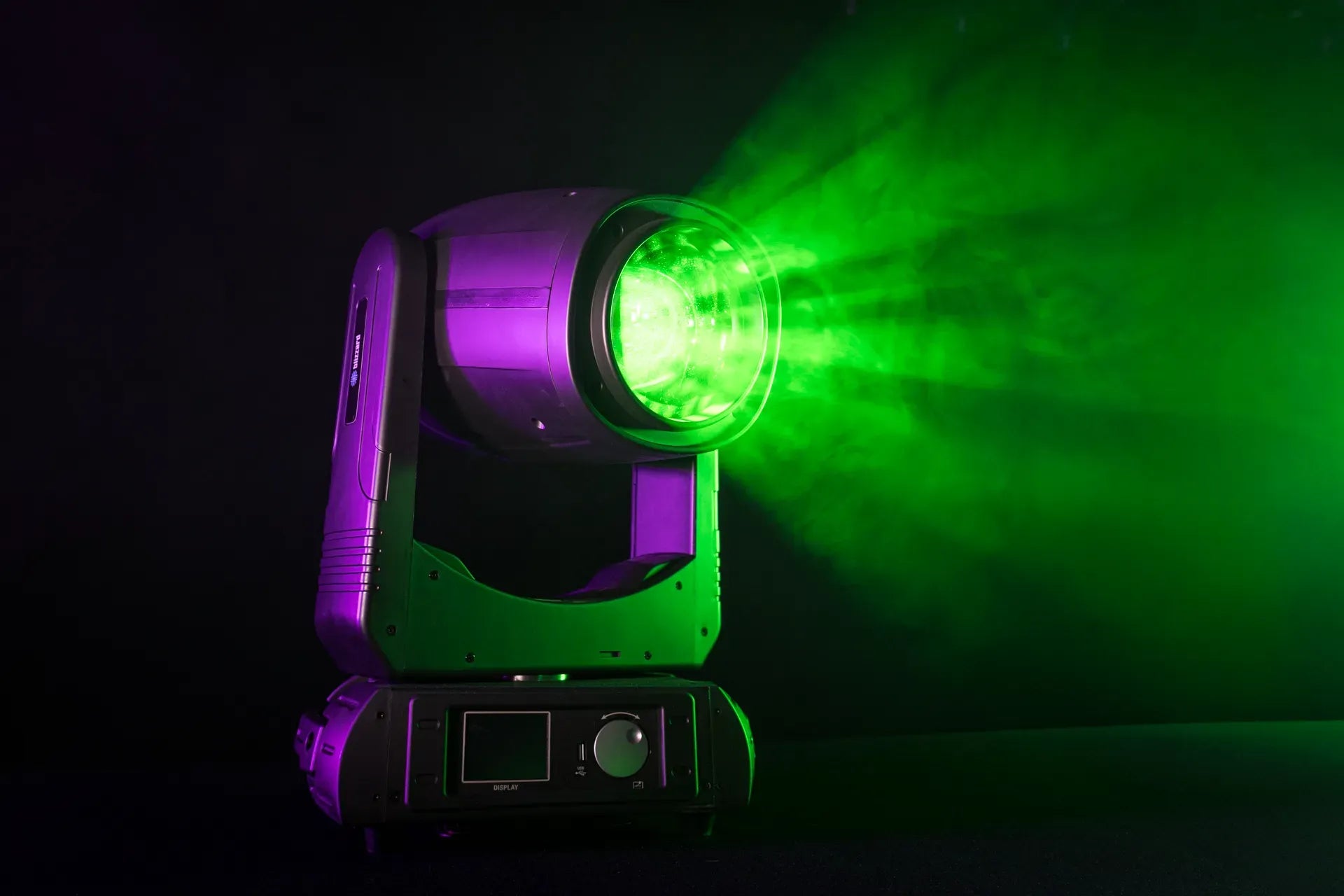

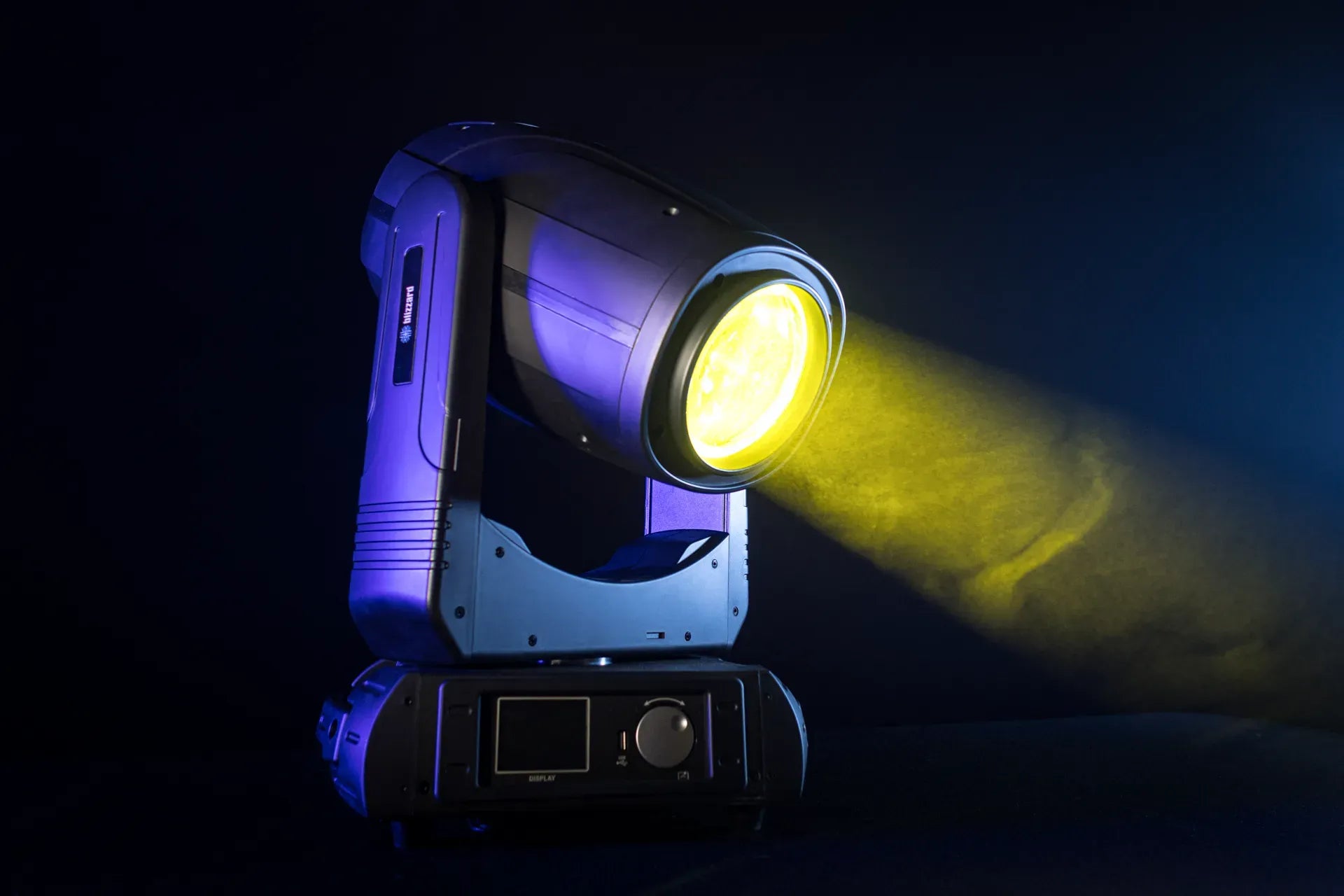

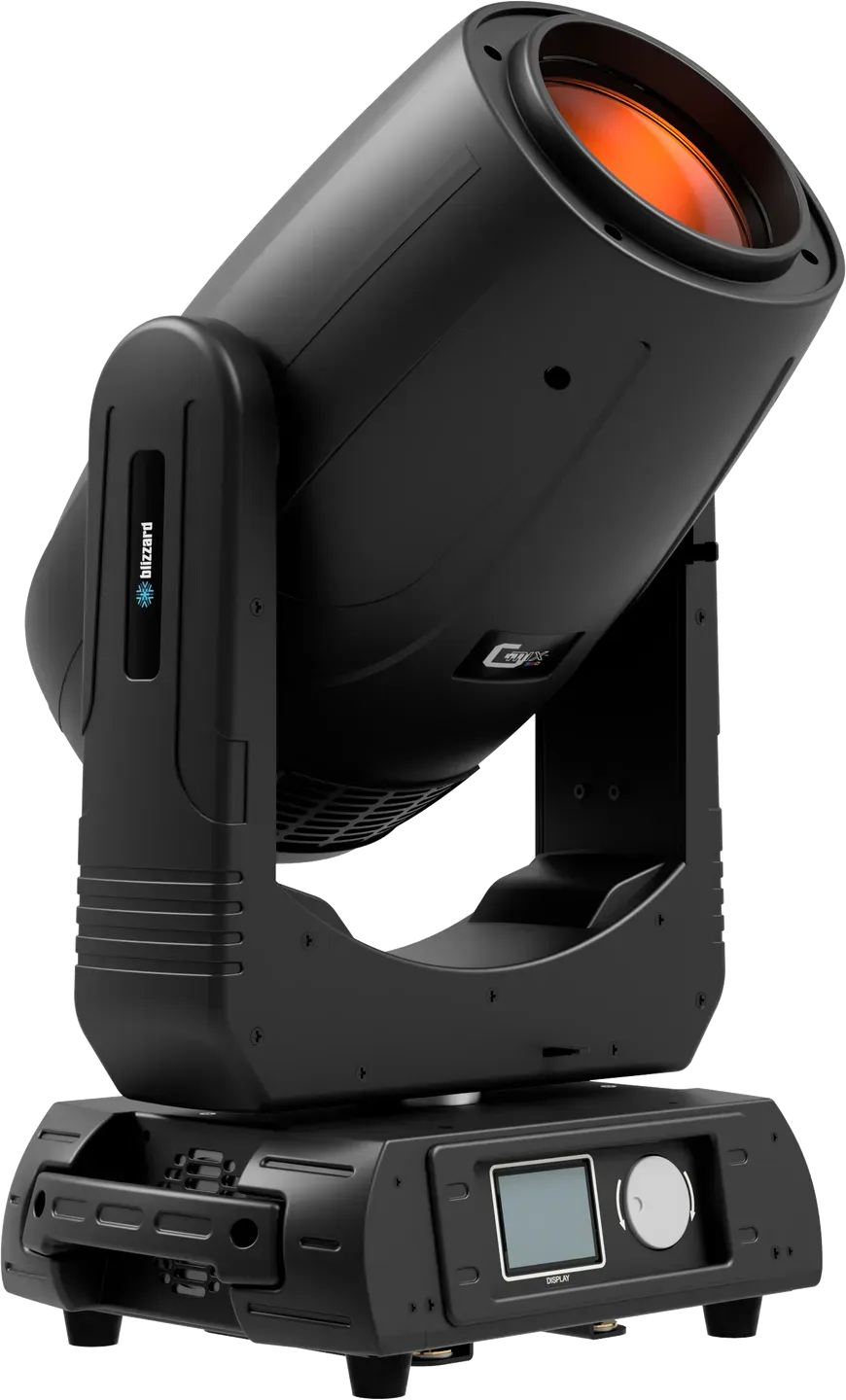

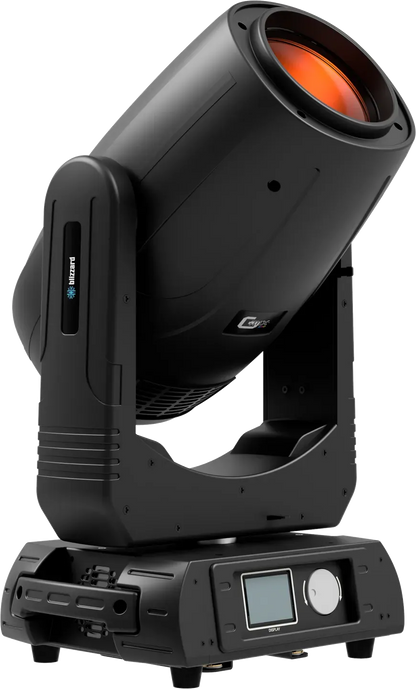

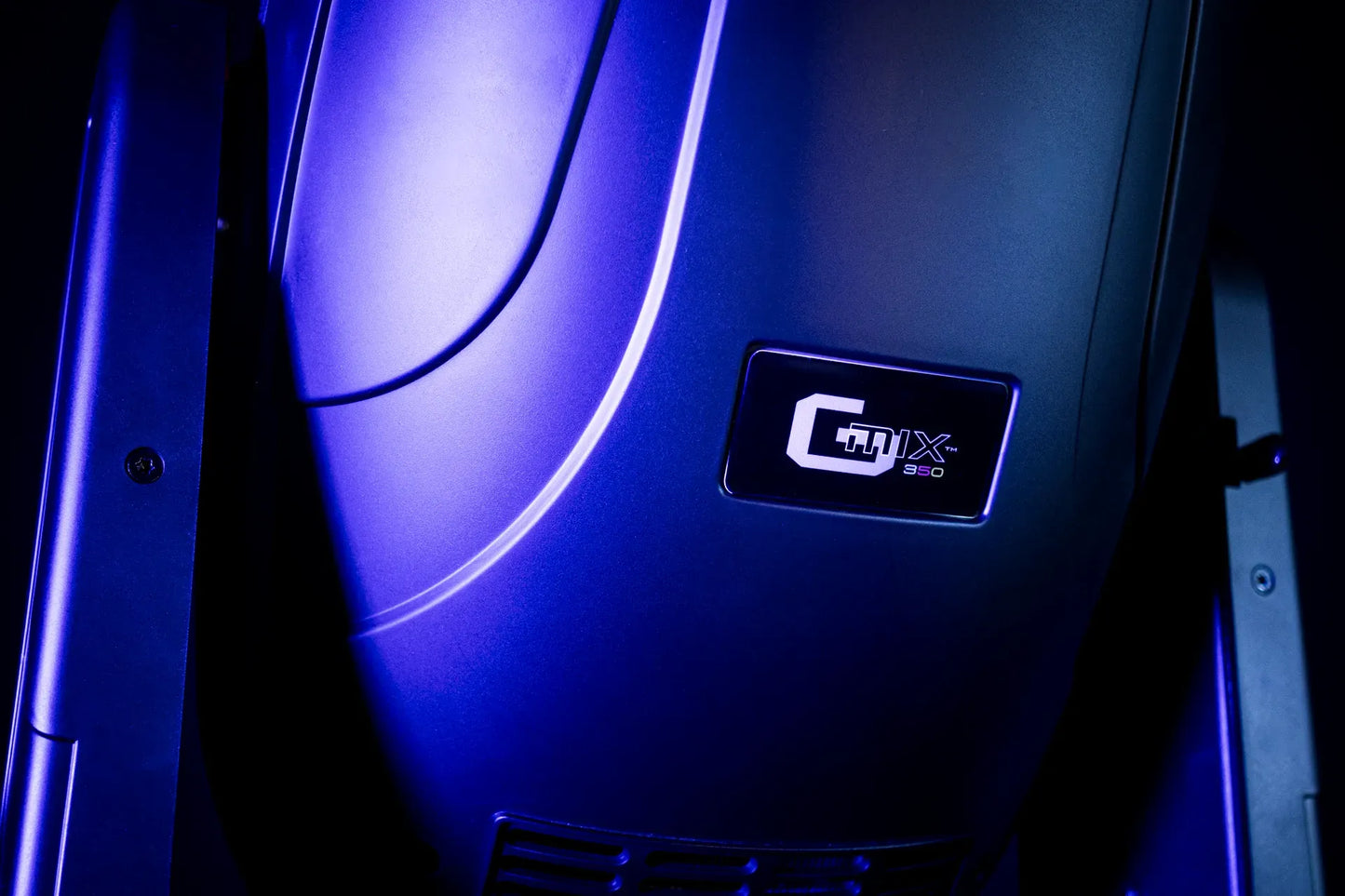

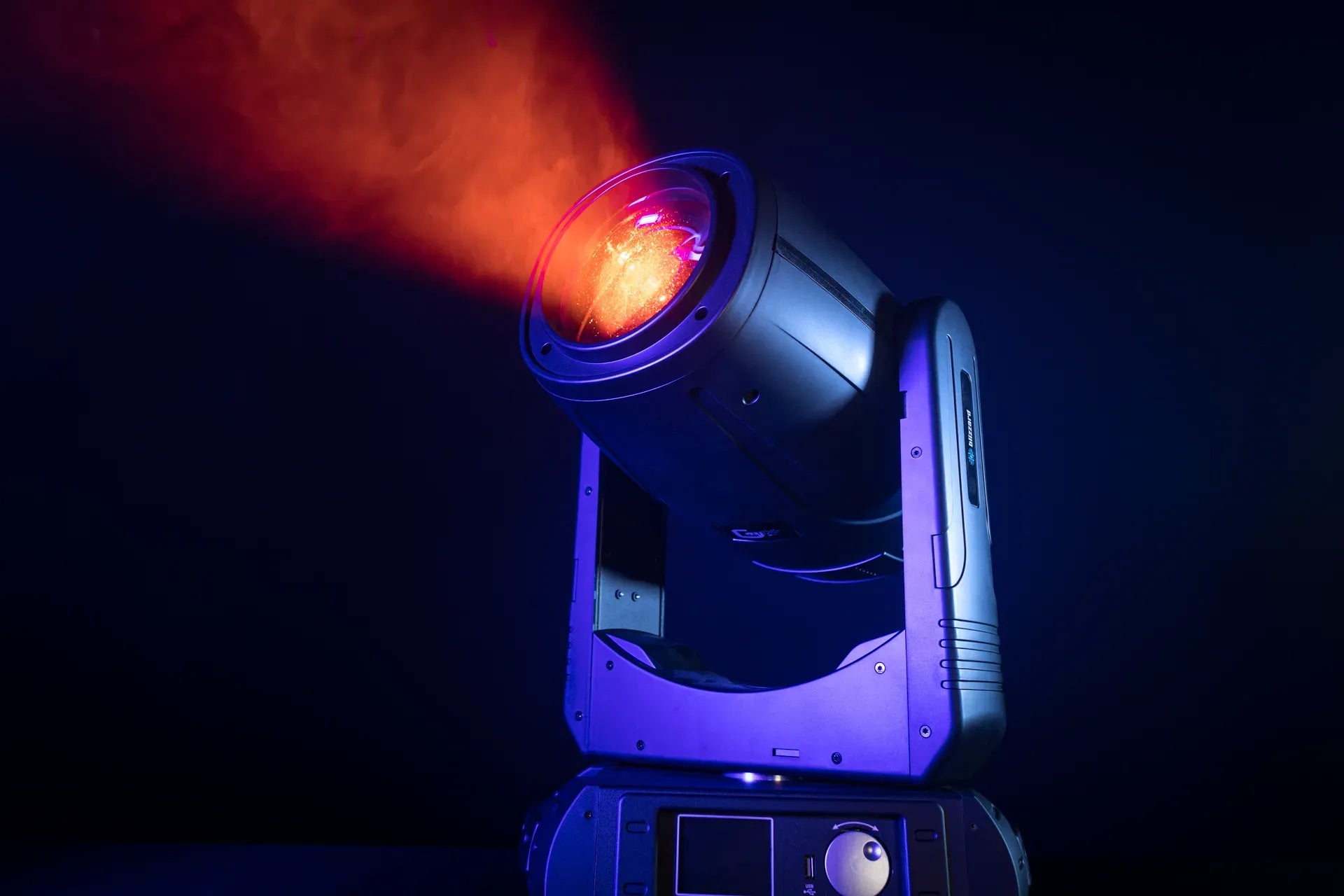

Blizzard G-Mix 350
Power & Precision
The G-Mix™ 350 combines a 350W white LED with hybrid beam,
spot, and wash effects, ensuring flexible performance that’s perfect
for any lighting setup. Its CMY color mixing, 7 solid color filters,
and a CRI boost filter (73-91) offer rich, accurate color output. With
its high output capabilities and smooth 16-bit pan/tilt motors, this
fixture delivers an outstanding blend of precision and power.
350W LED Hybrid BSW Moving Head
with CMY Color Mixing
Effects & Control

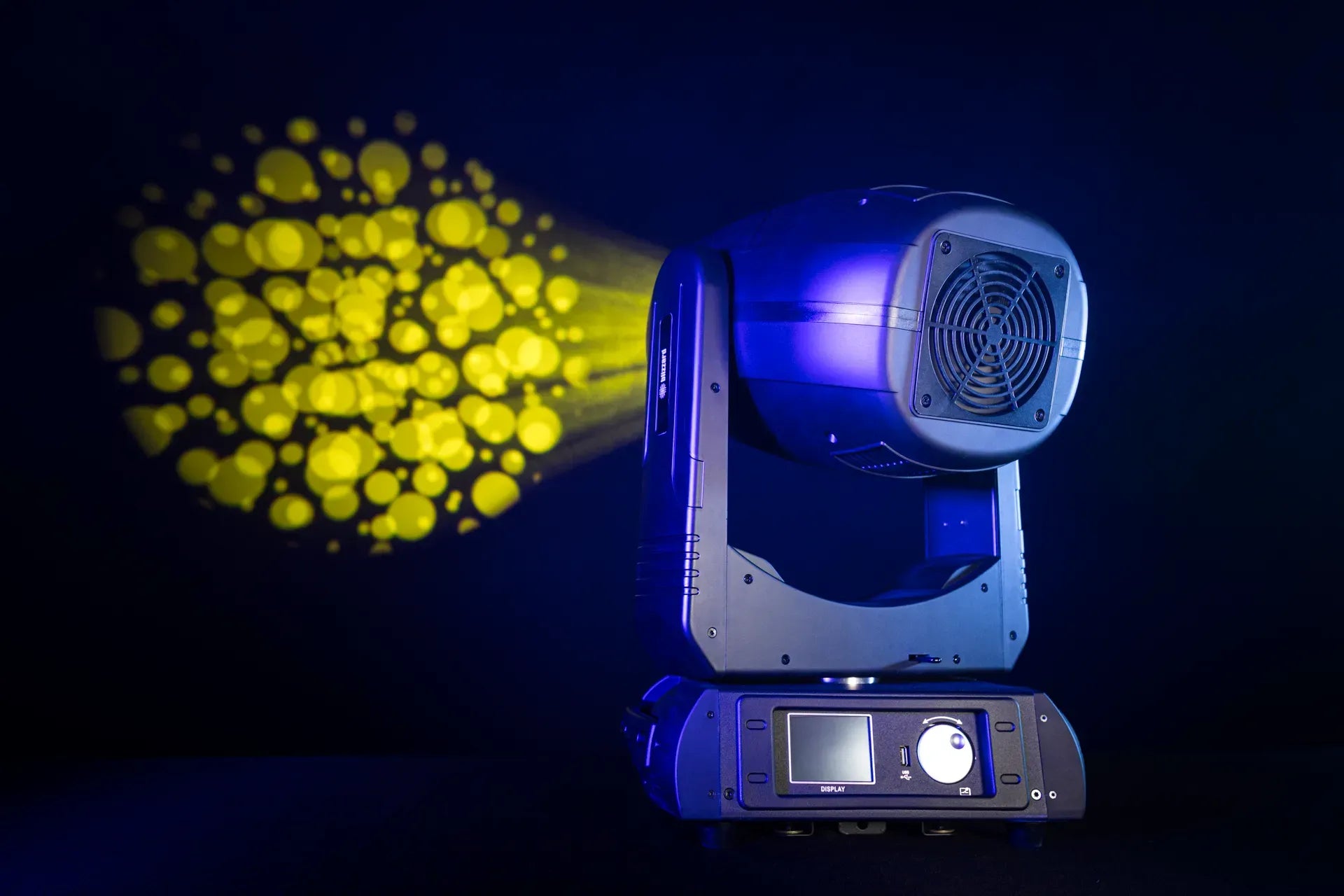

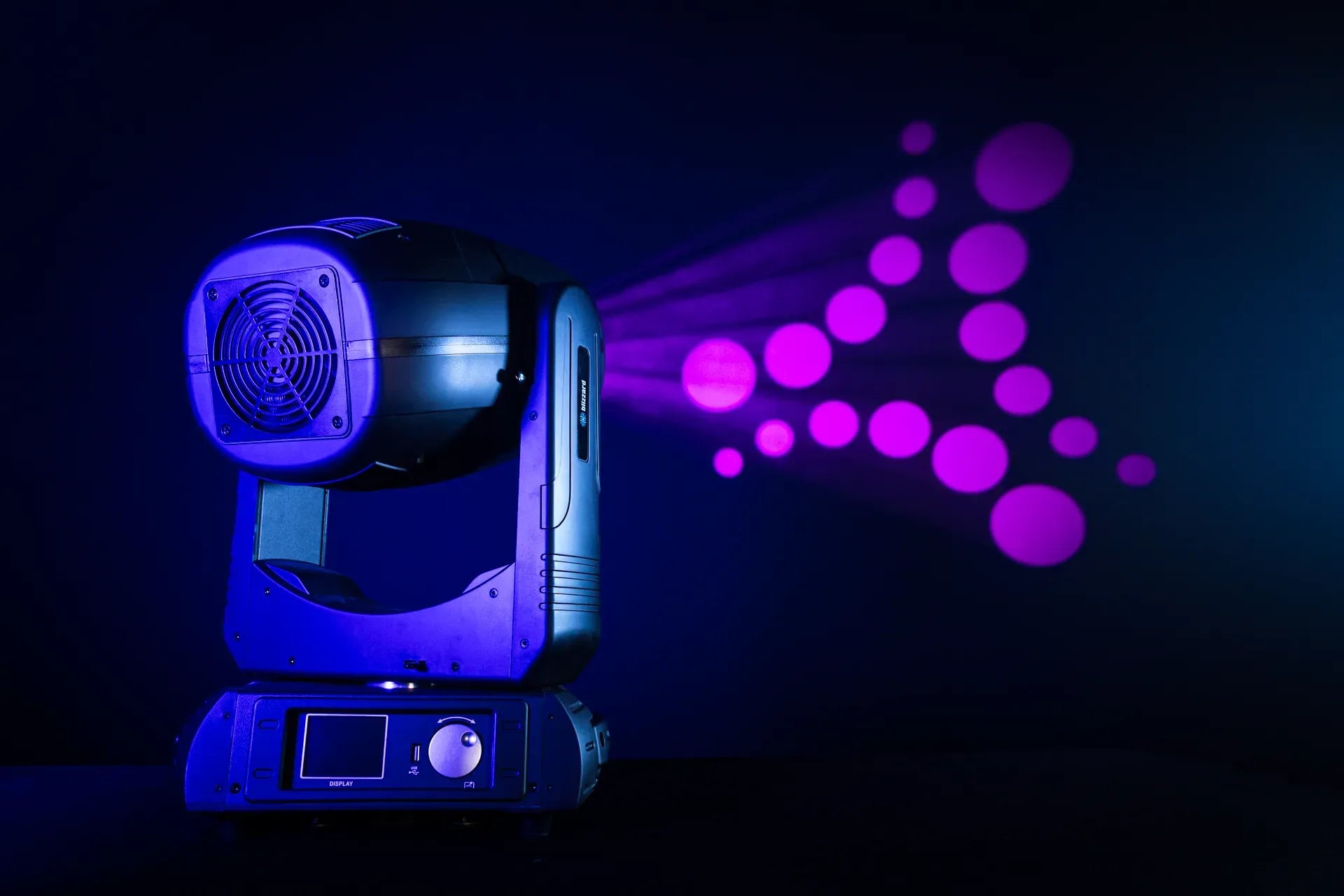

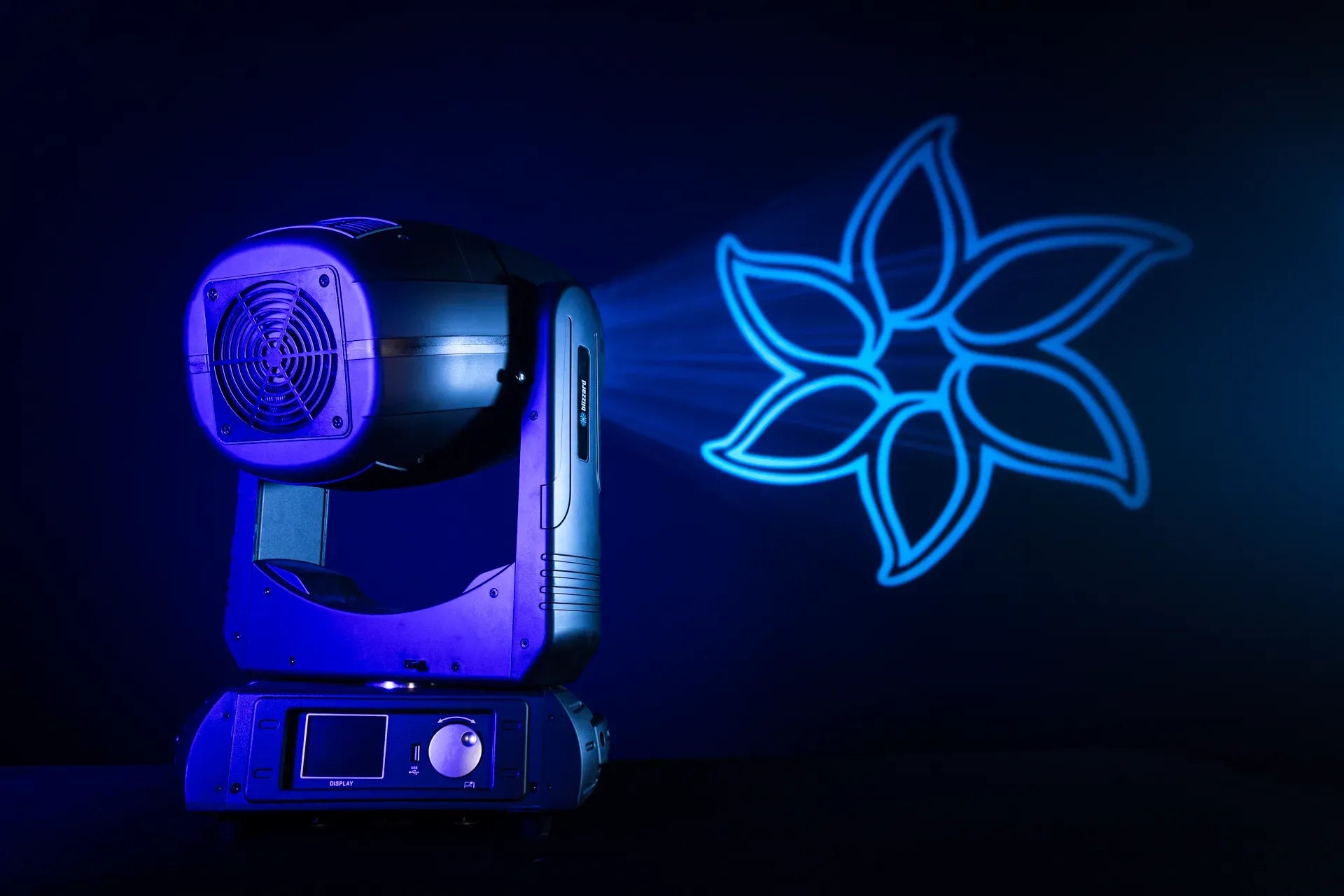

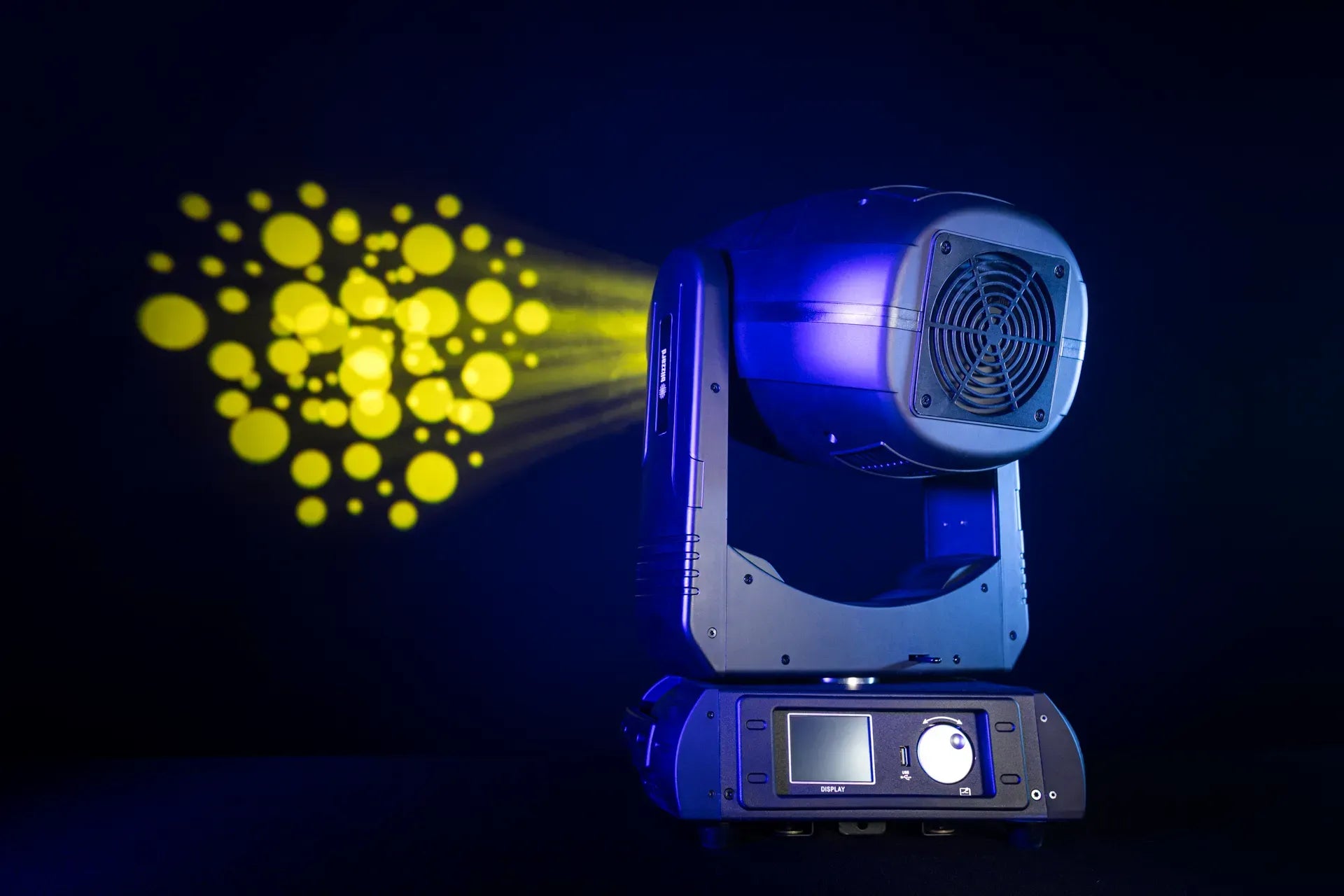

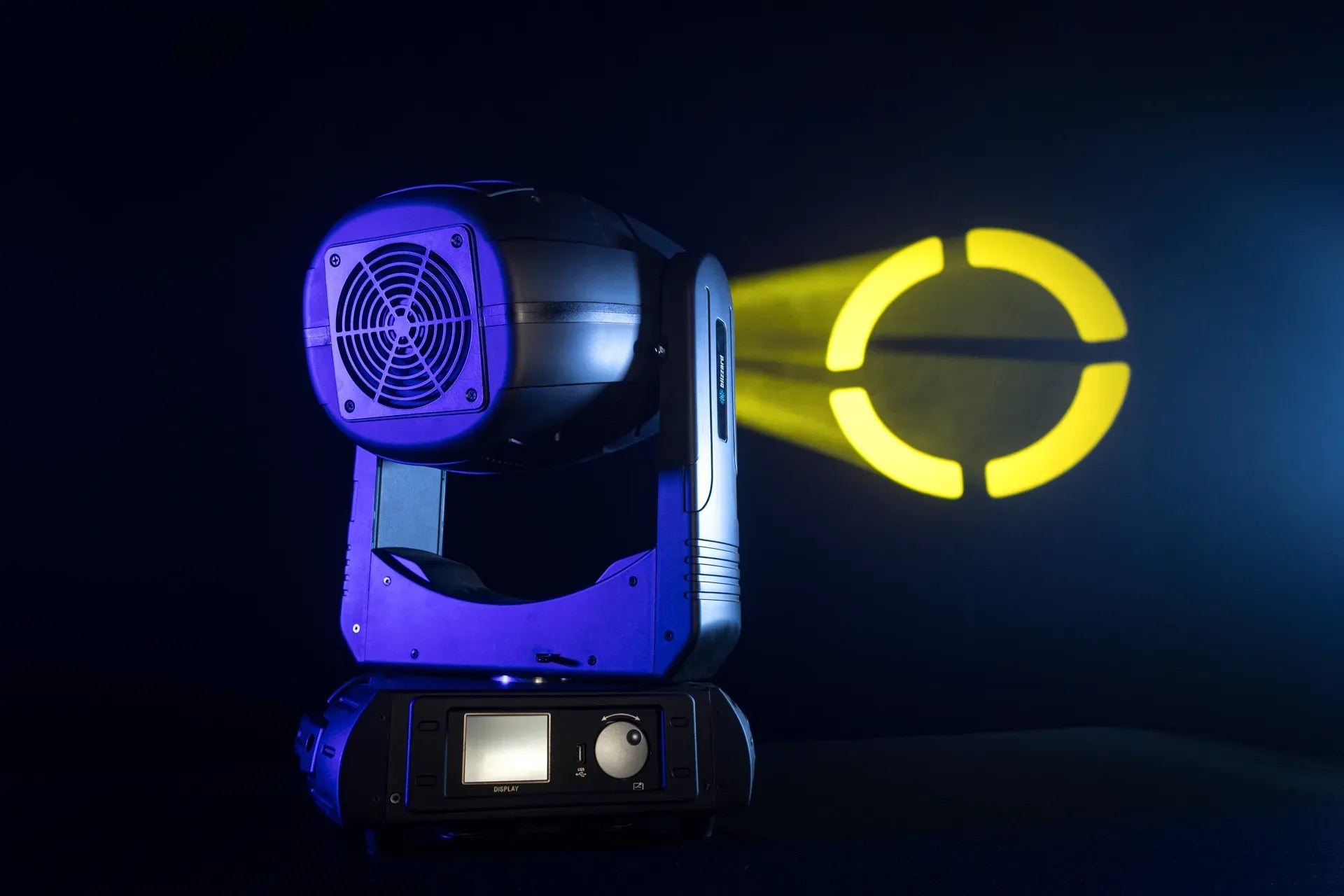

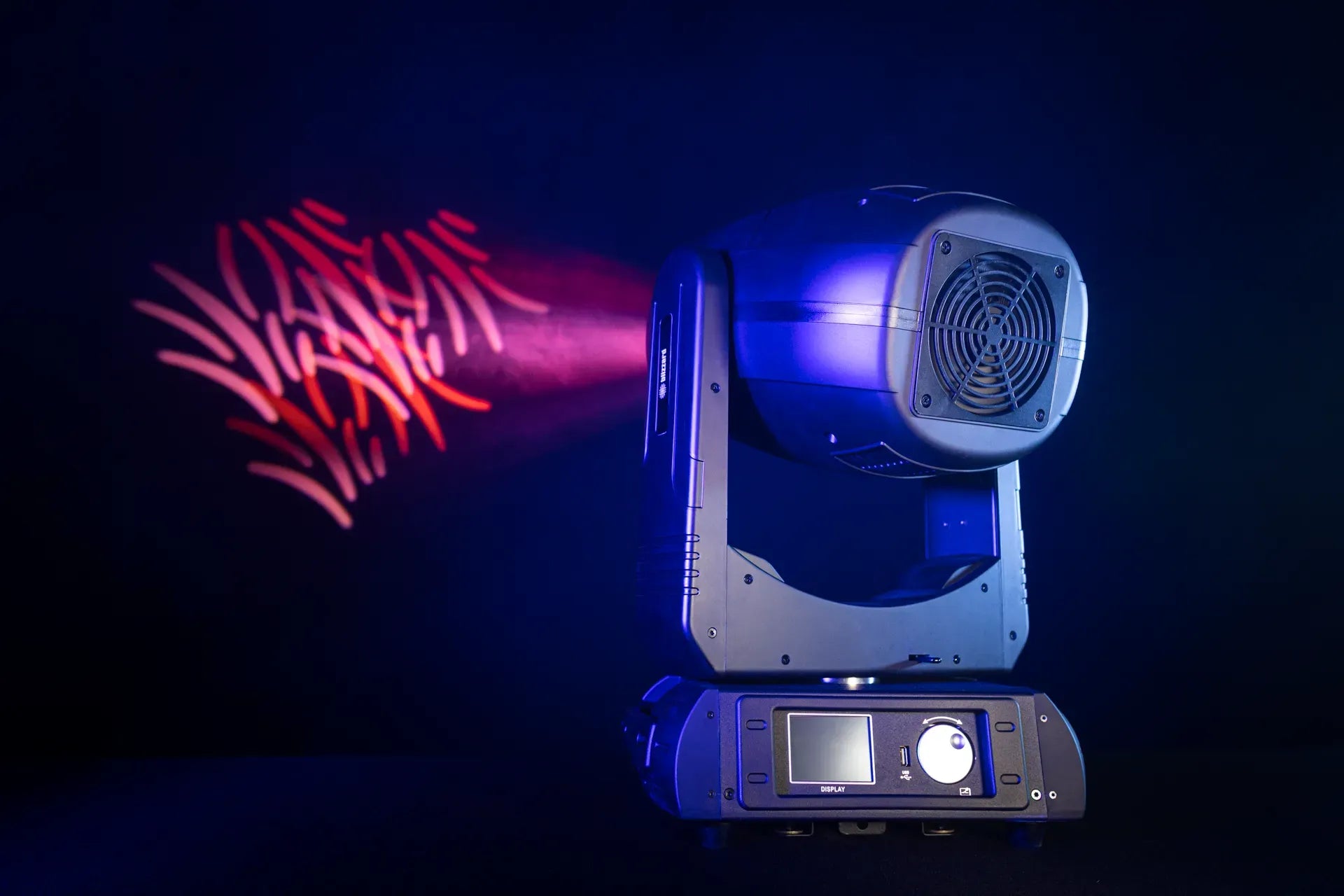

It offers dynamic lighting effects with a 9 gobo (+open)
rotating wheel, a 10 gobo (including a wave effect) fixed
wheel, motorized zoom (3-40°), frost, and dual rotating
prisms. These features create stunning mid-air visuals and
projections, while its 21/23-channel DMX modes and 2.8”
touchscreen control menu ensure smooth operation.
Luminous Intensity Beam 5-meters 7.5-meters 10-meters
3° (lux) 62,715 29,481 17,195
40° (lux) 2,025 902 519
3° (fc) 5,826.4 2,738.8 1,597.4
40° (fc) 188.1 83.8 48.2
Main Features
• 350W white (6500k) LED, 20,000 hrs.
• Rotating wheel: 9 gobos +open
• Fixed wheel: 10 gobos (including wave fx) + open
• CMY color mixing + 7 color filters & open
• Variable CRI filter (73 ~ 91)
• Pan: 540°, Tilt: 270° (8-16 bit resolution)
• 4 user-selectable dimming speeds
• 3-40° linear motorized zoom
• Motorized focus and frost effect
• 3/8-facet circular rotating prisms
• 0-25Hz strobe + variable, pulse, and random
• Linear electronic focus
• PowerCON True1-compatible power input
Optical
350W white (6500K) LED light source
3°- 40° beam angle
CRI: 73 ~ 91
Gobo size: 15.9mm outer,13mm inner
Flicker-free
Weight & Dimensions
14.4” x 10.1” x 24.4” (366 x 258 x 620 mm)
43.3 lbs (19.6kg)
Control
Protocol: USITT DMX-512
5-pin DMX In/Out
21/23-channel DMX
2.8” touchscreen LCD menu w/jog wheel
DMX512, master/slave, auto mode
Power + Current
110-240VAC, 50-60 Hz
Consumption: 512W,
4.6A, PF: .99
PowerCON™ TRUE1-compatible input
Warranty
2-year limited warranty
