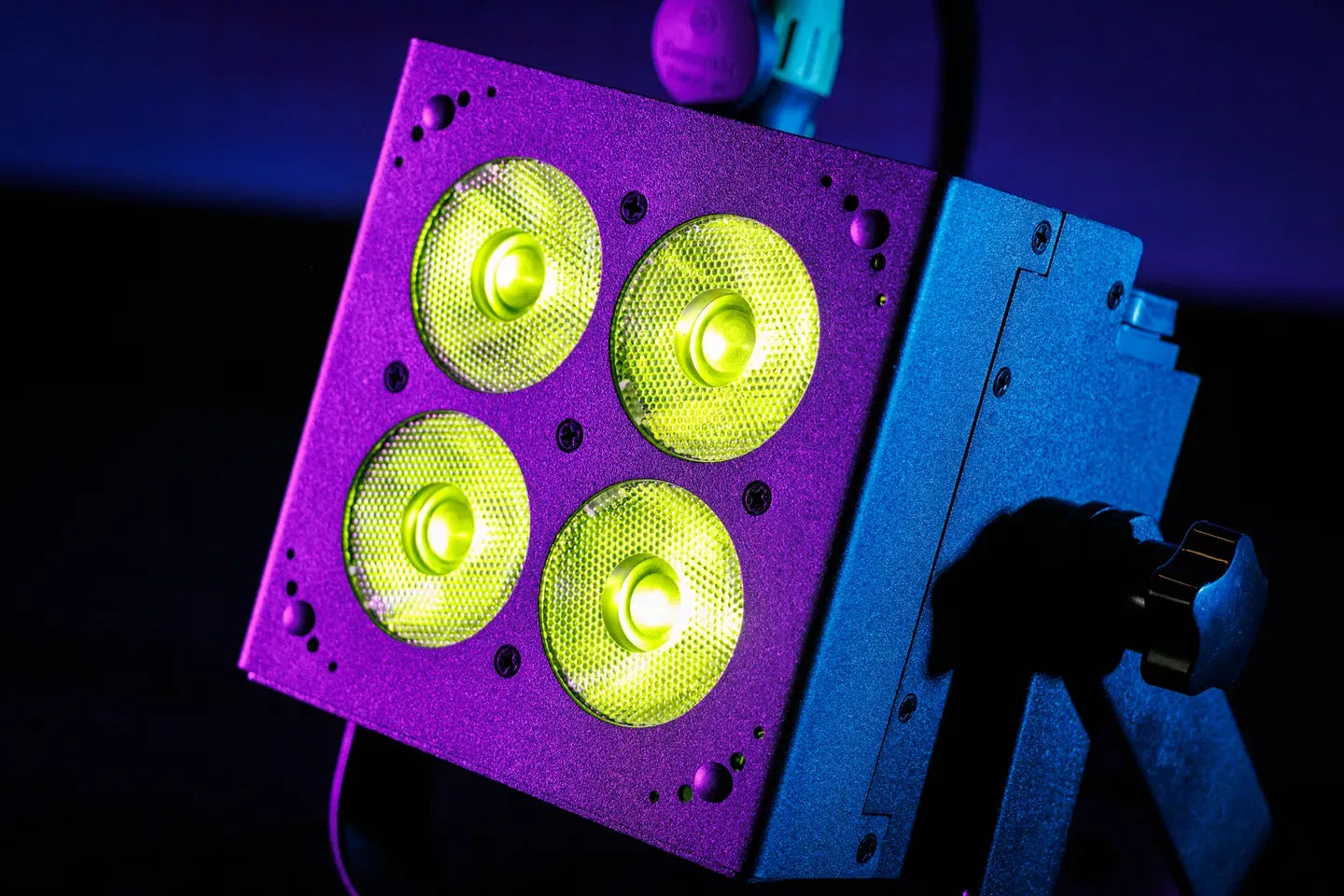

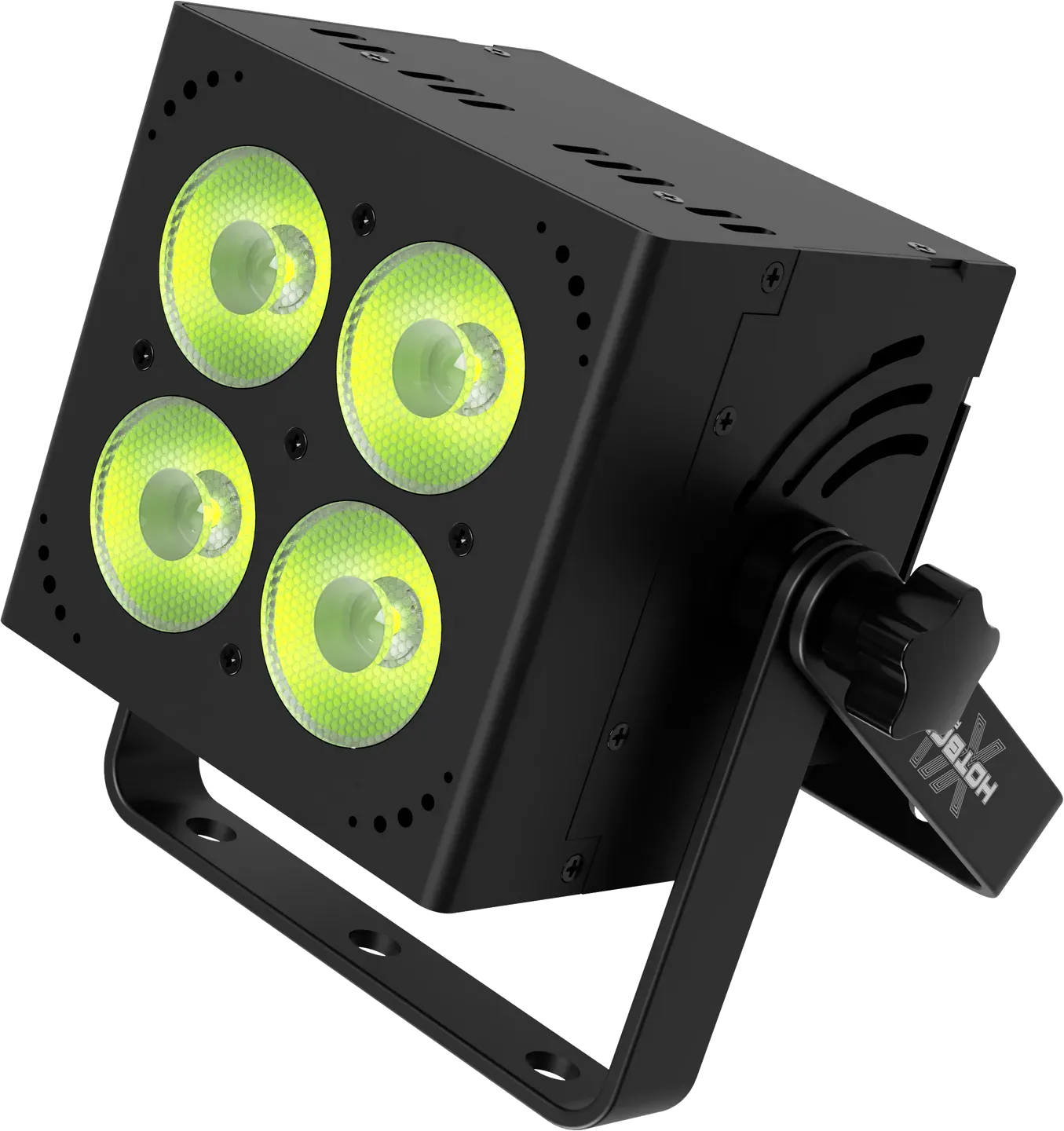

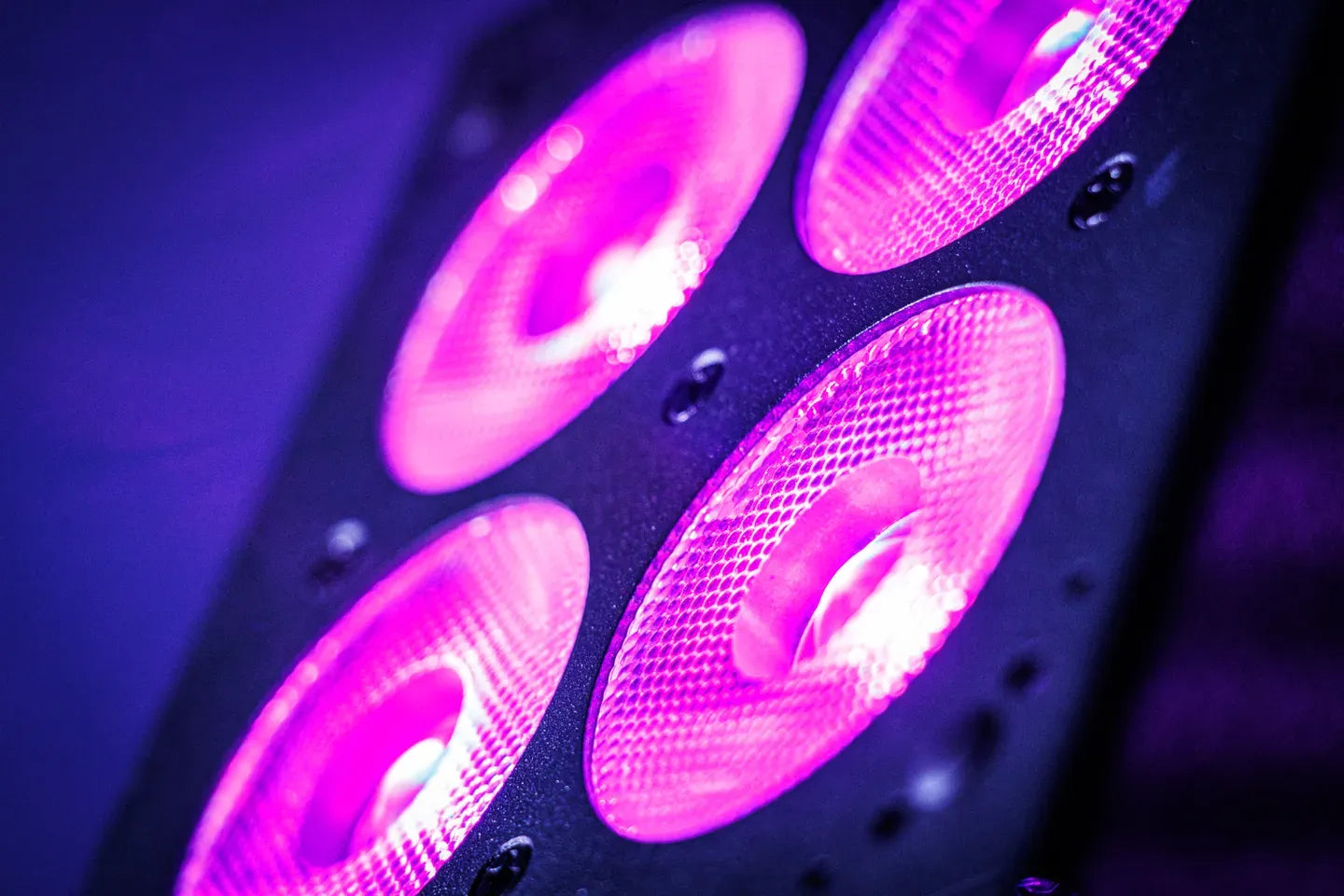

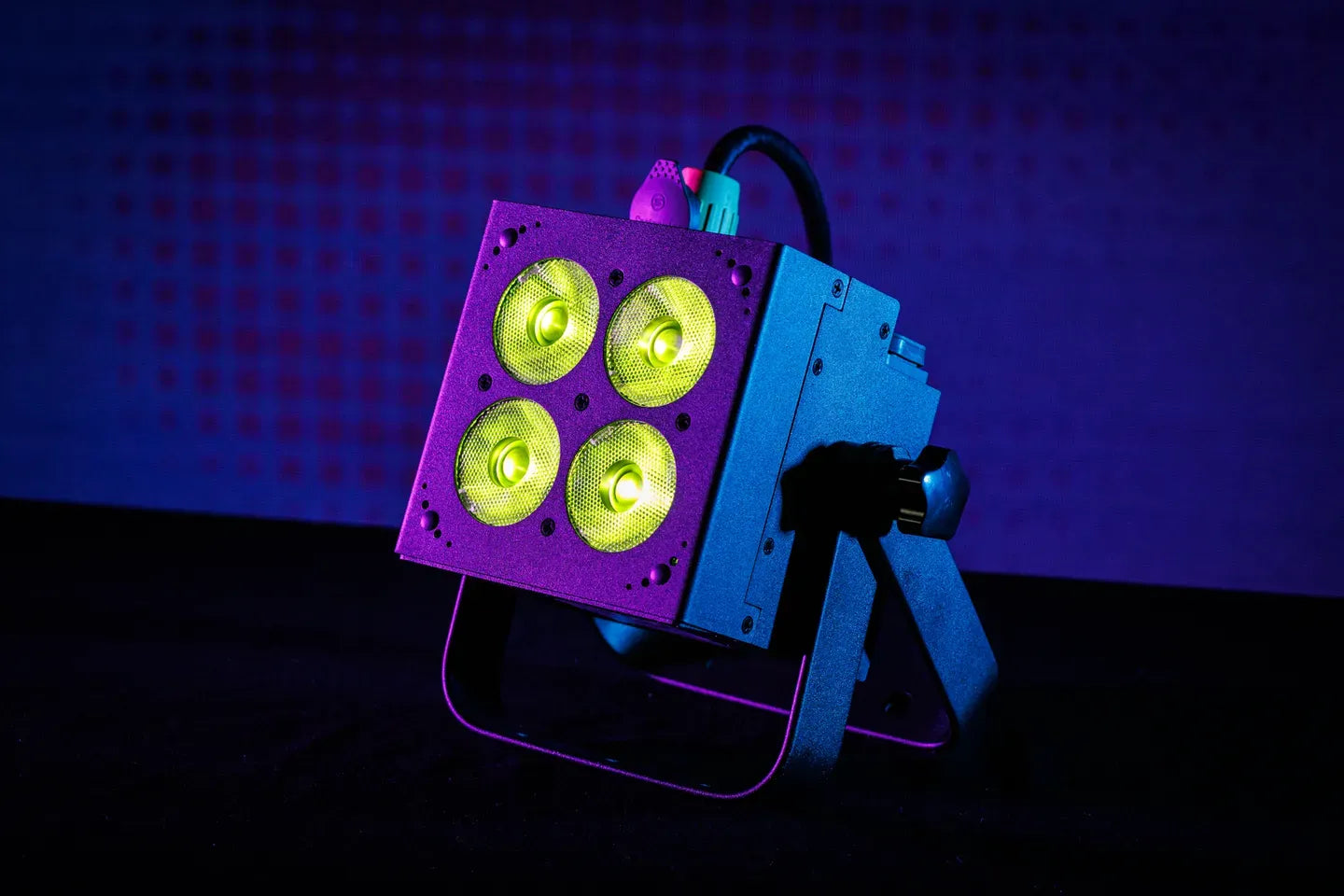

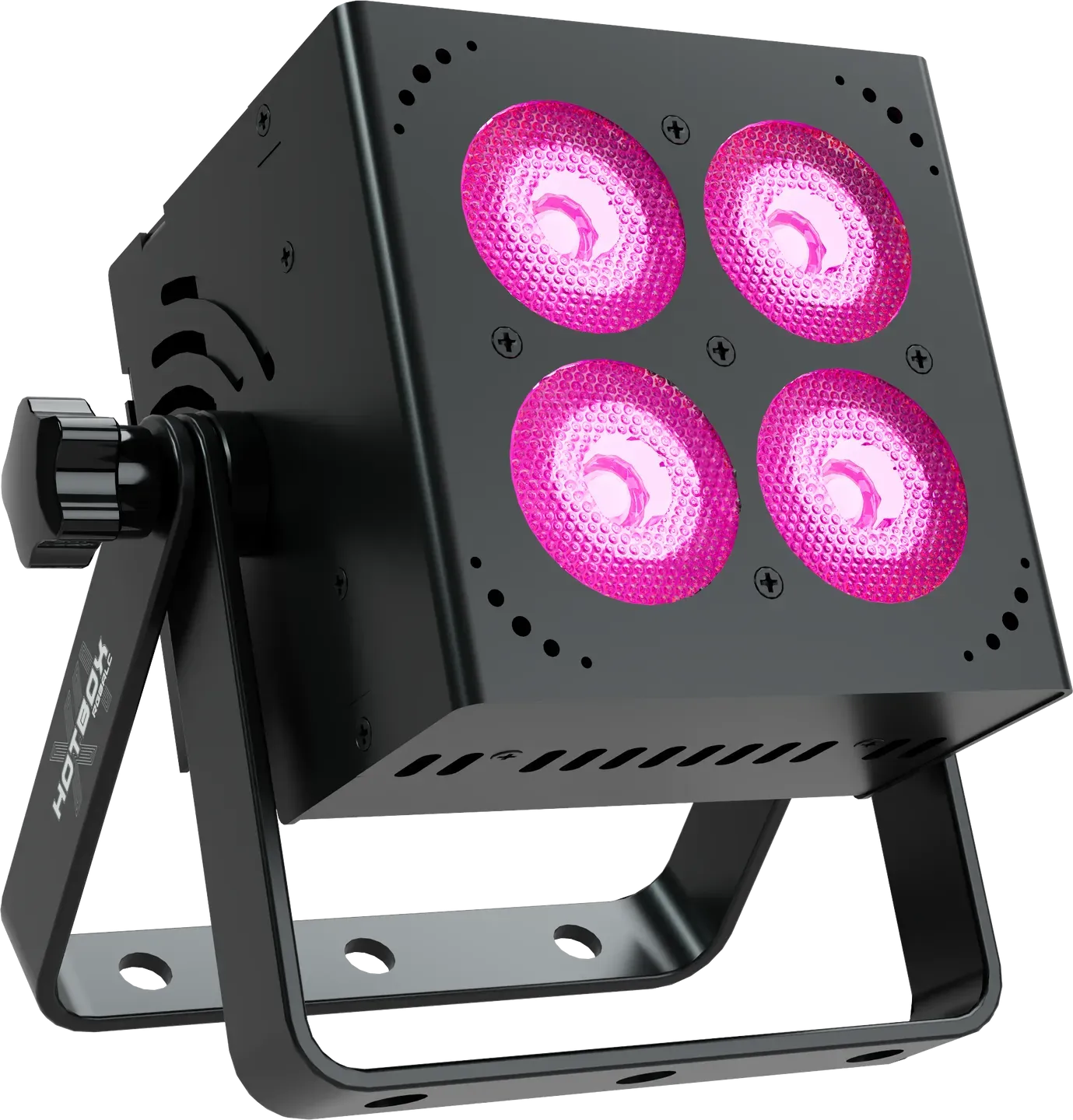

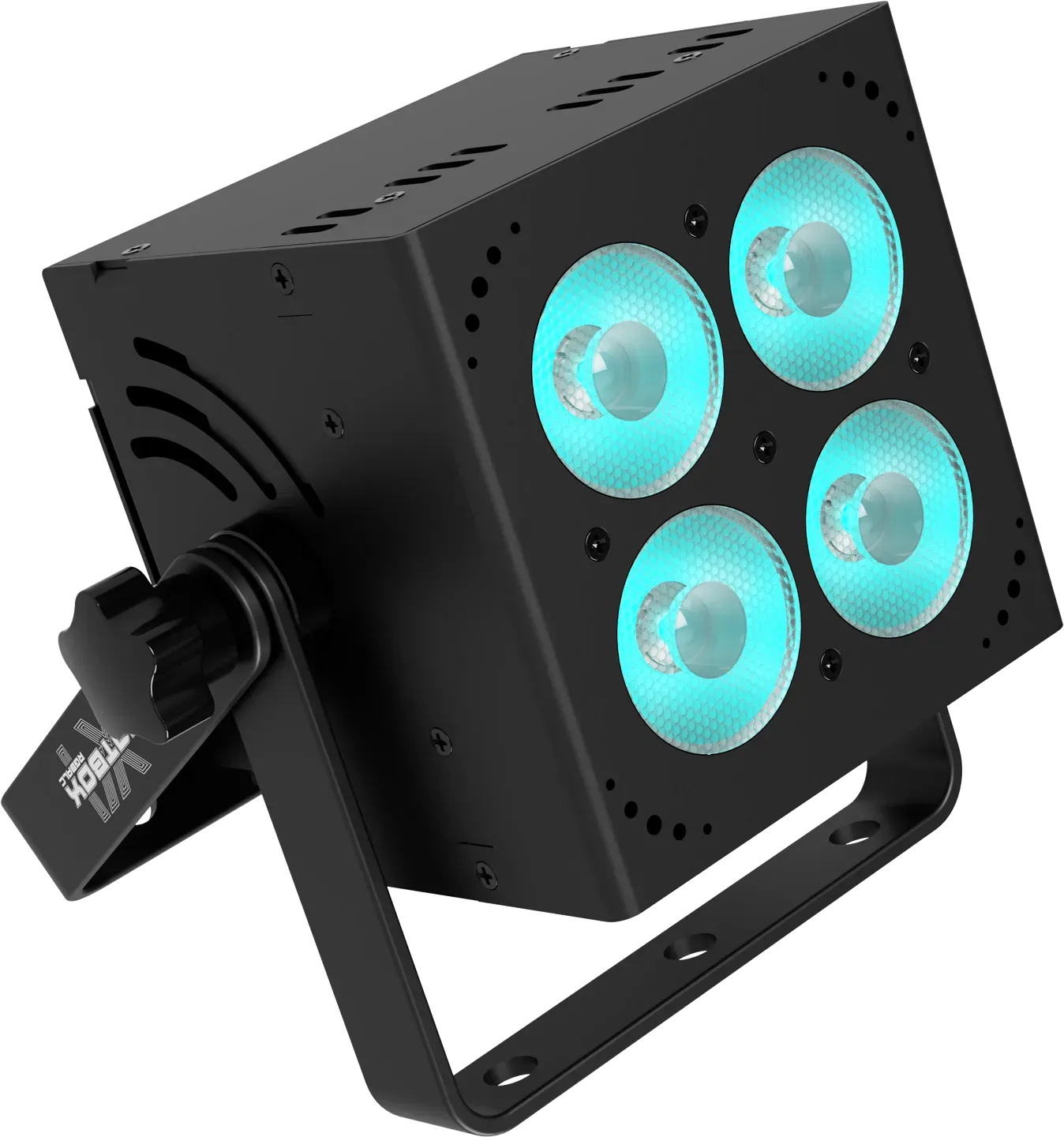

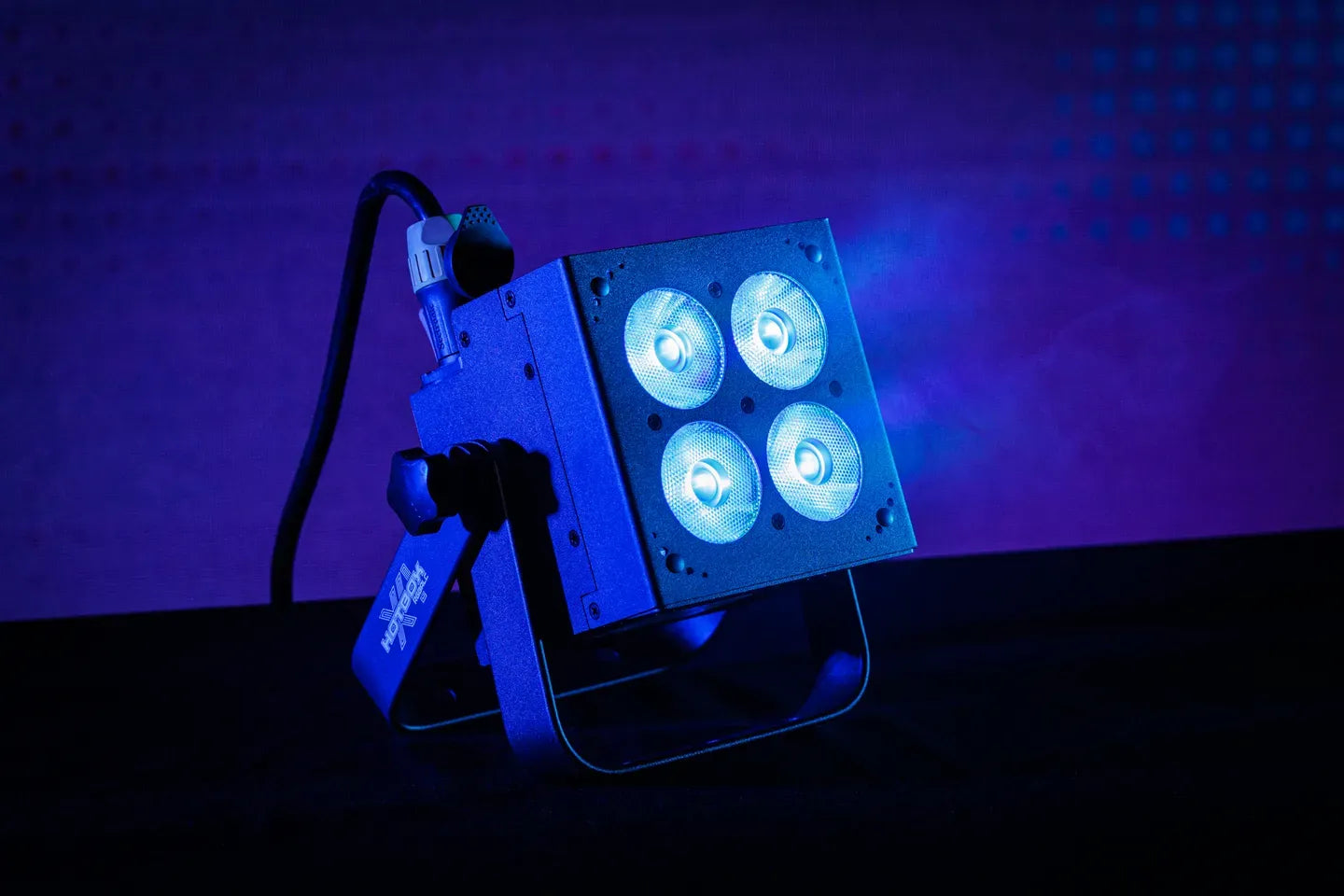

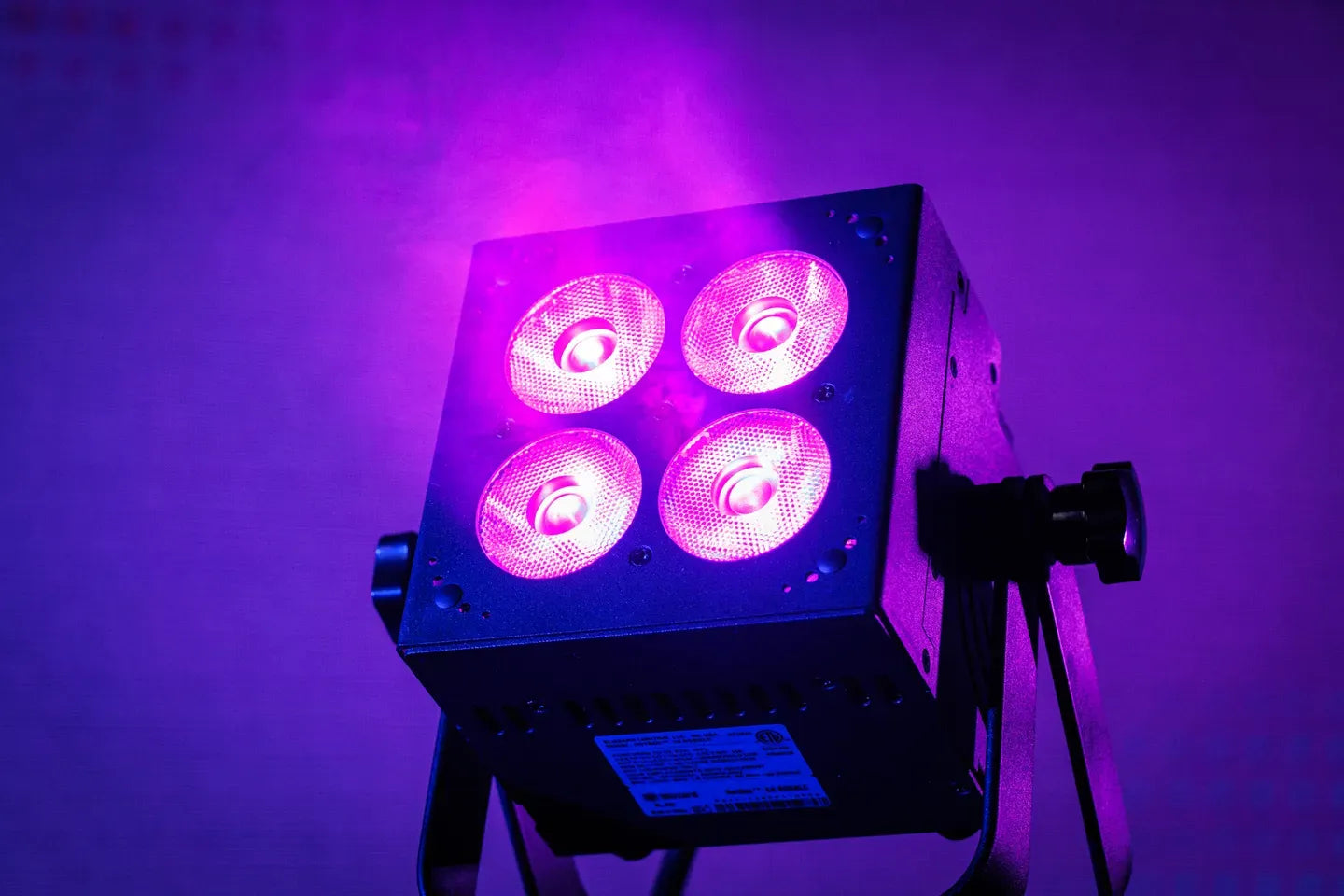

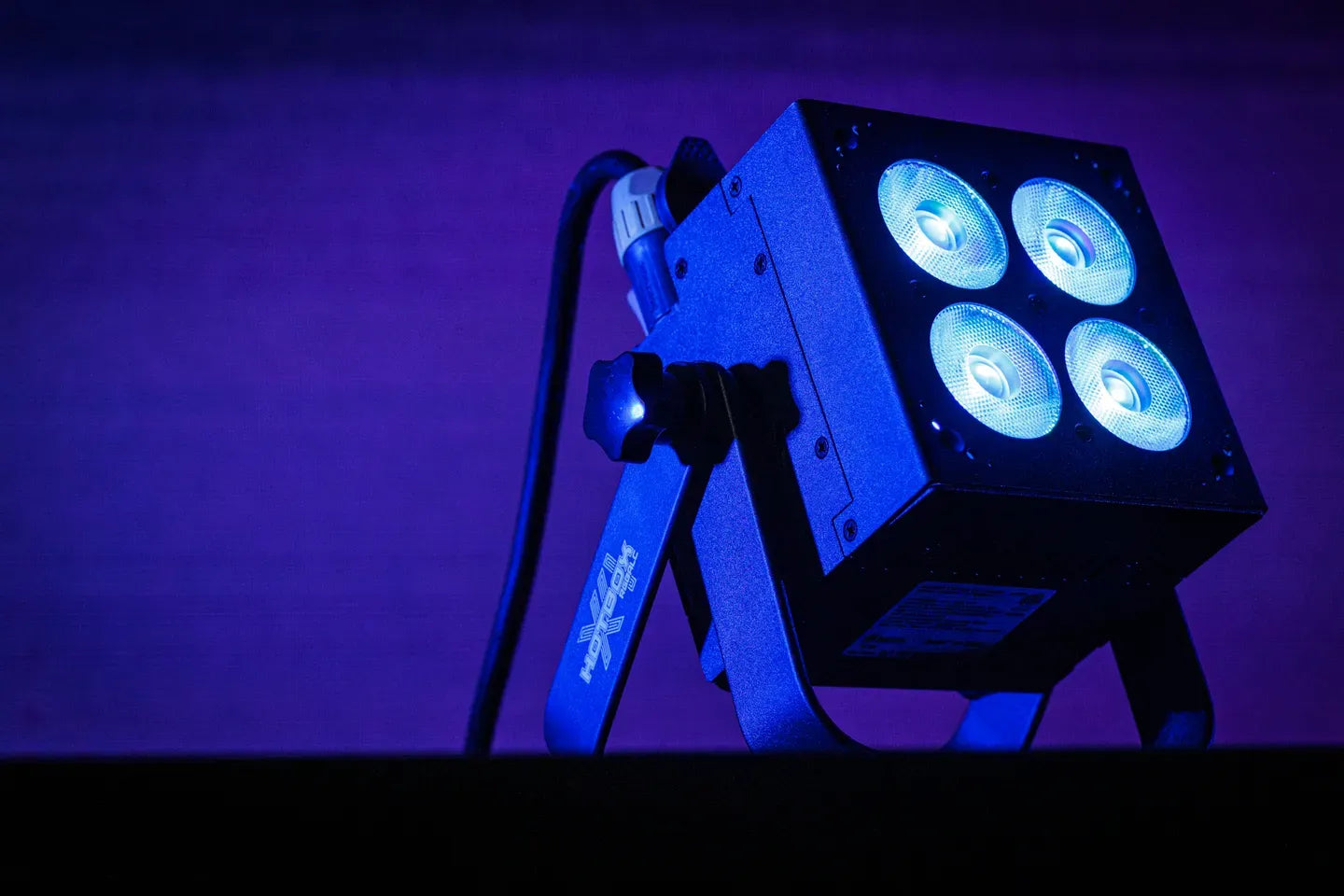

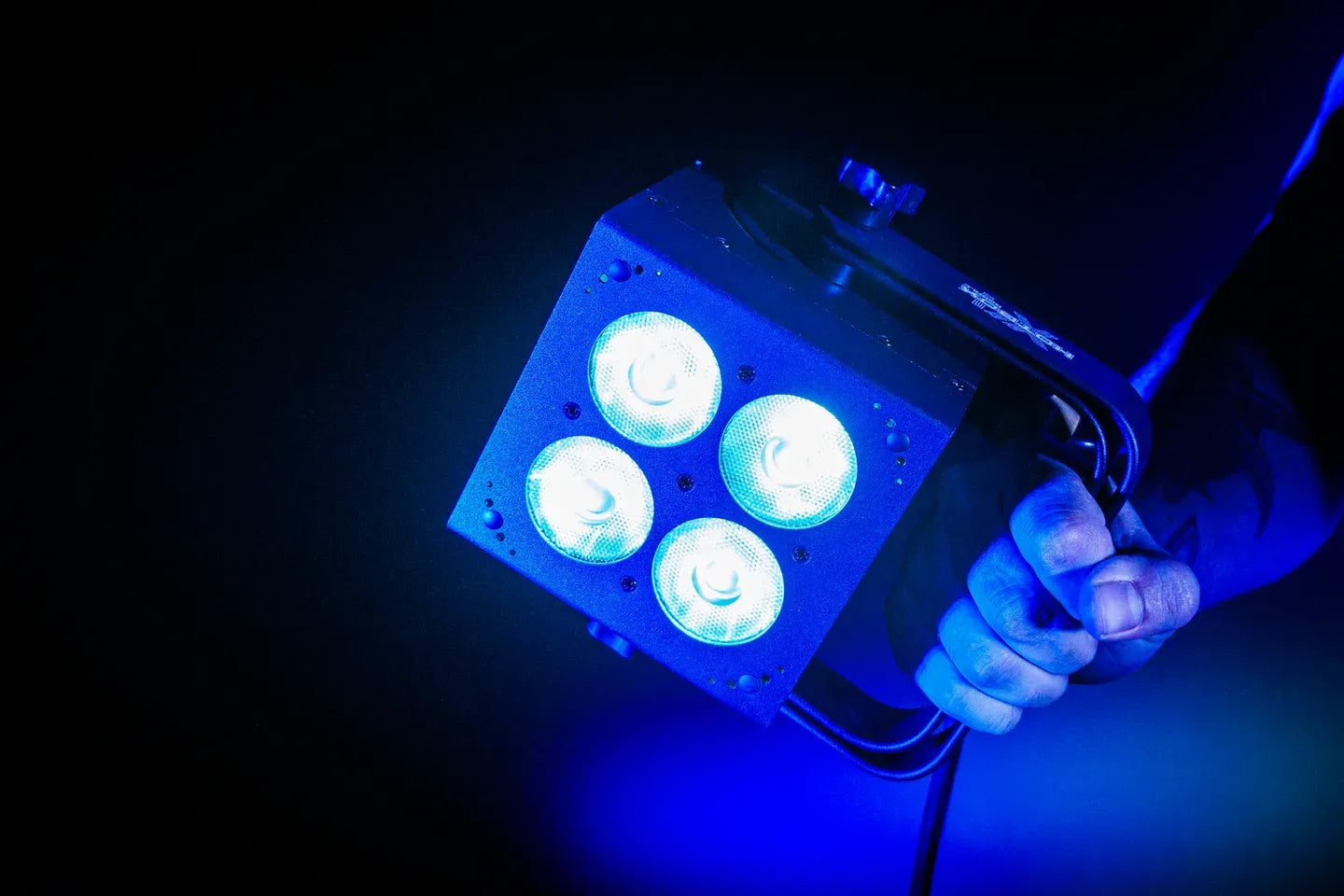

Blizzard Hotbox X4 RGBALC
High Output, RGBALC Color Mixing
Exceptional Quality
The HotBox™ X4 RGBALC is a top performer and undoubtedly
our most powerful and versatile HotBox™ to date. Equipped with
4x 20W RGBALC 6-in-1 LEDs, it delivers vibrant color mixing
and smooth effects. It can be rigged for stage lighting, used in a
freestanding position, or easily fit into standard-sized box trusses
for truss warming. With a 25° beam angle, variable dimming
curves, and striking strobe effects, it is perfect for a wide range of
indoor lighting applications.
Innovative Design
Built with advanced features and durability in mind, this fixture
offers multiple built-in programs, customizable chase effects, and
is ideal for video applications with flicker-free LEDs and user

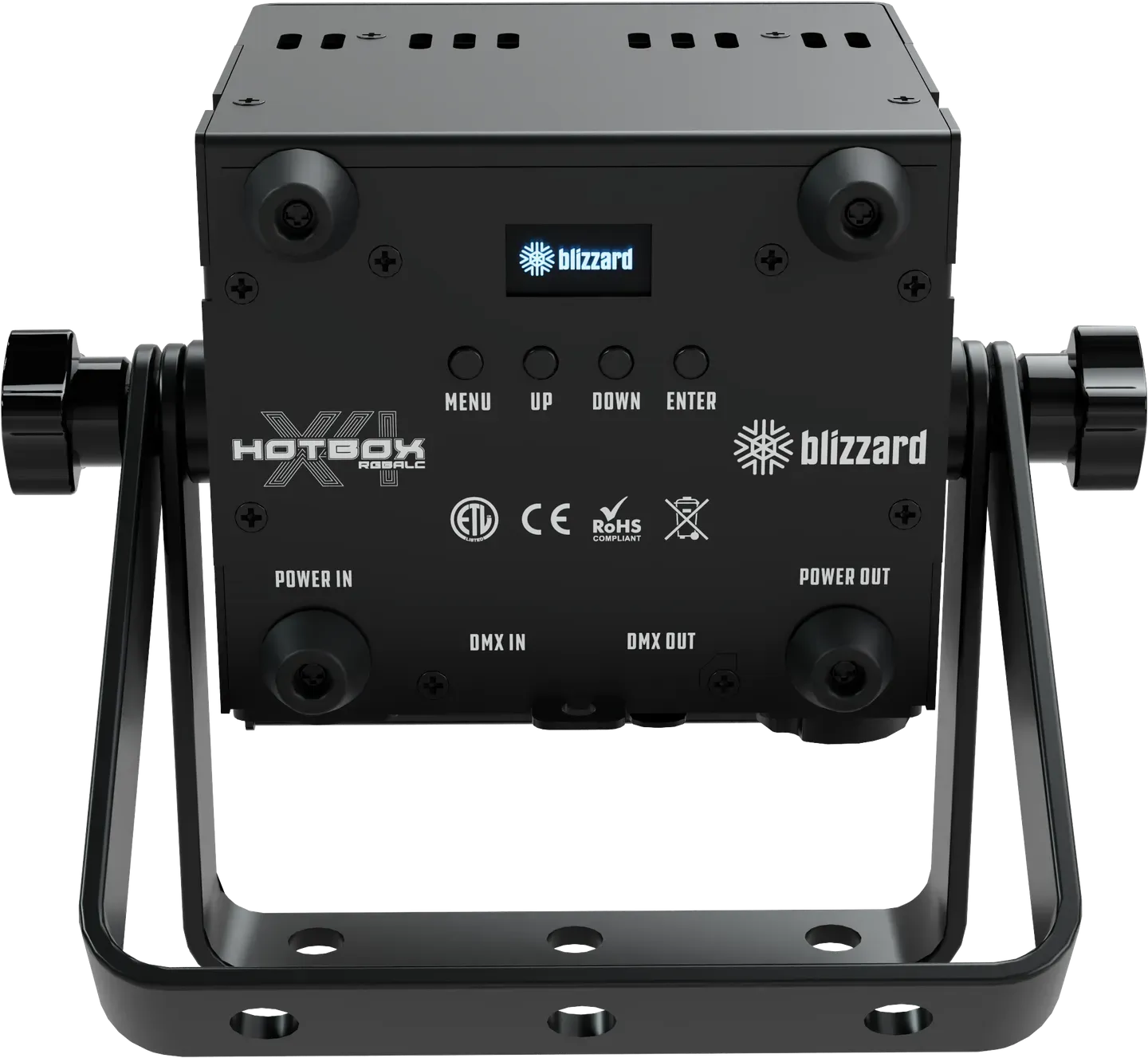

adjustable PWM settings. Its well-structured 4-button OLED menu
ensures easy navigation, while RDM protocol adds another layer
of professional control. Housed in a solid metal casing, it features
industry-standard powerCON® TRUE1-compatible power and 5-pin
DMX in/out connections.
Luminous Intensity
Beam 2M 2.5M 3M 4M 5M 25° 5,563 3,059 2,379 1,319 820
Main Features
• 4x 20W RGBALC 6-in-1 LEDs, 100,000 hrs.
• RGBALC color mixing ability in standalone mode
• Built-in color & chase macros via DMX
• Built-in automated programs via master/slave
• Virtual color wheel
• 6/8/12-channel DMX profiles w/32-bit dimming
• Flicker-free constant-current LED driver
• 25 degree beam angle
• Easy-to-use, 4-button OLED control menu
• Dual mounting brackets for positioning flexibility
• 5-pin male/female XLR input & output connections
• PowerCON® TRUE1™ compatible in/out power connectors
Optical
4x 20W RGBALC 6-in-1 LEDs (100,000 hours)
Flicker-free LEDs
25° beam angle
Weight & Dimensions
8.1” x 4.7” x 7.2” (205.5 x 119.2 x 183.2 mm)
4.25 lbs (1.94 kg)
Control Protocol: USITT DMX-512, RDM
5-pin DMX in/out
6/8/12-channel DMX
4-button menu with OLED display
DMX512, M/S, auto mode
Power + Current 100-240VAC, 50-60 Hz Consumption: 67W, 0.95A, PF: .6
PowerCON® TRUE1 compatible in/out
Warranty 2-year Limited Warranty
