Blizzard Infinipix Arcade
Multi-Beam + Eye-Candy FX
Step Up Your Game

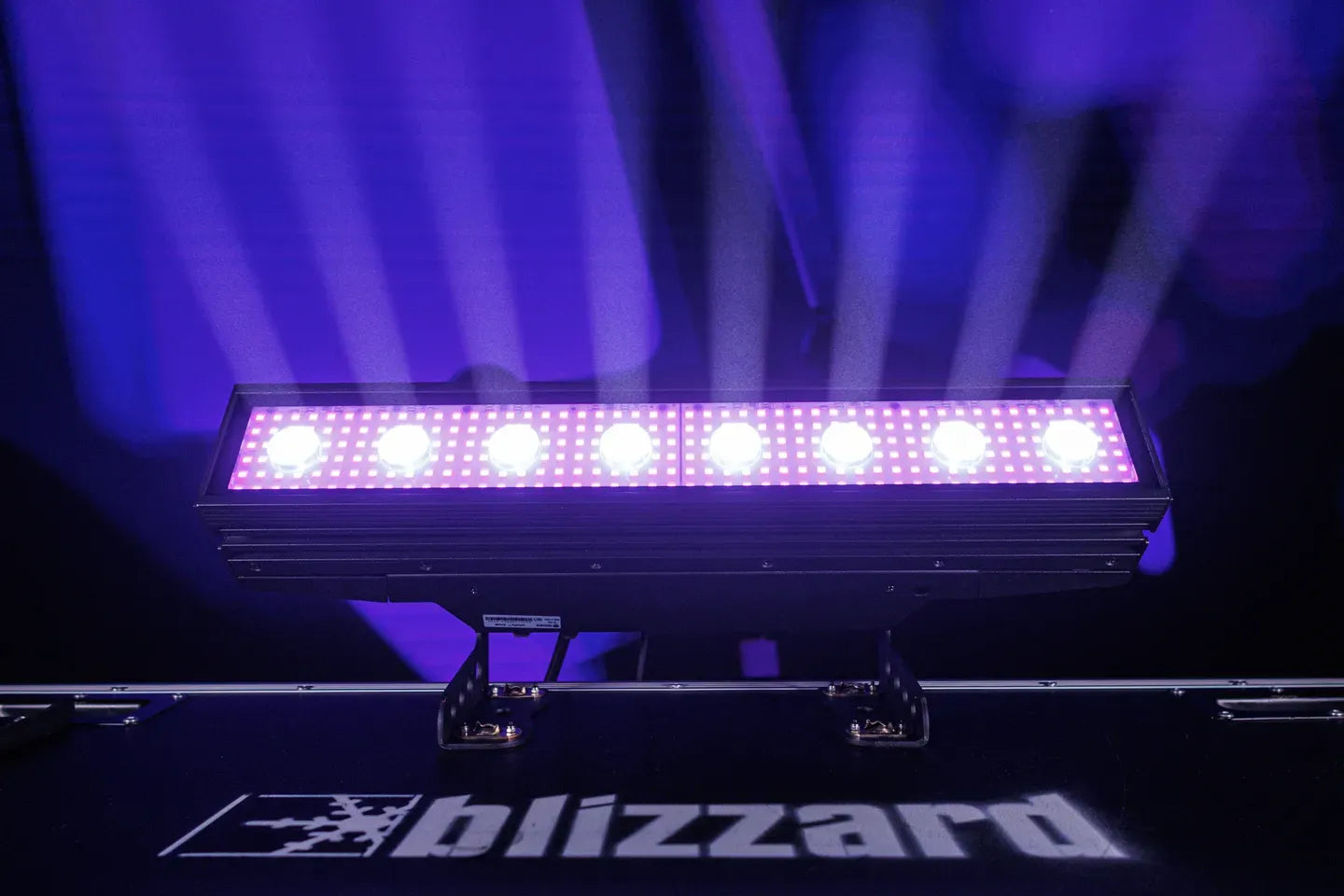

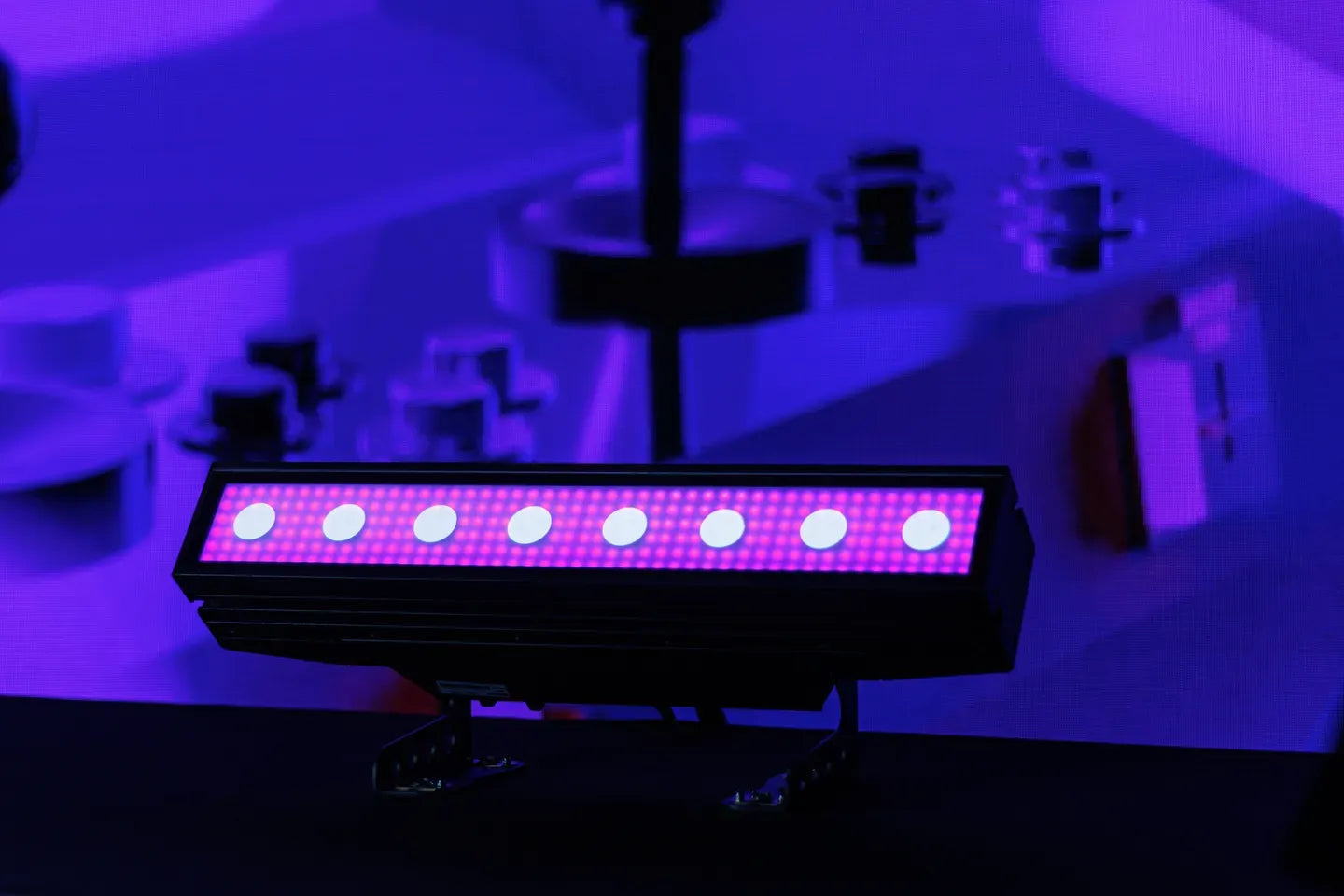

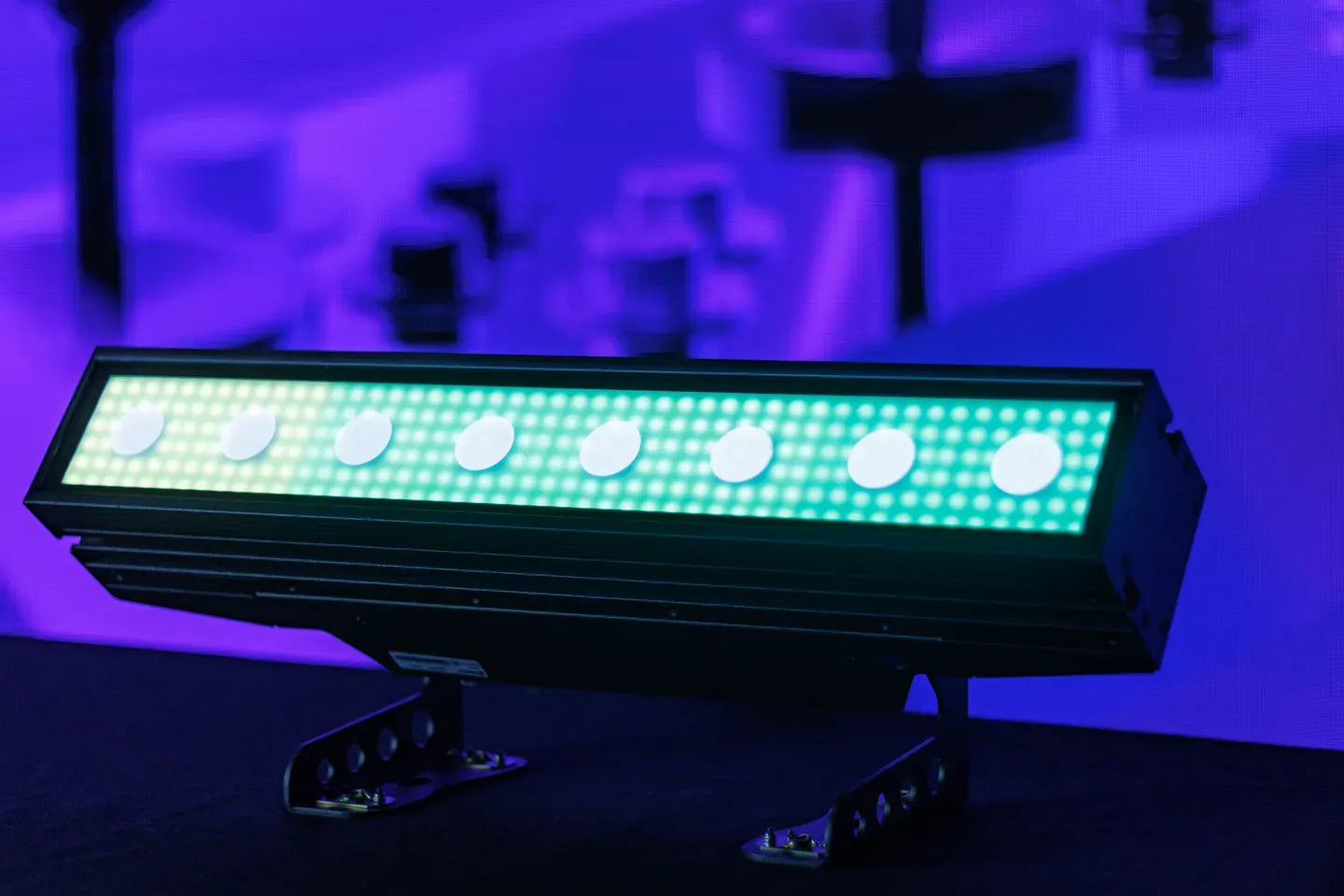

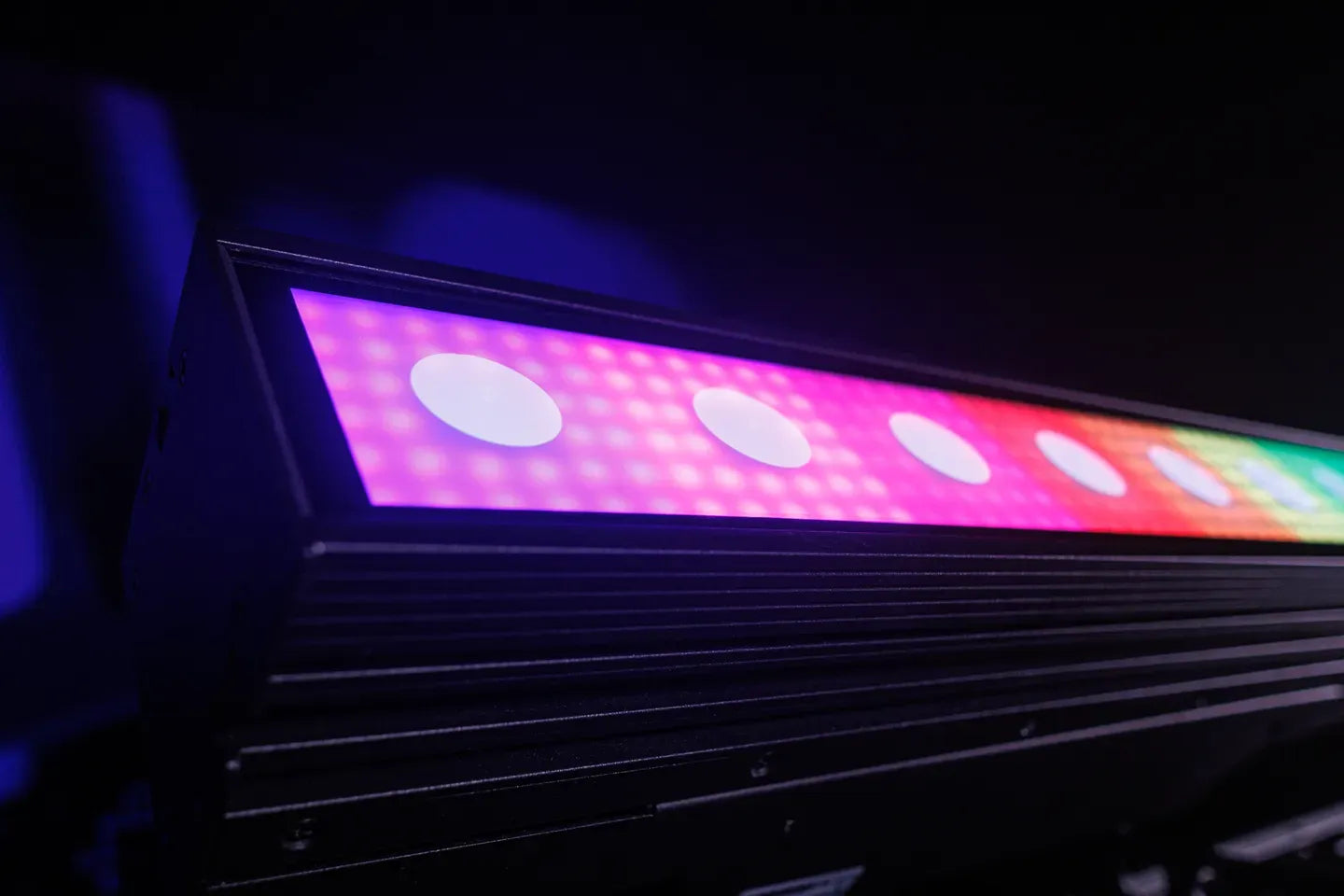

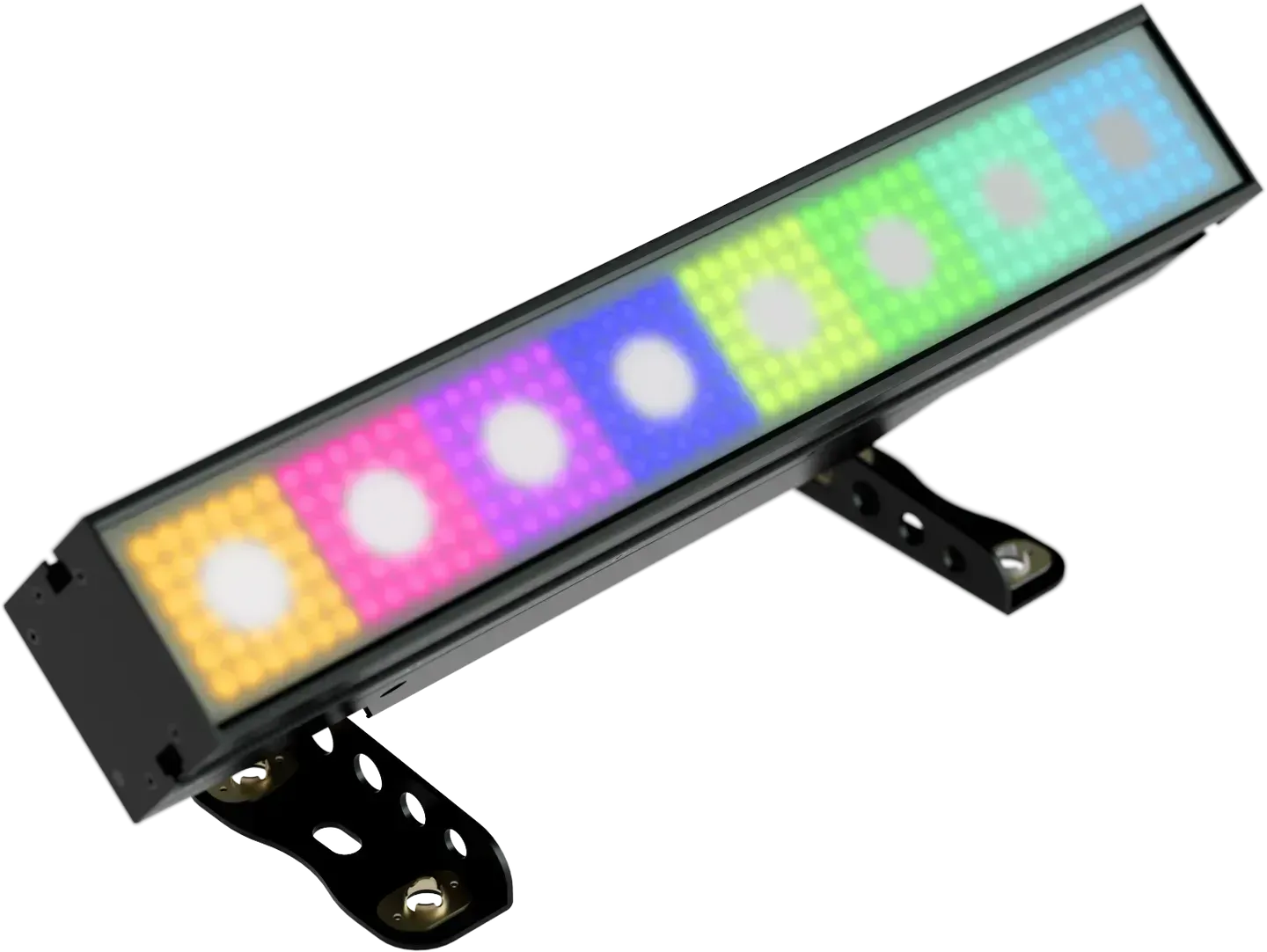

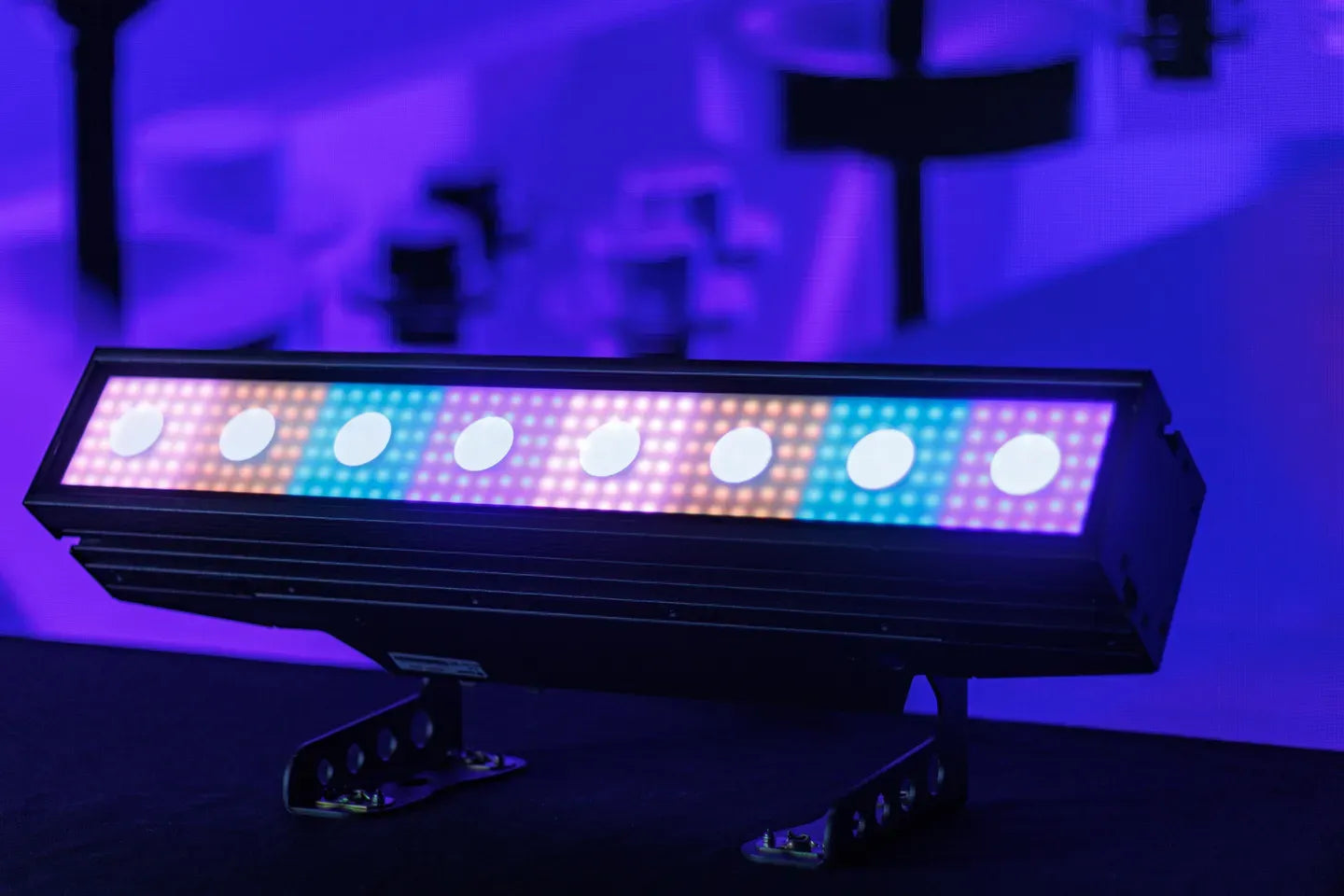

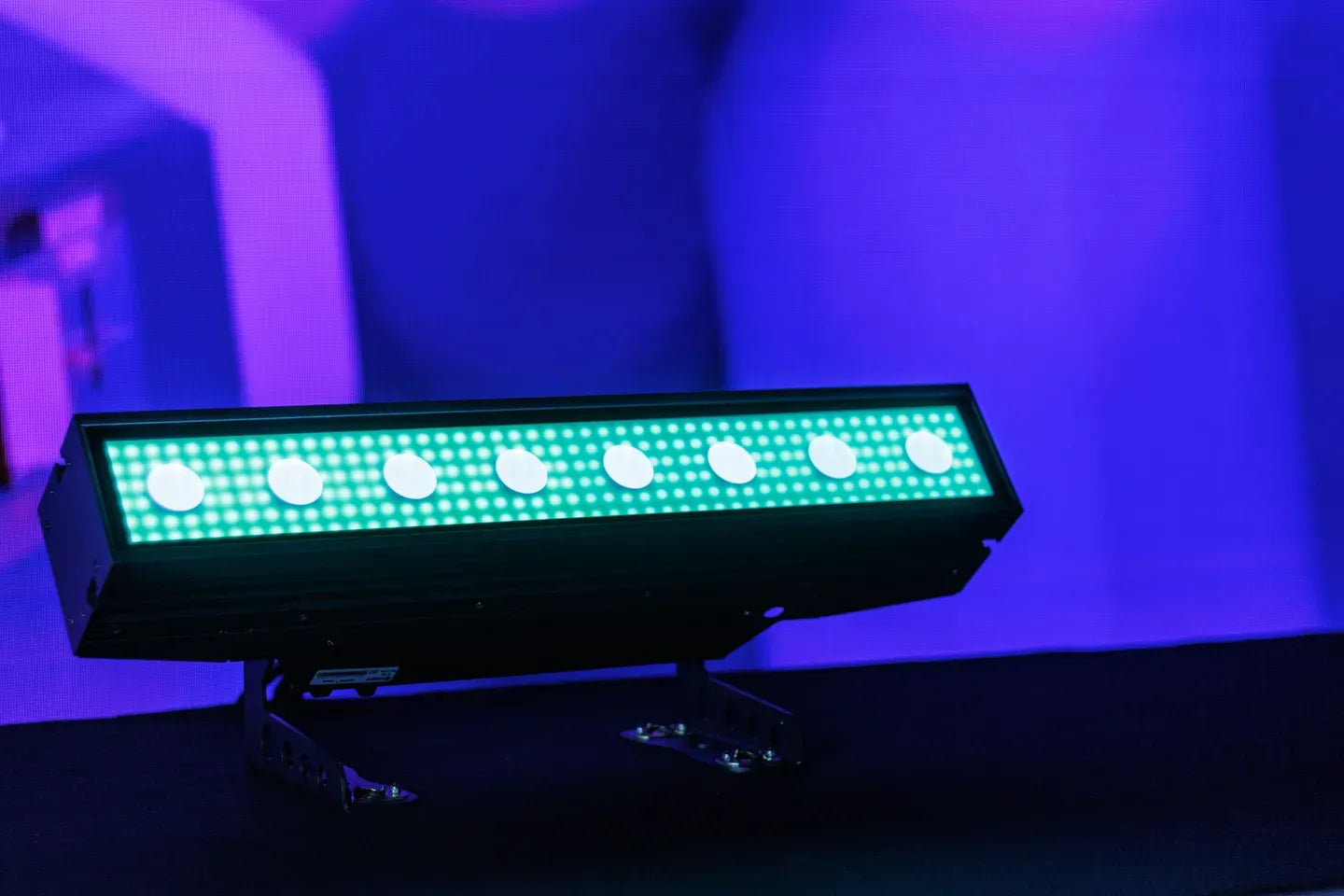

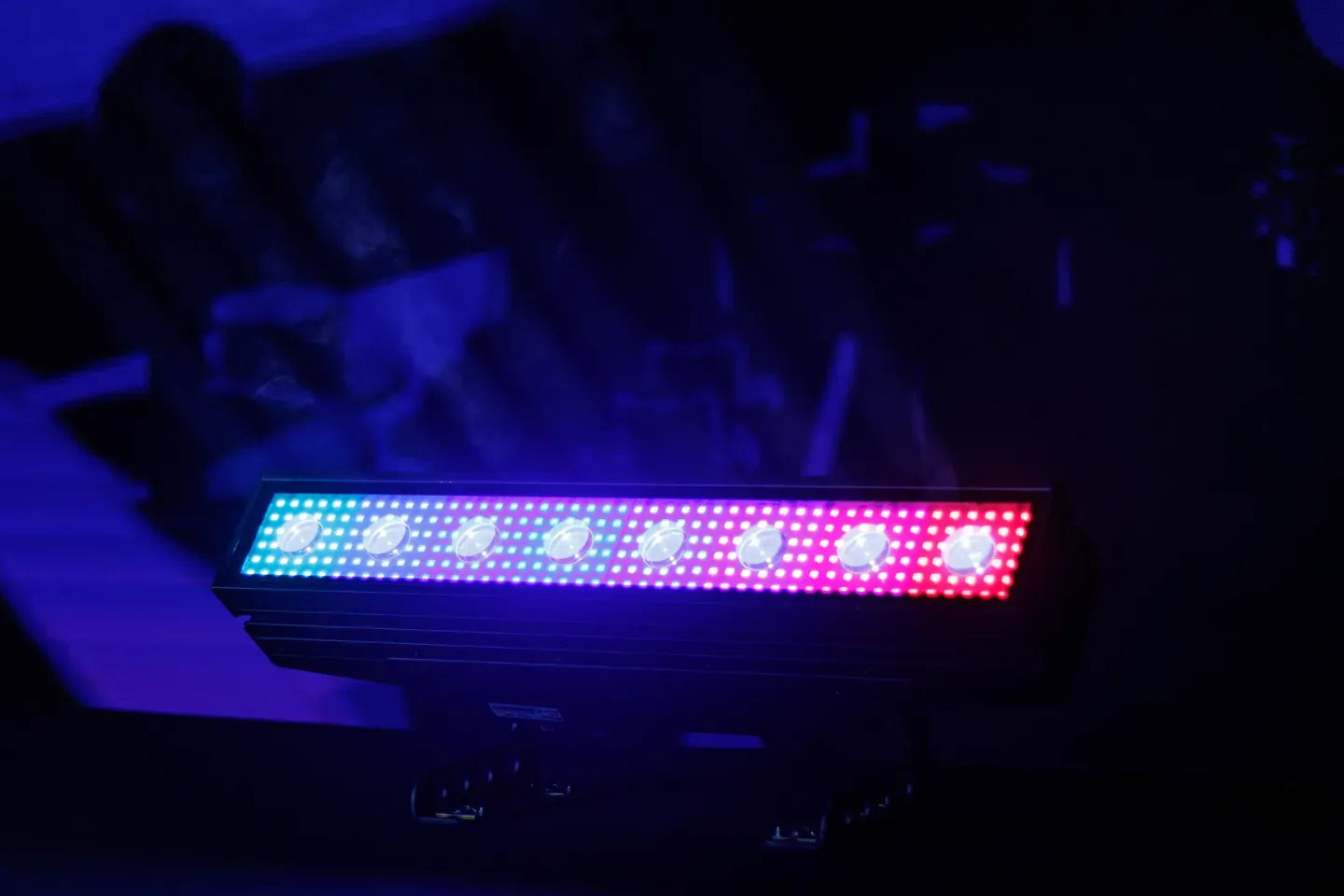

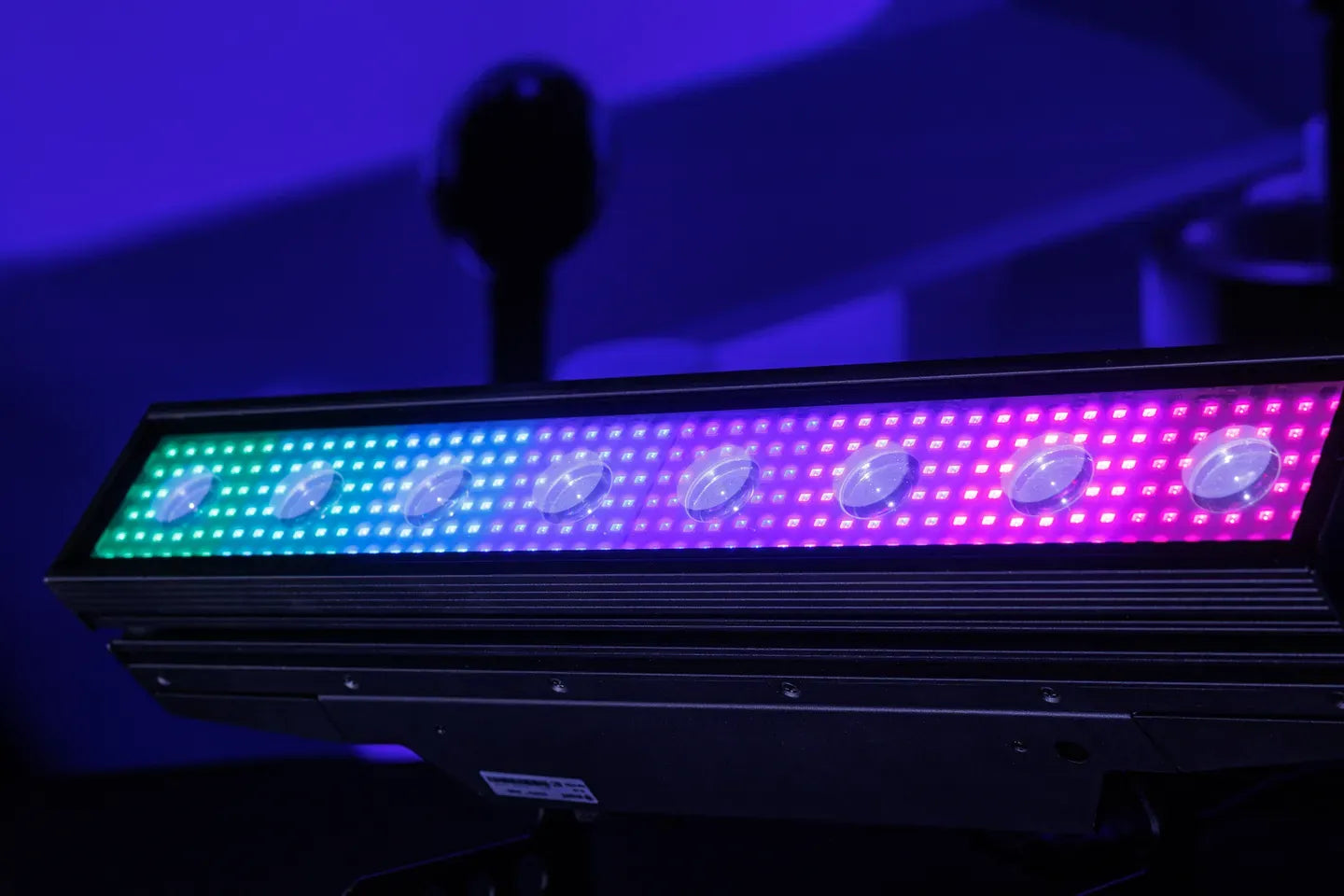

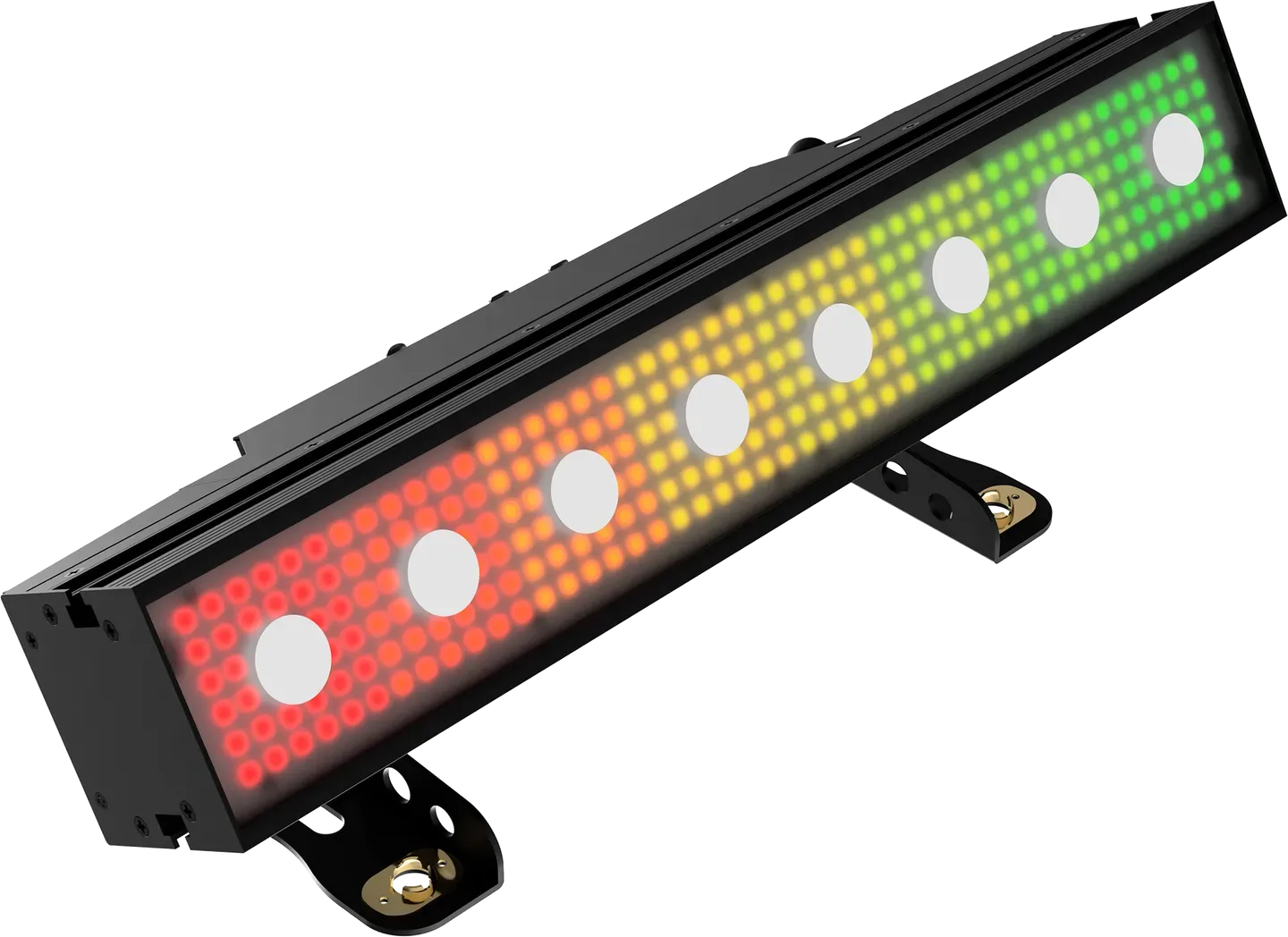

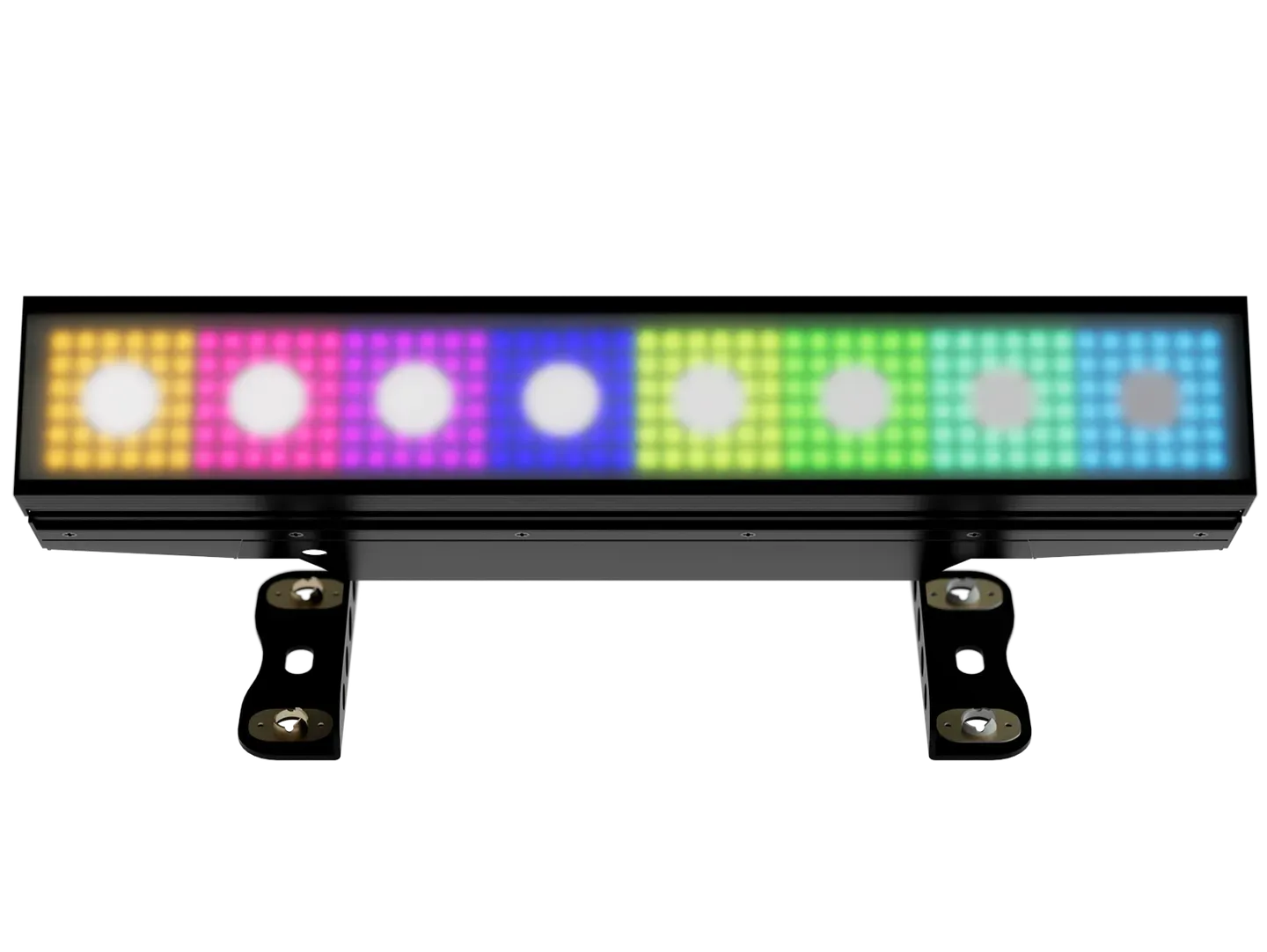

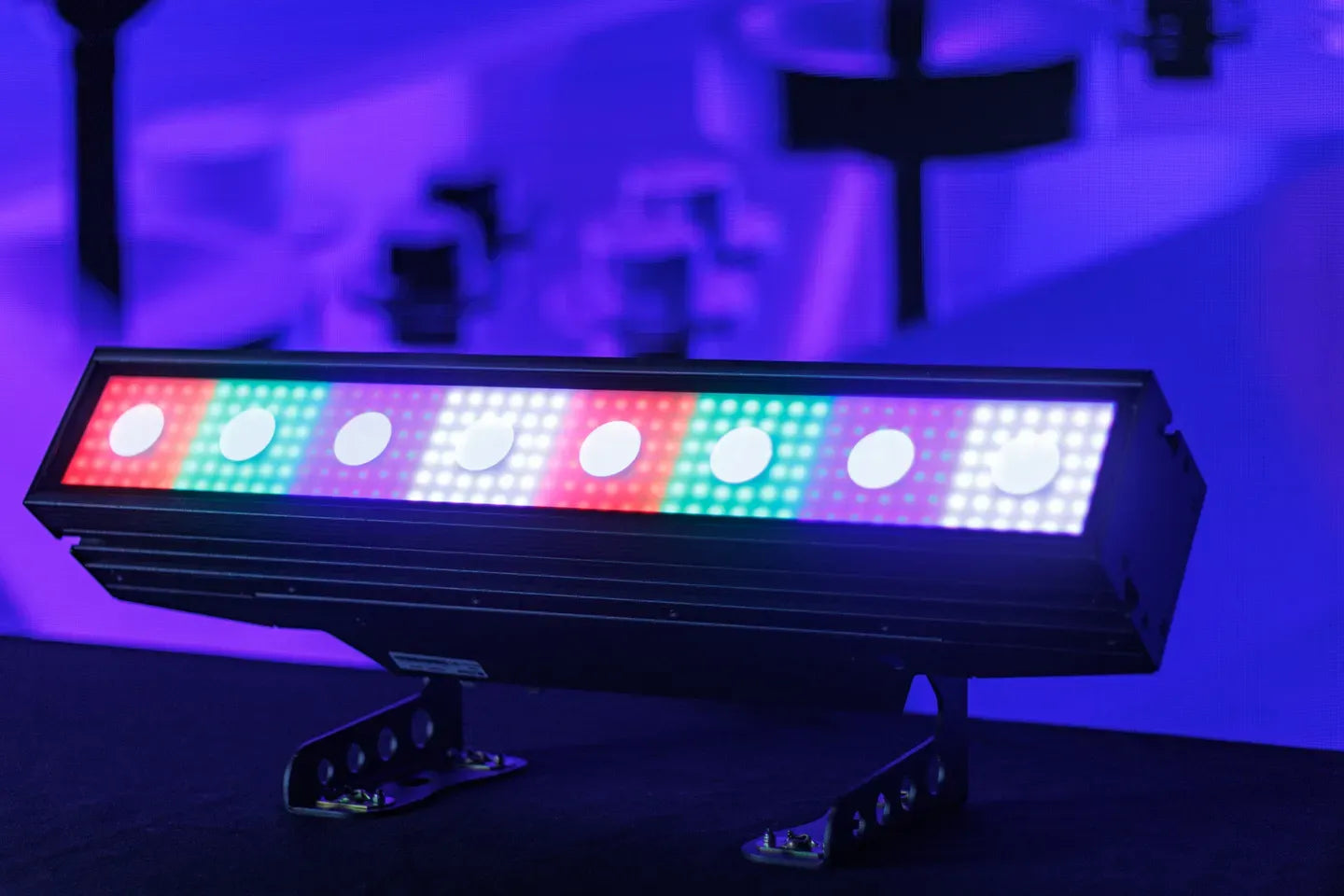

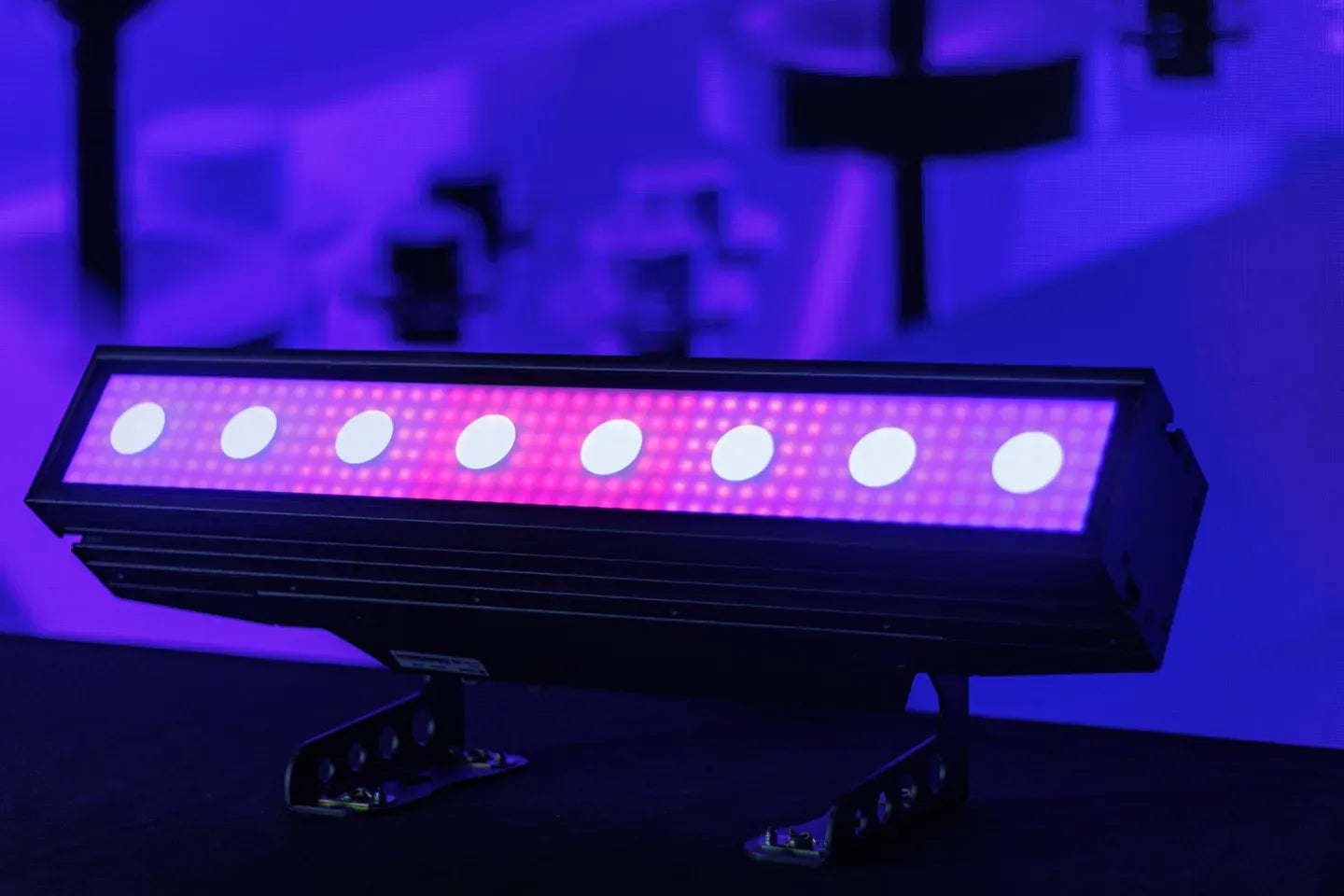

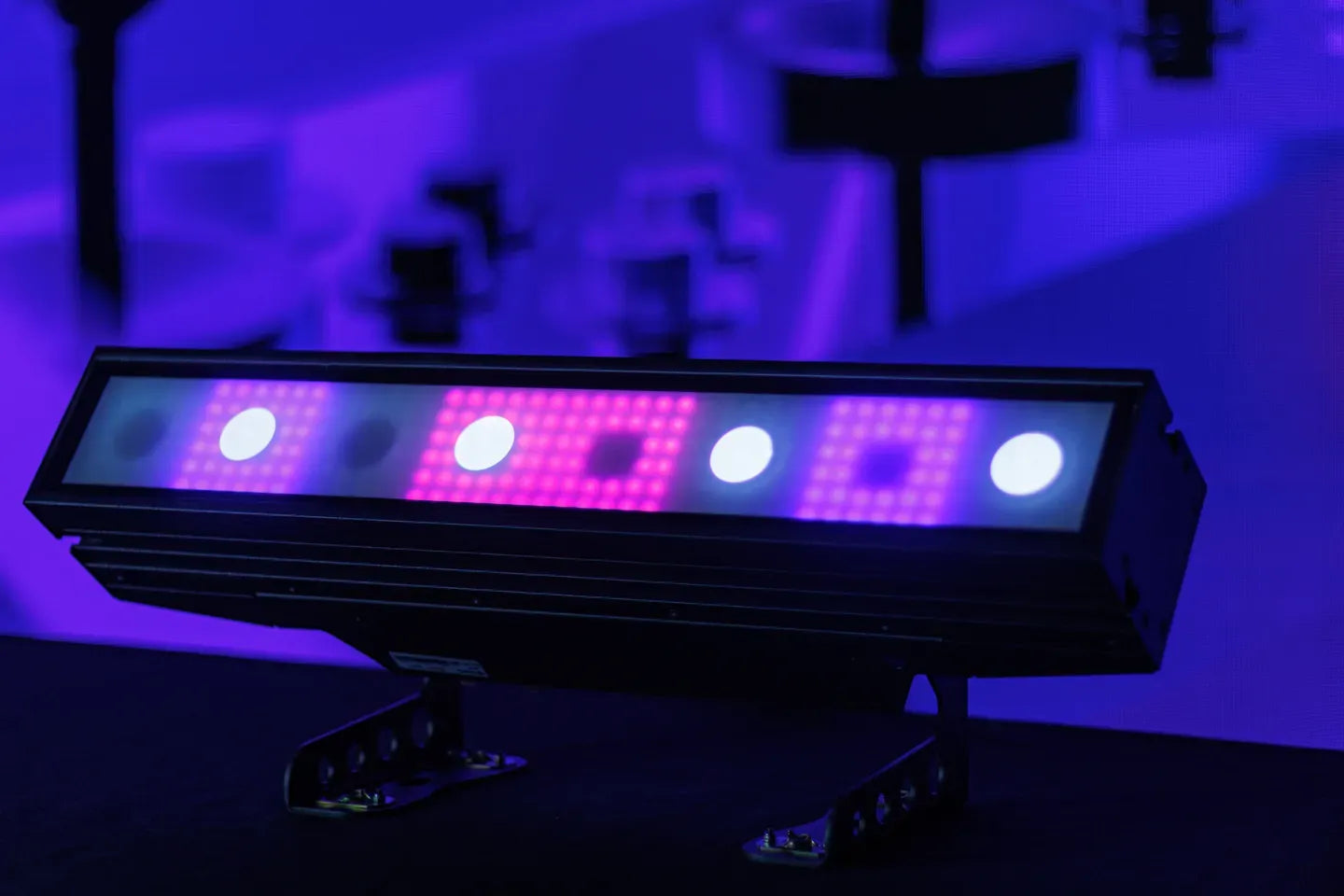

Infinipix™ Arcade isn’t just another lighting fixture... it’s a game
changer. With 8x 20W white LEDs and 8x sections of SMD 5050

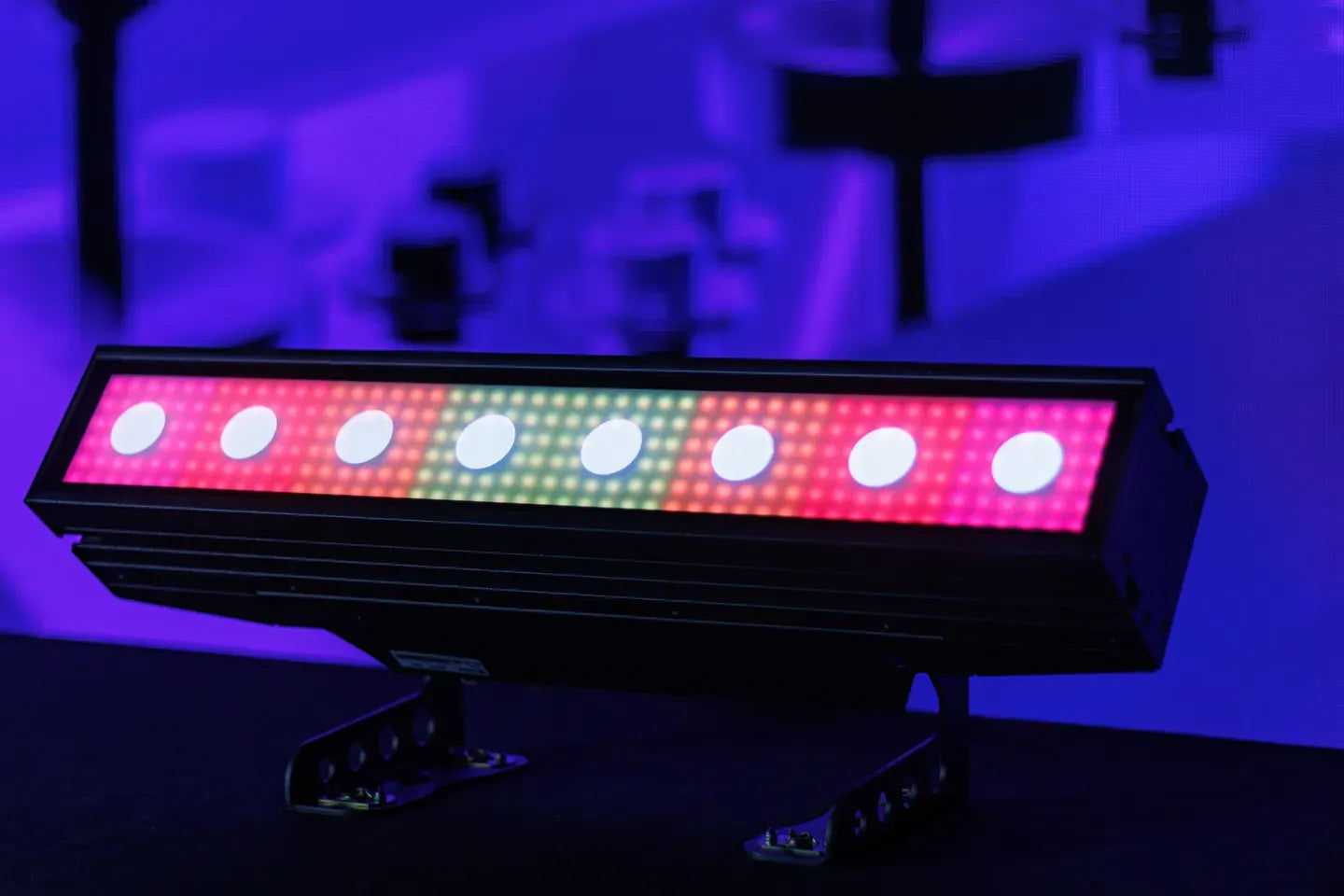

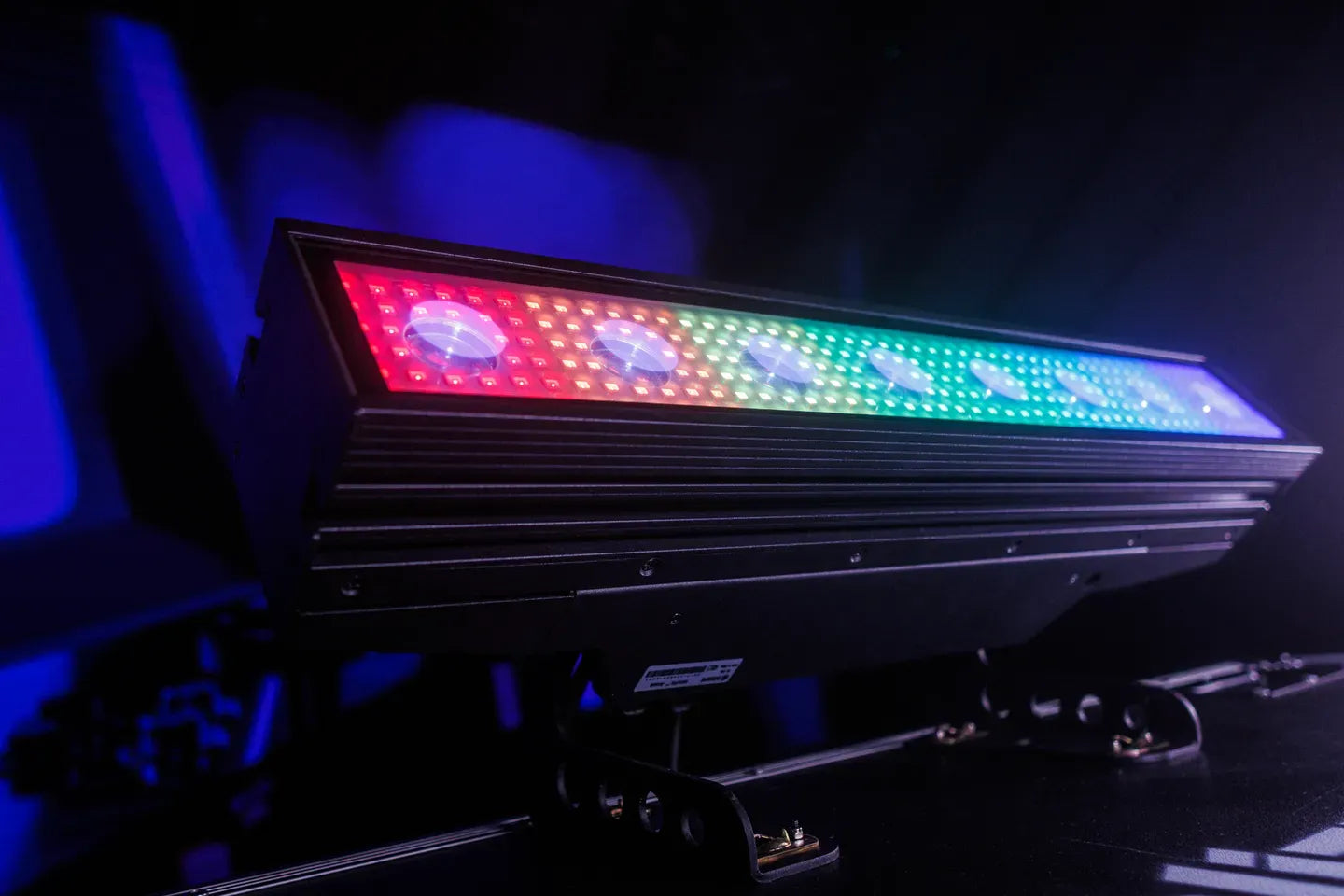

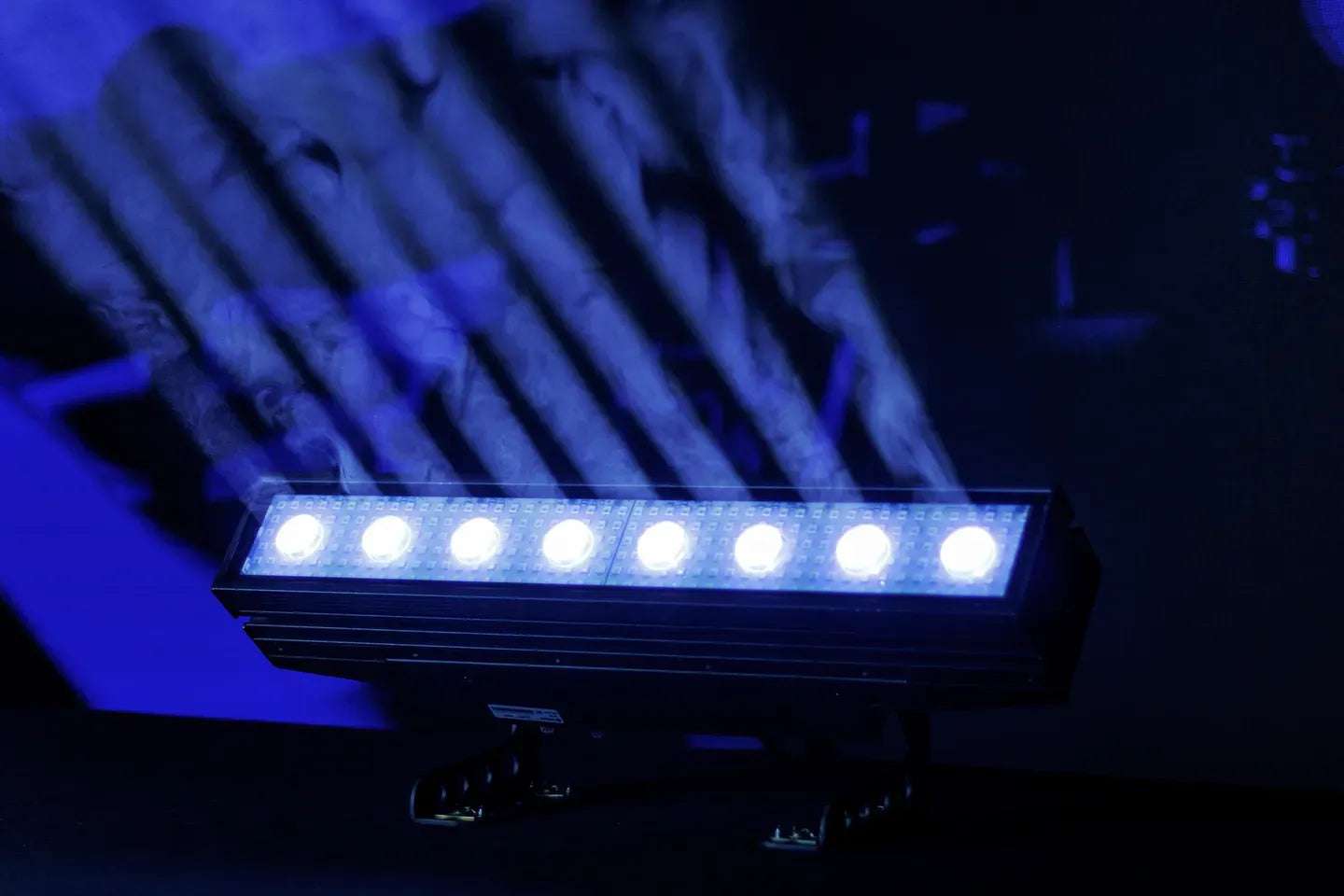

RGBW LEDs, it combines sharp 3° beams with dazzling colored
eye-candy. Its beams and background colors are independently

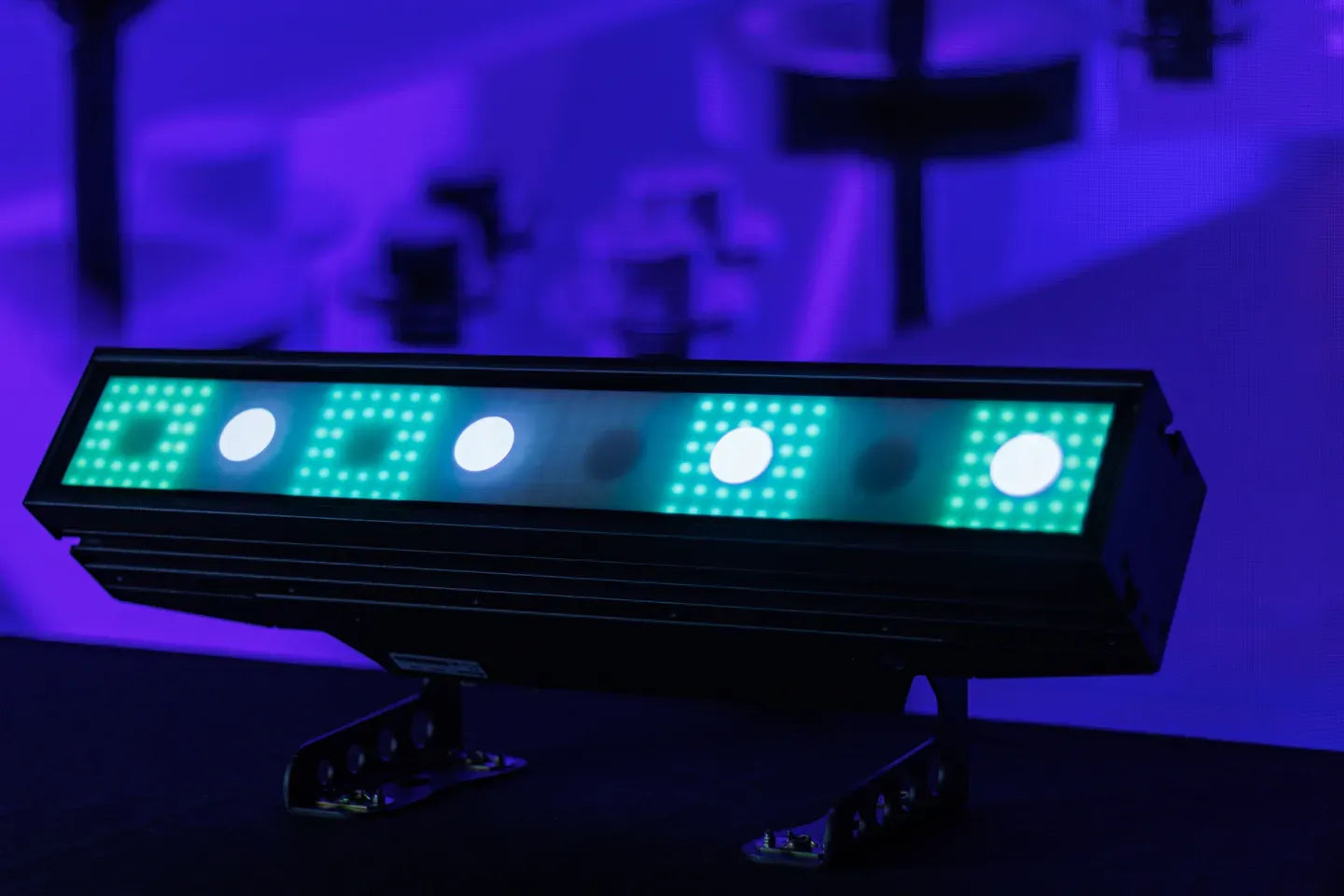

dimmable with separate strobe, chase, and trail effects, and it can
be operated in auto, M/S, or be controlled via 11, 20, 21, or 41 DMX
channels with pixel mapping capabilities.
Level Up!
In addition to its many spectacular effects, it offers electronic

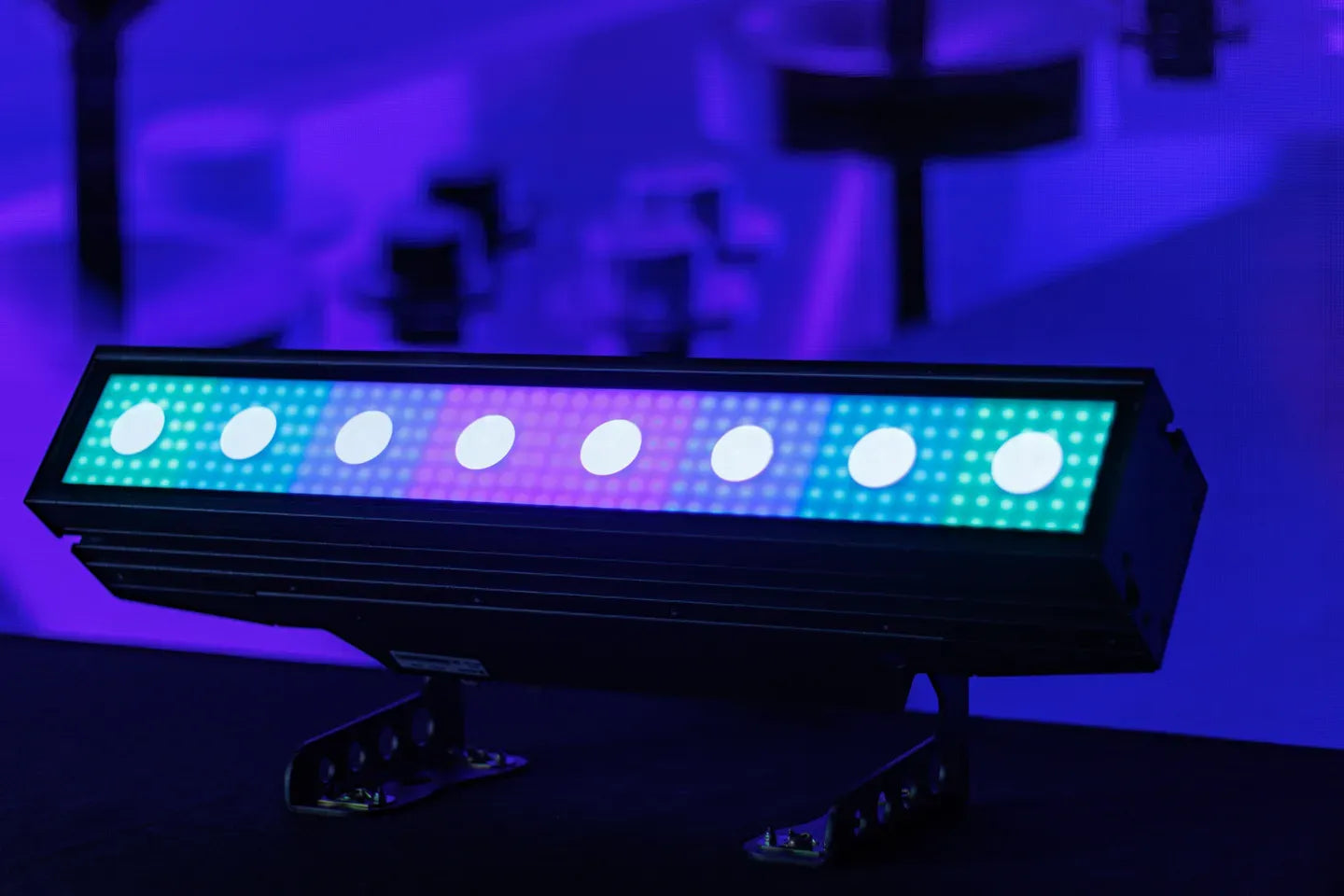

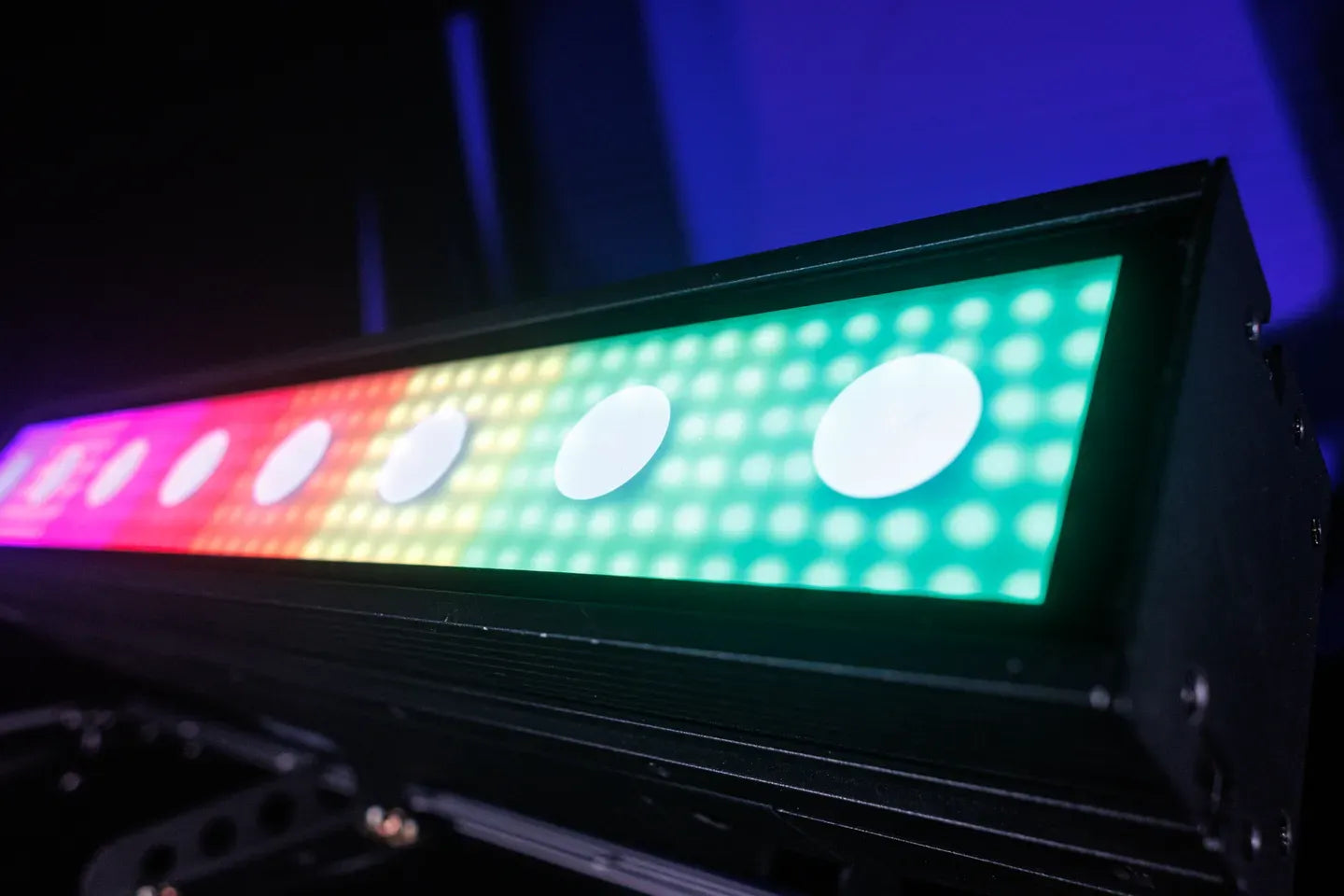

frost on the front lens. When applied, this cuts the beams at the

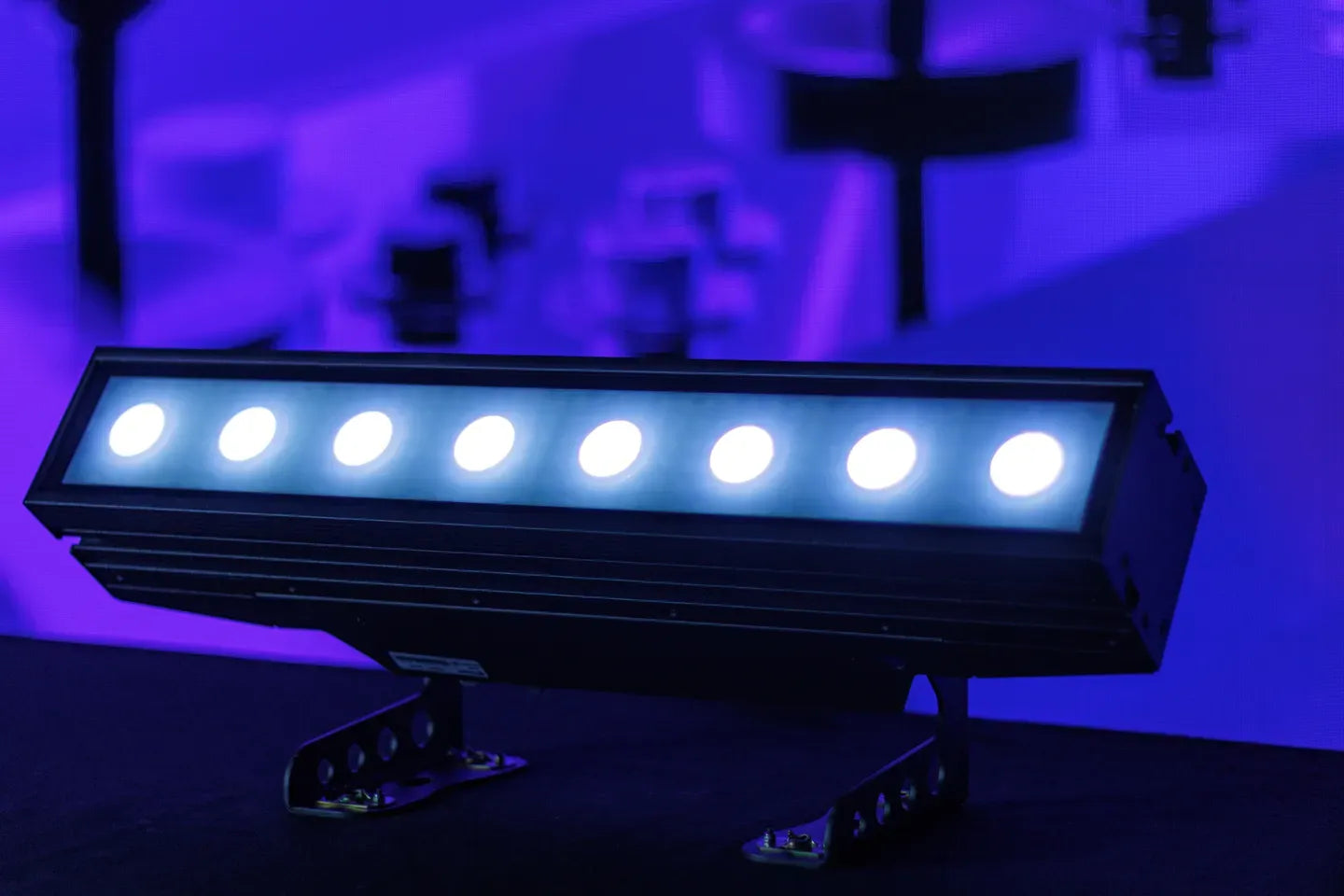

surface, turning them into 8 perfectly round white dots, while
softly diffusing the RGBW background colors. Multiple fixtures can

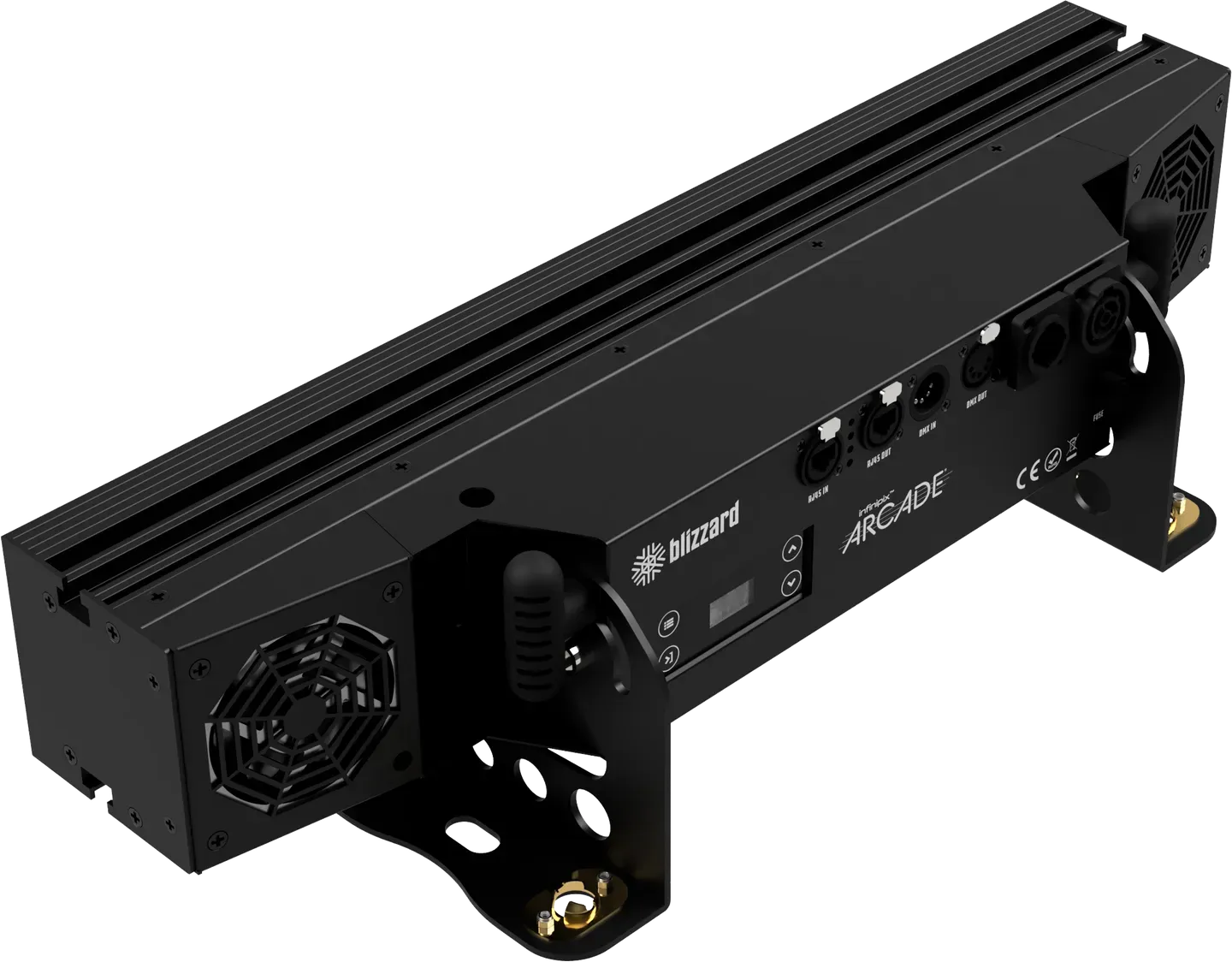

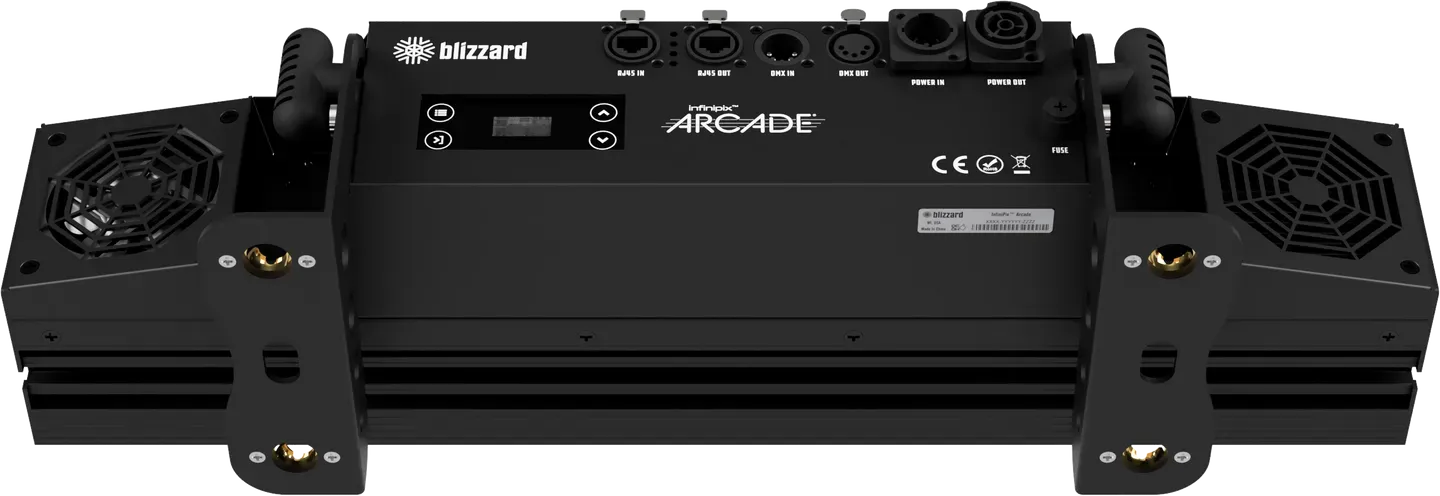

be perfectly aligned with its included hardware, and it also comes

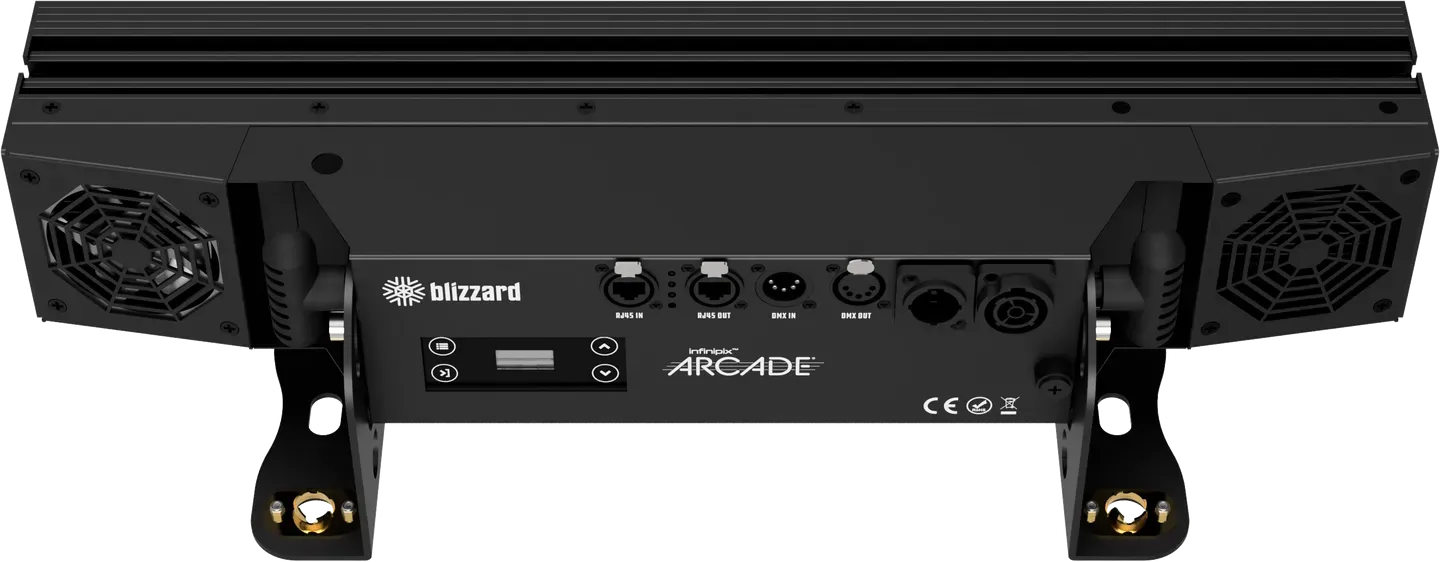

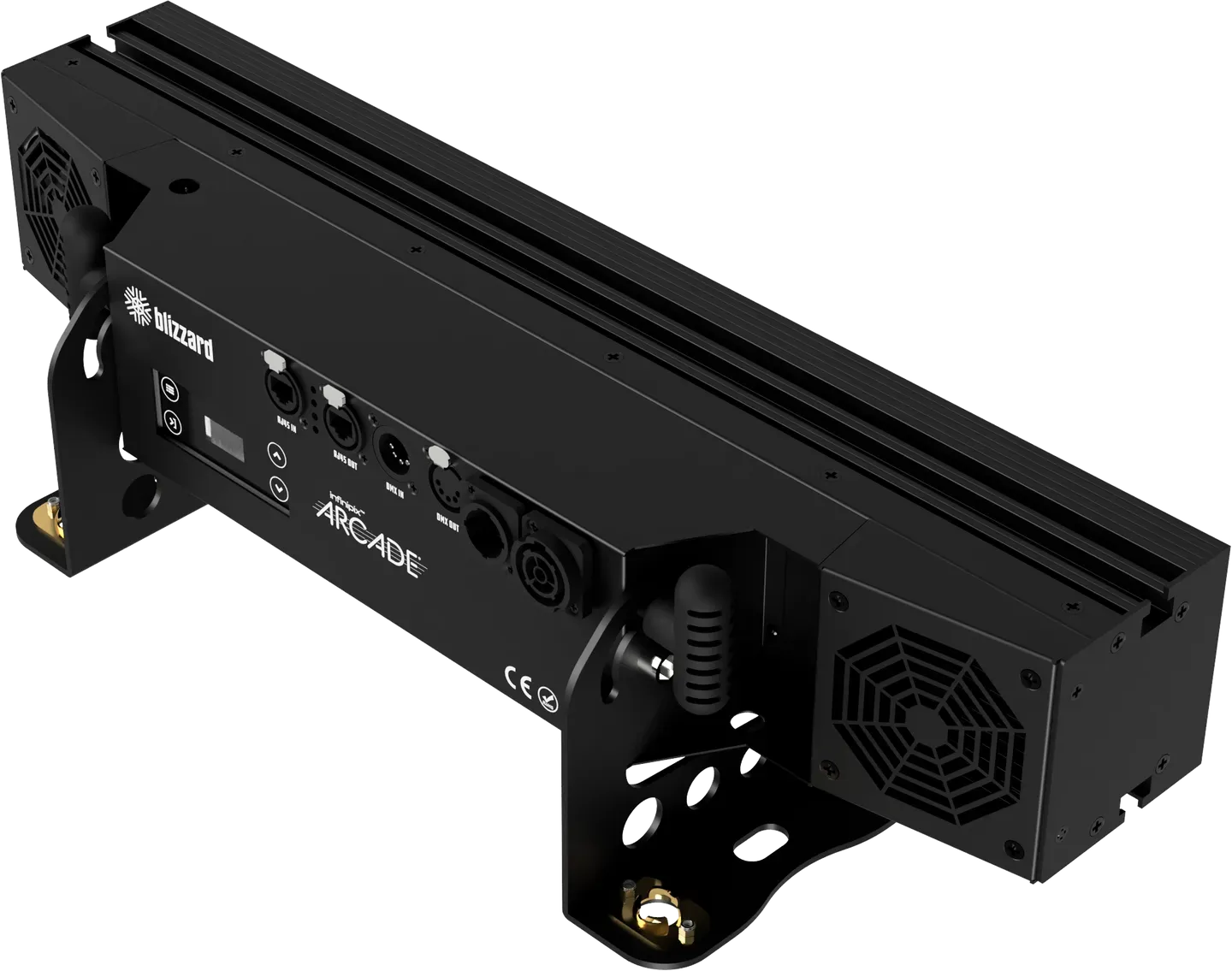

with powerCON TRUE1-compatible power in/out, 5-pin DMX in/
out, and Omega brackets for versatile mounting.
Luminous Intensity
Beam 2.5M 5M
White Beams (clear) 20,366 Lux 10,557 Lux
White Beams (frost) 560 Lux 272 Lux
RGBW (clear) 270 Lux --
Main Features
• 8x 20W white LEDs w/narrow 3° beam angle
• 256x SMD 5050 RGBW 0.5W LEDs (32x8 sections)
• Smooth dimming (0-100% )
• Narrow white beam + RGBW LED background effects
• Electronically controlled clear/frosted smart lens
• Built-in programs and manual color mixing
• 5-pin DMX in/out connections
• powerCON™ TRUE1 compatible power in/out
• Dual mounting brackets + omega clamp bracket
• Interlocking design for connecting multiple fixtures
• Heavy-duty aluminum enclosure
Optical
8x 20W white LEDs
256x SMD 5050 RGBW 0.5W LEDs
Electronic frost
3° beam angle (white LEDs, x8), 104° beam angle (SMD LEDs, 110° with frost)
Weight & Dimensions
21.7” x 6.9” x 5.6” (552 x 174.7 x 141.5 mm)
13.25 lbs. (6 kg)
Control
Protocol: USITT DMX-512, RDM
5-pin DMX in/out 11/20/21/41-channel DMX
4-button menu with OLED display
DMX512, M/S, auto mode
Power + Current
100-240VAC, 50-60 Hz
Consumption: 265W, 2.54A, PF:.91
PowerCON® TRUE1compatible in/out
Warranty
2-year limited warranty
