Blizzard

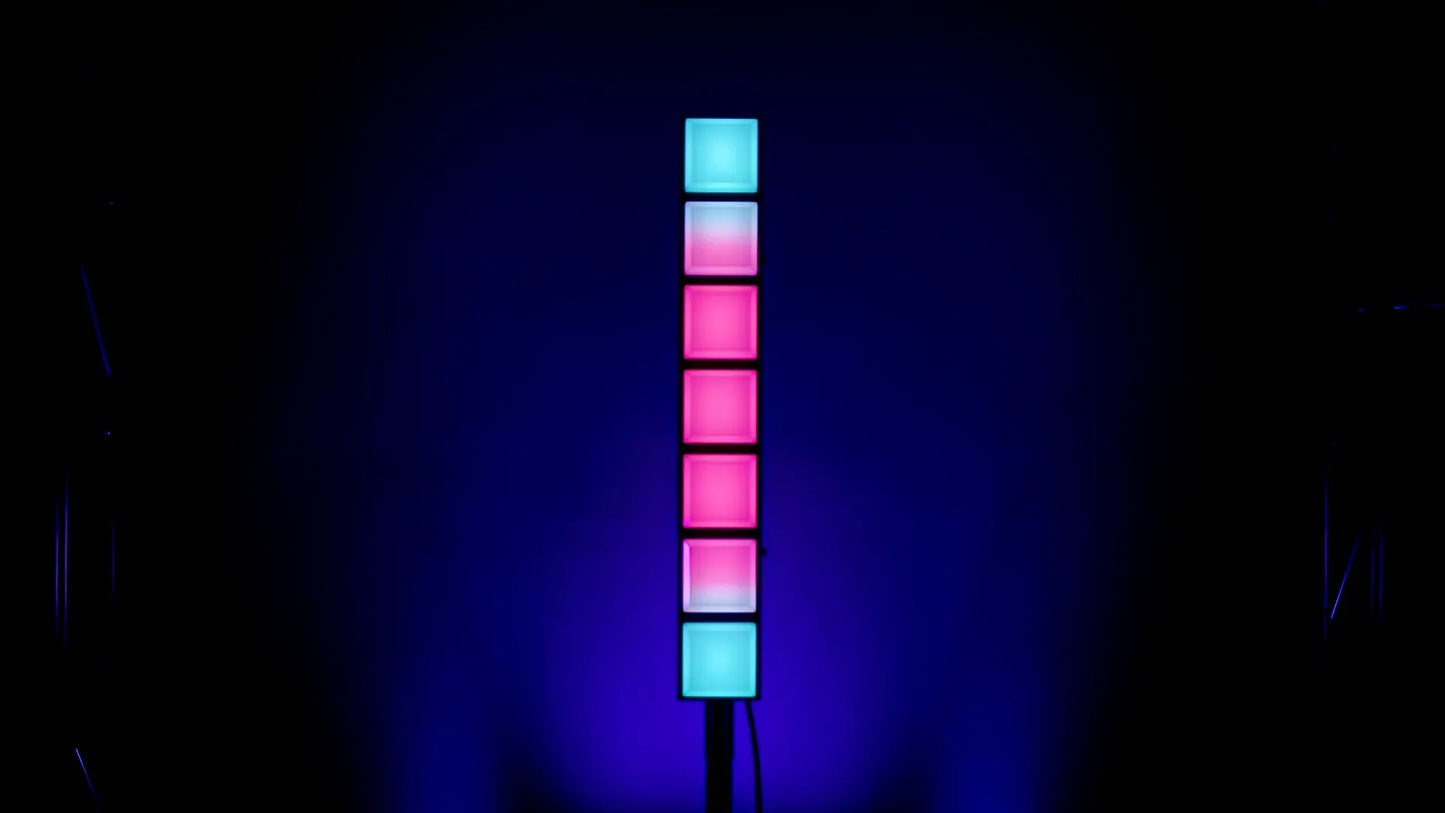

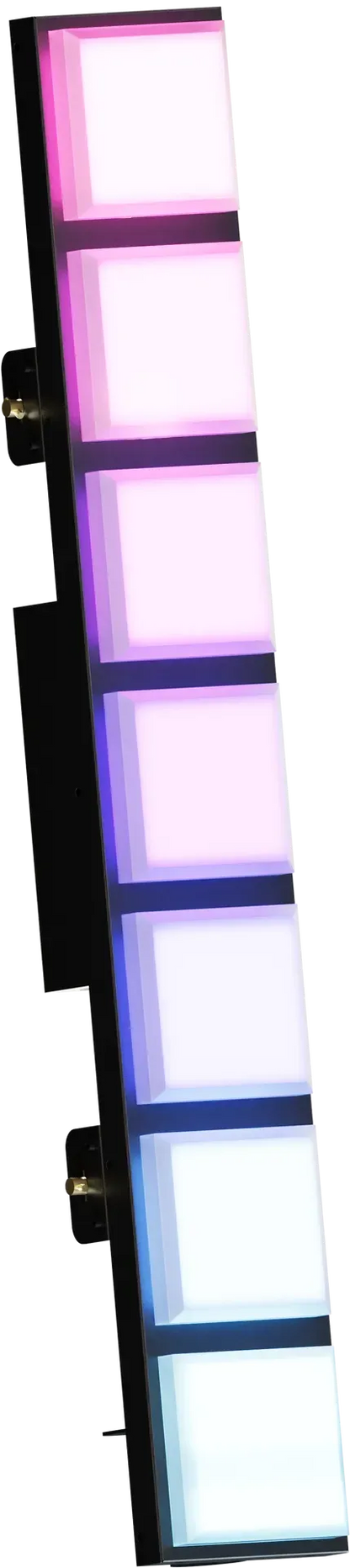

Infinipix Lil Spektro
Modular-Designed 3-in-1 RGB LED Effect & Tripod Stand

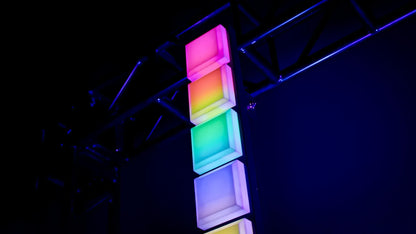

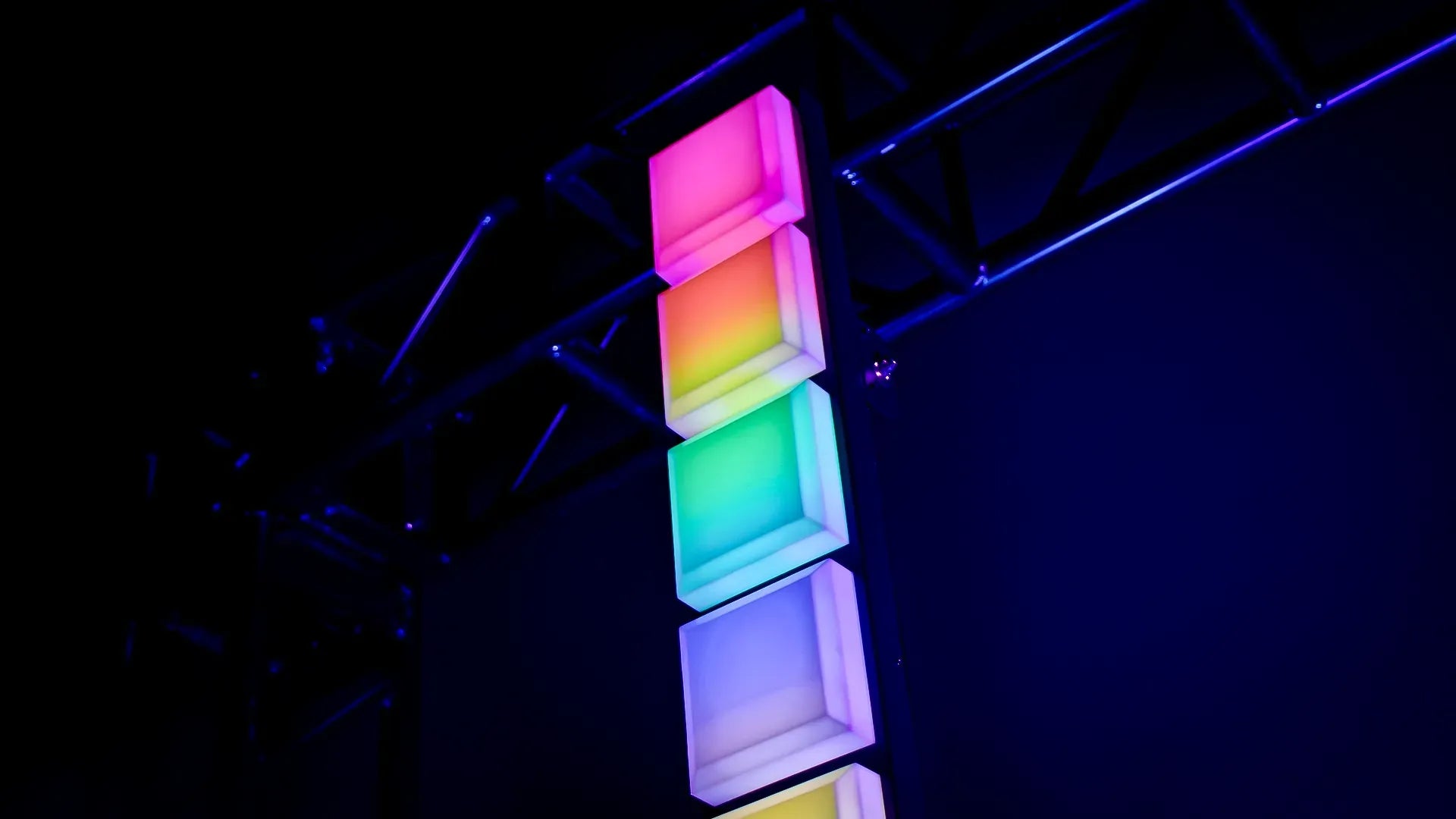

Dynamic RGB Effects

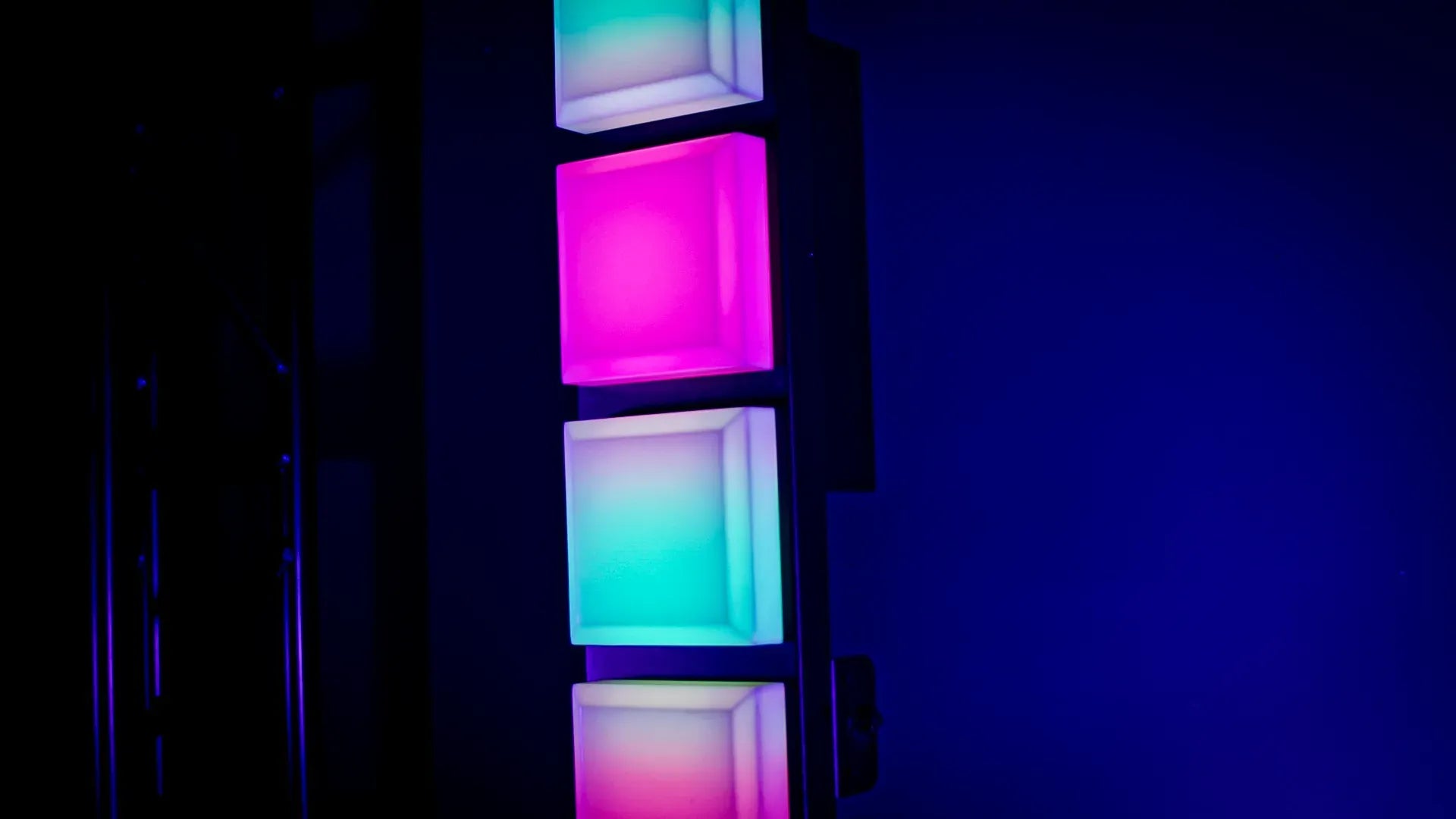

The Infinipix™ Lil’ Spektro features 196 x RGB 5050 SMD LEDs
arranged across seven 10 x 10 cm blocks, each split into four zones

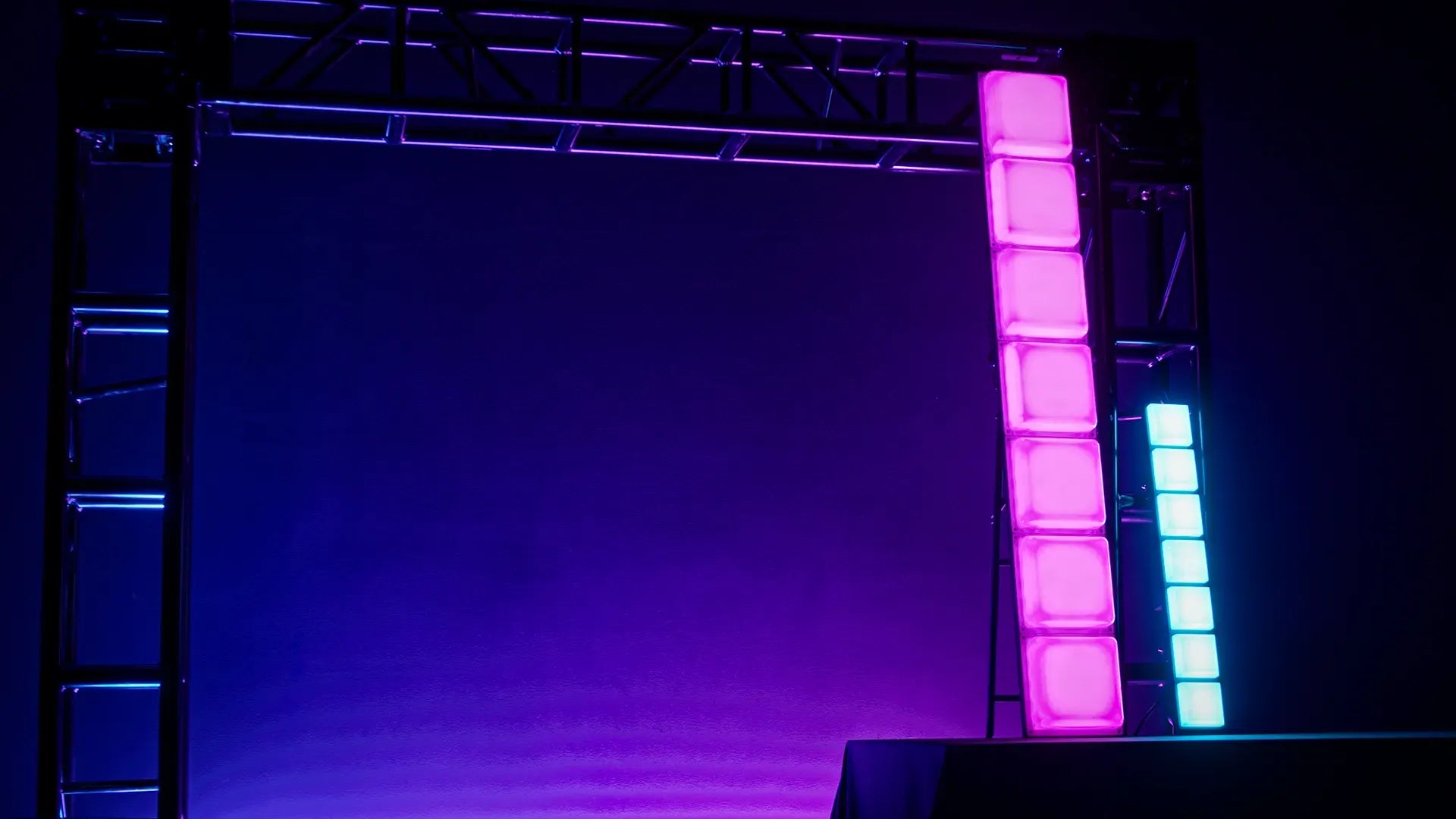

for smooth gradient and chase effects. Multiple fixtures can link
together side-by-side or vertically for creative configurations, while
its bright, wide 120° viewing angle delivers vivid eye-catching
scenes, perfect for any application.
Refined Design
This fixture pairs perfectly with Blizzard’s original Infinipix™
Spektro, offering the same static colors, built-in programs, soundactive modes, and pixel-mapping options. It includes brackets for

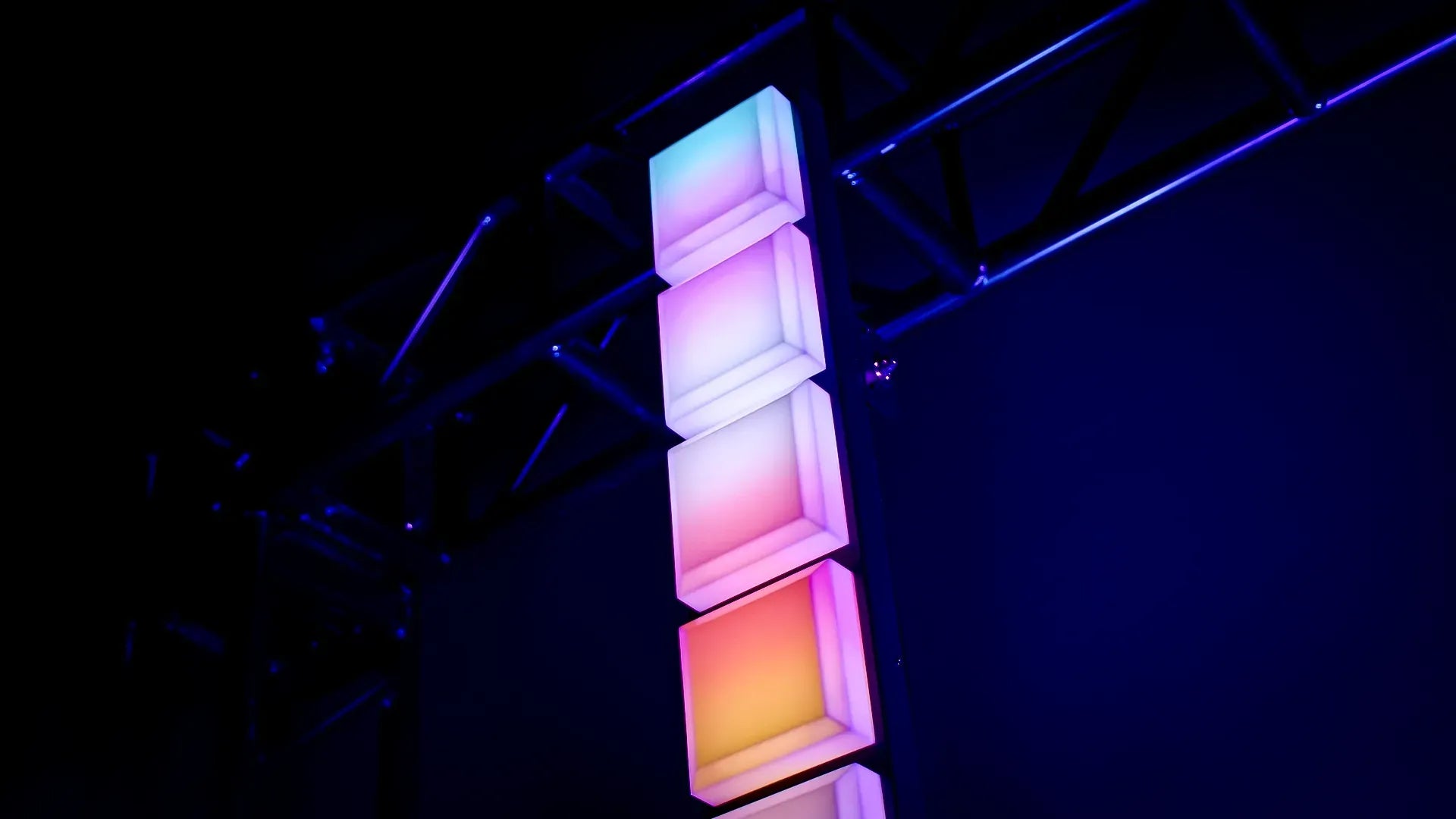

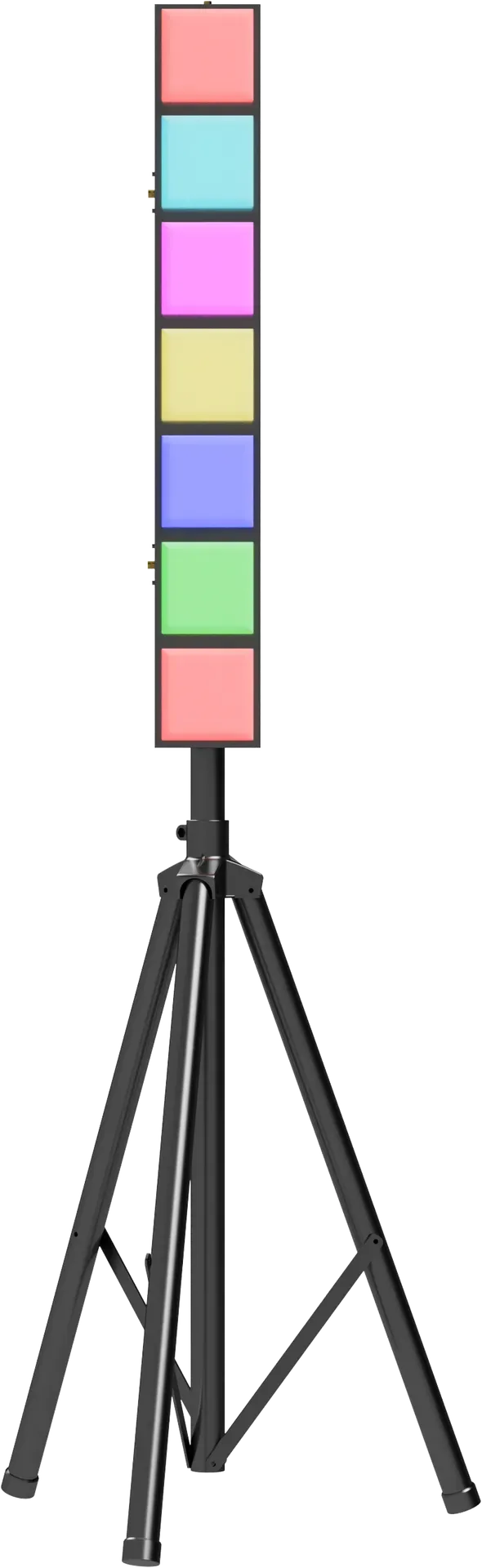

rigging plus a tripod for freestanding use, while its onboard menu,

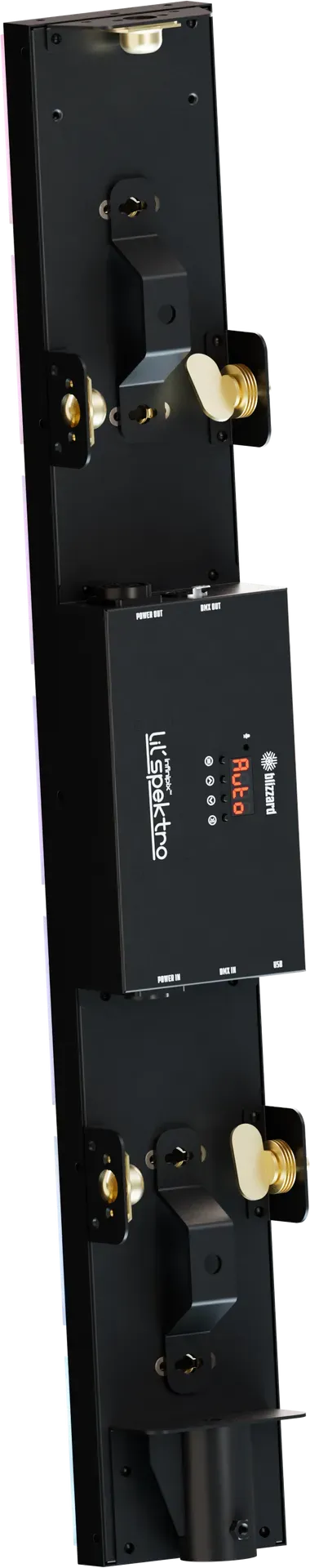

5-pin DMX in/out, and PowerCON® TRUE1-compatible in/out
connections ensure quick setup and reliable operation.
Main Features
• 196 x 3-in-1 RGB 5050 SMD LEDs
• 7 blocks (10 x 10 cm), each with 28 LEDs
• 4 horizontal zones per block for smooth effects
• 120° wide viewing angle
• 0–100% dimming and variable strobe control
• Vertical or horizontal secure fixture linking

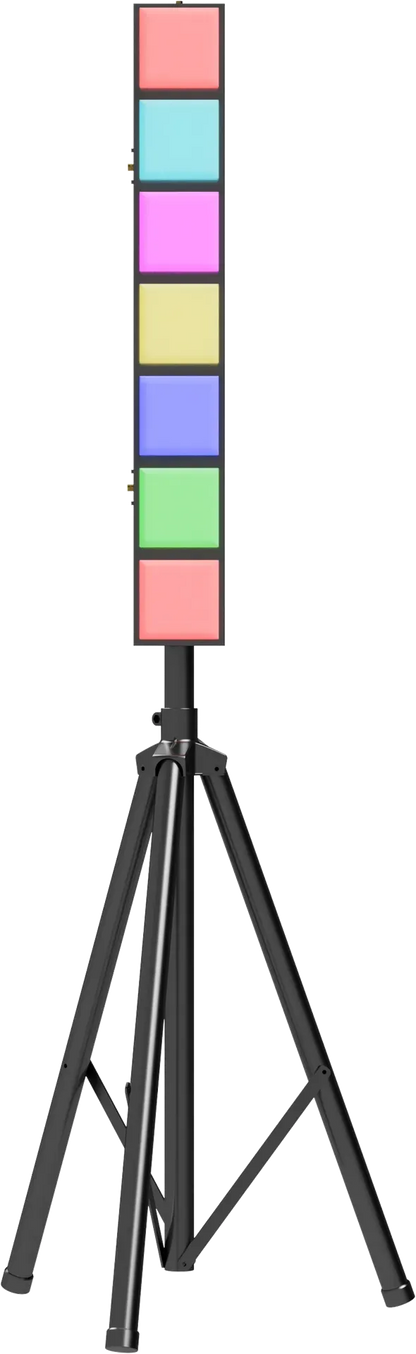

• Includes mounting brackets & tripod stand
Optical
196 x (7 x 28 pcs) SMD 3-in-1 RGB LEDs
120° viewing angle
Weight & Dimensions
Fixture: 4.5 x 3.5 x 31.7 in (115 x 89.9 x 805 mm)
7.4 lbs (3.4 kg)
Stand:
43.5 in (min), 59.2 in(max)
4.2 lbs (1.9 kg)
Control
USITT DMX-512, RDM
5-pin DMX in/out
3/4/5/7/21/28/84/87 channel modes
4-button menu with LED display
M/S, auto, sound active
Power + Current
110-240VAC, 50-60 Hz
Consumption: 45W,.61A, PF: .64
+5V USB
PowerCON® TRUE1-compatible in/out
Warranty
And of course, the Infinipix™ Lil’ Spektro is backed by Blizzard’s
2-year limited warranty.
