Blizzard

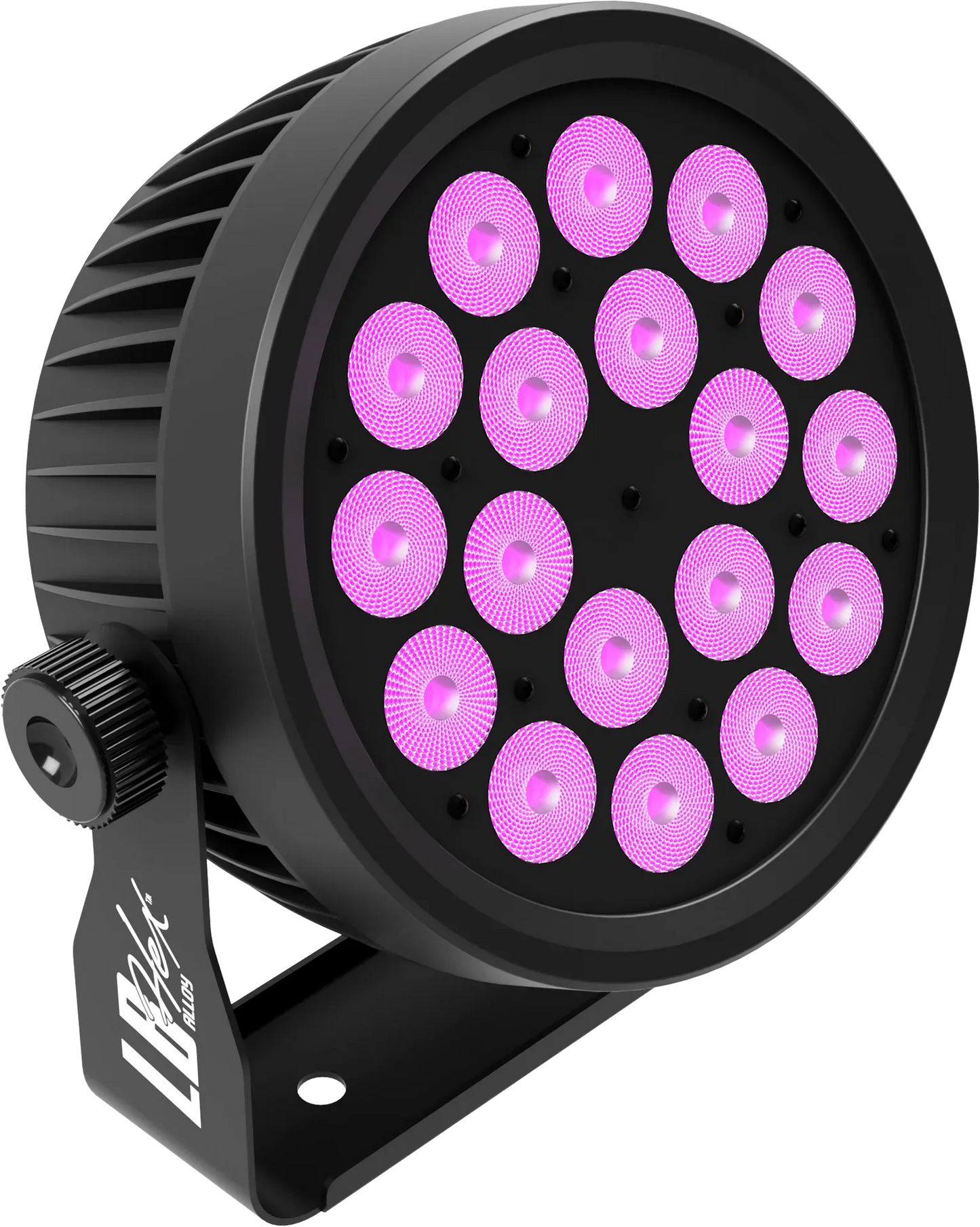

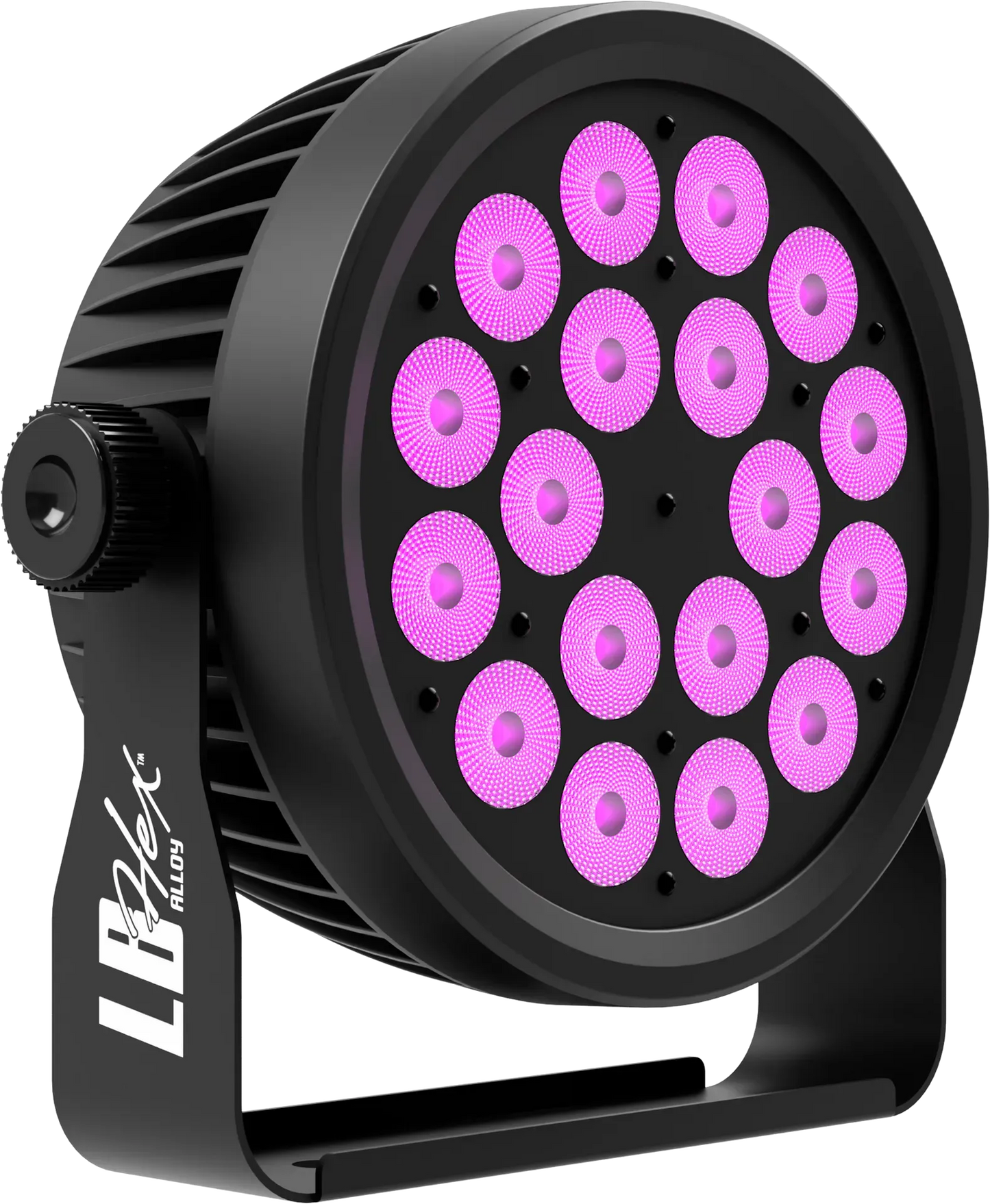

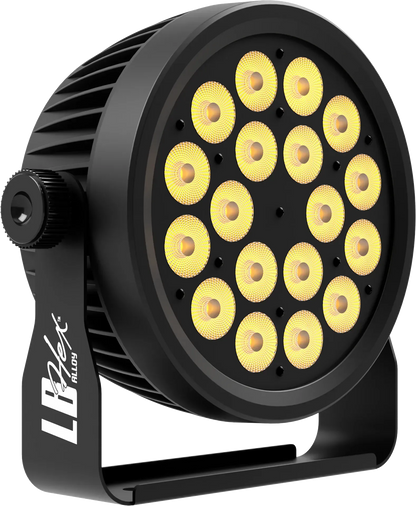

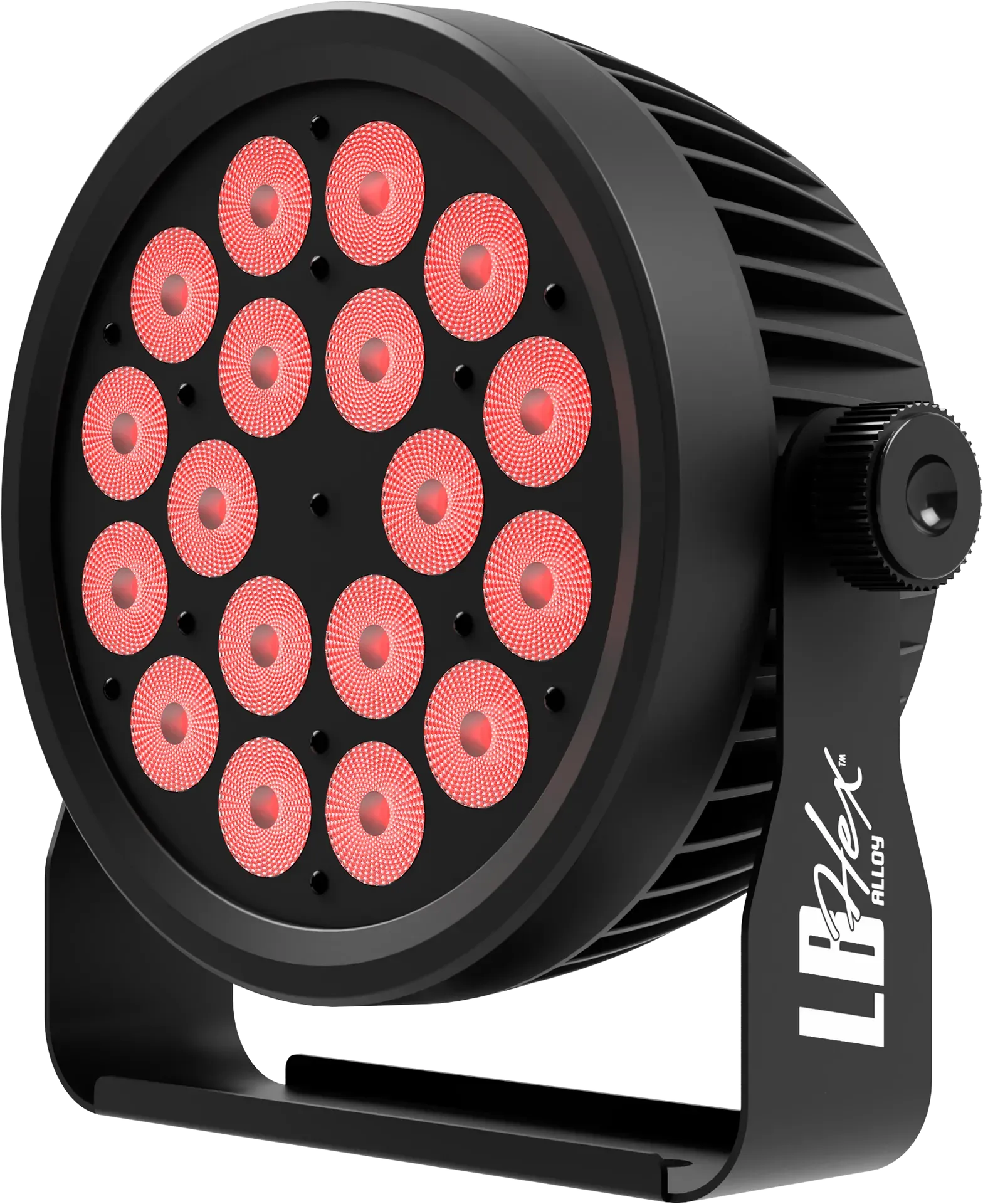

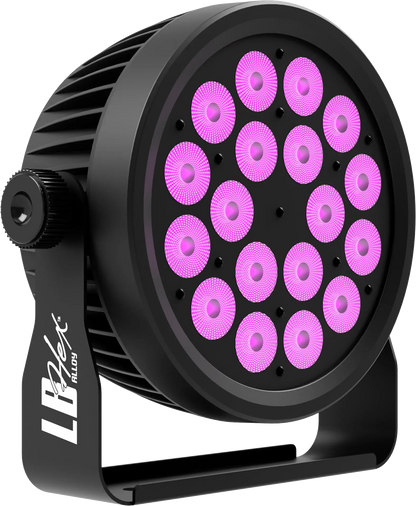

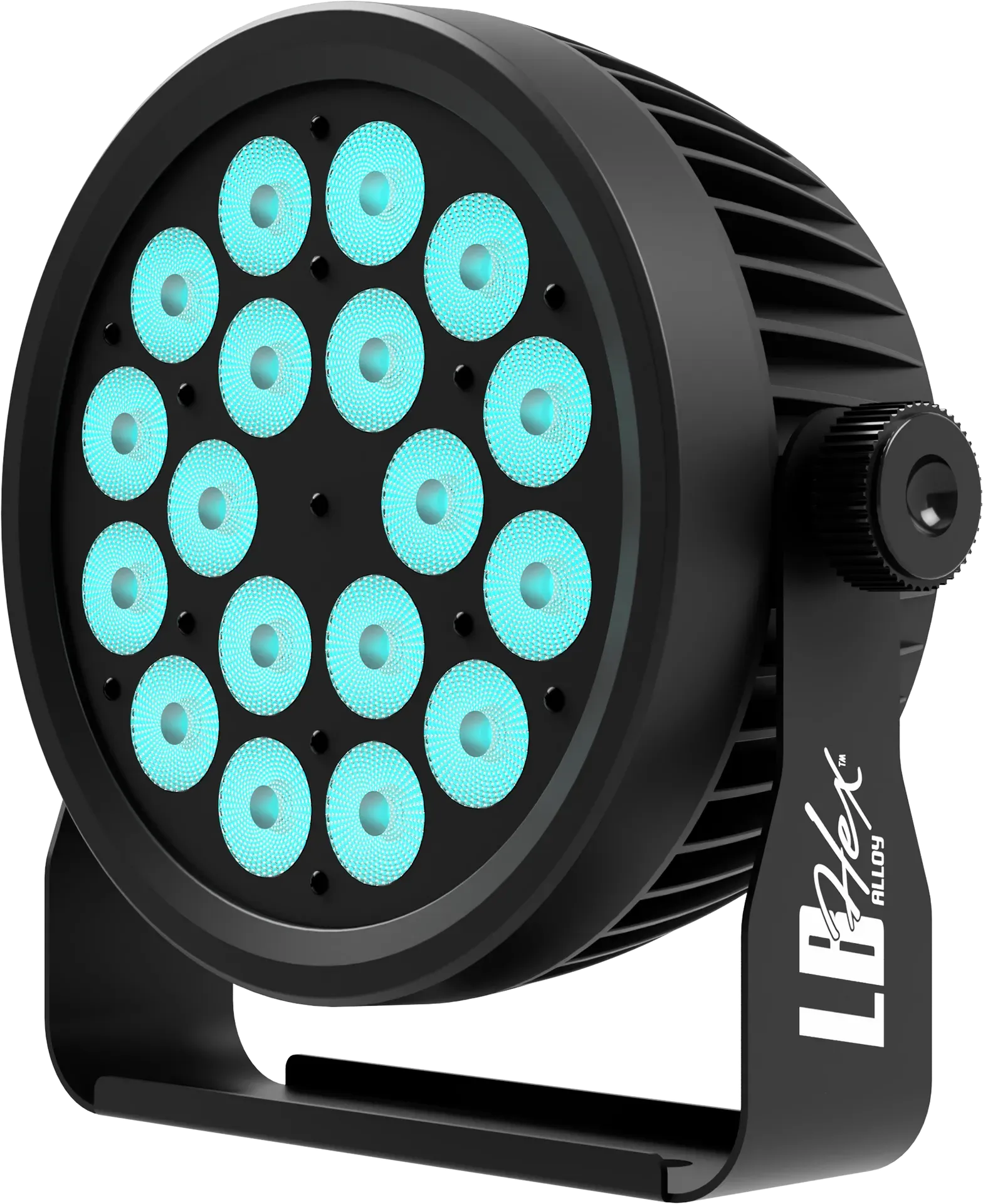

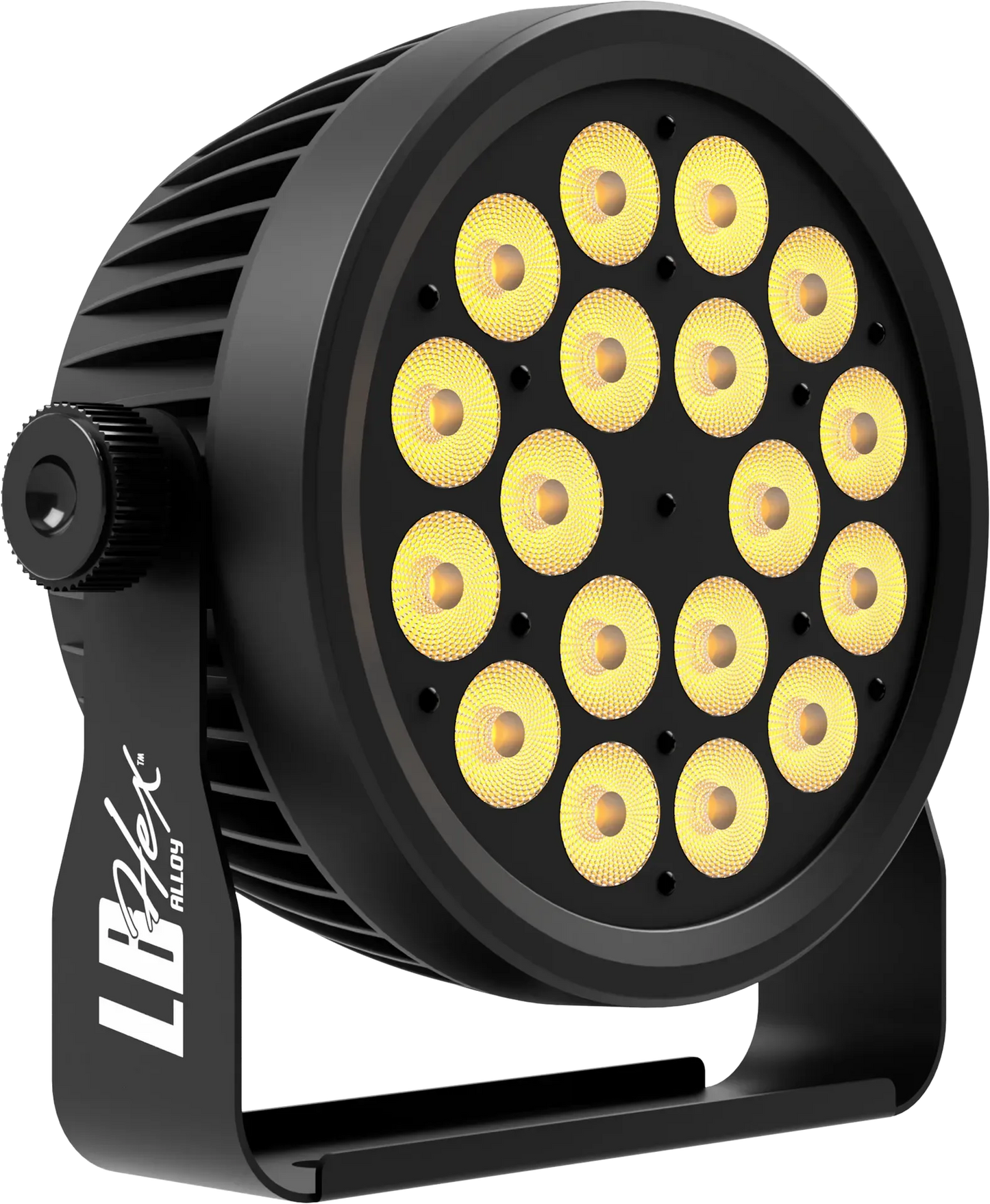

LB HEX Alloy

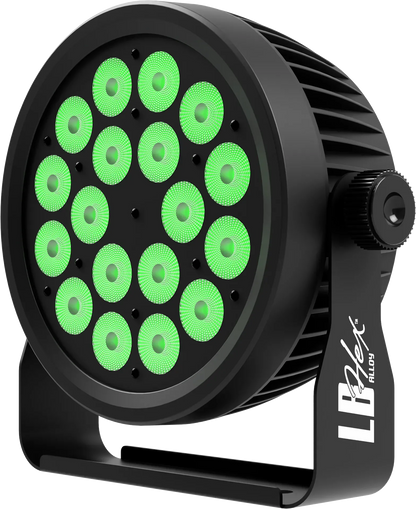

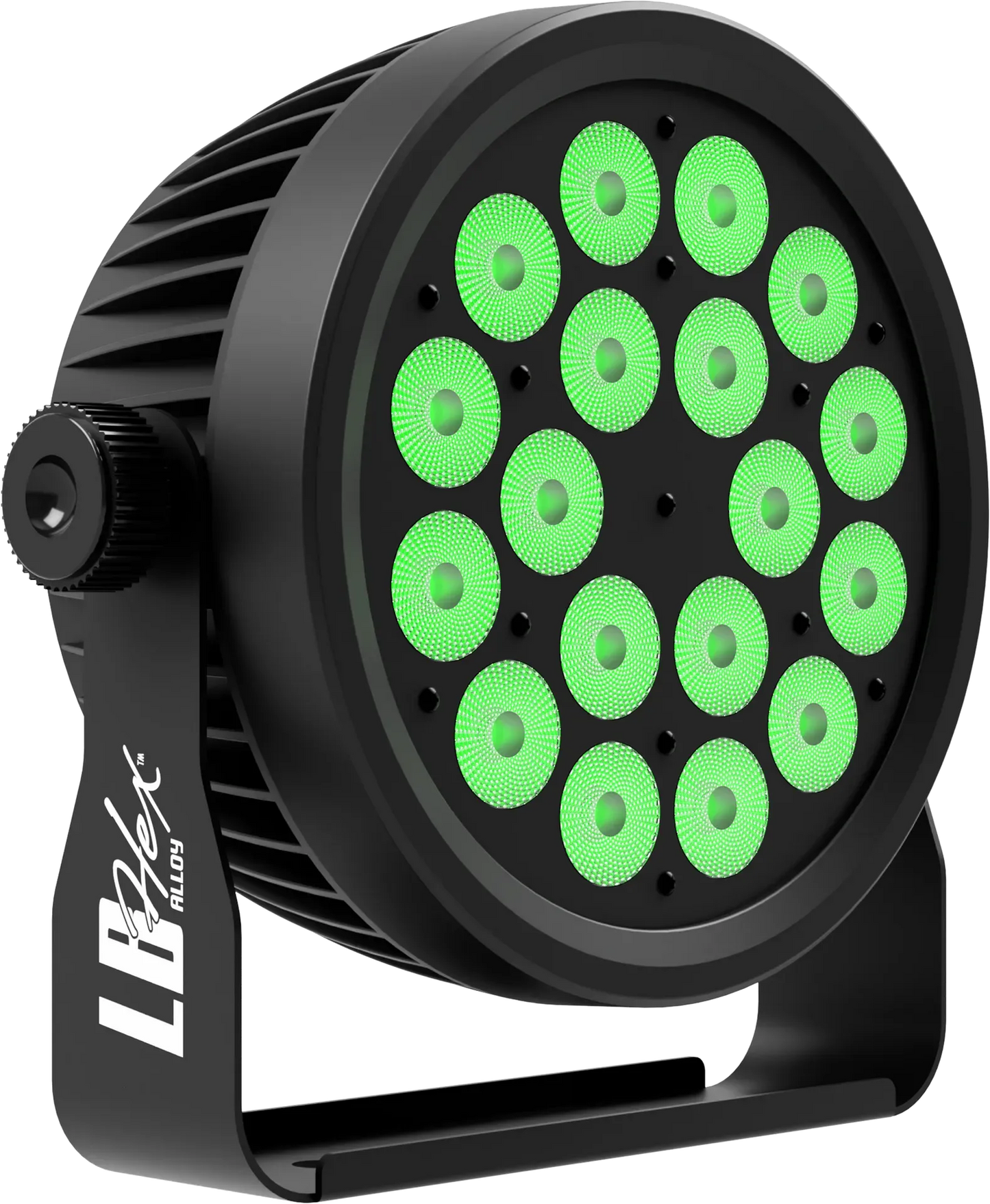

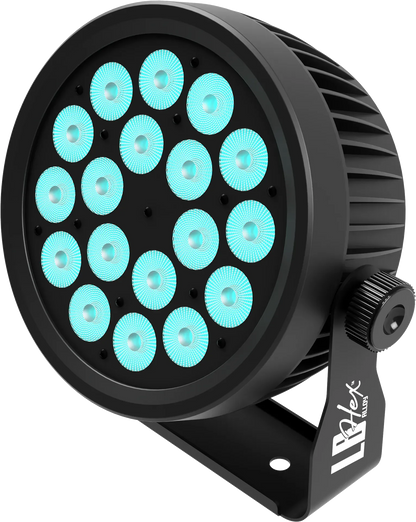

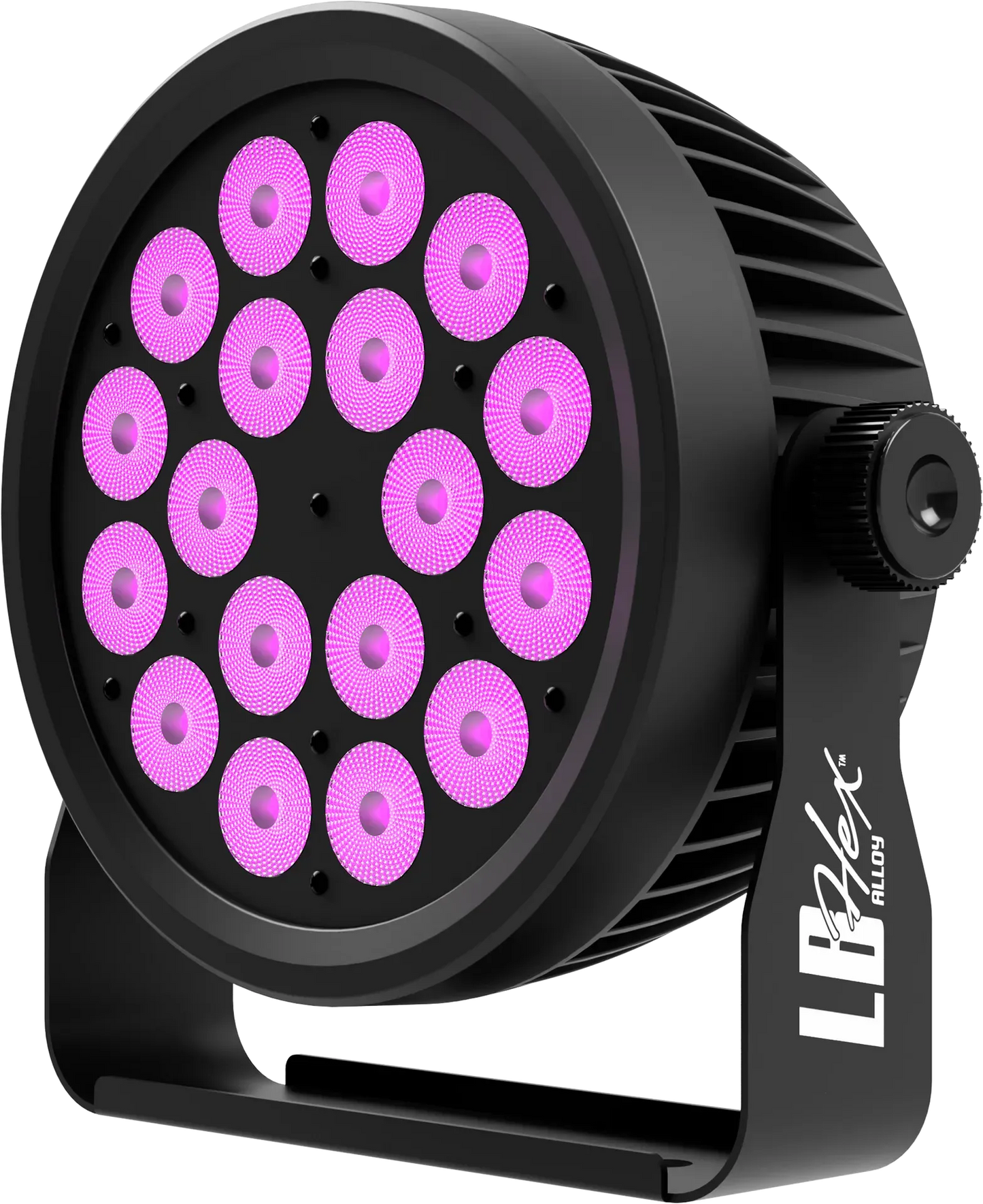

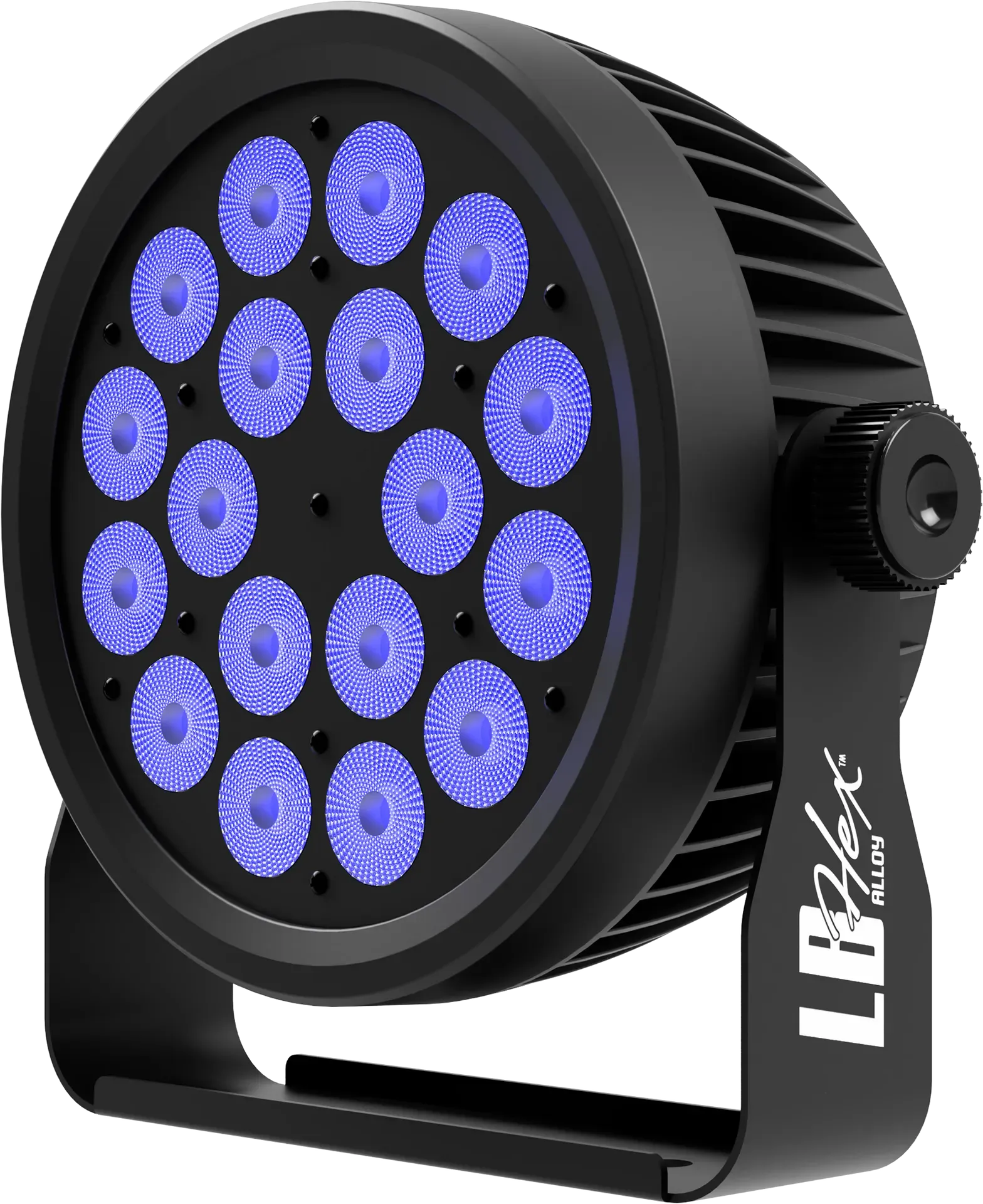

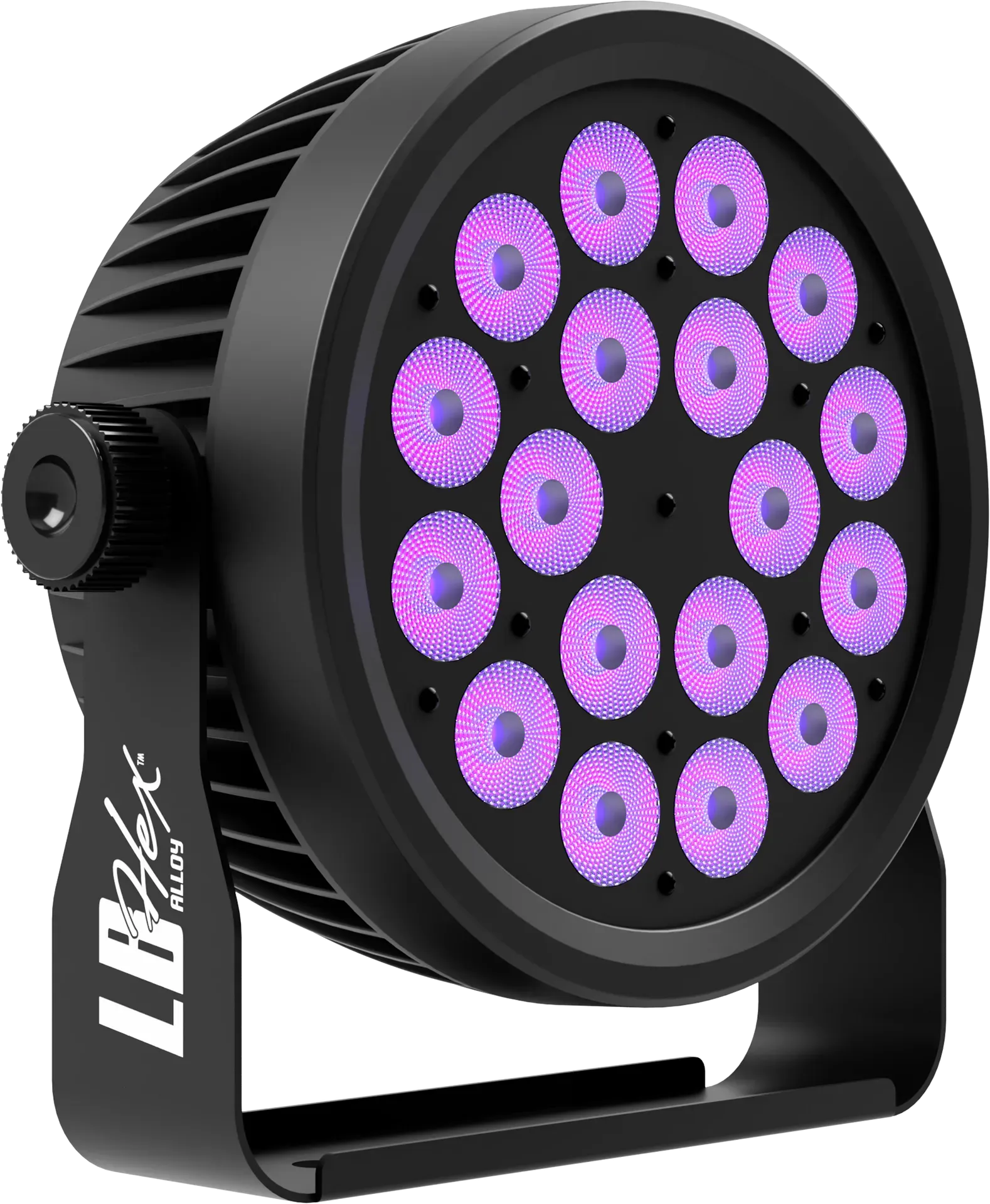

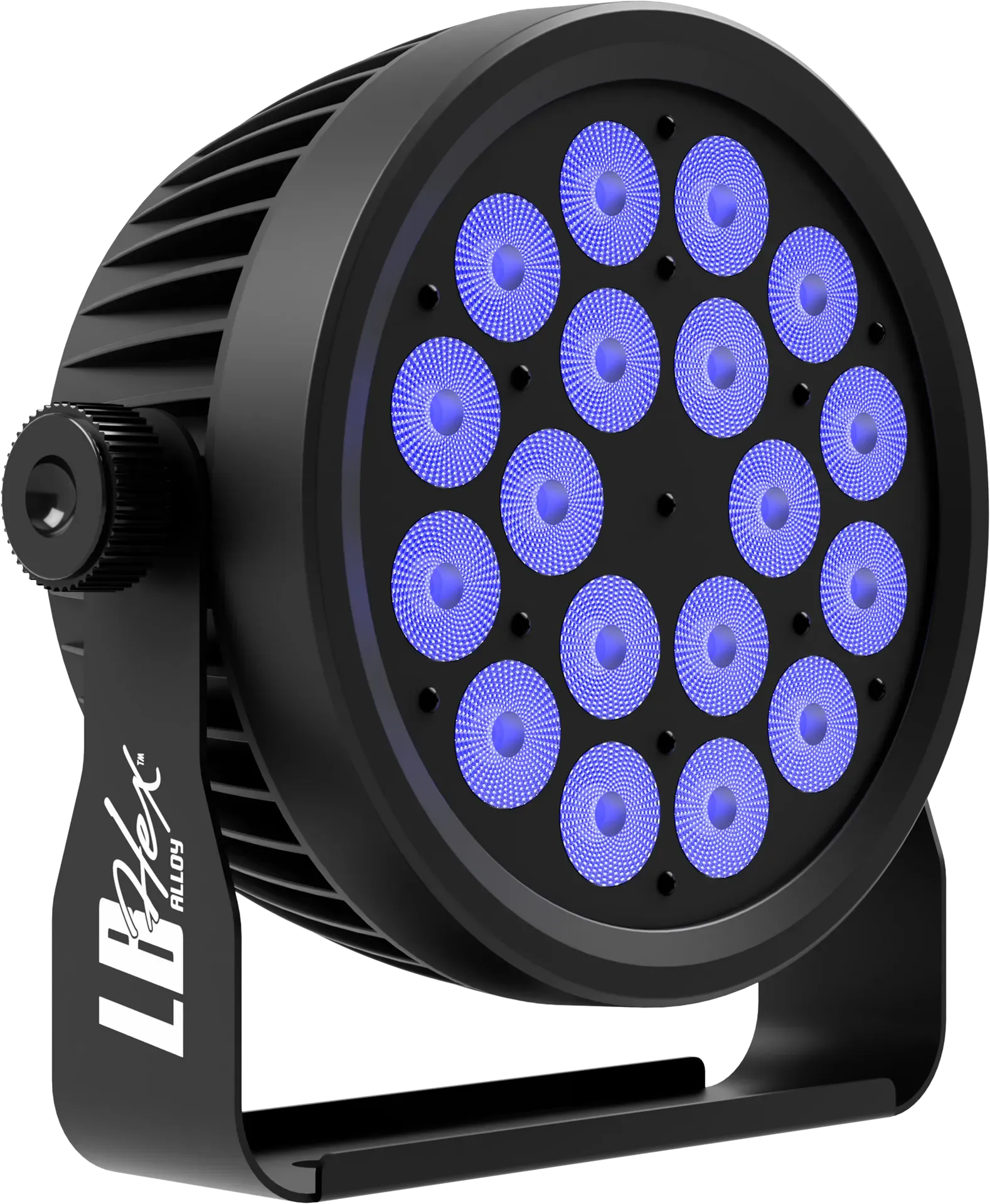

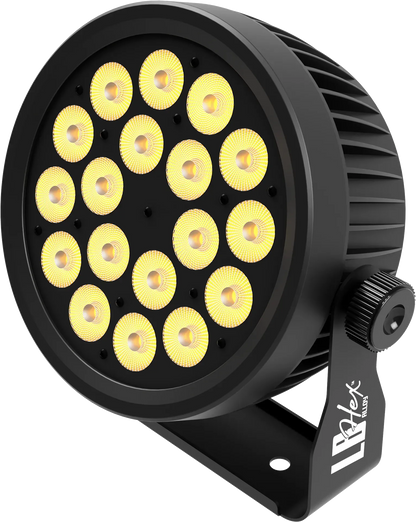

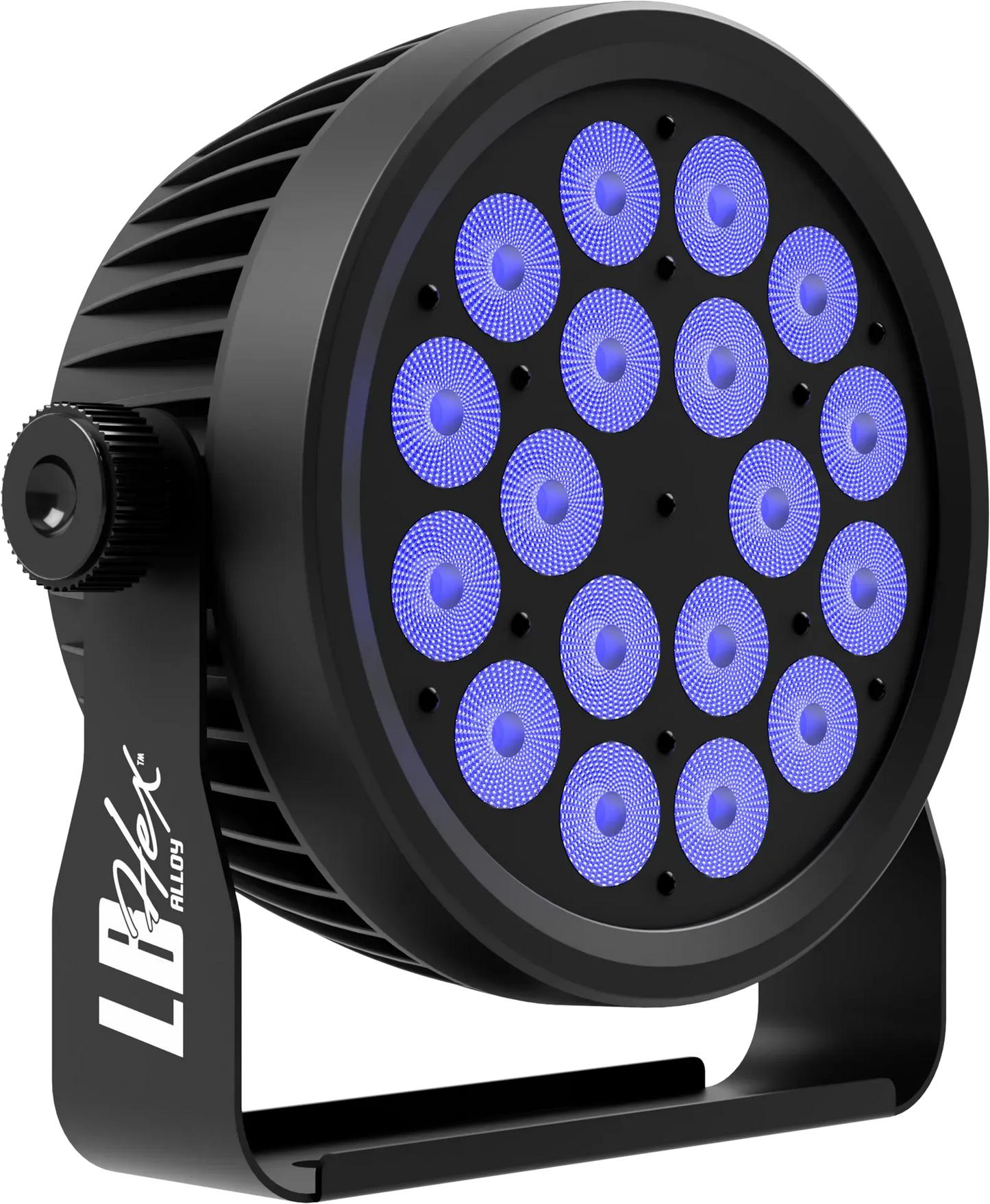

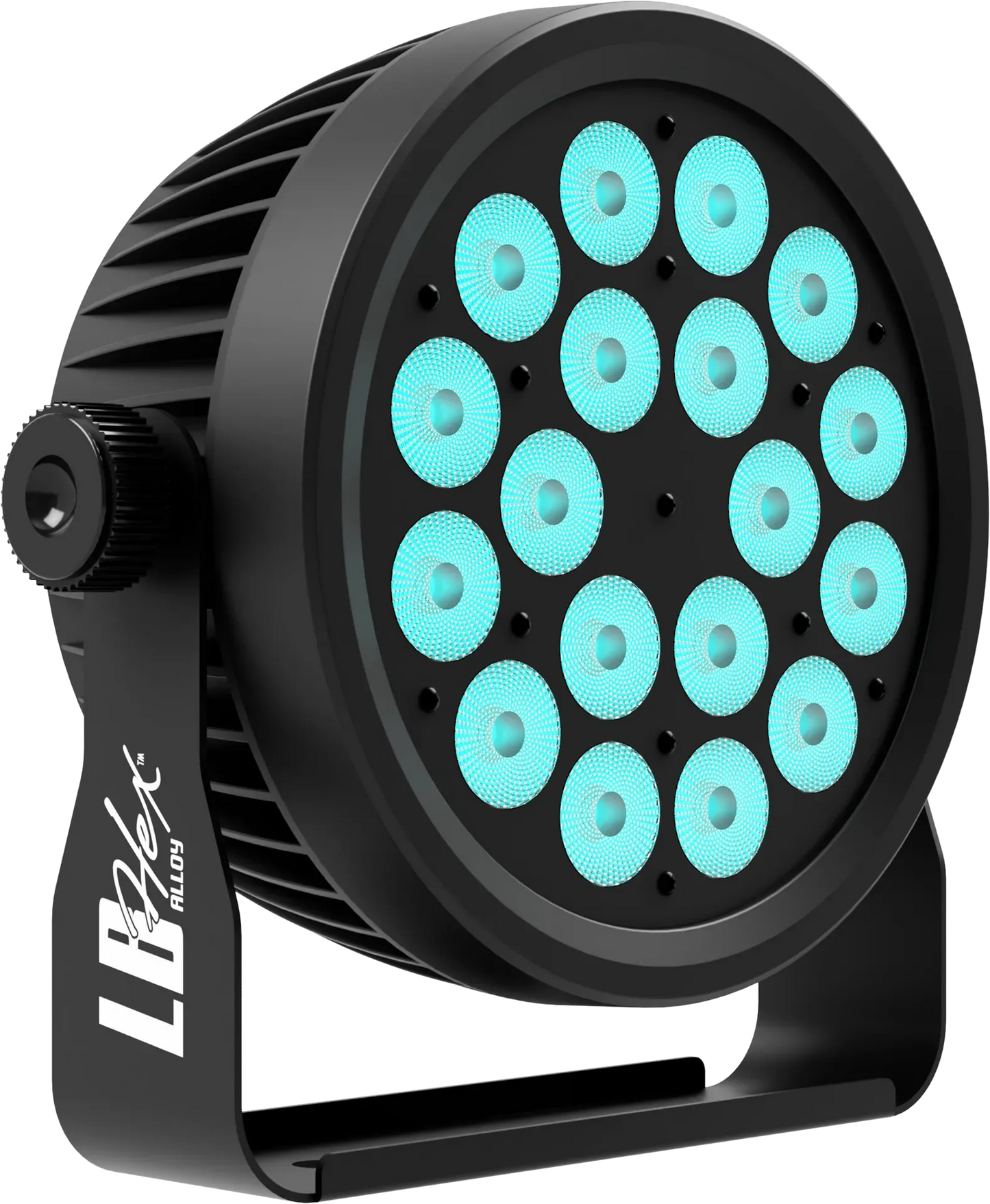

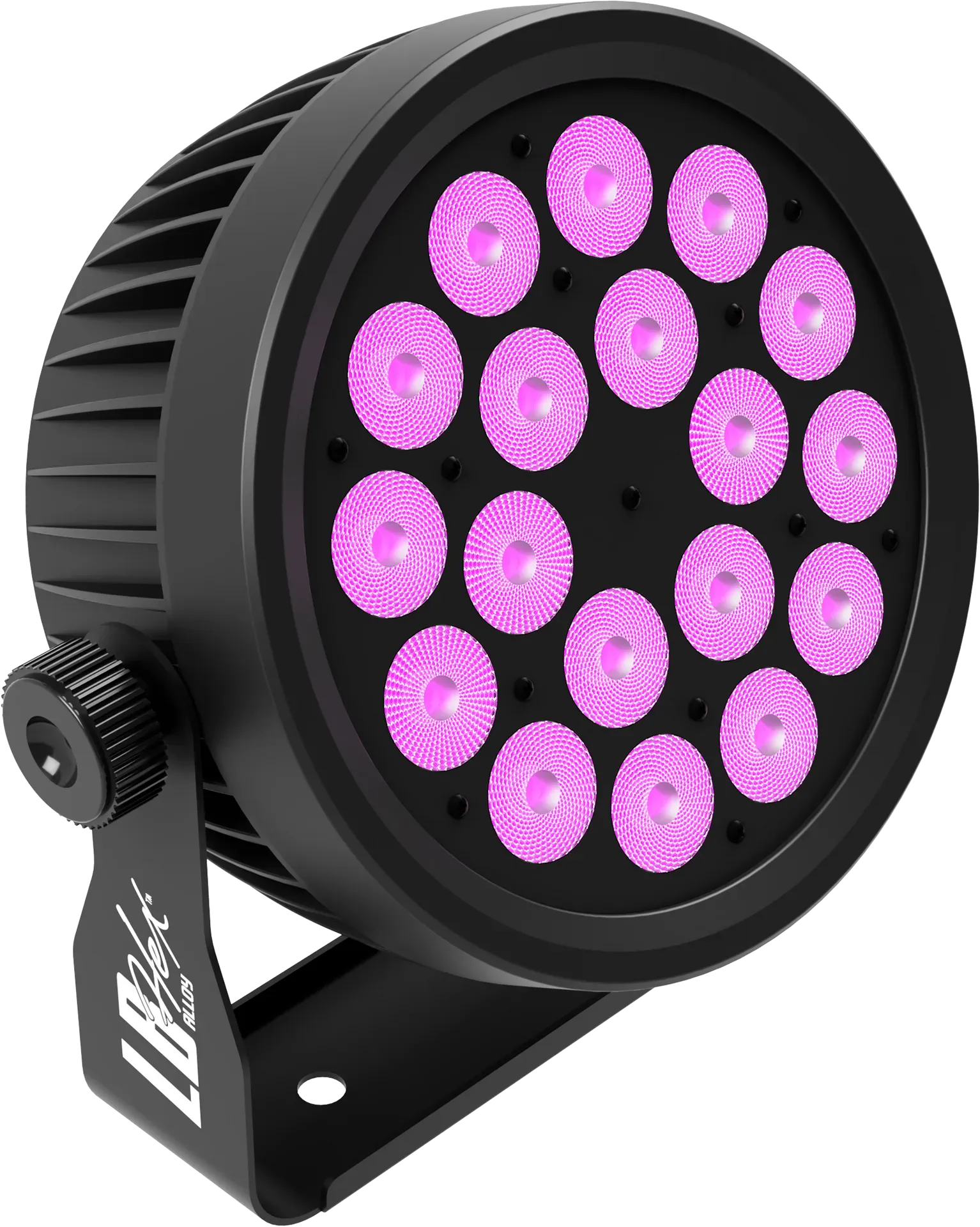

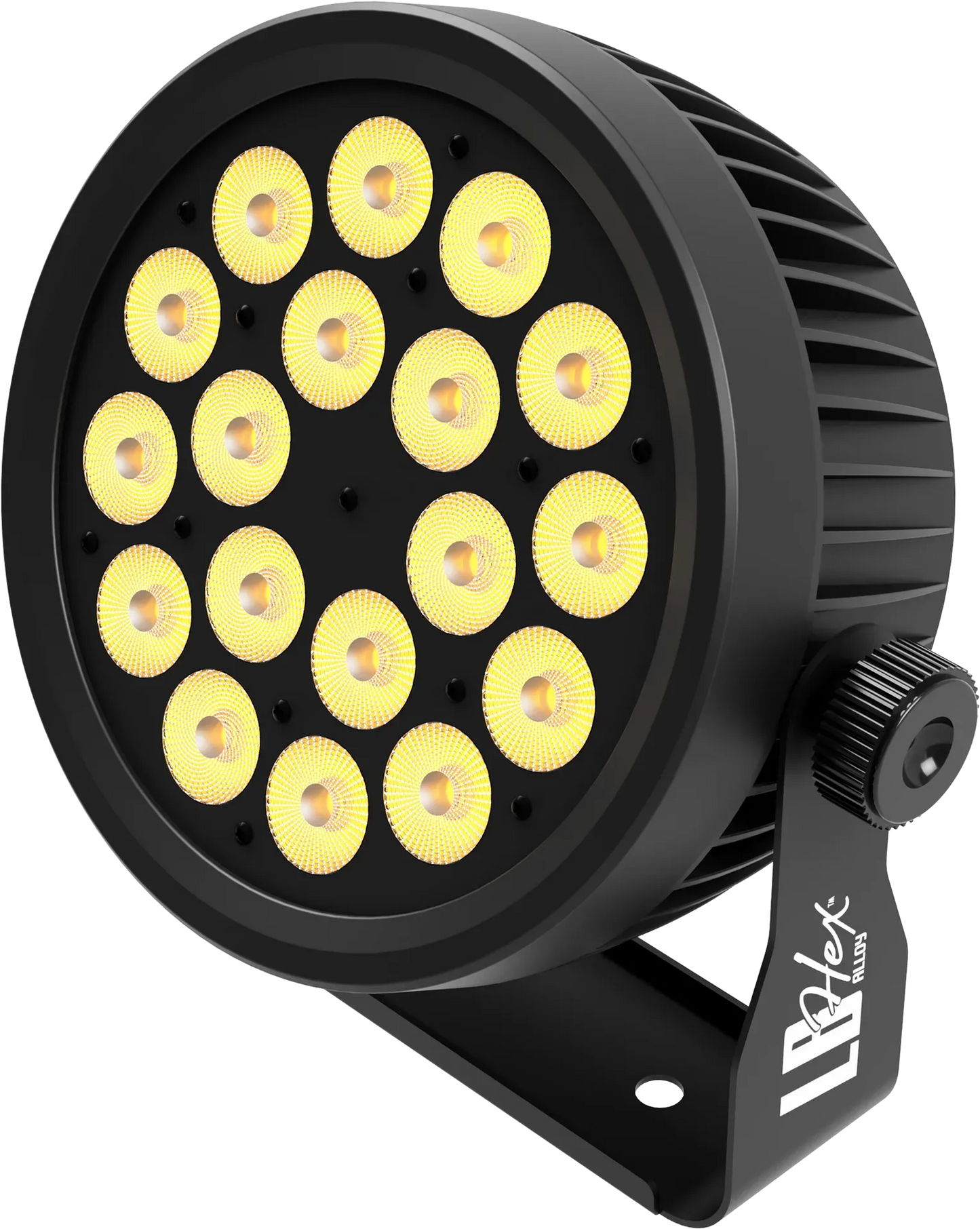

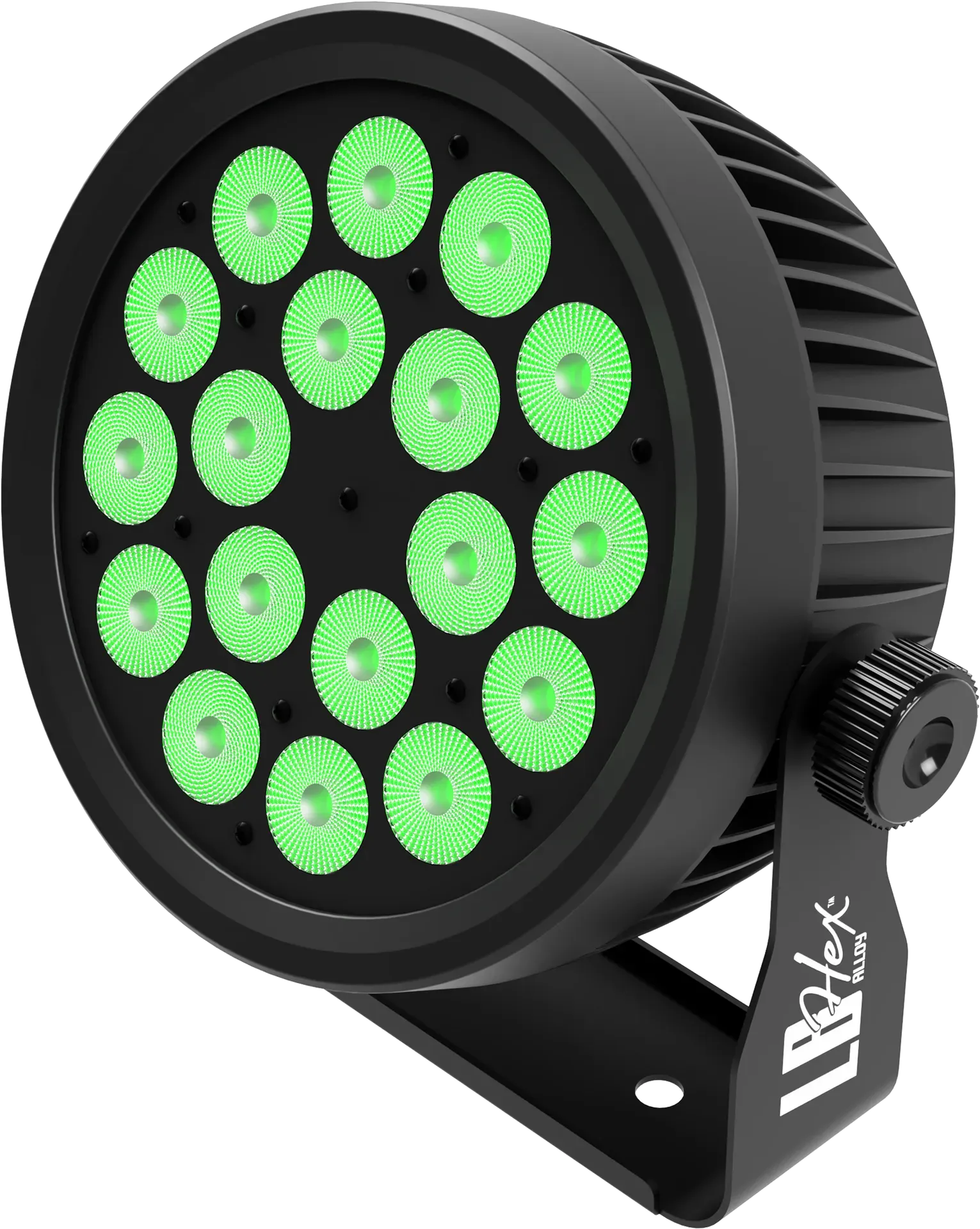

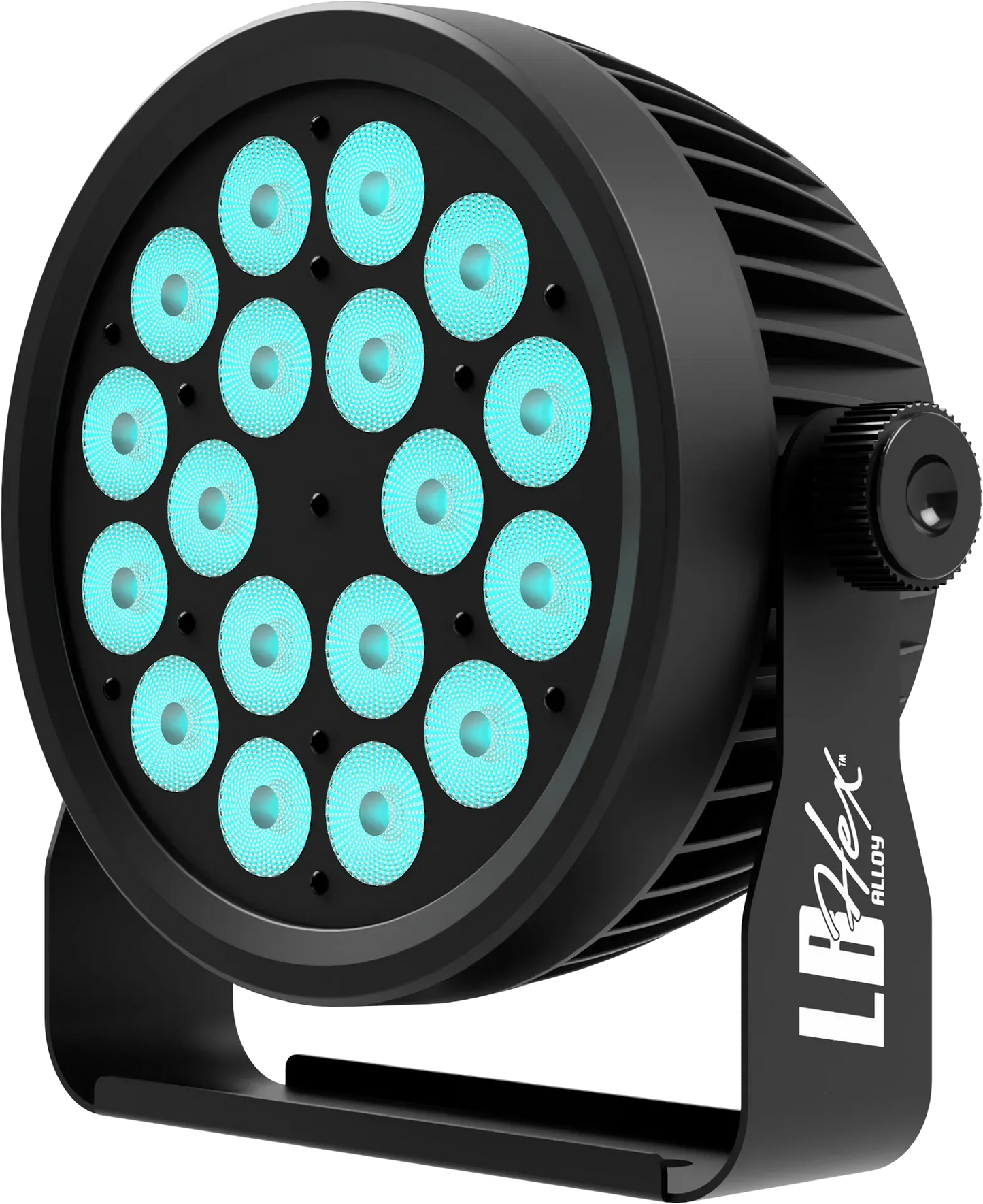

Heavy-Duty Cast-Aluminum 6-in-1 RGBAW+UV LED Par
Durable Design, Premium Performance

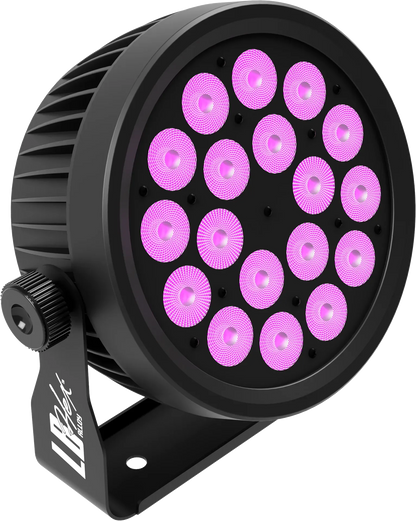

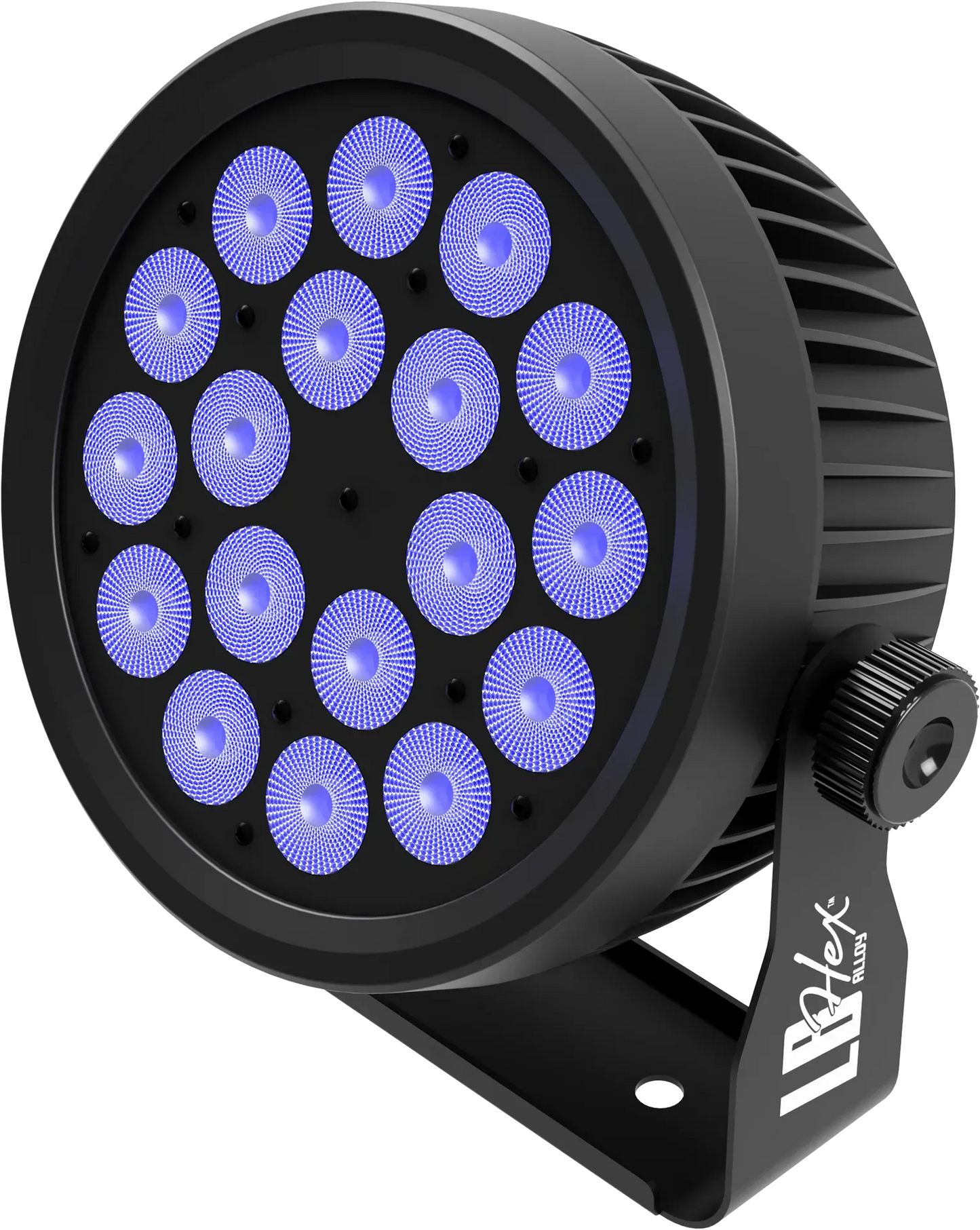

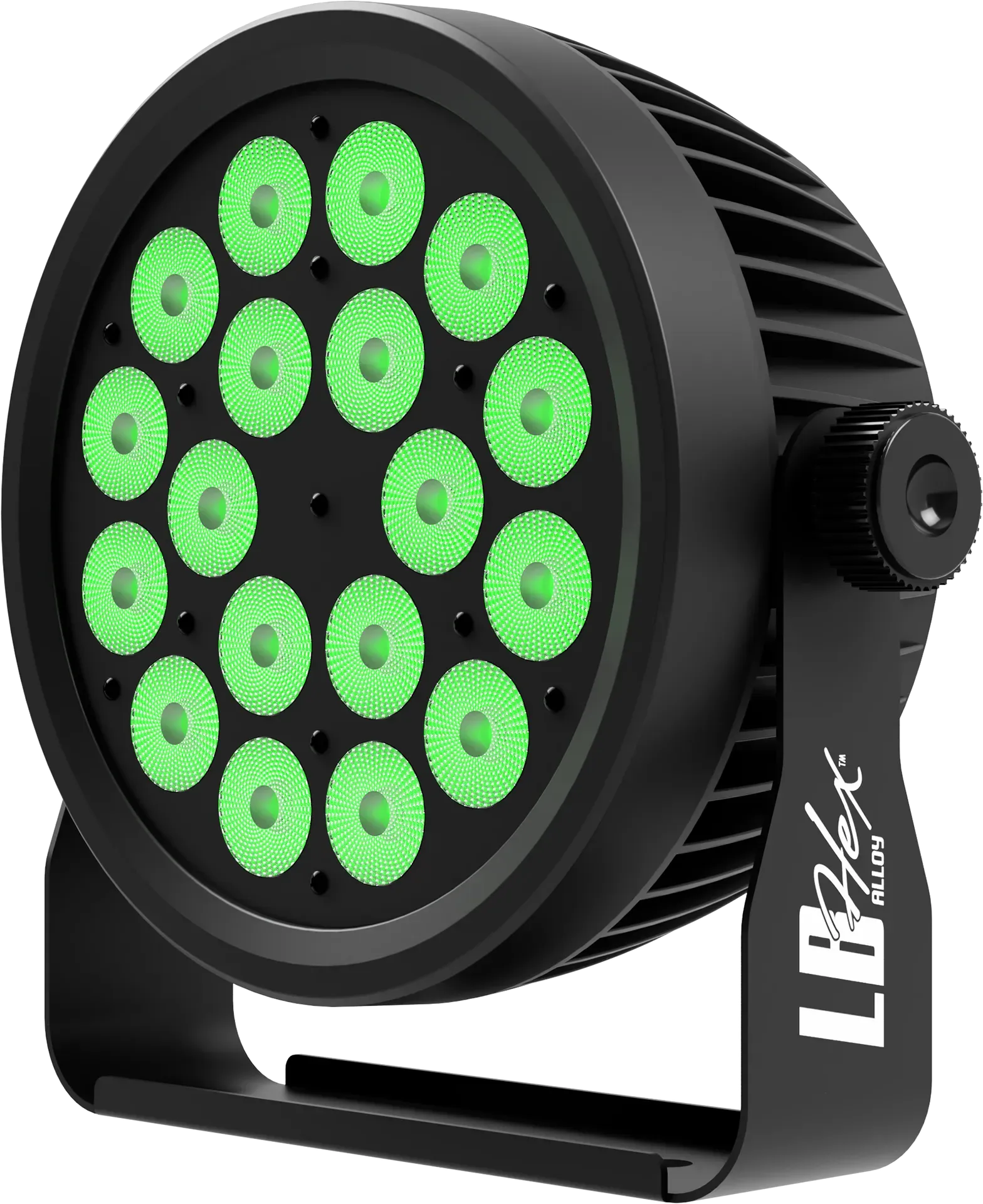

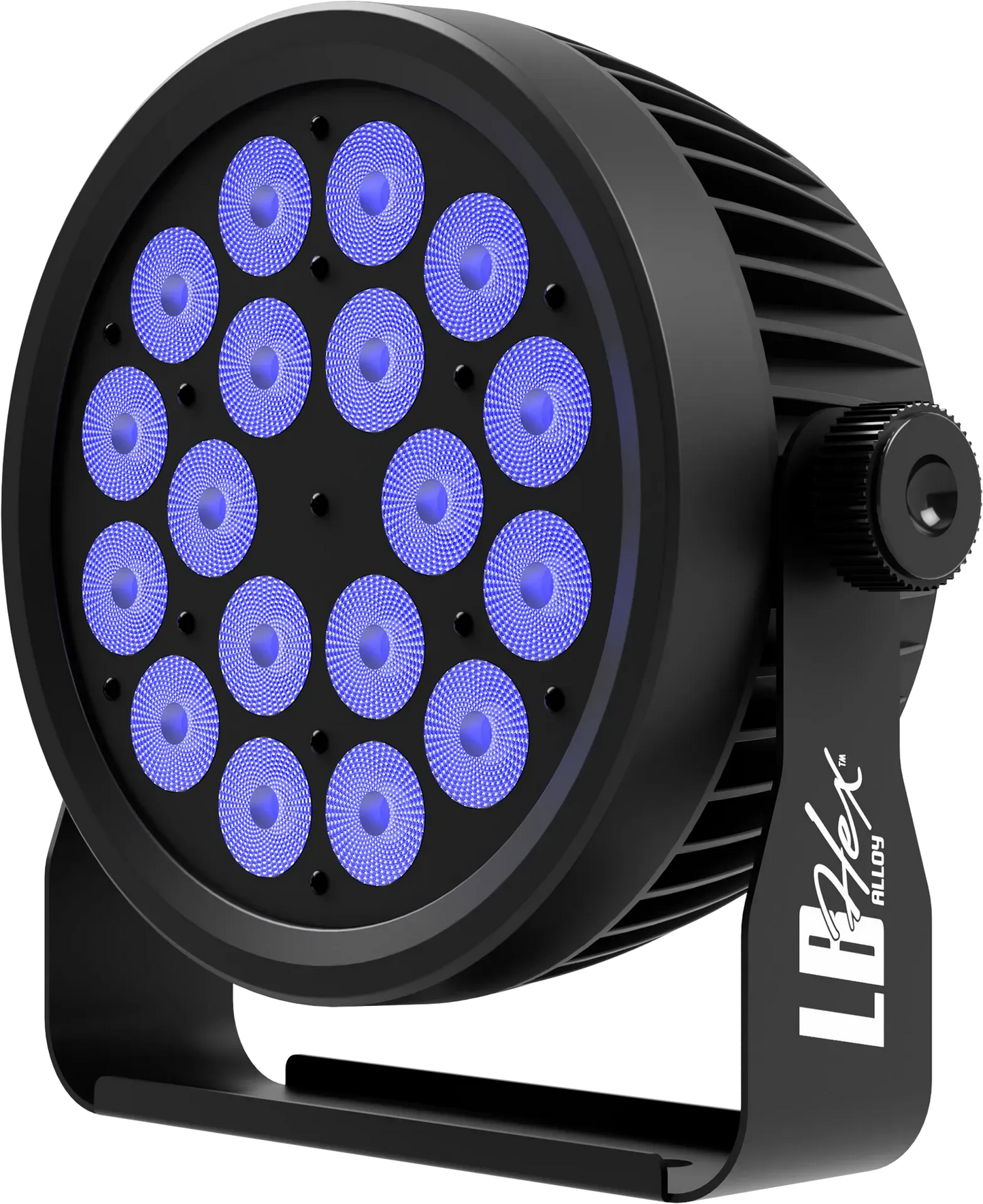

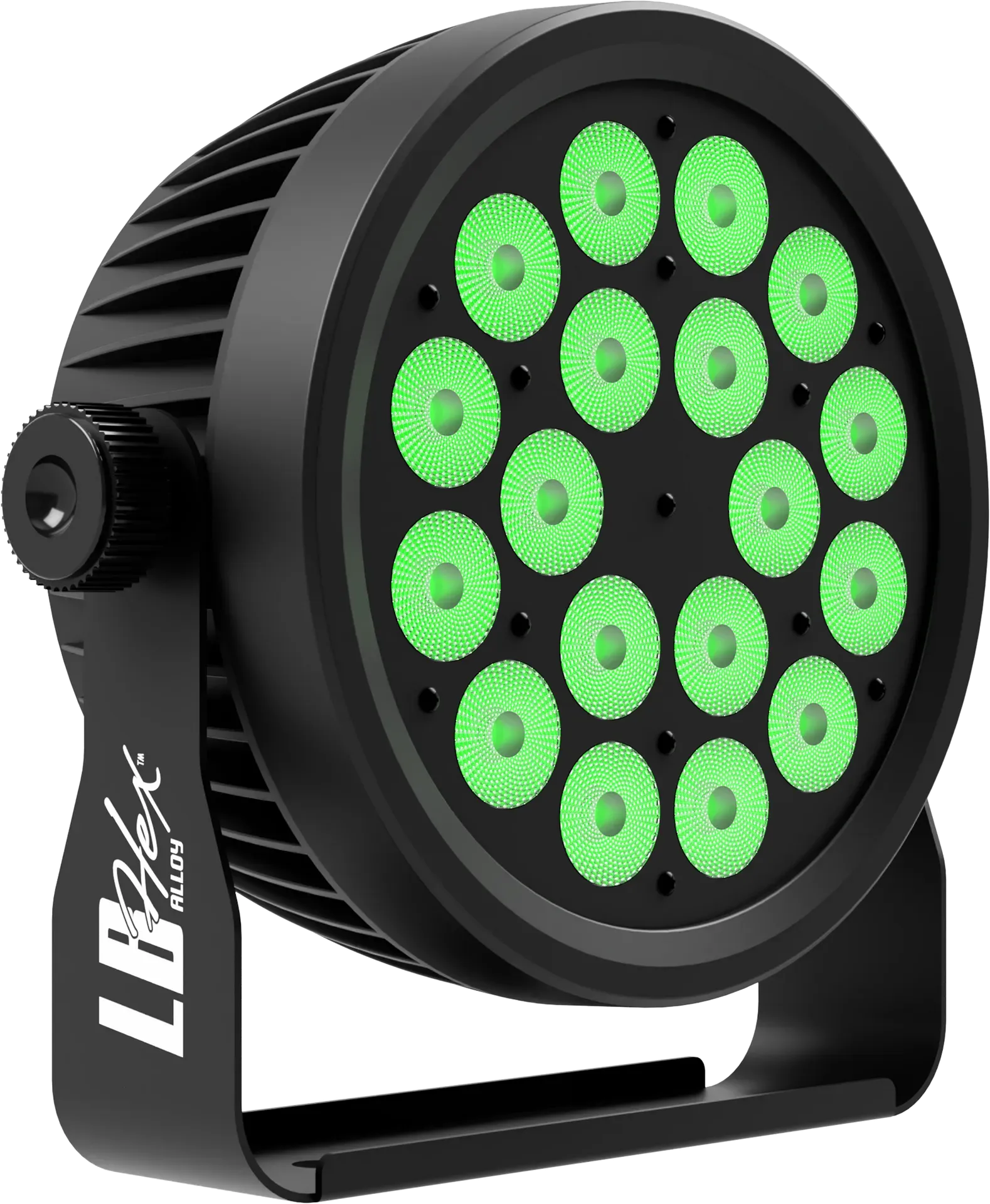

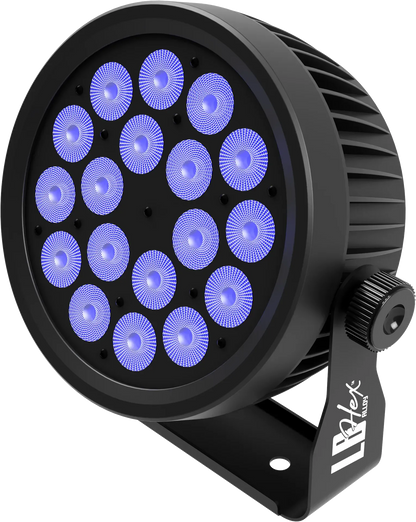

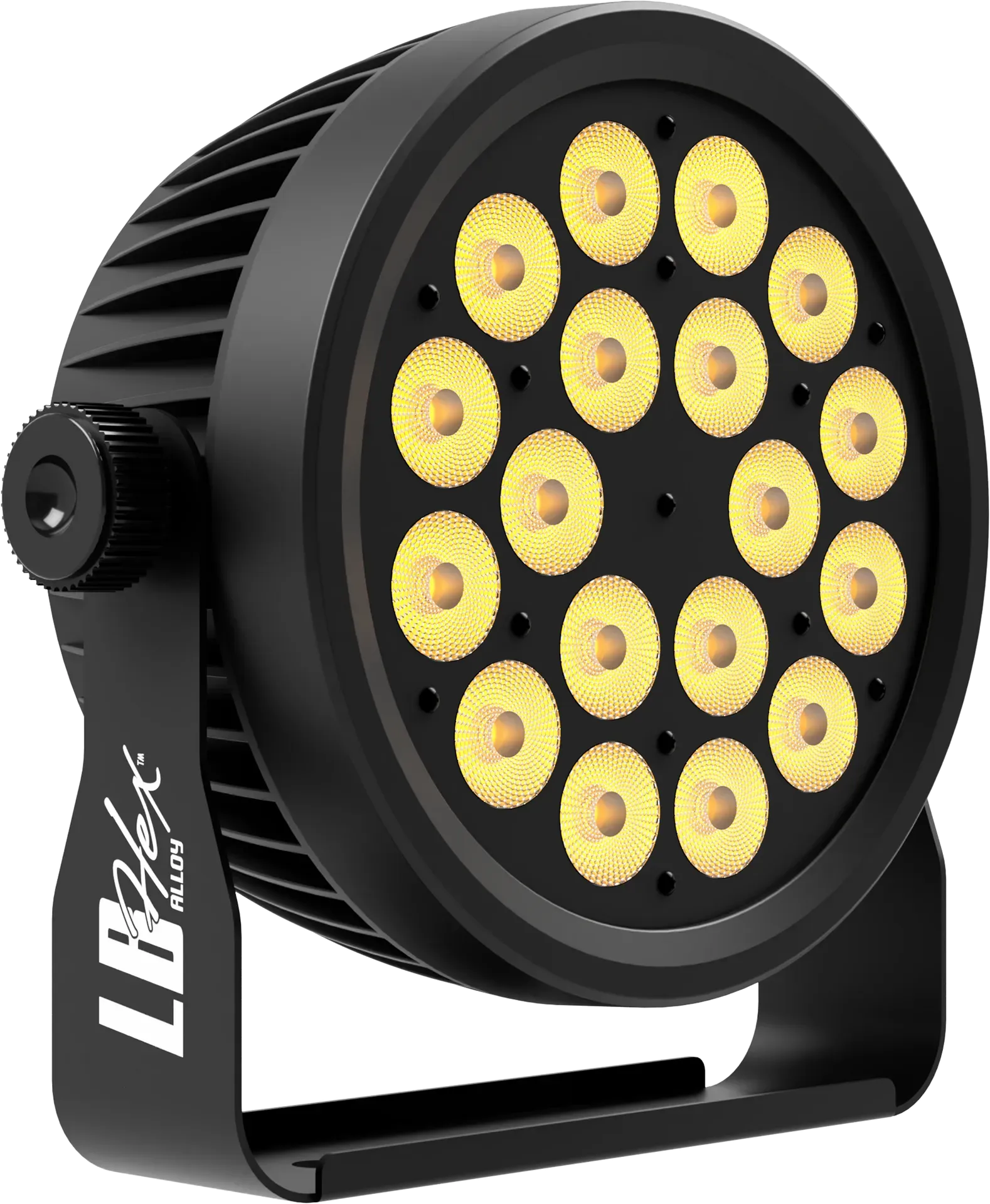

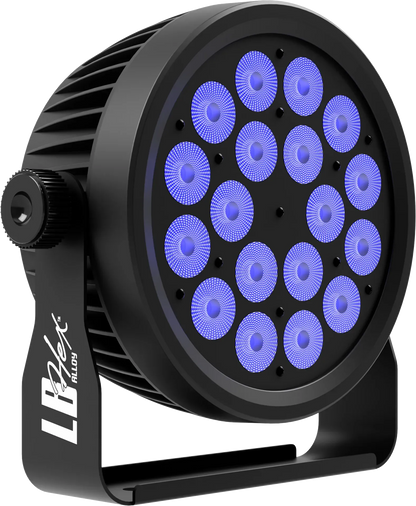

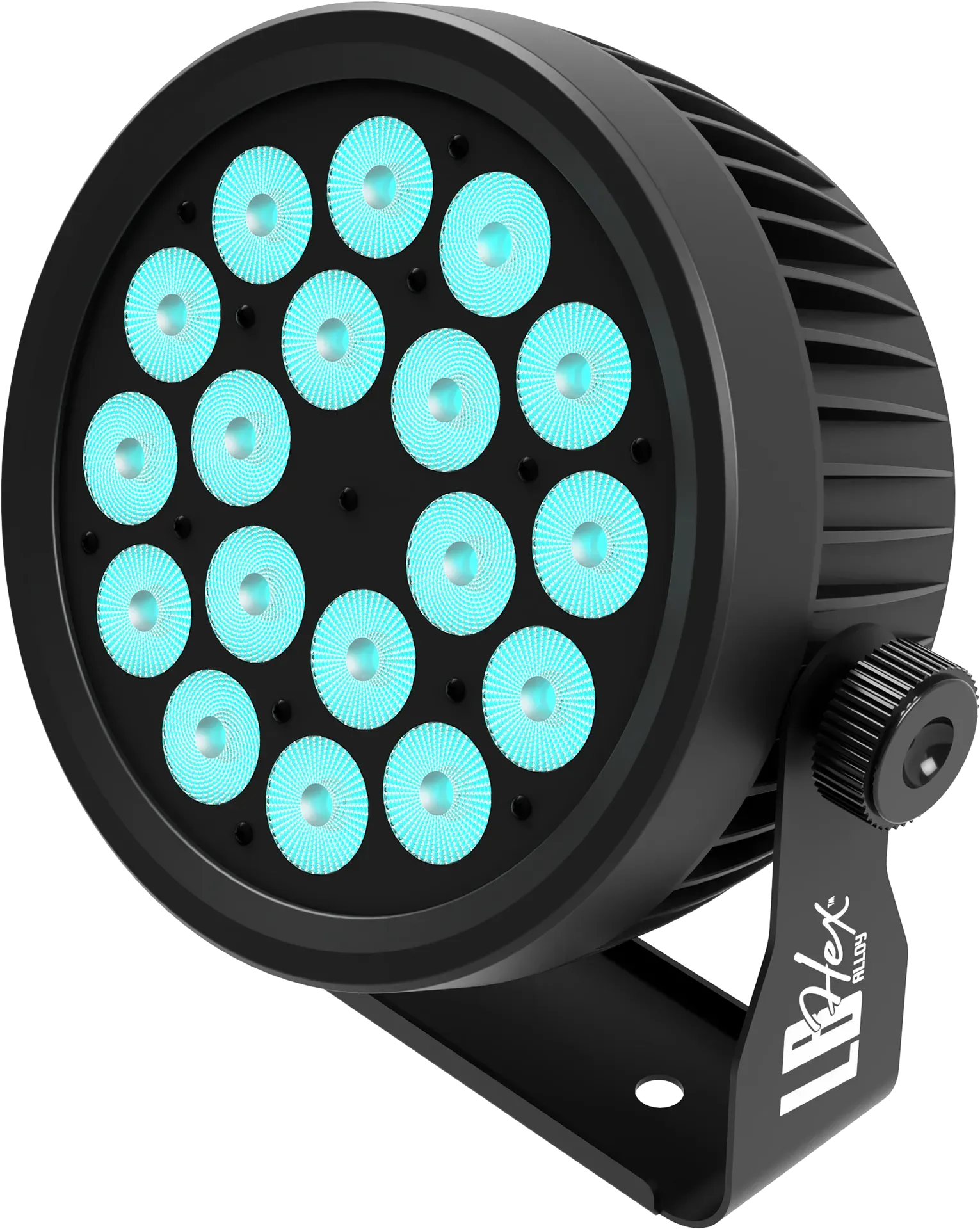

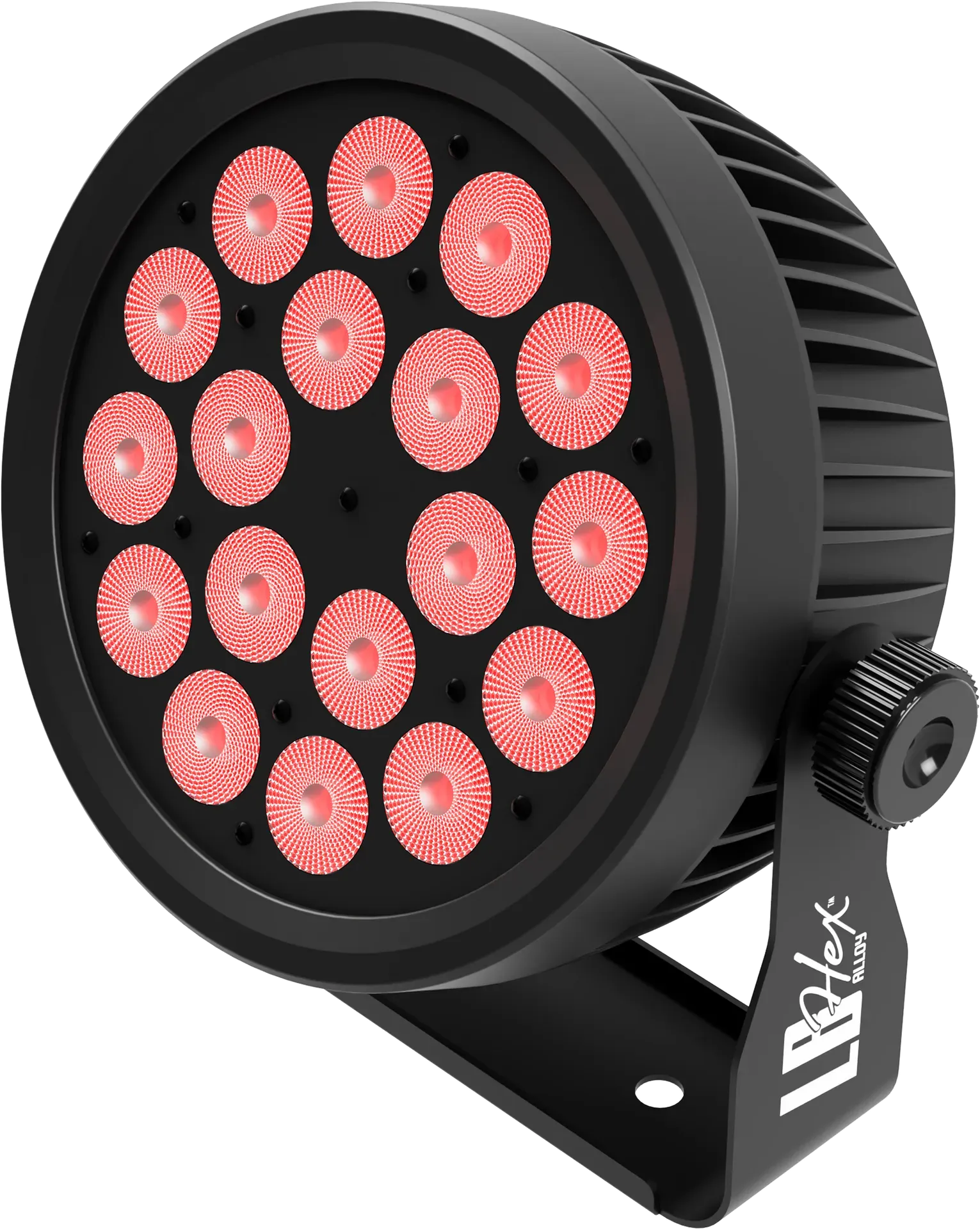

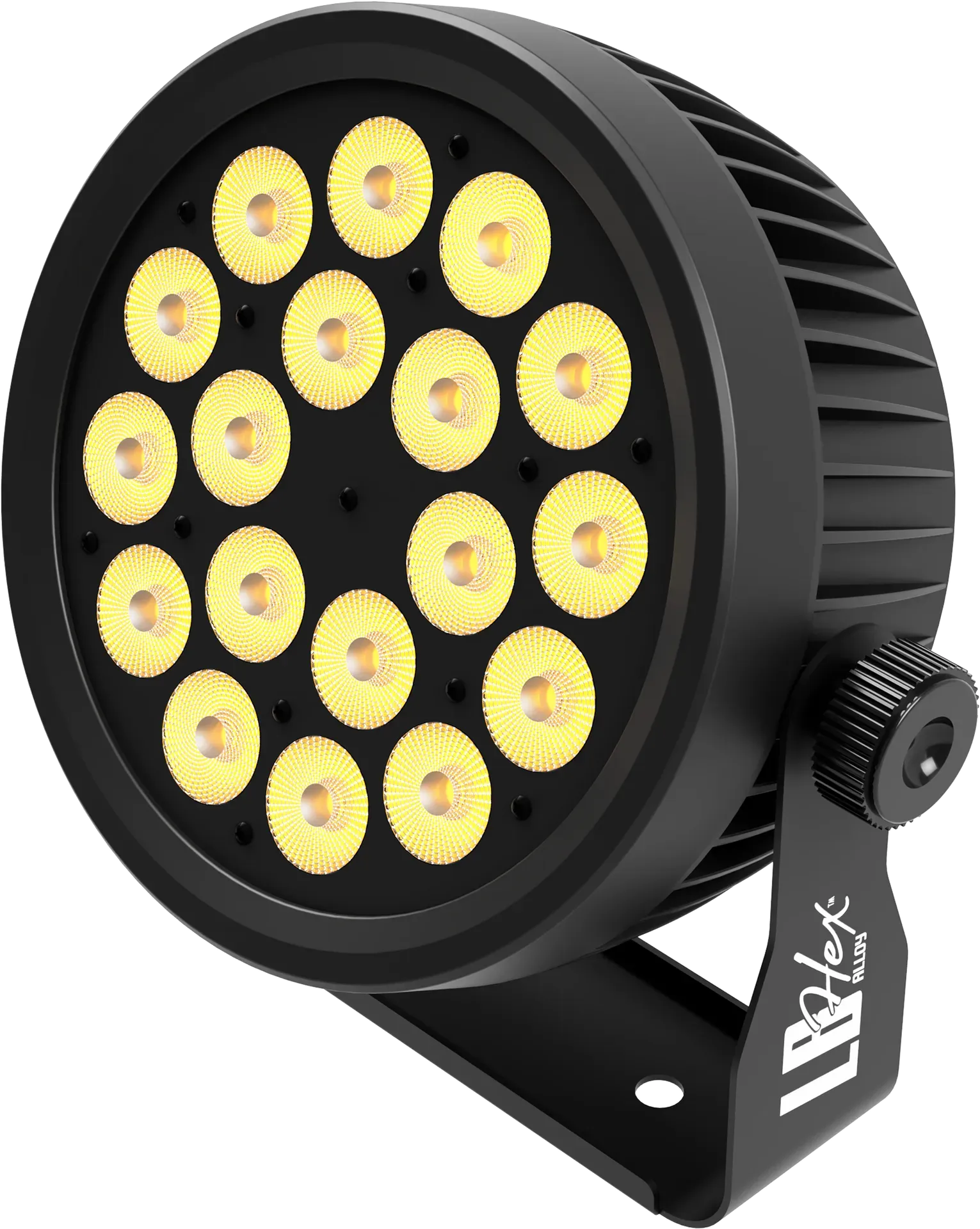

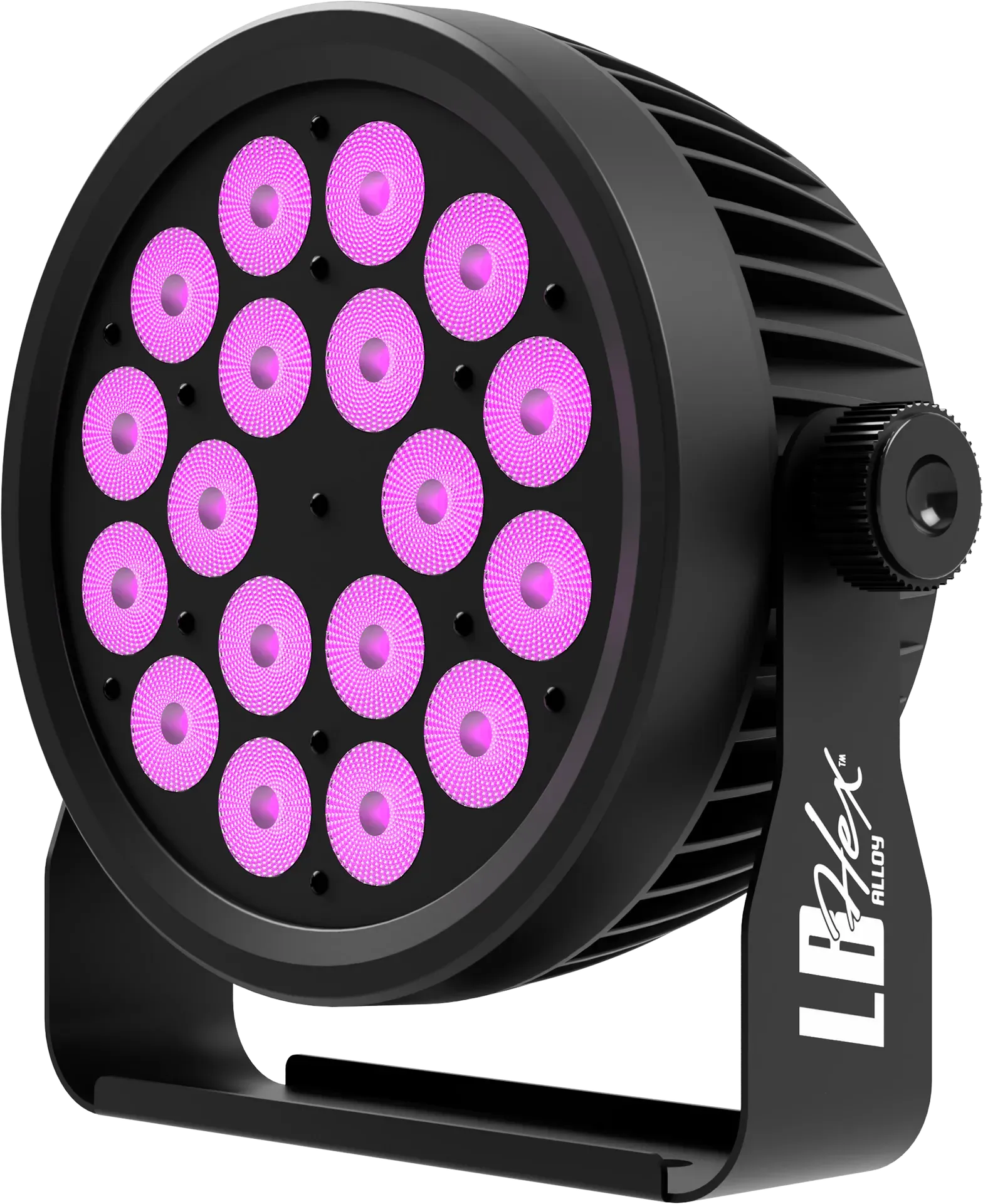

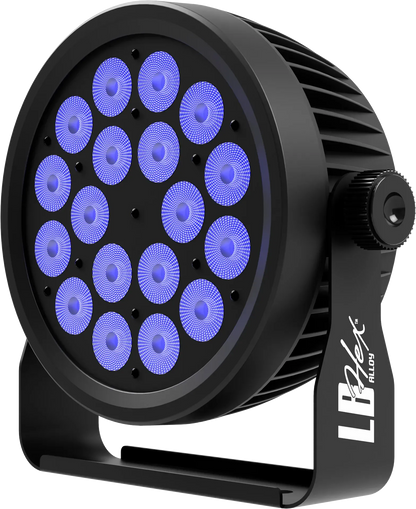

The LB™ Hex Alloy delivers full-spectrum light from 18 x 18W
RGBAW+UV high-output 6-in-1 LEDs, all housed in a rugged
cast-aluminum body. It offers 26 standard and 32 Rosco® color
matched presets for instant access to a wide range of vibrant
tones, and its convection cooling and temperature-controlled fan
ensures quiet, reliable performance in any setting.
Advanced Control
It offers 6/8/11-channel DMX modes, RDM support, and flicker-free
operation. Users can access built-in programs and sound-active
modes via DMX or the menu, and CCT control in 11-channel DMX

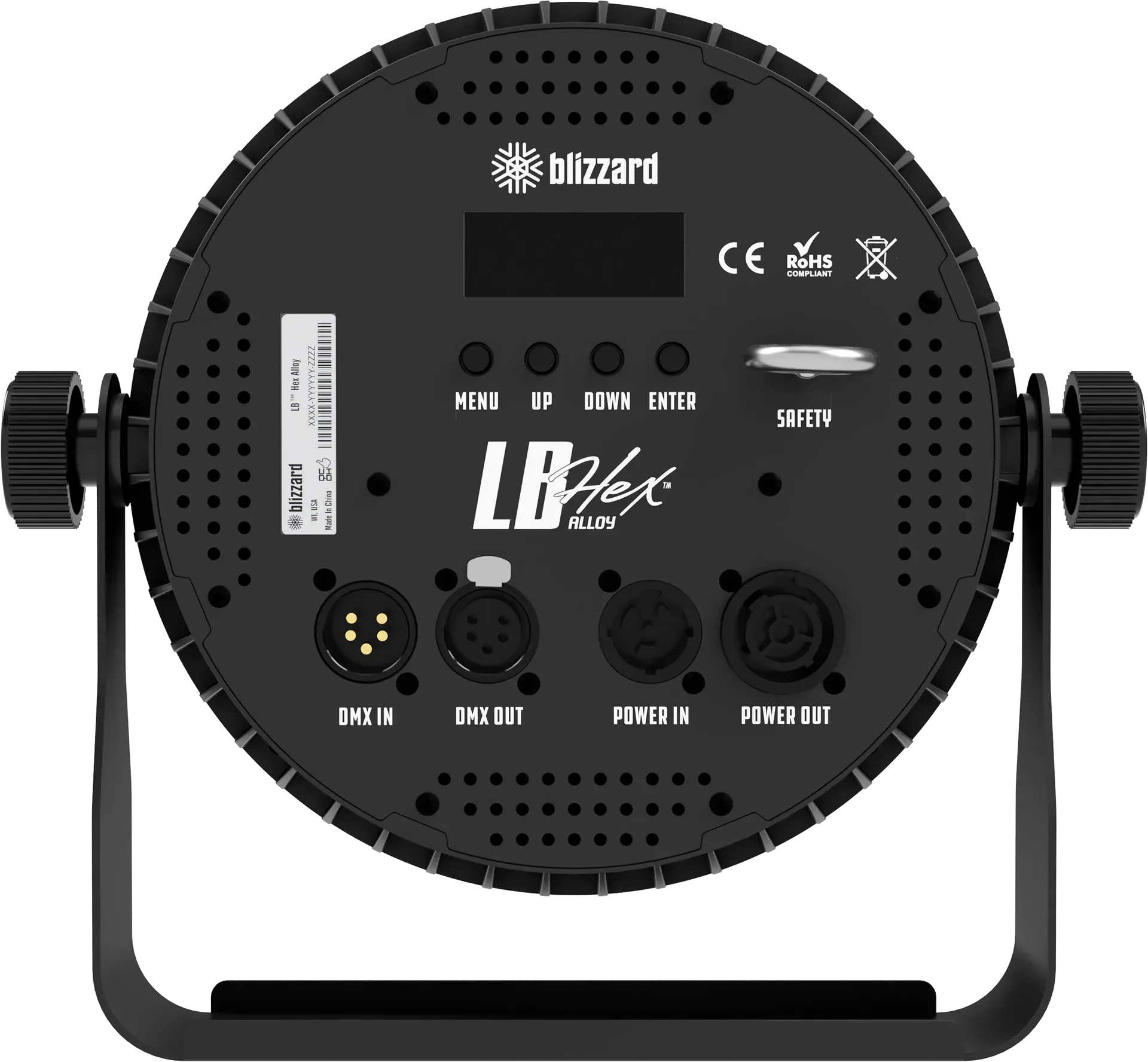

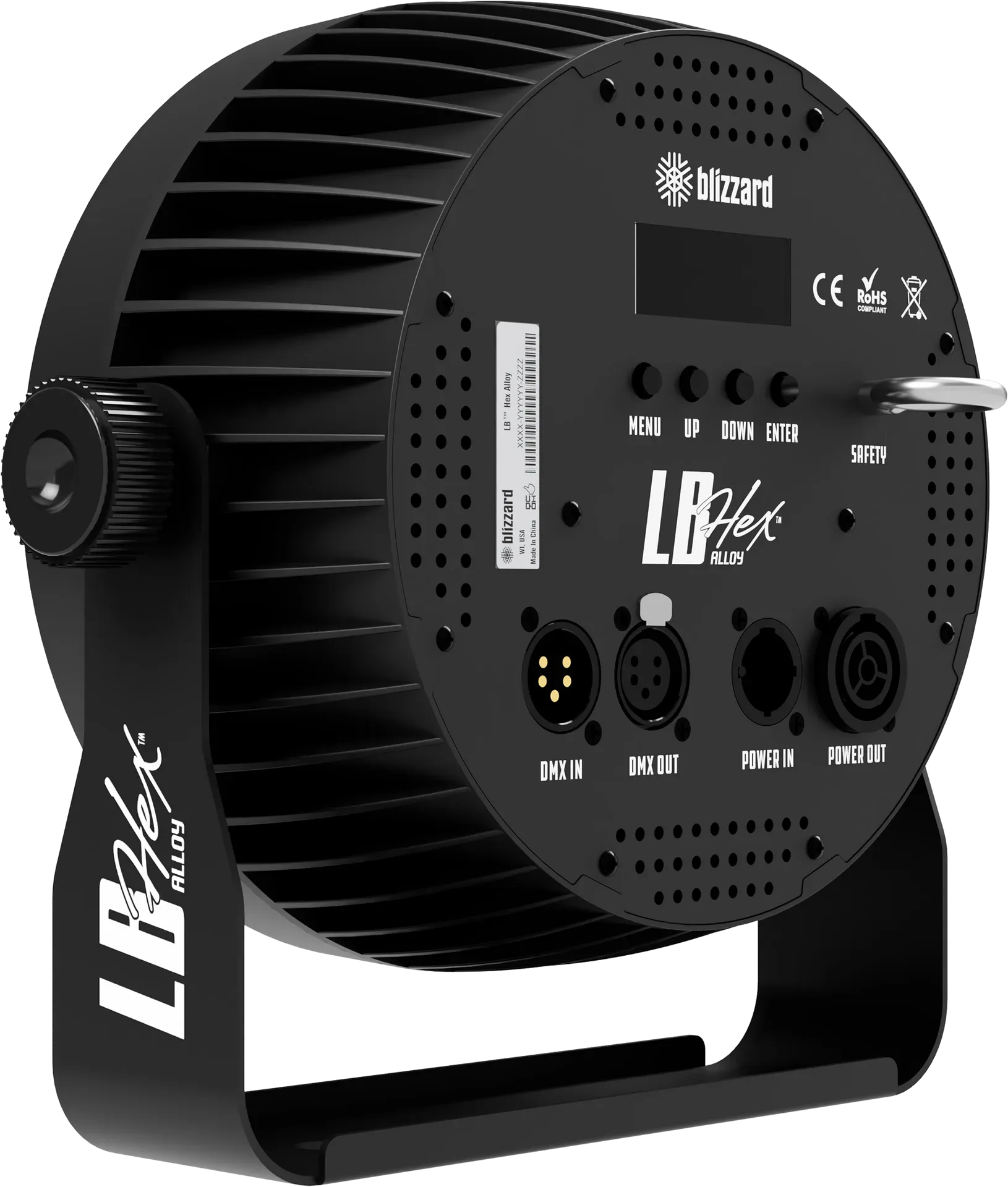

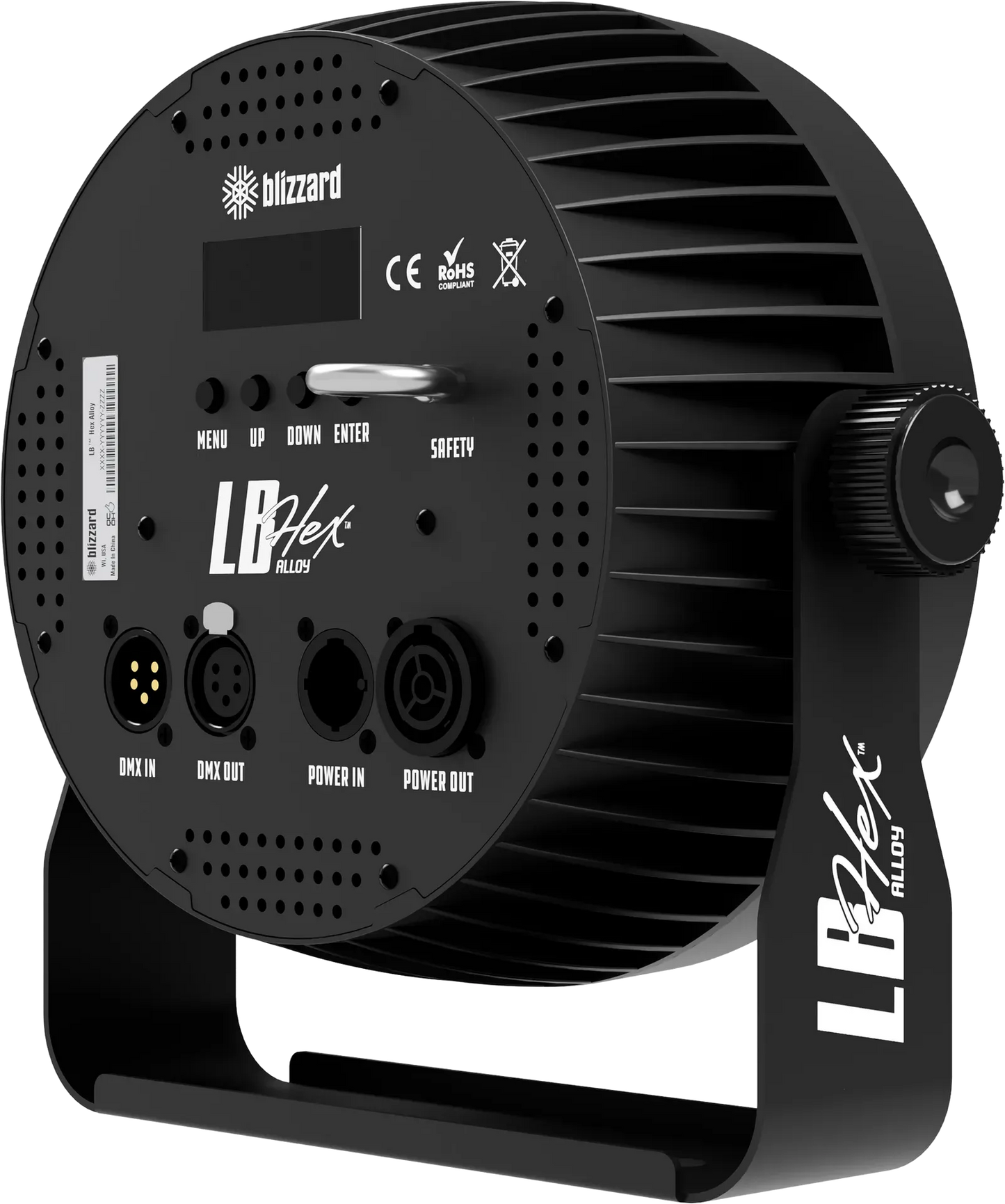

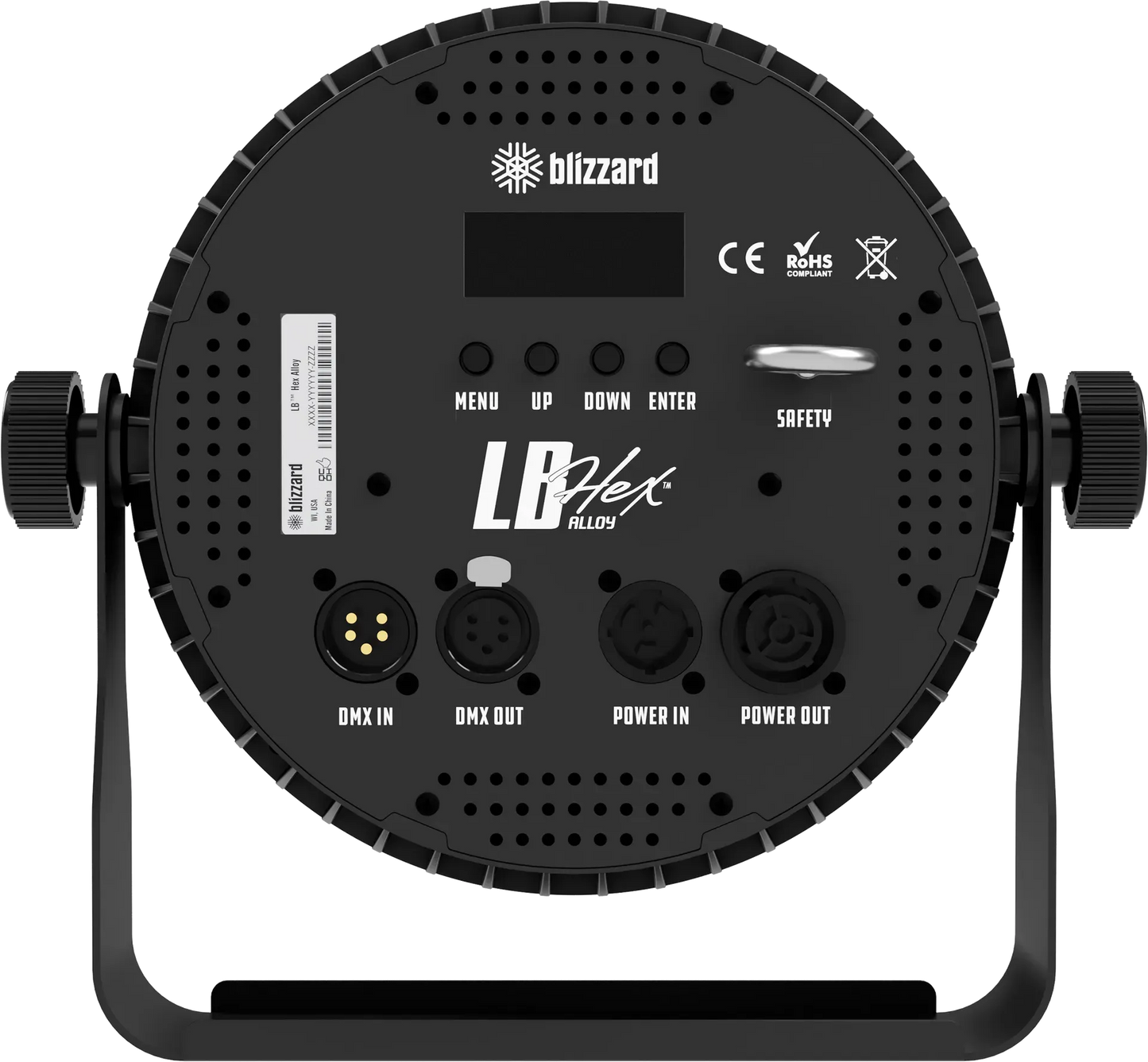

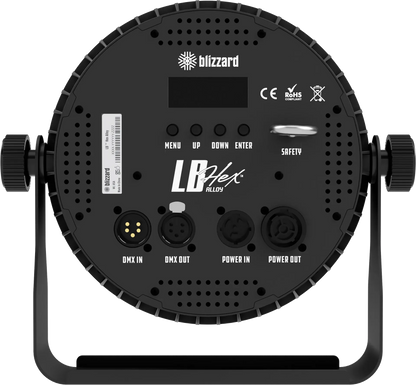

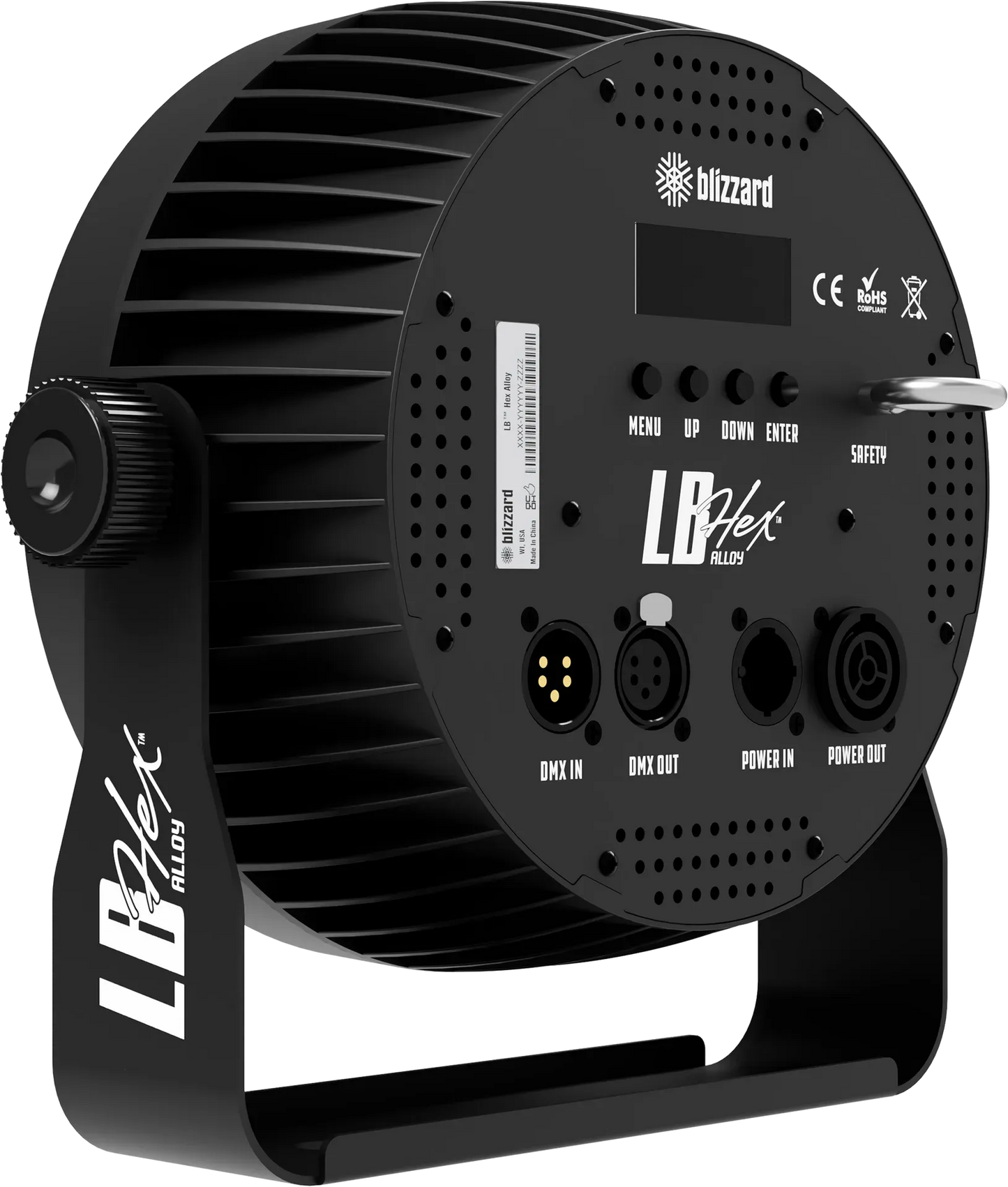

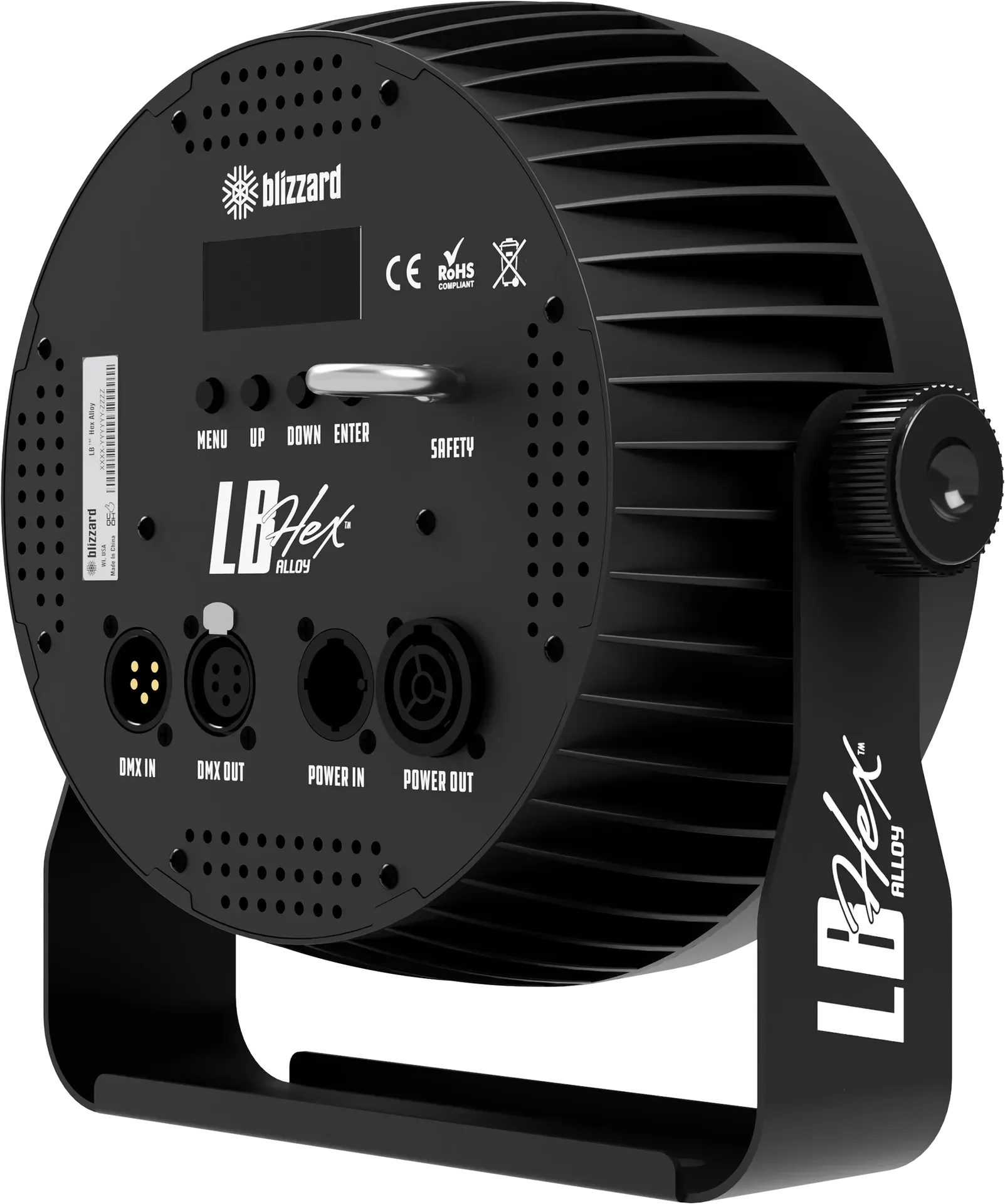

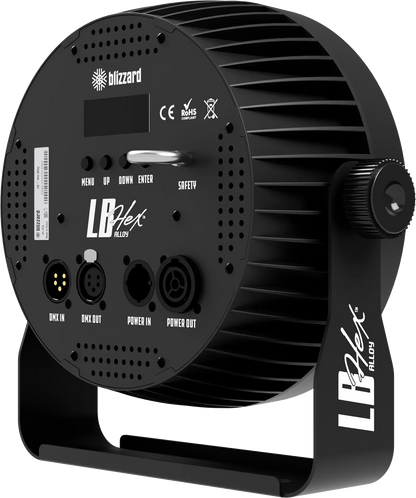

mode. Its rugged metal housing with locking bracket allows secure
mounting, while 5-pin DMX and PowerCON® TRUE1-compatible in/
out enable quick setup and reliable operation.
Luminous Intensity
Lux/M 2M 2.5M 3M 4M 5M 25° 5,365 3,076 1,890 1,140 746
Main Features
• 18 x 18W RGBAW+UV 6-in-1 LEDs
• 26 standard + 32 Rosco® color-matched presets
• 12 built-in programs and 3 sound active modes
• CCT range: 2000K–5700K (via DMX)
• 6/8/11-channel DMX profiles
• RDM (Remote Device Management)
• Flicker-free constant-current LED driver
• 25° beam angle
• 4-button control panel with LED display
• Cast-aluminum housing with locking bracket
• Mountable or freestanding operation • 5-pin DMX input and output
• PowerCON® TRUE1-compatible power in/out
Optical
18x 18W RGBAW+UV 6-in-1 LEDs, 100,000 hrs.
25° beam angle
Flicker-free LEDs
Weight & Dimensions
10.9 x 4.1 x 10.2 in (277 x 103.8 x 258.5 mm)
6.1 lb (2.76 kg)
Control
USITT DMX-512, RDM
5-pin DMX in/out 6/8/11-channel DMX modes
4-button menu with LED display
M/S, auto, sound active
Power + Current
110-240VAC, 50-60 Hz
Consumption: 144W,
1.85A, PF: .67 PowerCON® TRUE1 compatible in/out
Warranty
2-year limited warranty
