BLIZZARD

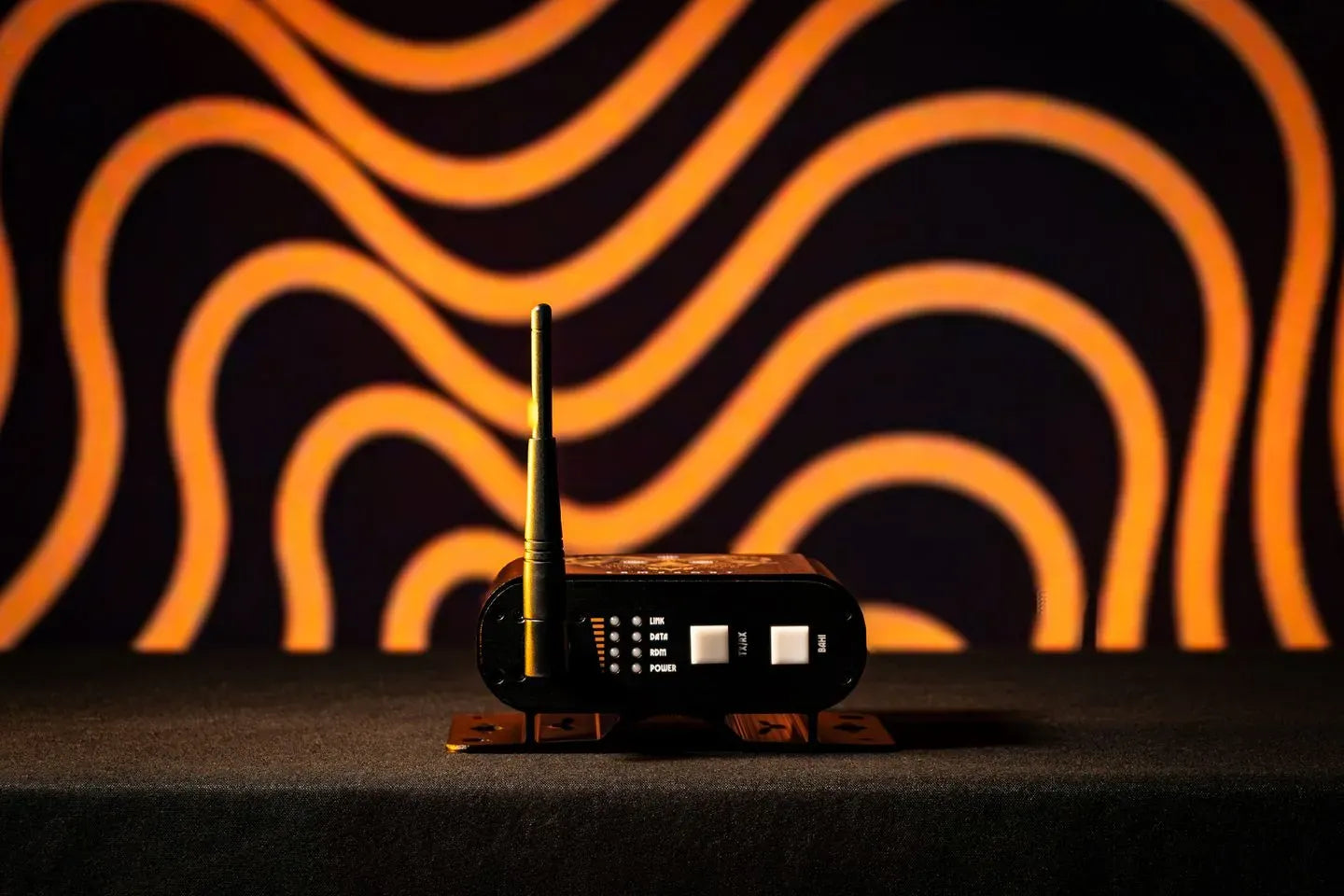

Lightcaster™ CRMX GOAT

Wireless CRMX Transceiver

Flawless Wireless Control
The LightCaster™ CRMX GOAT offers 2.4GHz wireless DMX with
RDM capability, combining exceptional reliability and range.
This versatile CRMX transceiver switches between transmit and
receive modes at the press of a button, and with its ultra-stable
AFHSS technology and a 1,000-meter range, it delivers seamless
performance for both small and large-scale lighting setups.


Reliable Performance
Equipped with 100mW transmitter power and 98dBm receiver
sensitivity, the LightCaster™ CRMX GOAT ensures a strong, stable
connection with less than 5ms latency. It supports 1 universe per
transmitter (up to 16), offering scalable performance. With its high
quality 2dBi antenna and powerCON® TRUE1 input, this unit is
built for reliable performance in any setting.

 Main Features
 • 2.4GHz CRMX wireless DMX transceiver
 • Compatible with CRMX and W-DMX protocols
 • Switchable TX/RX modes with dedicated button
 • Easy one-button signal connectivity
 • Supports 1 universe per transmitter (up to 16)
 • 100mW transmitter + 98dBm receiver sensitivity
 • Adaptive frequency hopping (AFHSS)
 • Less than 5ms latency for real-time control
 • 1,000-meter range (line of sight)
 • Supports RDM in RX mode
 • 2dBi antenna for extended range and stability

 Additional Features
 • Engineered for GOAT-level performance
 • Compact and durable design
 • 5-pin DMX input & output
 • powerCON® TRUE1-compatible power input

 Wireless
 Receiver sensitivity: 98dBm
 Transmitter power: 100mW
 Latency: < 5mS
 2dBi antenna

 Weight + Dimensions
 Dimensions: 5.7 x 4 x 2.3 inches (14.5 x 10 x 5.8 cm)
 Weight: 1.7 Lbs (0.7kg)

Control
 Max Range: 1,000 meters (line-of sight)
 Universes: 1 per transmitter max. 16

 Power + Current
 Voltage: 110V, 60 Hz
 Power: 6W
 Fuse 1A, 250V
 powerCON® TRUE1-compatible in

Warranty
2-year limited warranty.
