BLIZZARD

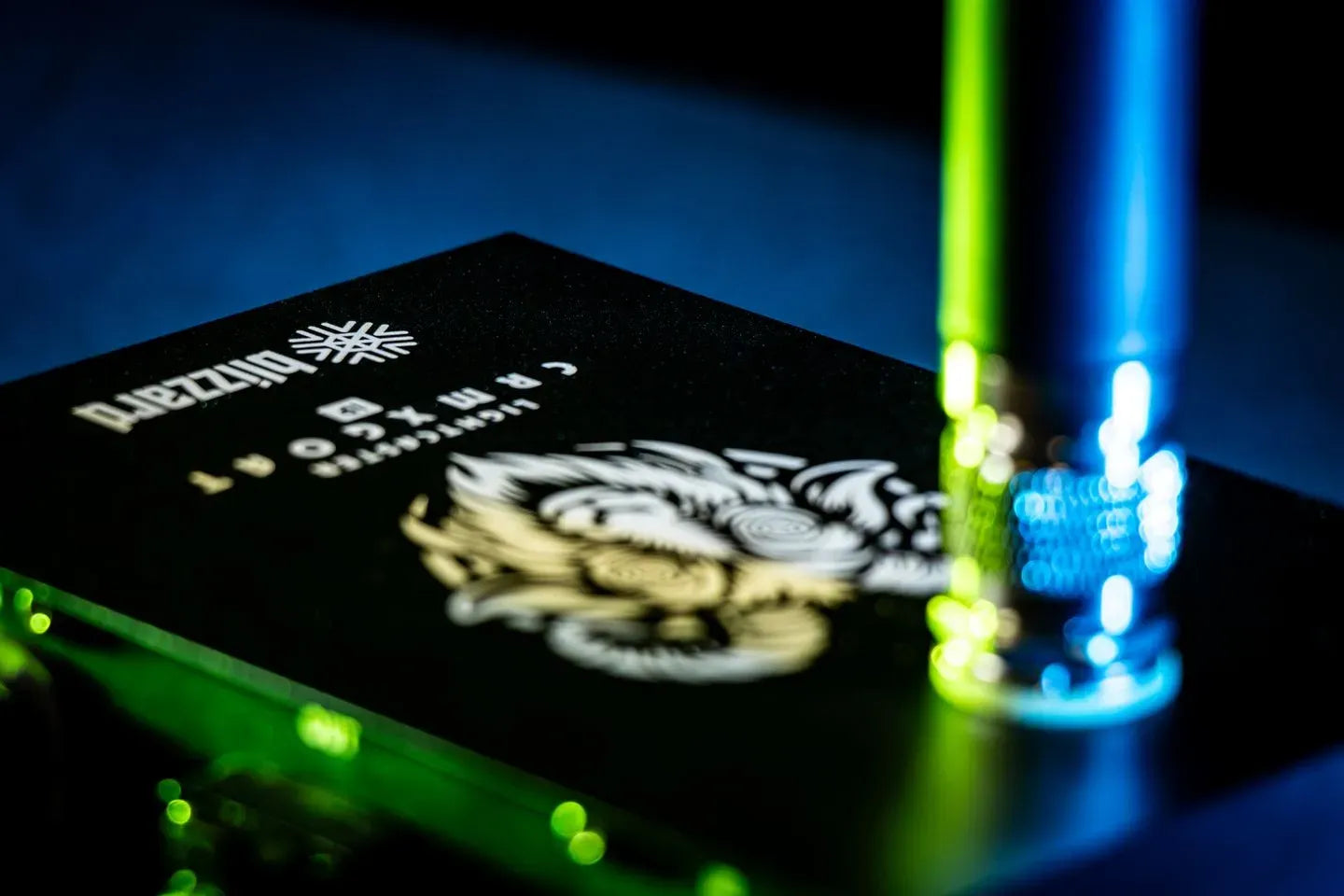

Lightcaster™ CRMX GOAT IP

Wireless CRMX Transceiver

Flawless Wireless Control
The LightCaster™ CRMX GOAT IP offers 2.4GHz wireless DMX with
RDM capability, combining exceptional reliability and range in an IP65 rated design.
This versatile CRMX transceiver switches between transmit and
receive modes at the press of a button, and with its ultra-stable
AFHSS technology and a 1,000-meter range, it delivers seamless
performance indoors and outdoors.


Reliable Performance
Equipped with 100mW transmitter power and 98dBm receiver
sensitivity, the LightCaster™ CRMX GOAT IP ensures a strong, stable
connection with less than 5ms latency. It supports 1 universe per
transmitter (up to 16), offering scalable performance. With its high
quality 5dBi antenna and powerCON® TRUE1 input, this unit is
built for reliable performance in any setting.

 Main Features
 • IP65 rated 2.4GHz CRMX wireless DMX transceiver
 • Compatible with CRMX and W-DMX protocols
 • Switchable TX/RX modes with dedicated button
 • Easy one-button signal connectivity
 • Supports 1 universe per transmitter (up to 16)
 • 100mW transmitter + 98dBm receiver sensitivity
 • Adaptive frequency hopping (AFHSS)
 • Less than 5ms latency for real-time control
 • 1,000-meter range (line of sight)
 • Supports RDM in RX mode
 • 5dBi antenna for extended range and stability

 Additional Features
 • Engineered for GOAT-level performance
 • Compact and durable design
 • 5-pin DMX input & output
 • powerCON® TRUE1-compatible power input

 Wireless
 Receiver sensitivity: 98dBm
 Transmitter power: 100mW
 Latency: < 5mS
 5dBi antenna

 Weight + Dimensions
 Dimensions: 6.7 x 4.5 x 3.1 inches (170 x 114 x 80 mm)
 Antenna:  0.9 x 0.9  x 7.3 inches (2.3 x 2.3 x 18.5 cm)                                              Weight: 2.9 Lbs (1.3kg)

Control
 Max Range: 1,000 meters (line-of sight)
 Universes: 1 per transmitter max. 16

 Power + Current
 Voltage: 110V, 60 Hz
 Power: 6W
 powerCON® TRUE1-compatible in

Warranty
2-year limited warranty.
