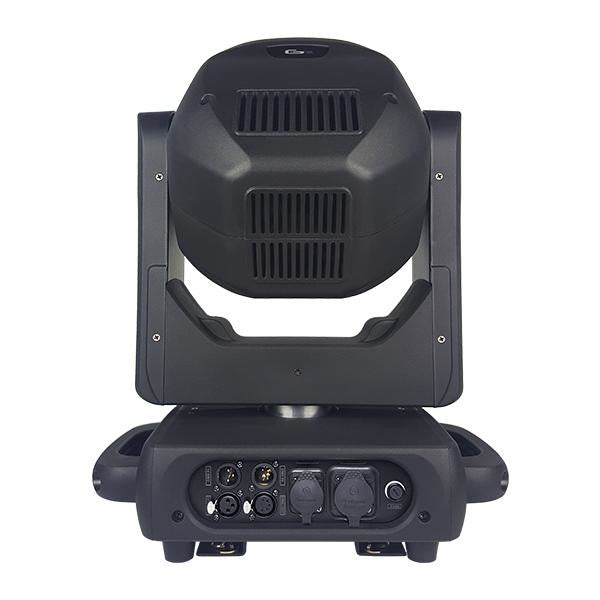

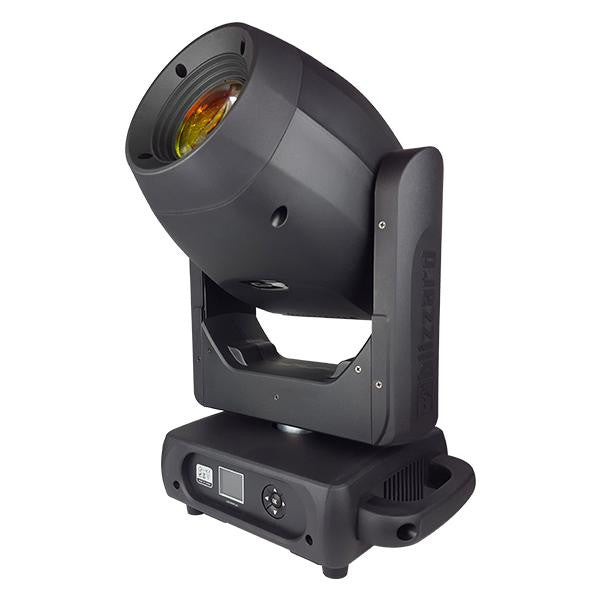

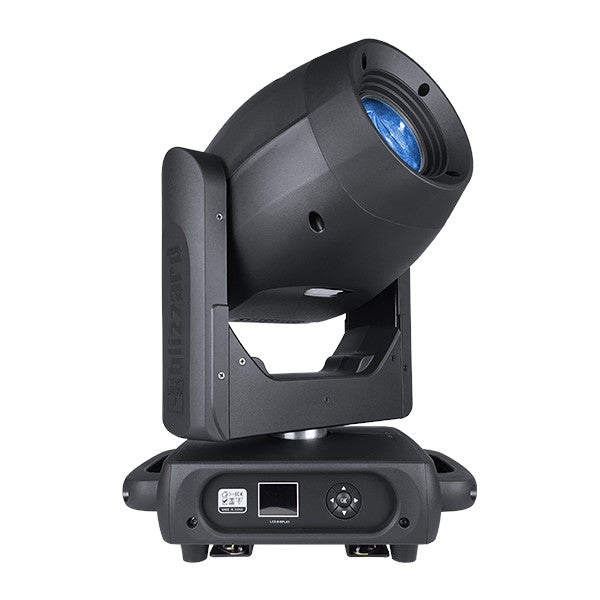

200W LED MOVING SPOT

G-Max^™ 200 is an LED moving head that boasts some serious power with its extremely bright, 200W LED light engine, and it's 13°- 27° motorized zoom is perfect for short or long throws. It is equipped with ultra-fast 3-phase pan/tilt motors plus an 8 color + open color wheel, 7x static metal gobos +open, and 7x rotating glass gobos +open which can create amazing gobo morphing effects and mid-air projections.

FULLY LOADED

It also offers a motorized linear iris, focus, and frost, plus it has two rotatable prism settings with 6-facet linear, and 8-facet prism effects with variable speed and direction control that can create a stunning aerial display. All of these professional features can be easily controlled by using either of its well-structured 16/19-channel DMX modes, or accessed directly by using its easy-to-use 5-button LCD control panel.

Main Features

• 200W white LED light engine, 60,000 hours

• Fast and precise zoomable beam angle (13°- 27°)

• 8-16 bit smooth pan and tilt resolution

• Pan: 540°/ Tilt: 230° with 3-phase motors

• 8 colors + open color wheel

• 7 metal gobos + open

• 7 rotating, replaceable gobos + open

• Smooth dimmer from 0 - 100%

• 6 linear + 8-facet prism effects

• Motorized linear iris, focus, and frost

• Linear electronic focus

• Dual omega brackets with 1/4-turn fasteners

Luminous Intensity:

Beam          2.5-meters        5-meters        7.5-meters         10-meters

27° (lux)       13,058               3,241                 1,543                      916

13° (lux)       38,405               9,937                4,668                   2,746

27° (fc)            1,213.2                301.1                  143.4                   85.1

13° (fc)           3,567.9                 923.2                 433.7                 255.1
