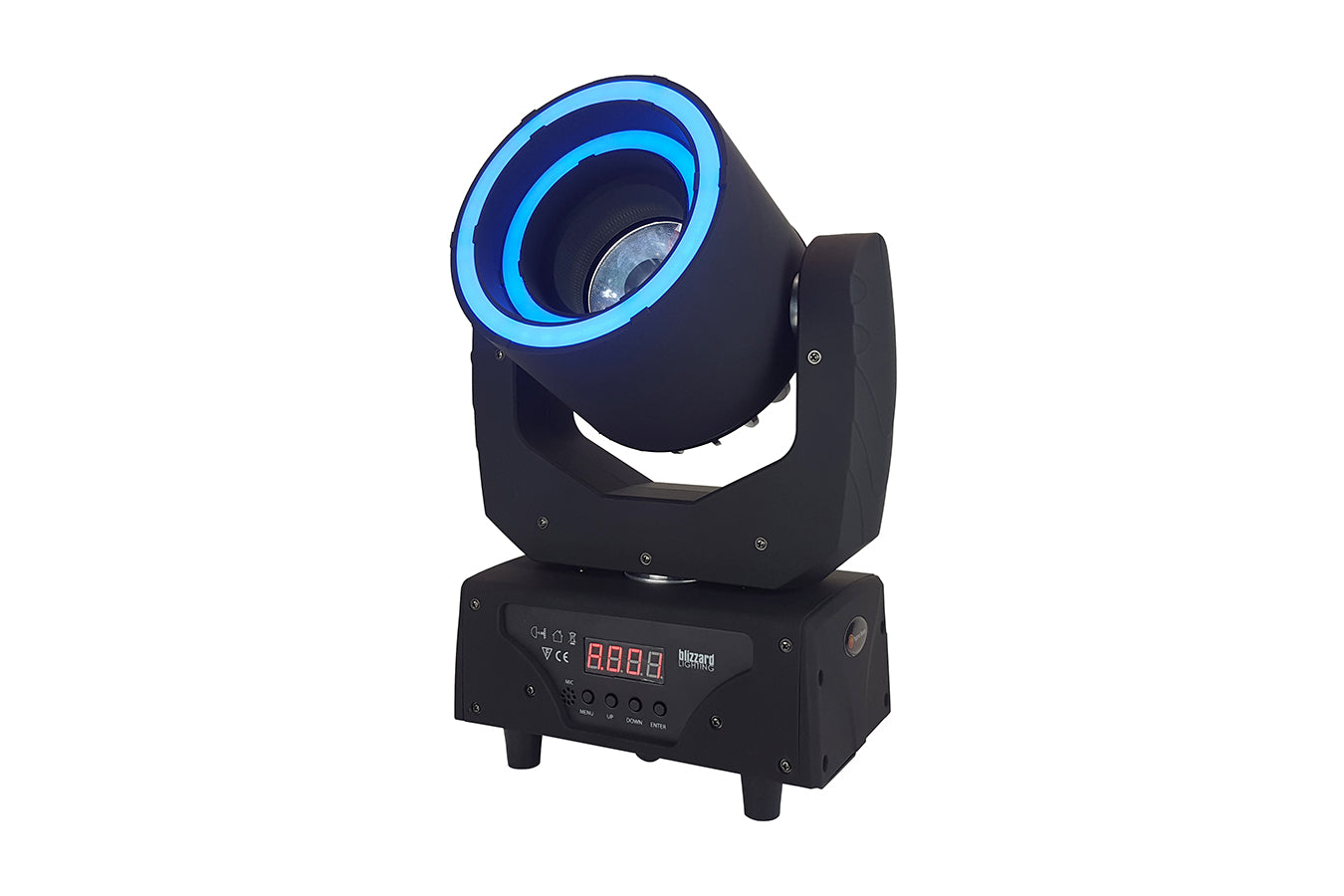

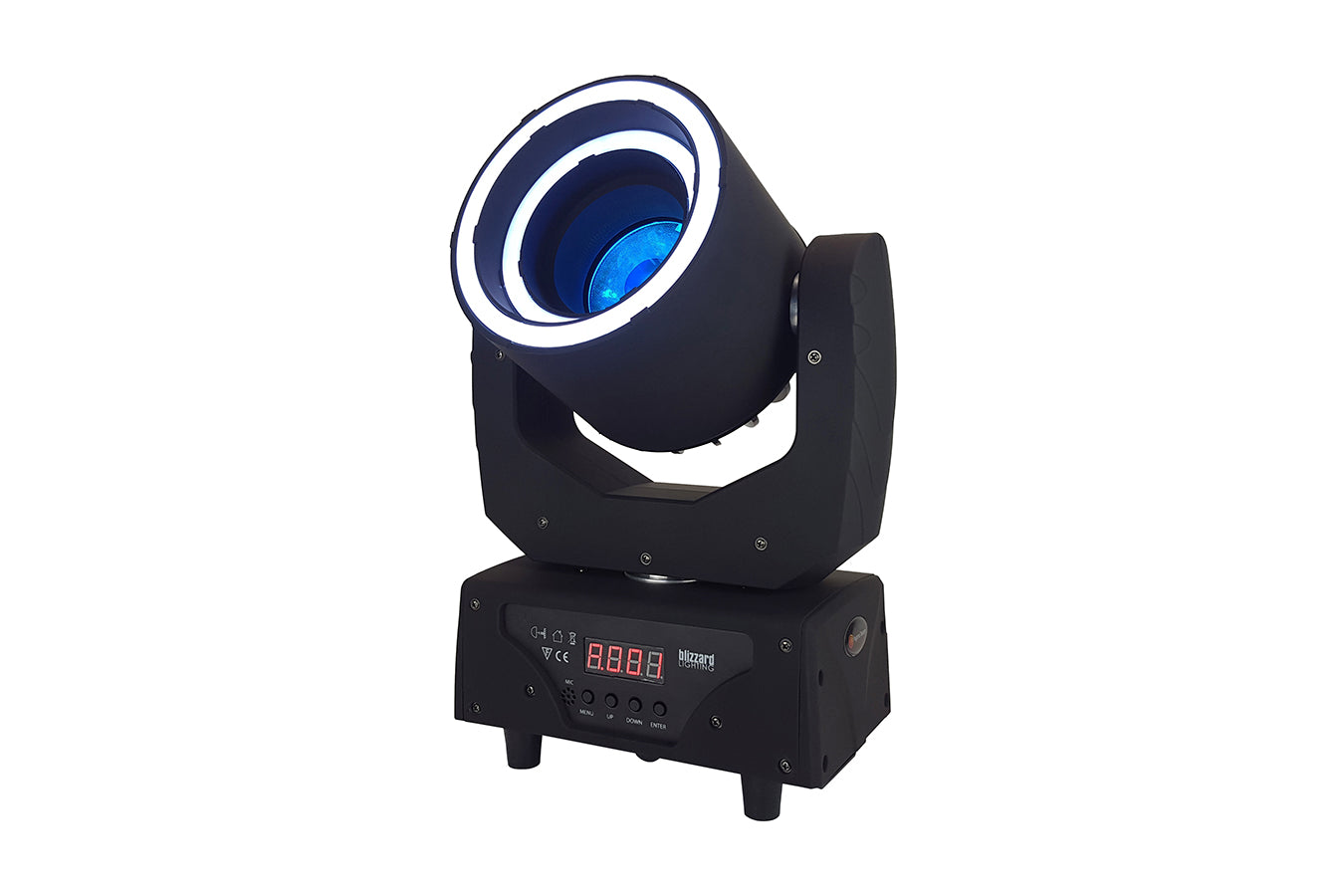

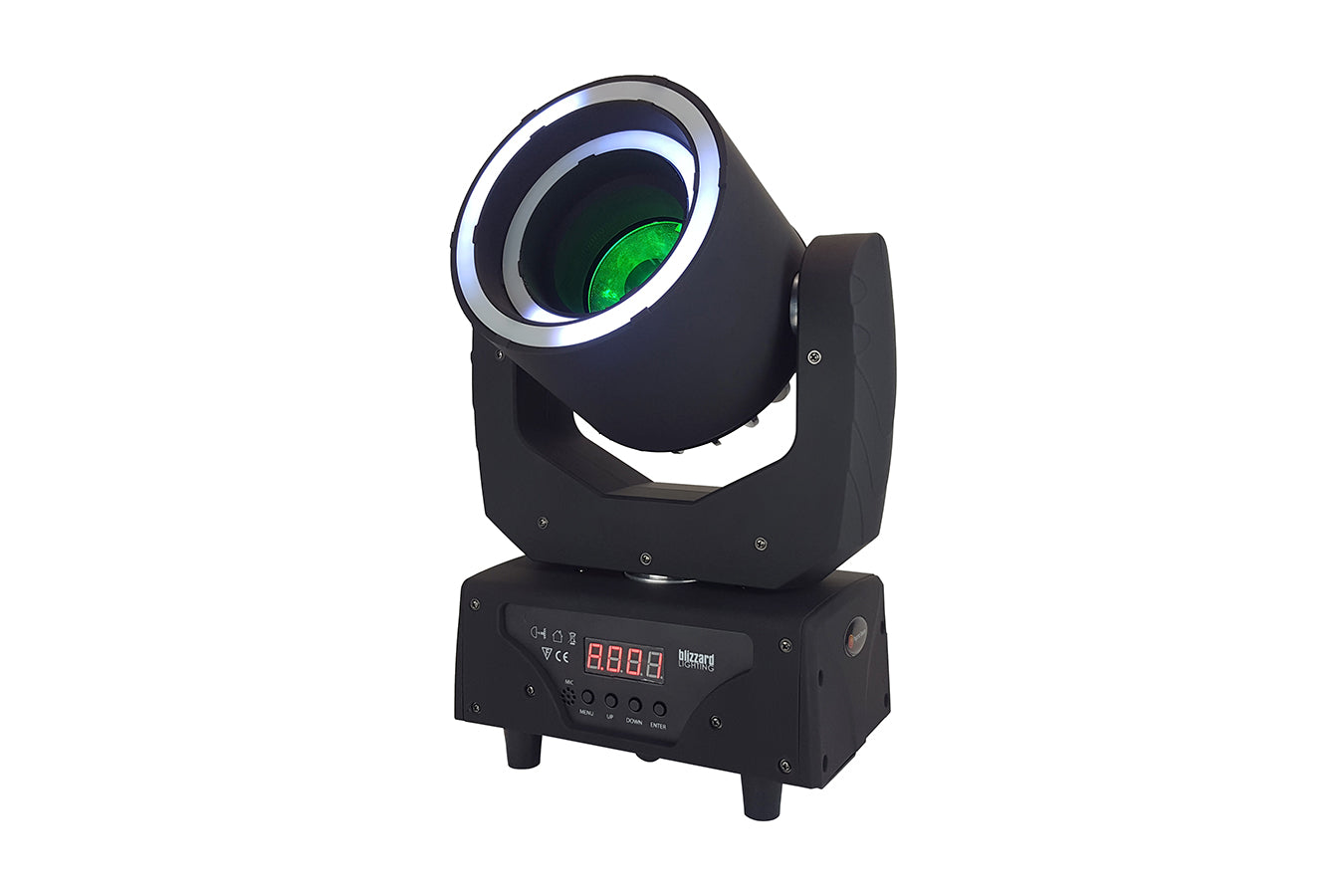

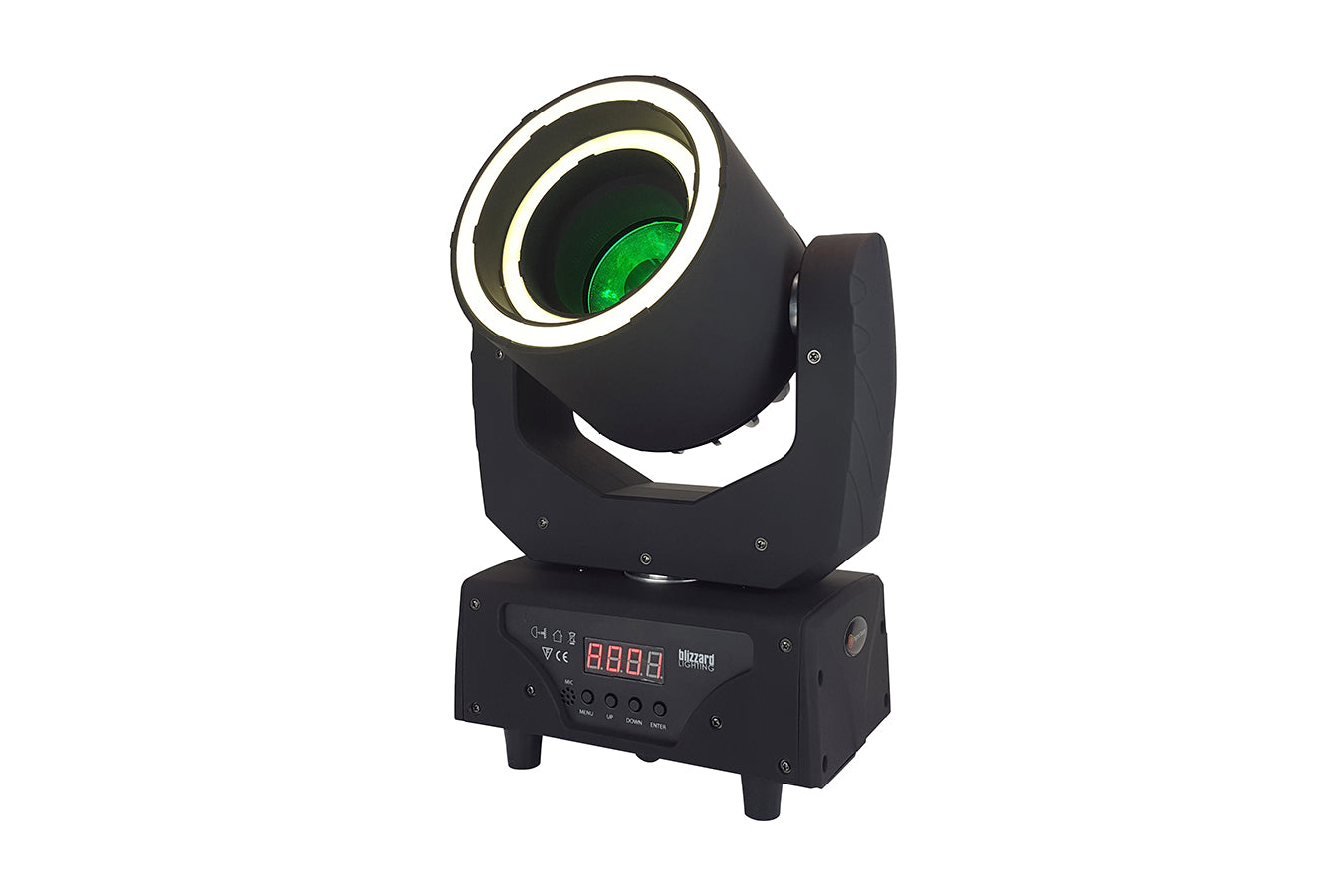

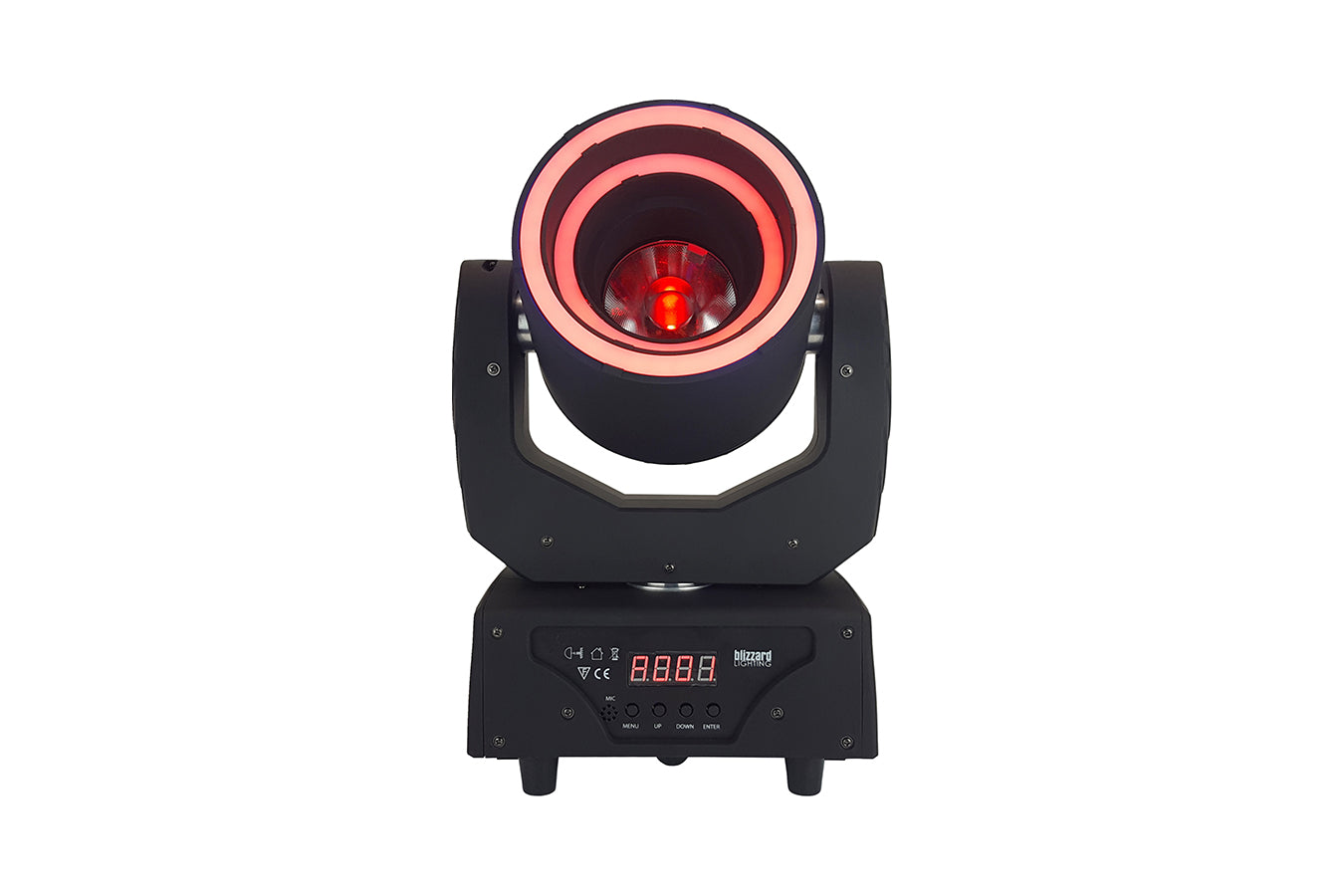

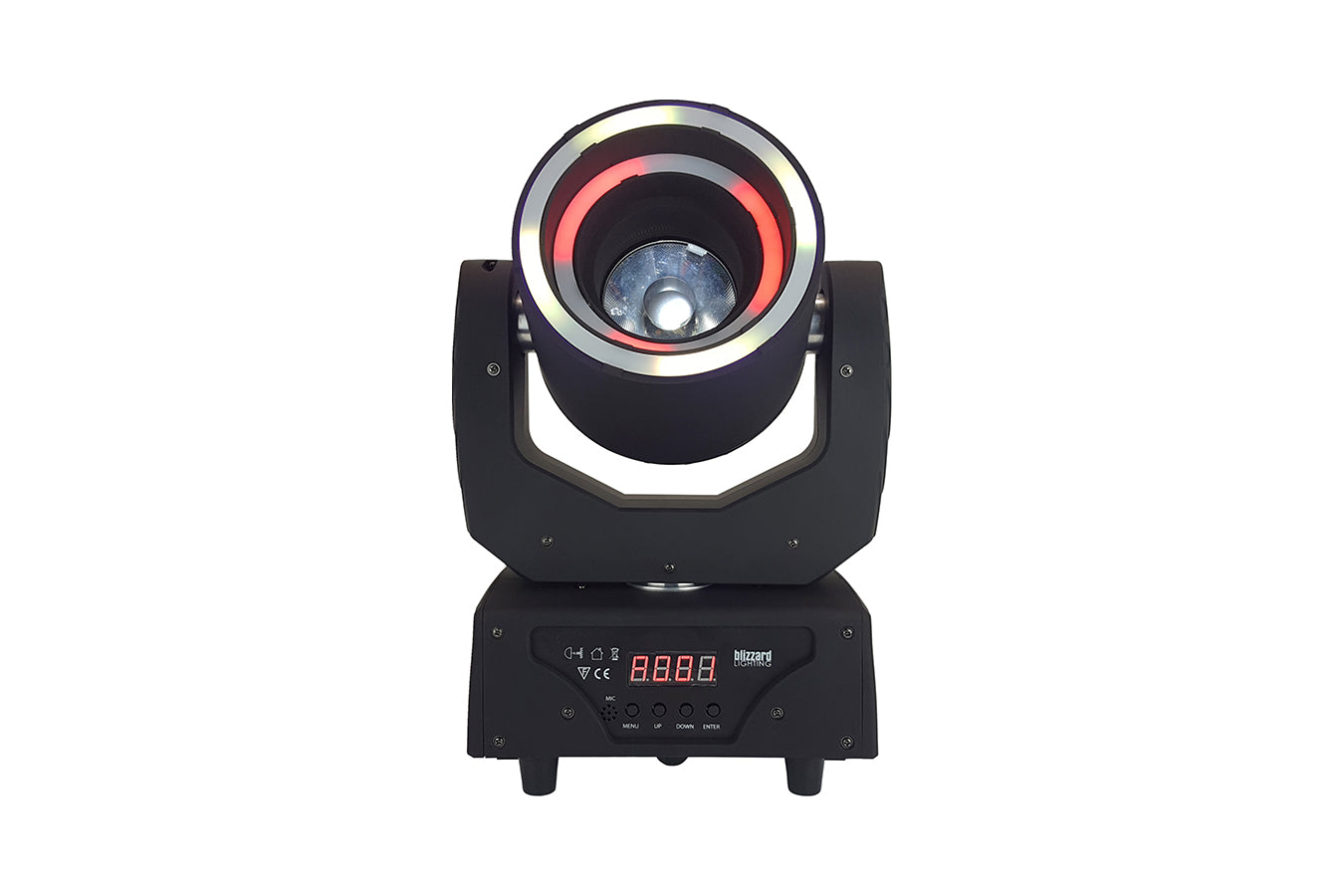

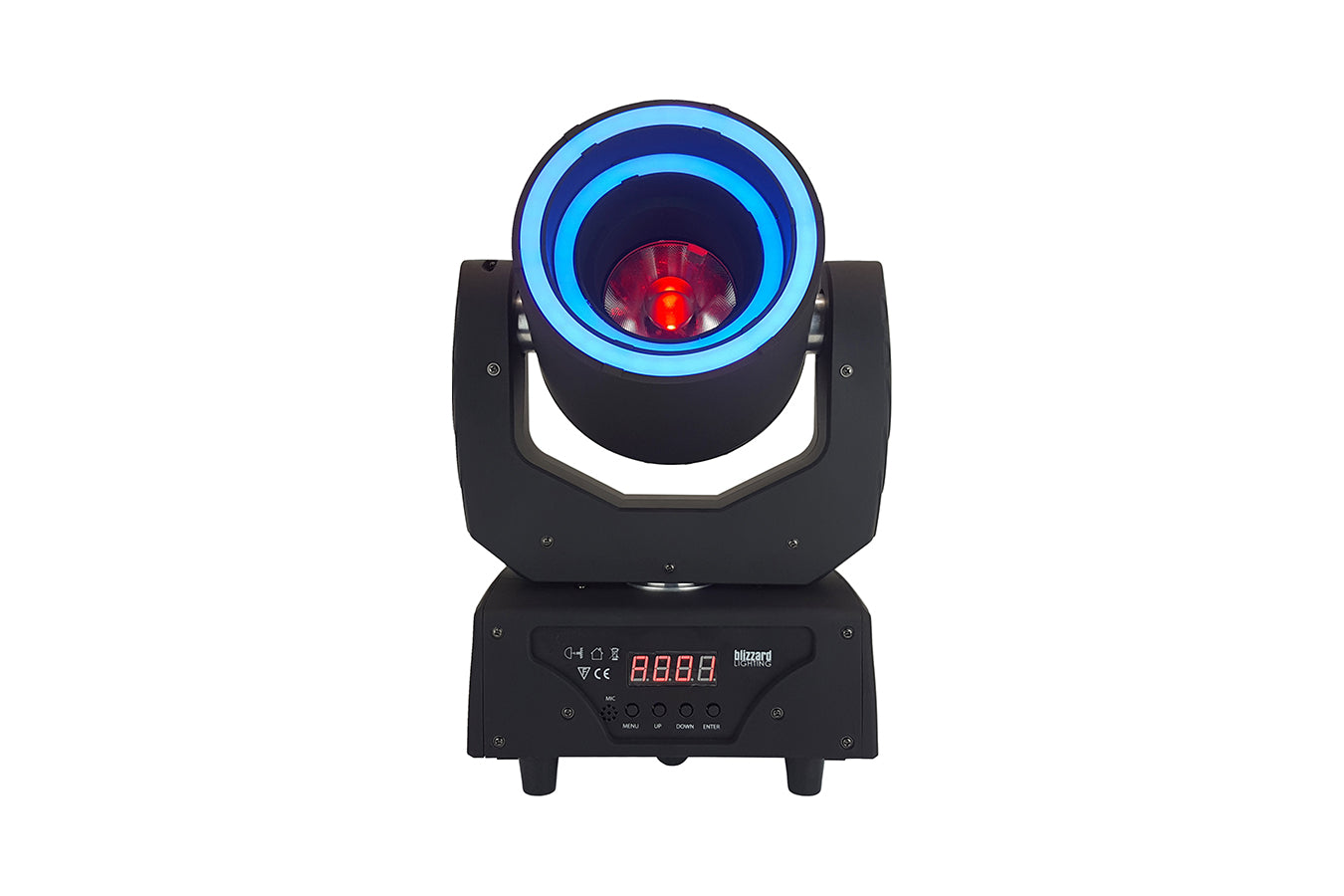

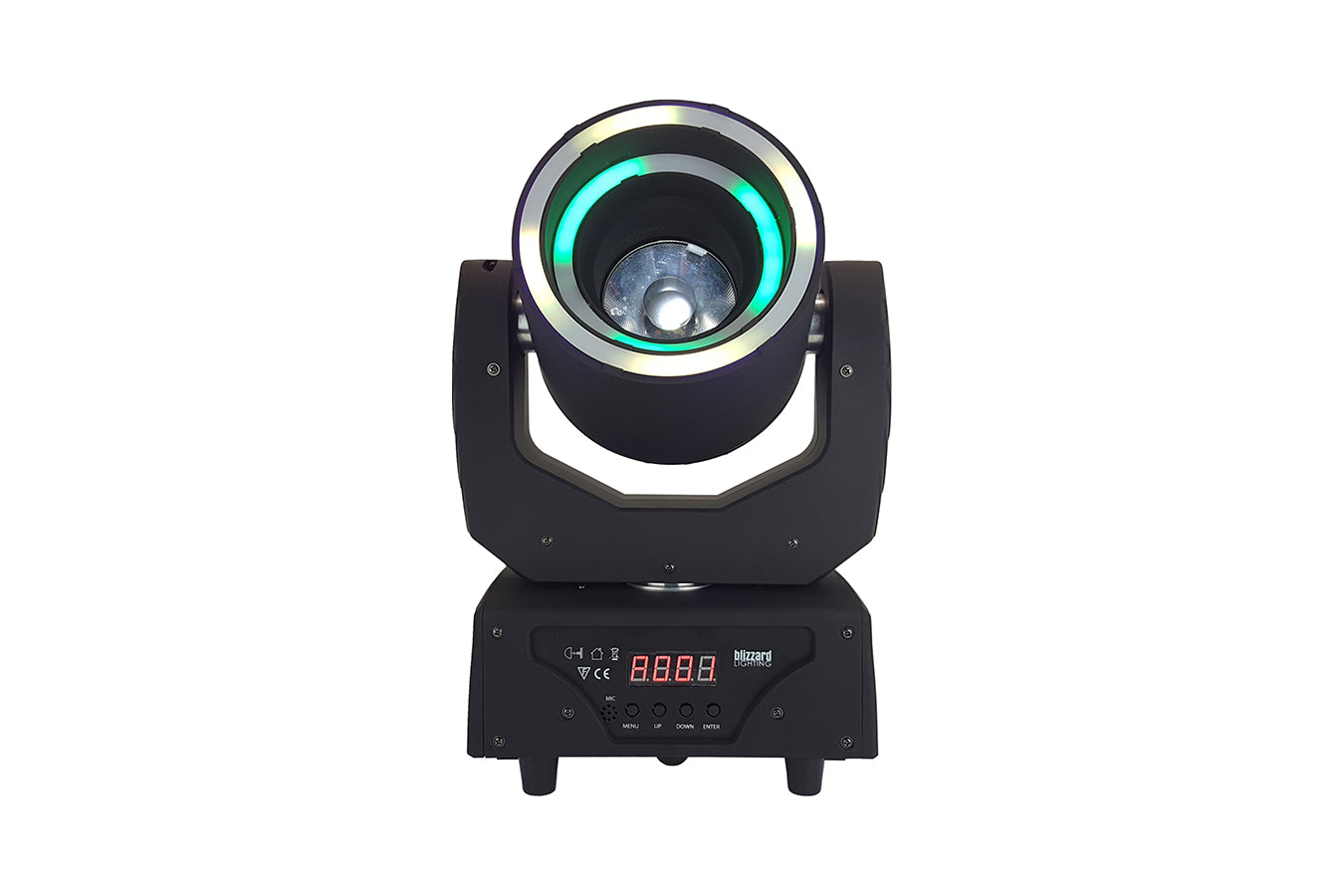

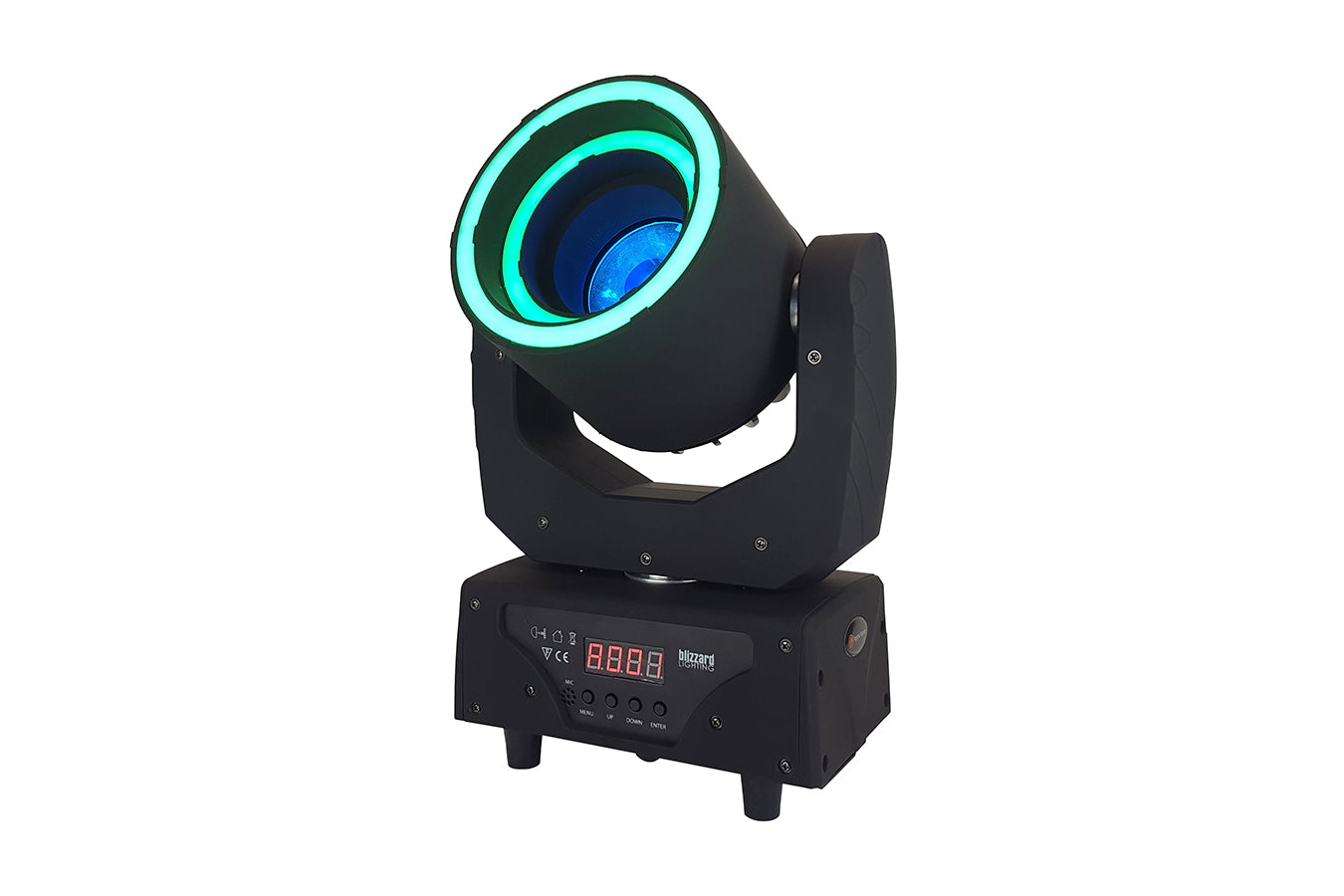

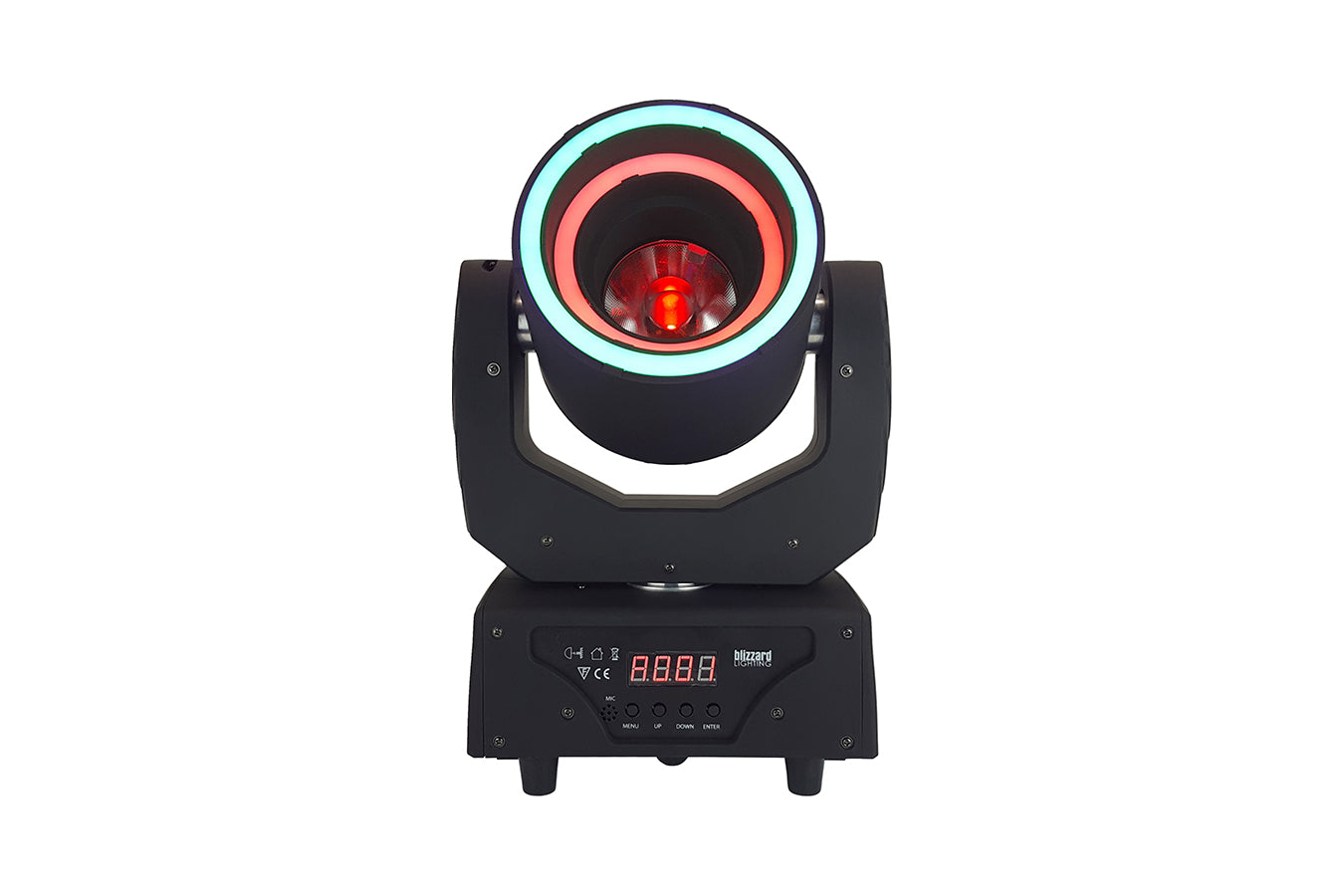

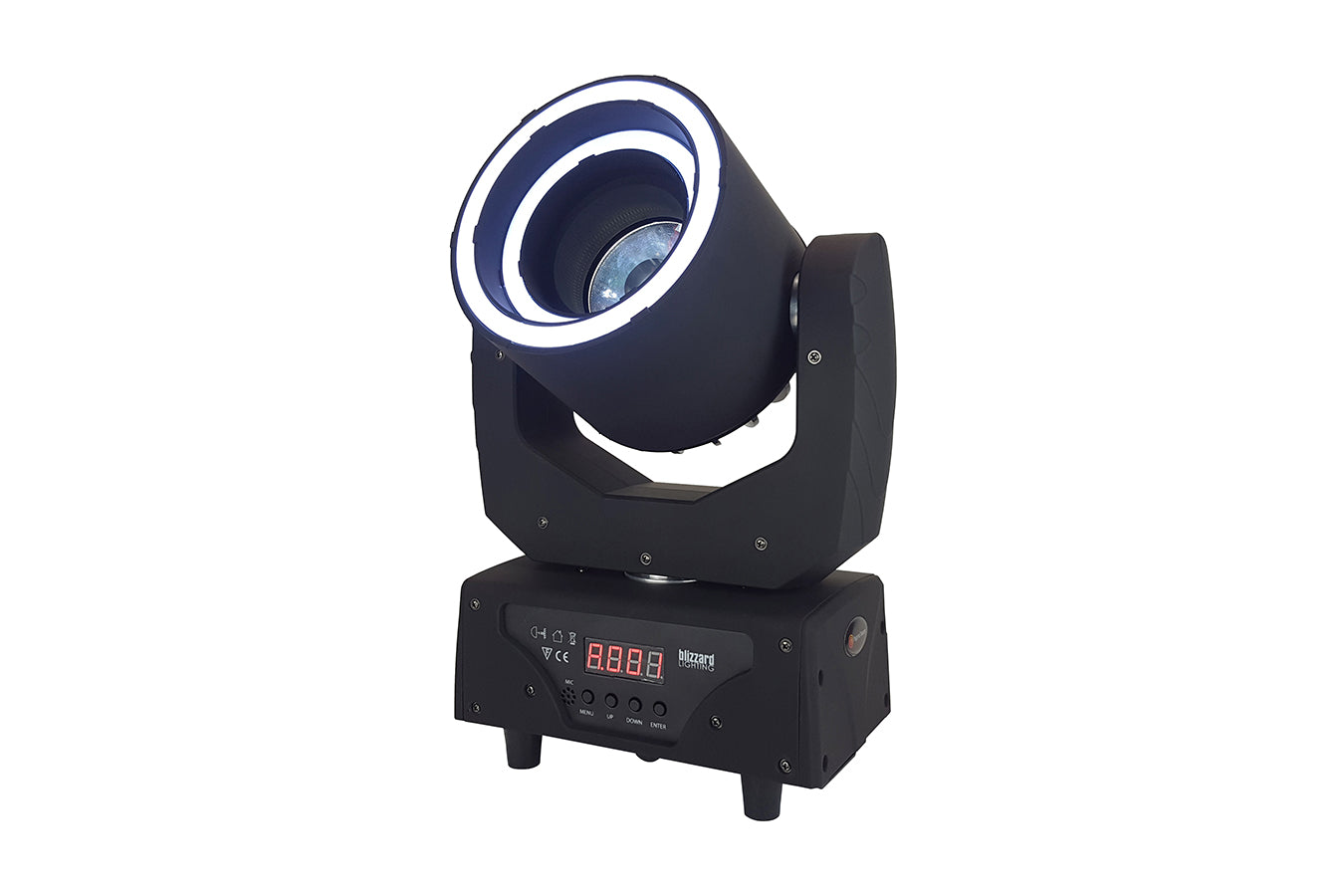

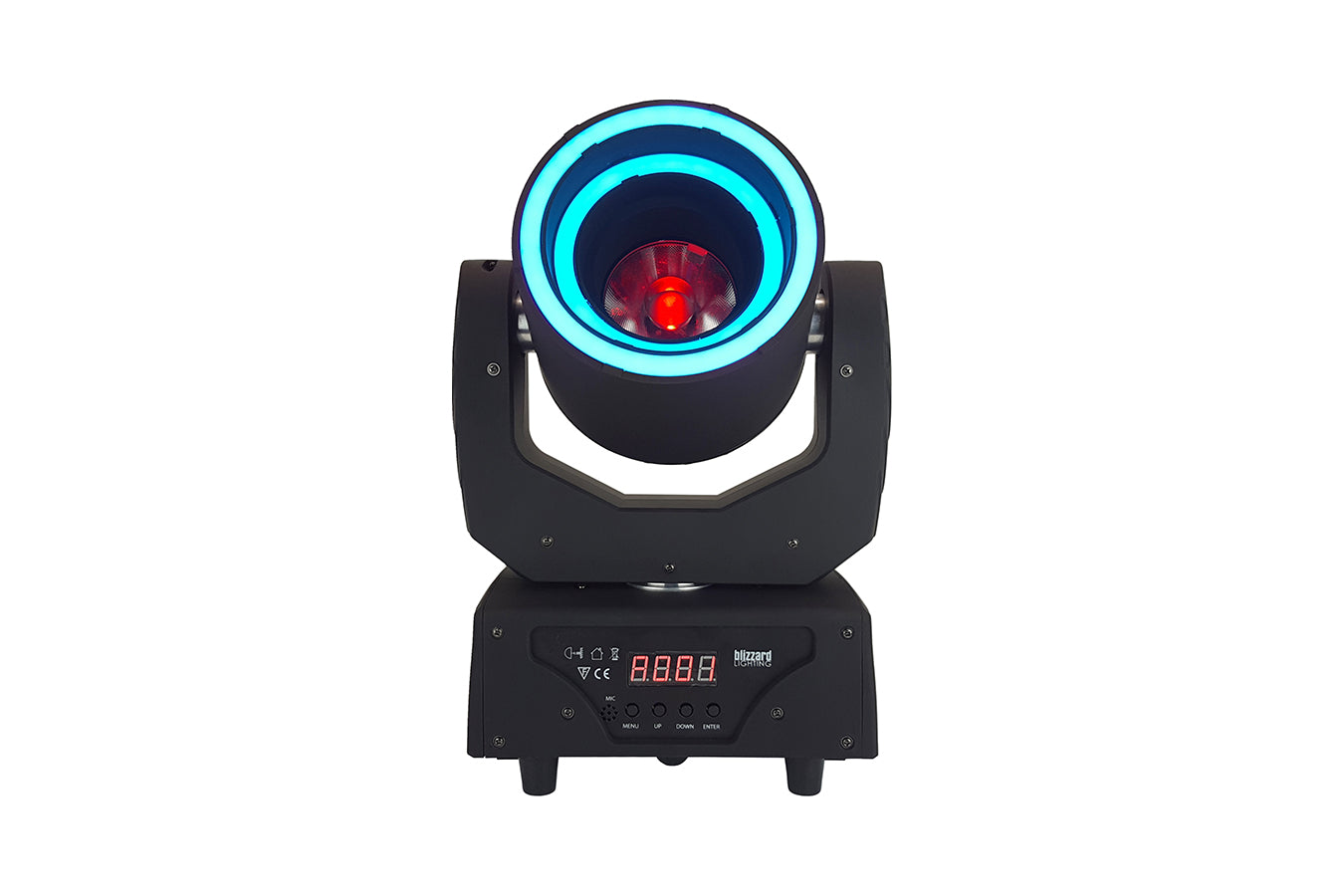

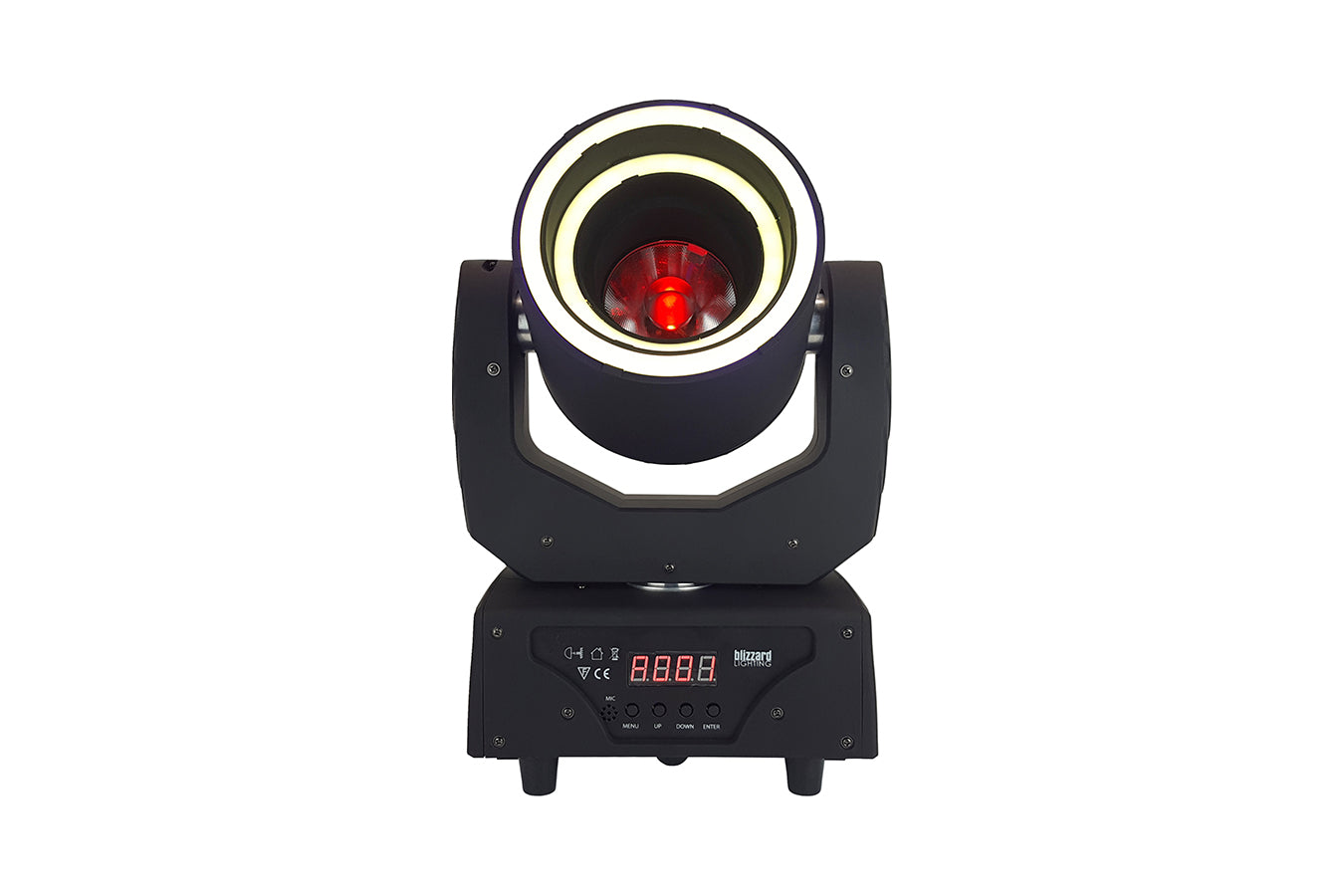

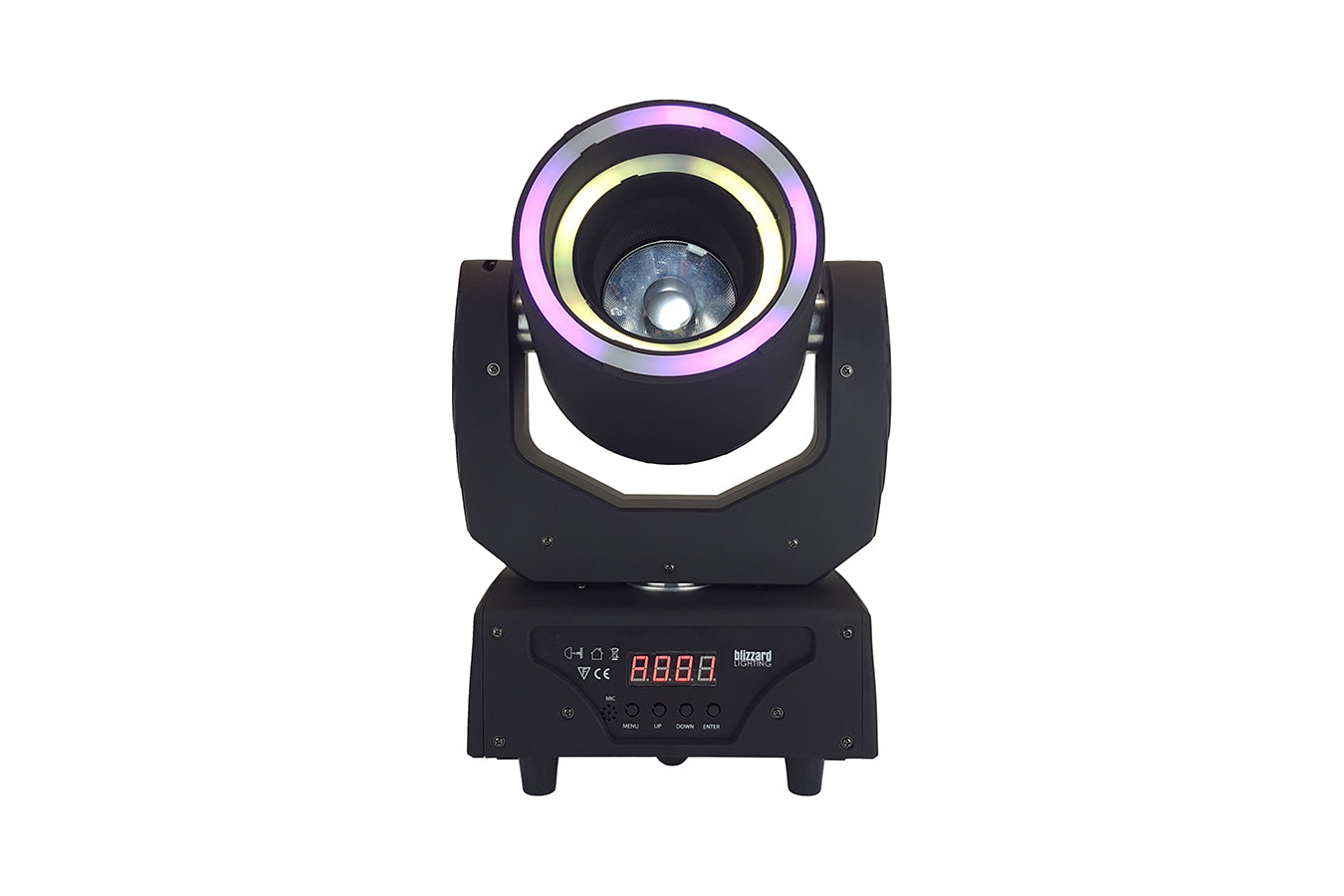

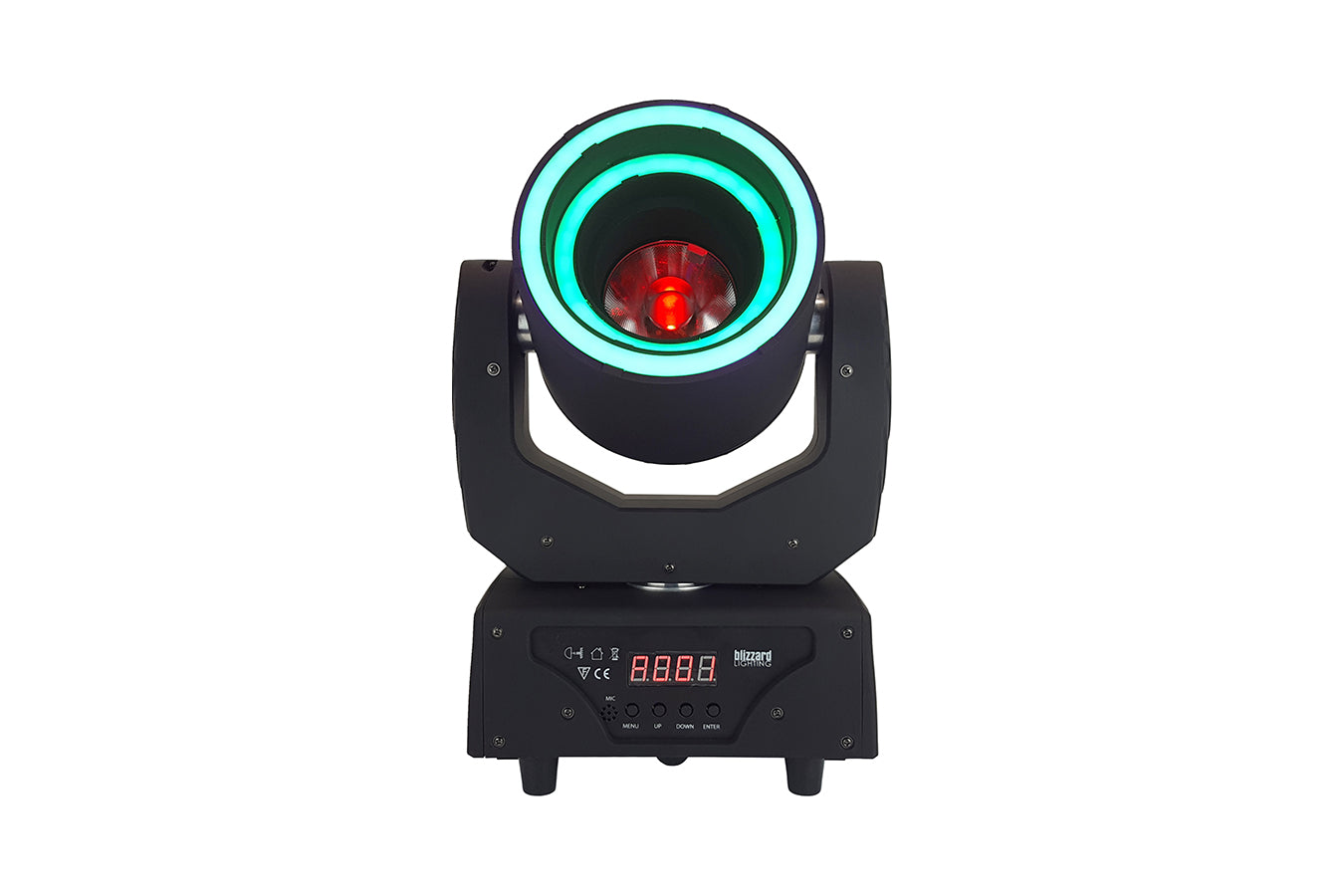

Hypno Beam
LED Beam Moving Head + 2* RGB LED Rings
Unique and powerful, the Hypno™ Beam is an LED beam moving head designed to transfix your audience! It comes loaded with a high-output 60W RGBW LED in the center for stunning 8° moving beam effects. Then, the center LED is surrounded by 2* LED rings that can perform mesmerizing chase effects, single LED chases, full color changes, and strobe!
Hypno™ Beam offers two user-selectable DMX modes (14/23-channels), and an easy-to-use 4-button LED control panel. The power connections are industry standard powerCON® compatible In/Out, and it is also equipped with 3-pin DMX In/Out jacks and a quarter-turn “Omega” quick connect type clamp bracket.
Take your show to the next level with Hypno™ Beam moving head fixtures and put your audience into an Altered State of Light!
Main Features
• 8° beam effects via 60W RGBW 4-in-1 LED
• 2* LED rings with 60pcs RGB 3-in-1 SMD5050 LEDs
• Compact and lightweight
• Independent DMX control of beam and LED ring effects
• Pan: 540/630°, Tilt: 200° (8-16 Bit Resolution)
• Built-in auto/sound active programs
• 0-100% linear LED dimmer •
Pan/tilt invert
• 1-25Hz strobe
• User selectable 14/23-channel DMX modes
• 3-pin DMX In/Out connections
• PowerCON™ compatible AC power In/Out
Tech Specs!
Weight & Dimensions
Width 10.5 inches (265 mm)
Depth 6.6 inches (168 mm)
Height 11.9 inches (301 mm)
Weight 11 lbs (5 kg)
Power
Operating Voltage 100-240VAC, 50-60Hz
Power Consumption 106W, .89A, PF: .98
Light Source
LED 1* 60W RGBW 4-in-1 LED
60* RGB 3-in-1 SMD5050 LEDs (rings)
Optical
Beam Angle 8° beam angle
Thermal
Max. Operating Temp. 104 degrees F (40 degrees C) ambient
Control
Protocol USITT DMX-512
DMX Channels 14/23-channel
DMX Input 3-pin XLR Male Output 3-pin XLR Female
Other Operating Modes Standalone, Master/Slave, Sound Active, Color Preset
Warranty
2-year limited warranty, does not cover malfunction caused by damage to LEDs.
Photometric Data
Distance: 1m 2.5m 5m
Diameter: 5.7" (14.4 cm) 14.2" (36 cm) 28.4" (72 cm)
Luminous Intensity:
Beam 1m lux 1m fc 2.5m lux 2.5m fc 5m lux 5m fc
8° 77,372 7,188.1 15,330 1,424.2 3,747 348.1
