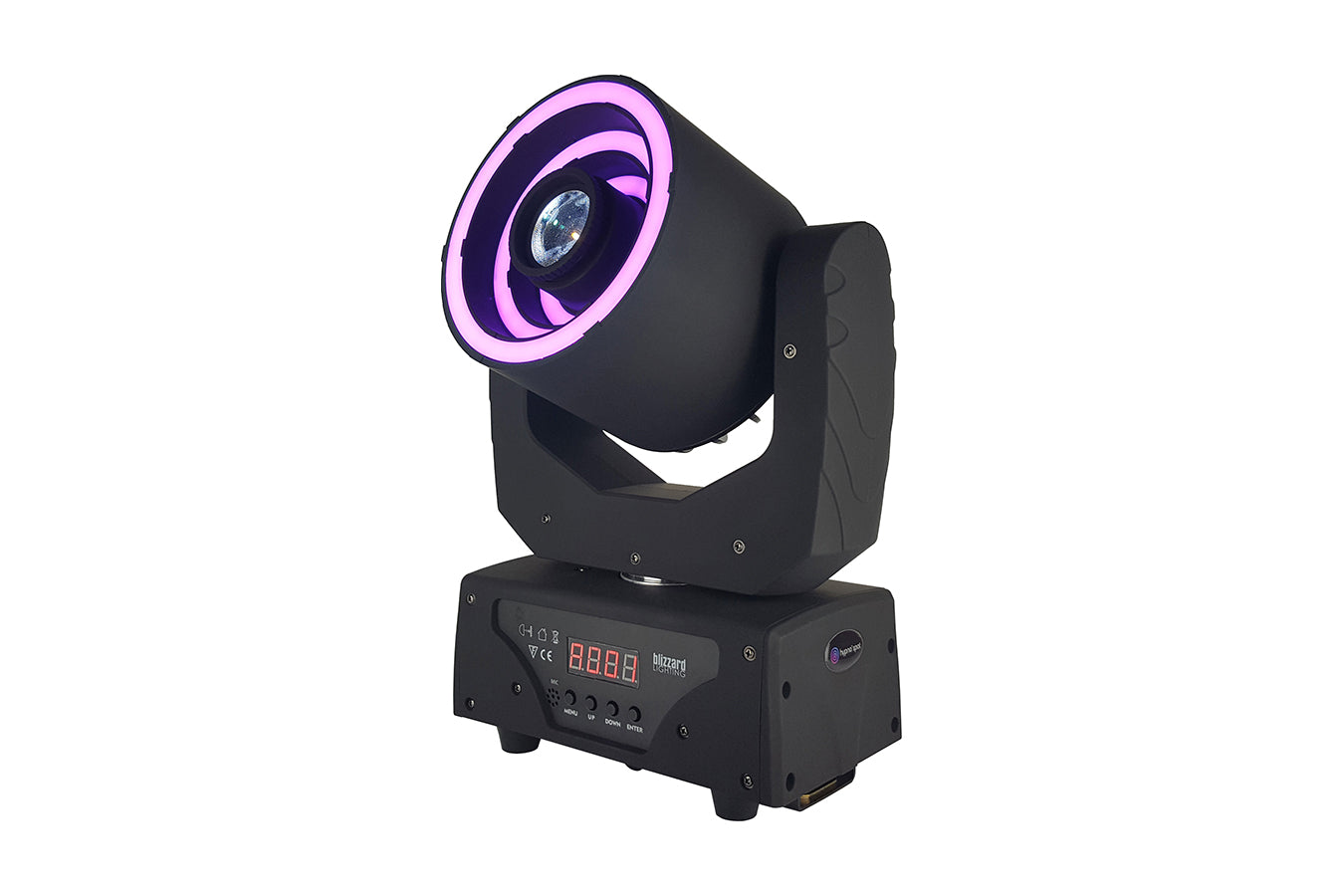

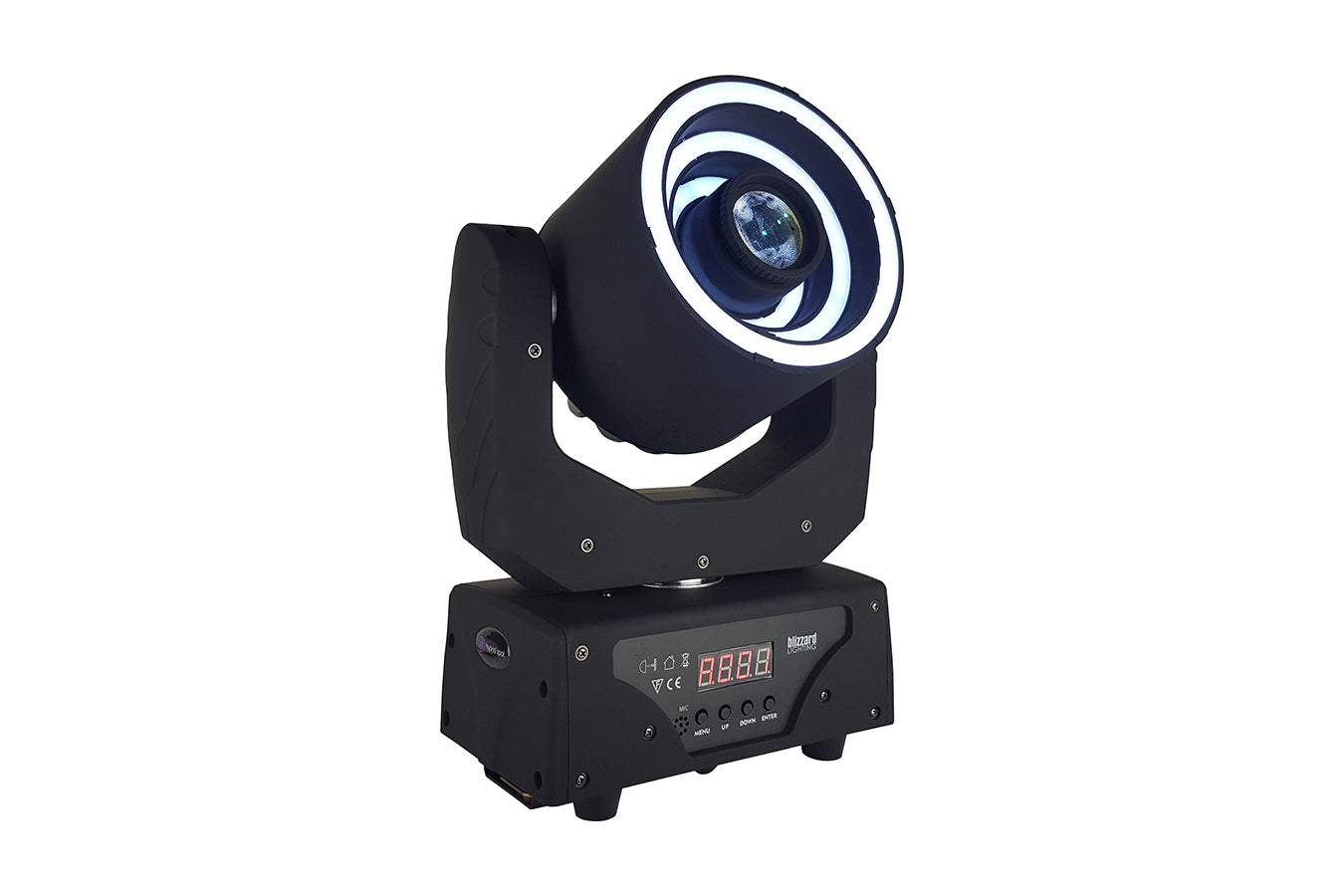

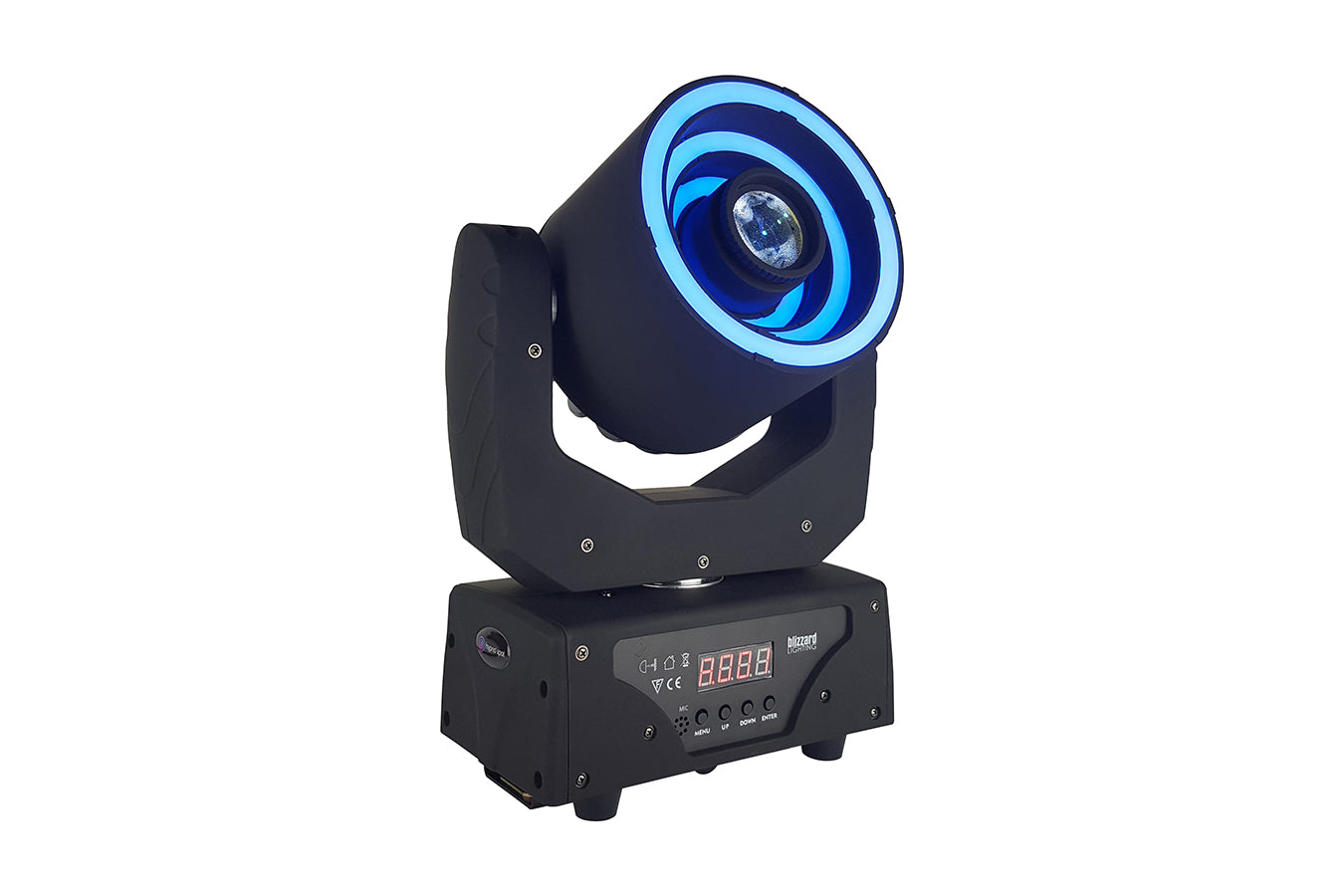

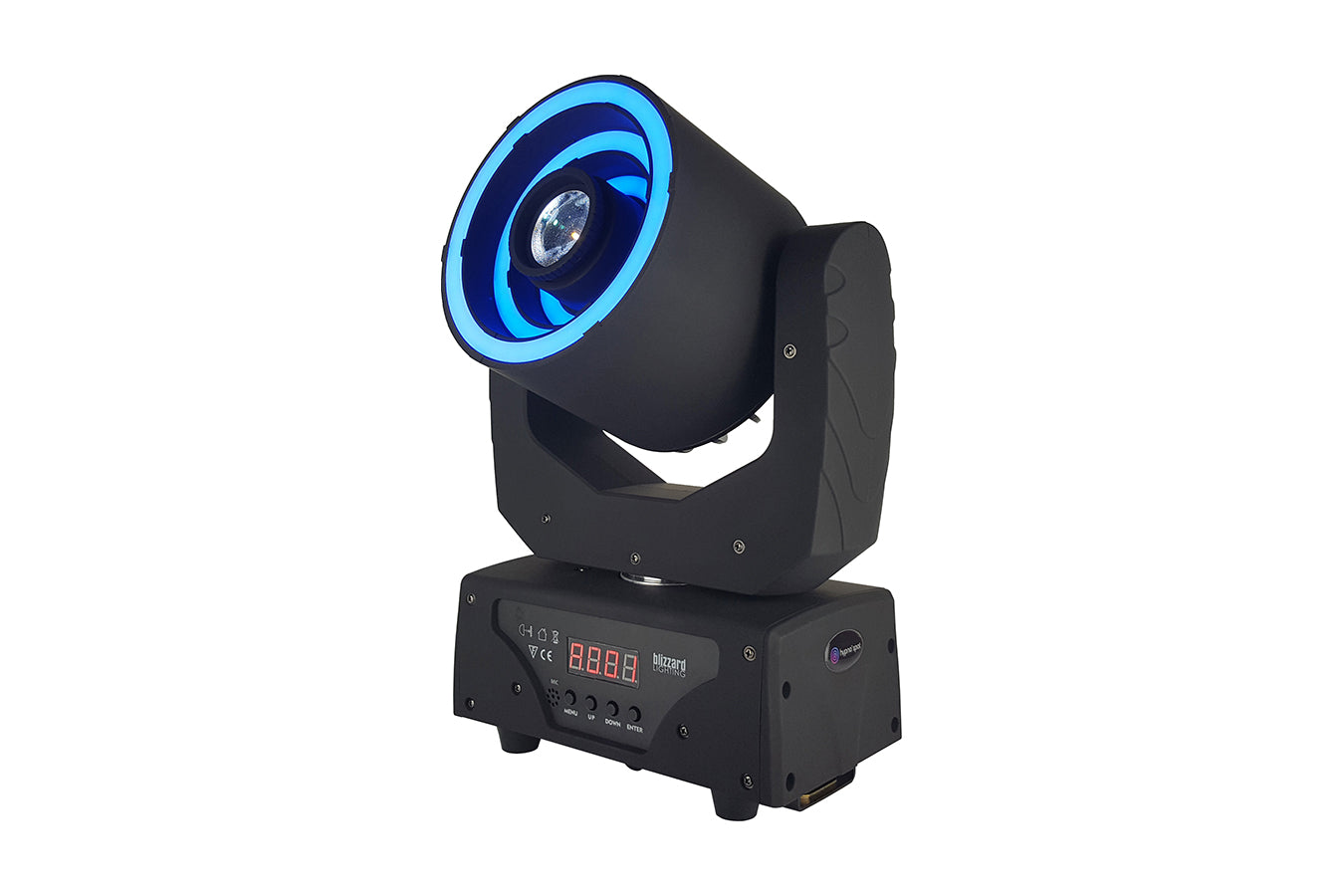

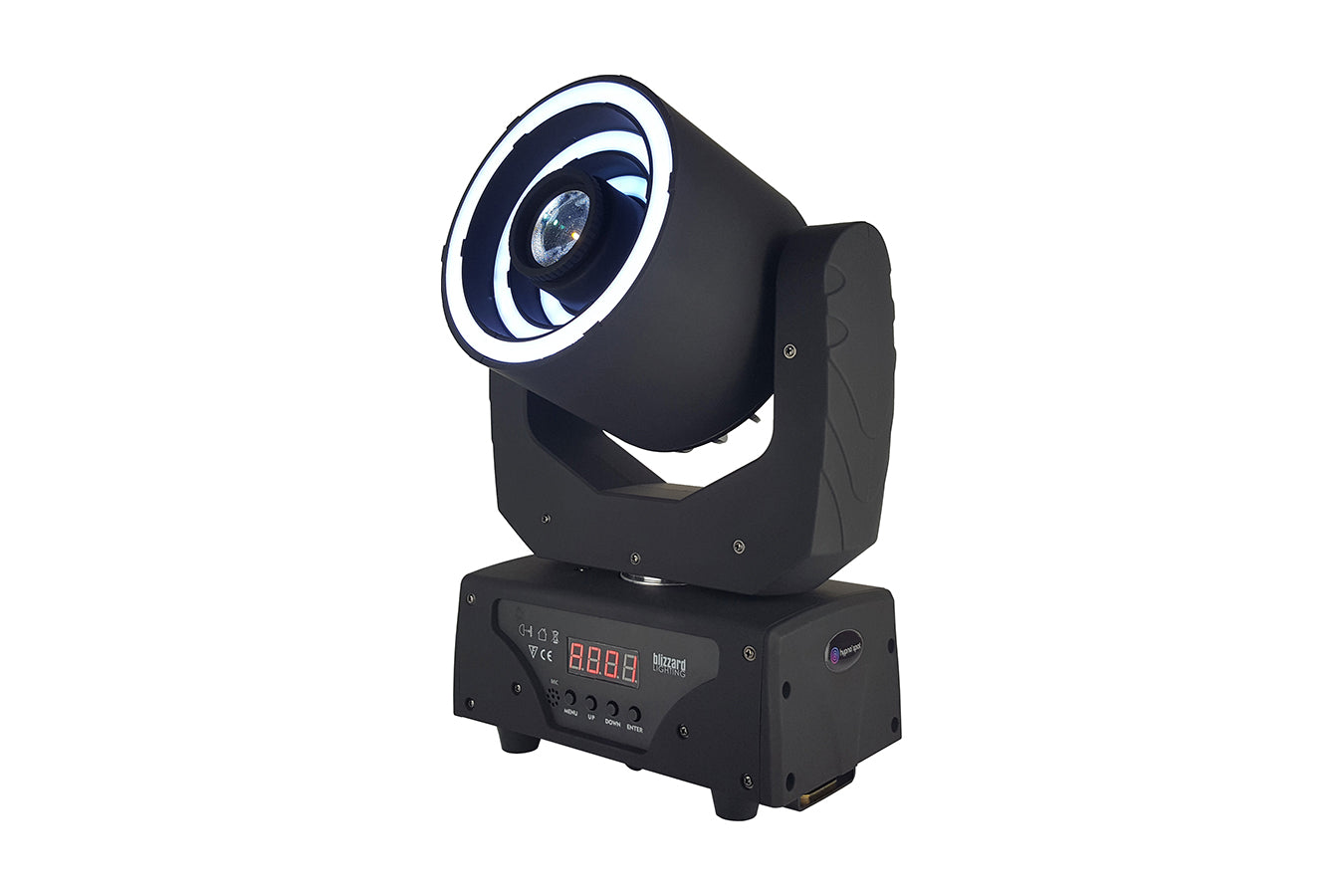

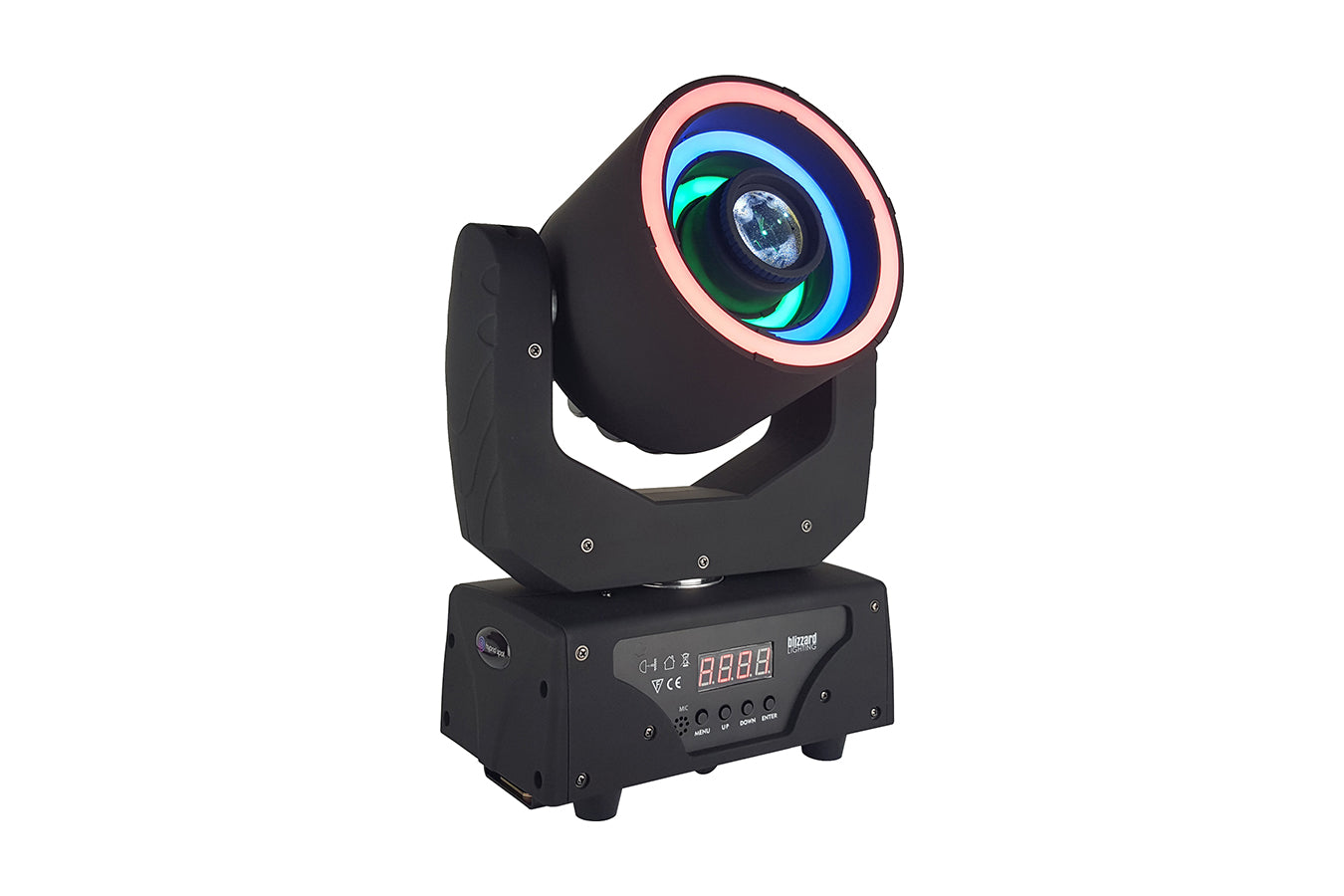

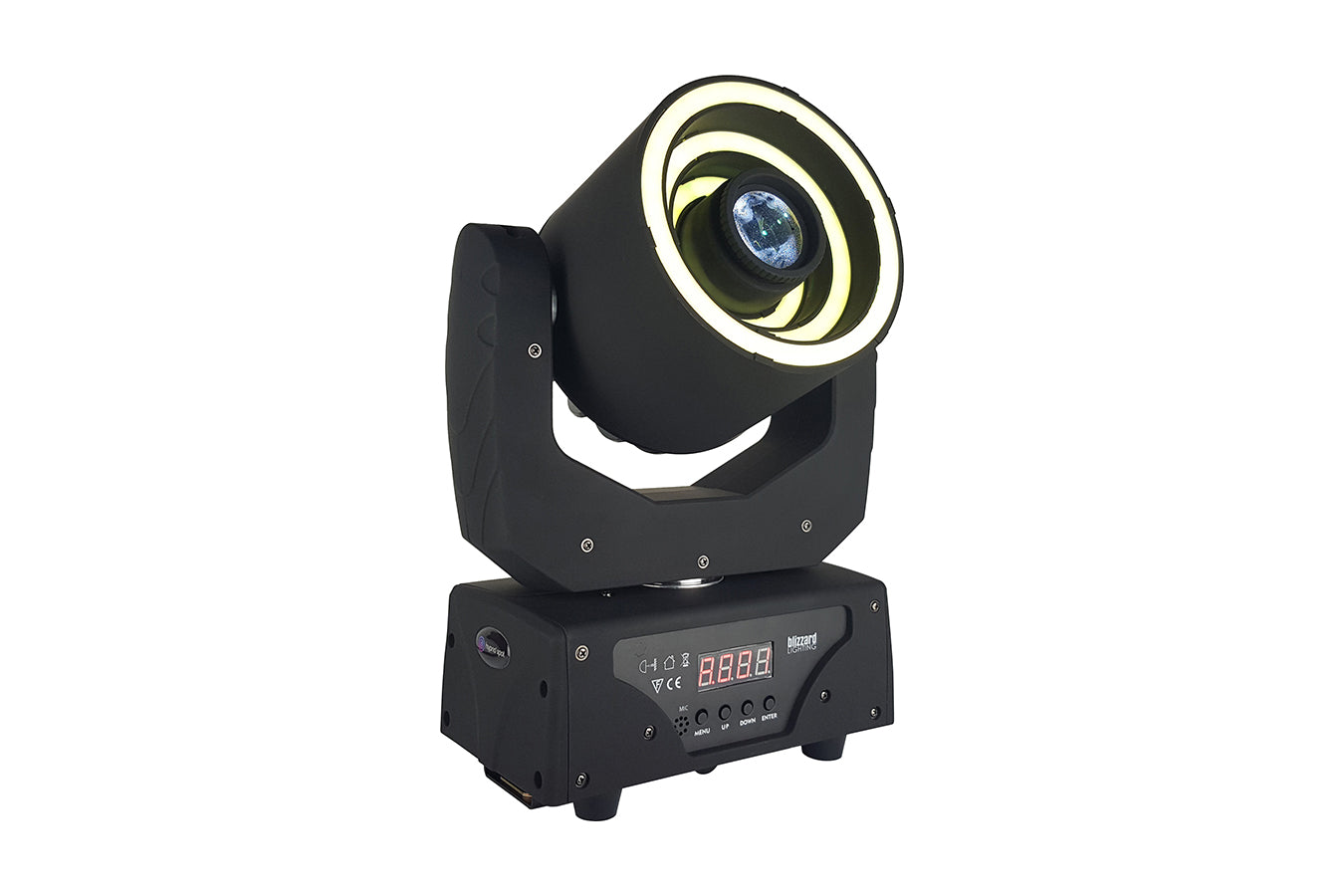

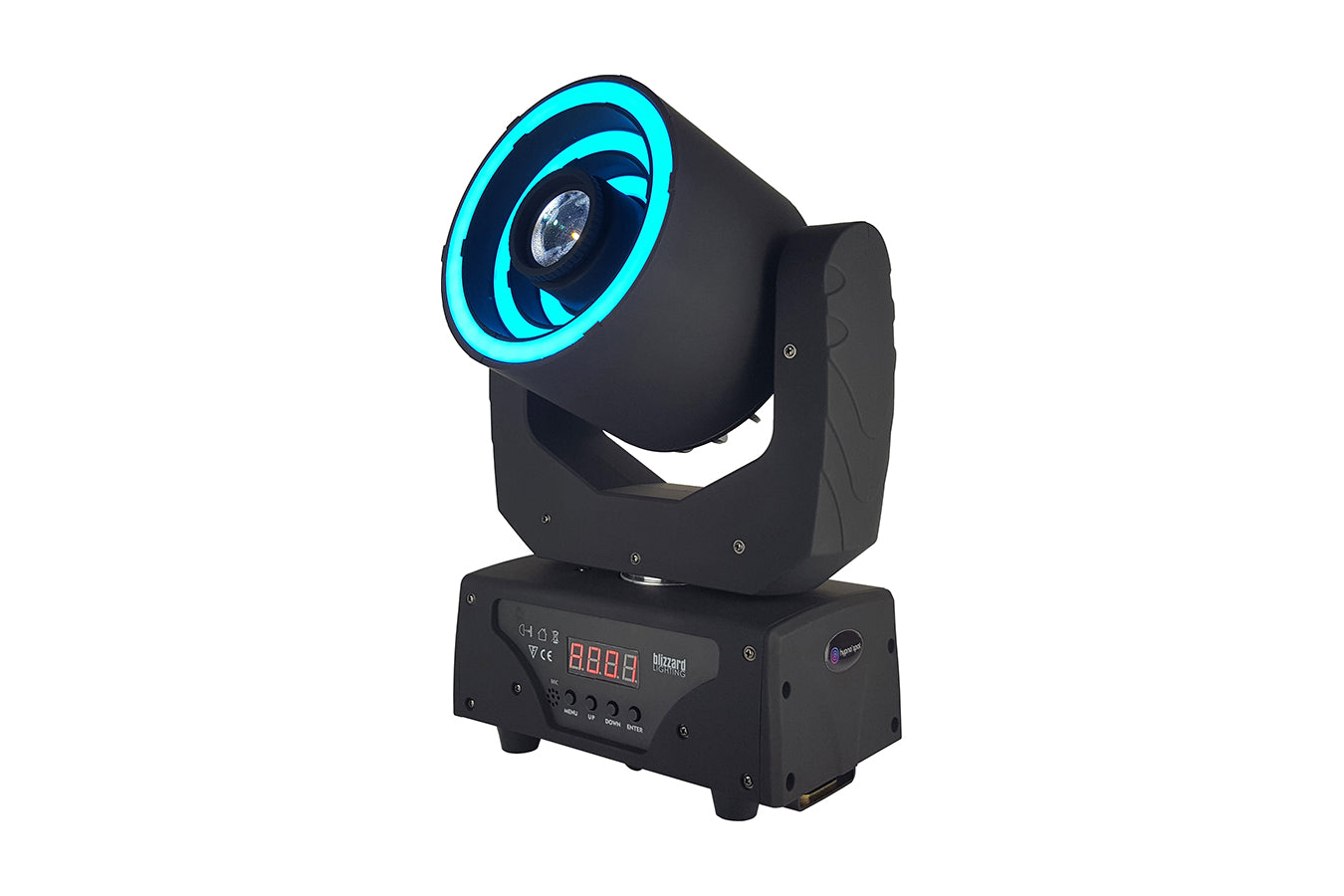

Hypno Spot
LED Spot Moving Head + 3* RGB LED Rings

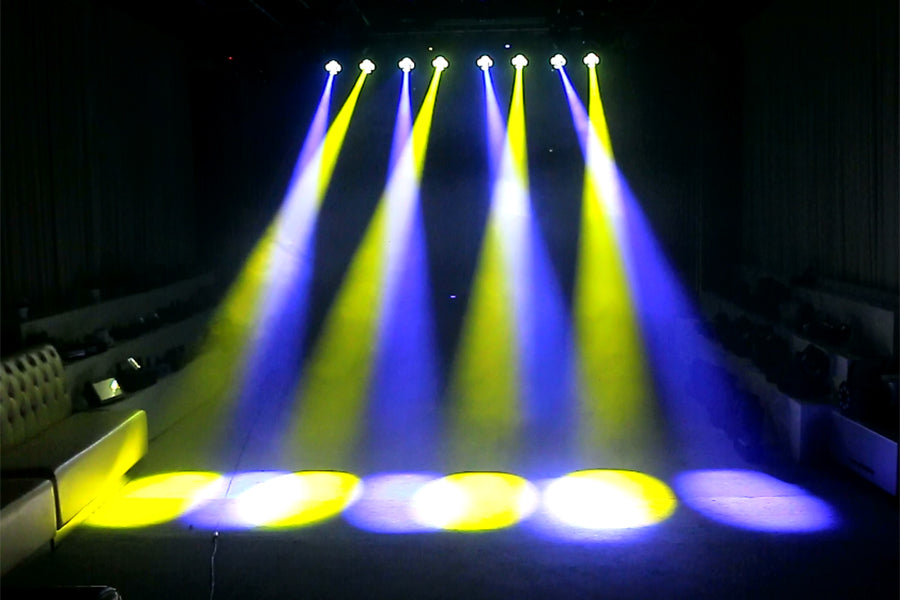

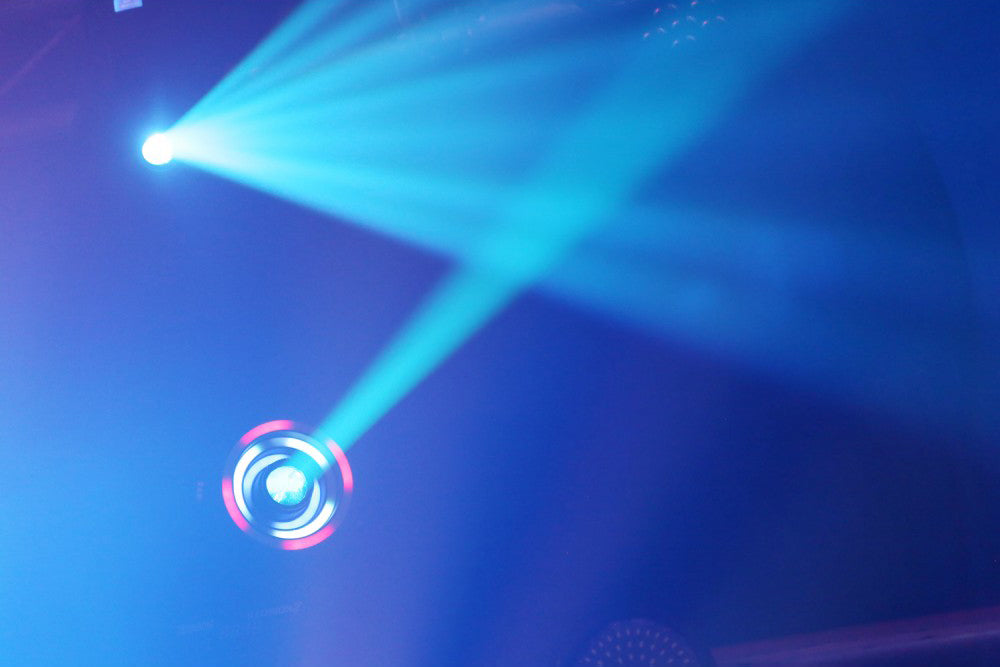

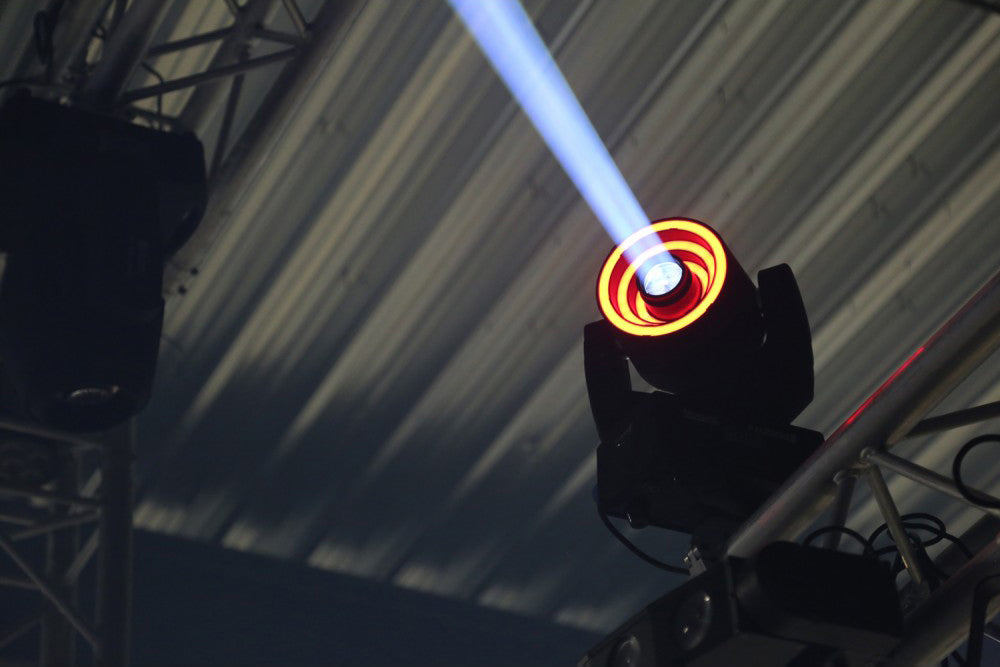

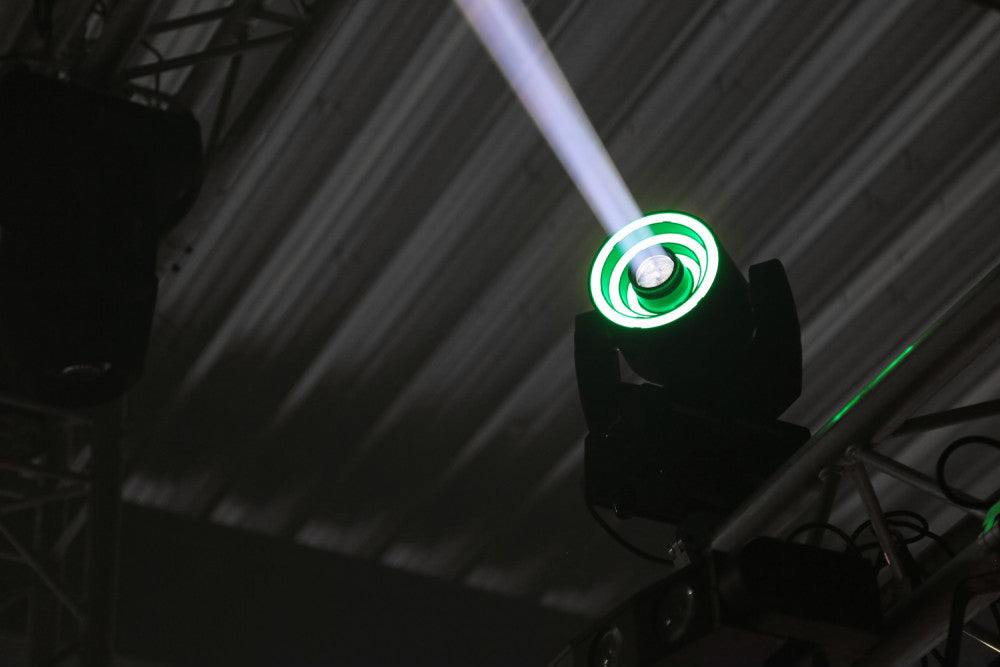

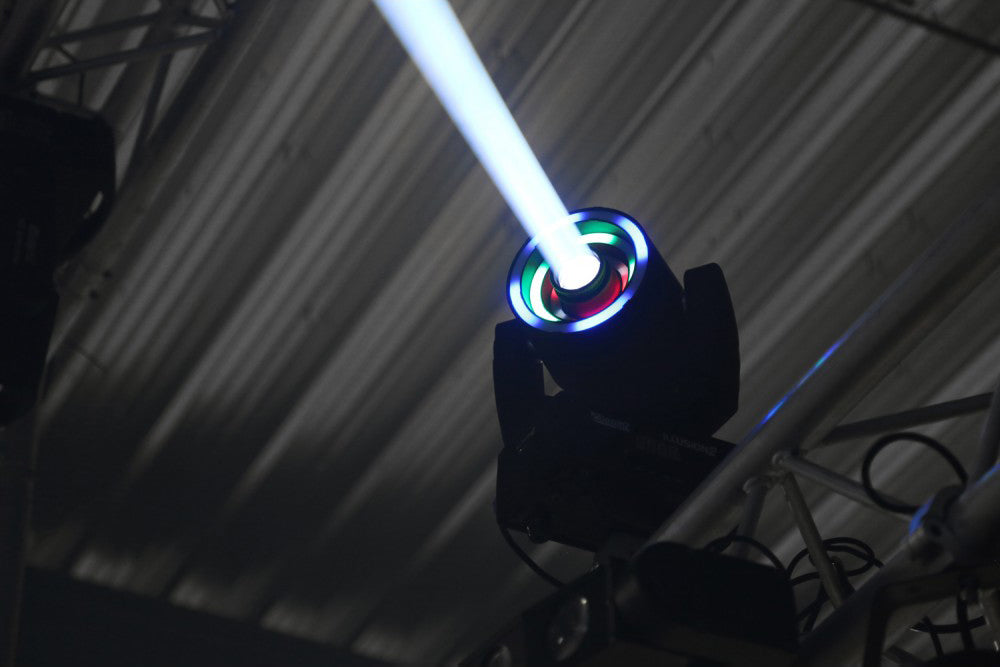

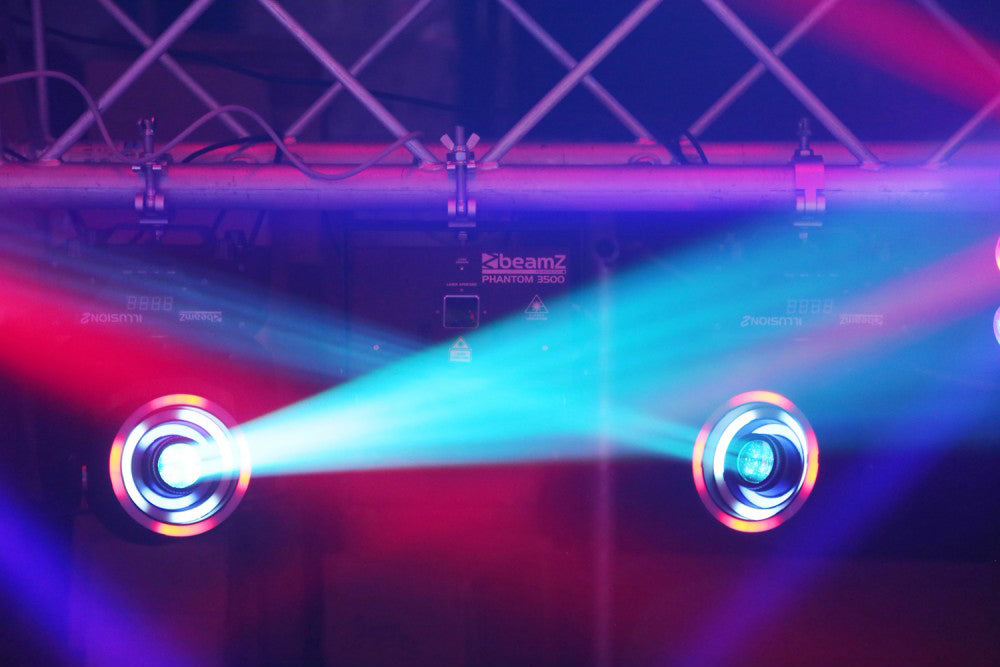

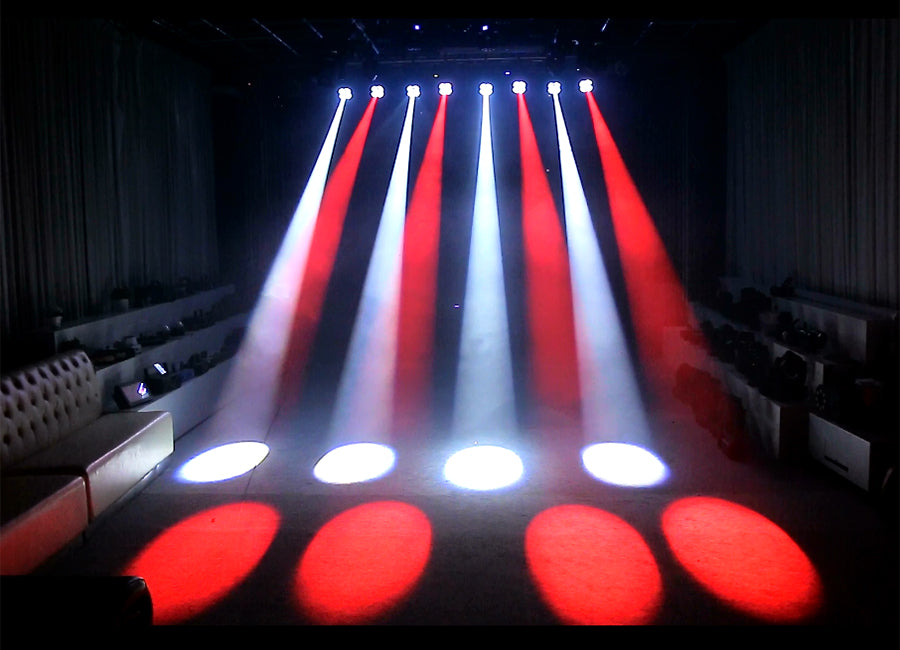

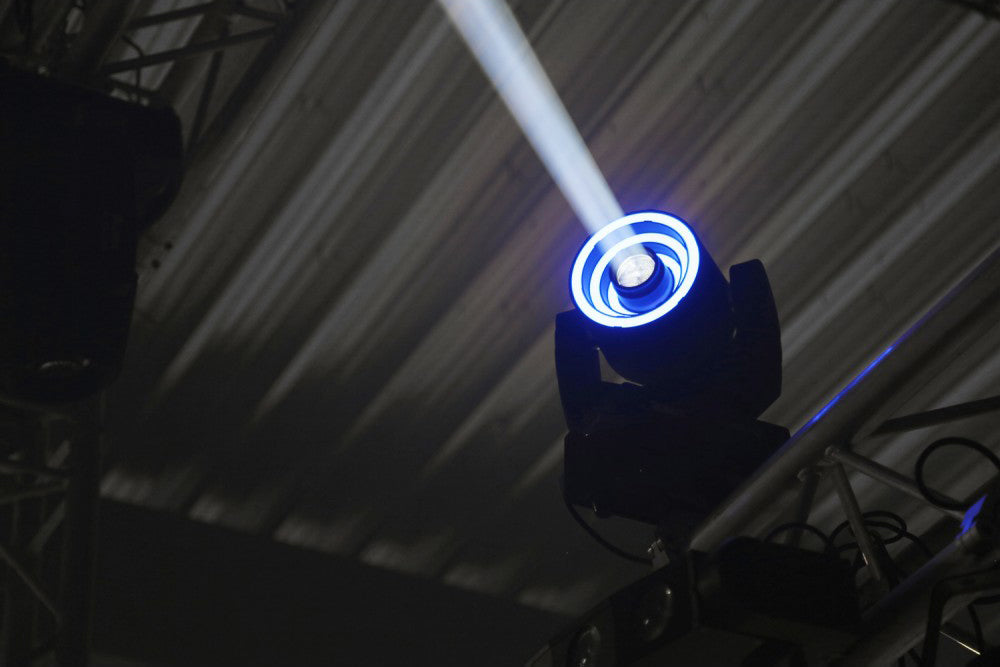

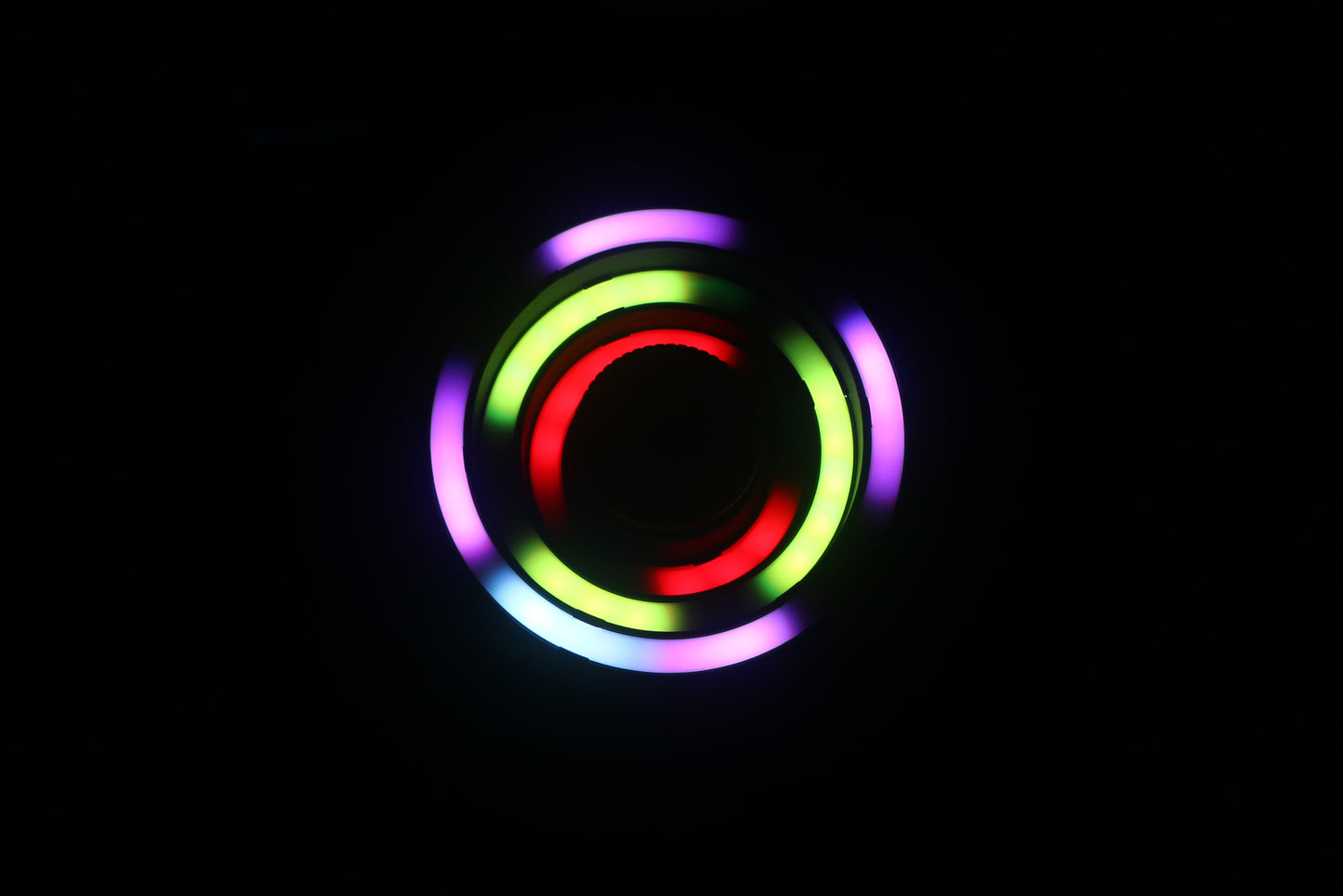

Unique and powerful, the Hypno™ Spot is an LED spot moving head designed to transfix your audience! It comes loaded with a high-output 30W white LED in the center for stunning 4.7° beam effects with a 9 filter color wheel +open, and 9 gobos +open. Then, the center LED is surrounded by 3* LED rings that can perform mesmerizing chase effects, single LED chases, full color changes, and strobe!
Hypno™ Spot offers two user-selectable DMX modes (12/23-channels), and an easy-to-use 4-button LED control panel. The power connections are industry standard powerCON® compatible In/Out, and it is also equipped with 3-pin DMX In/Out jacks and a quarter-turn “Omega” quick connect type clamp bracket.
Take your show to the next level with Hypno™ Spot moving head fixtures and put your audience into an Altered State of Light!
Main Features
• 4.7° spot effects via 30W white LED, 50,000 hours
• 3* LED rings with 76pcs RGB 3-in-1 SMD5050 LEDs
• Gobo wheel with 9 gobos + open
• Color wheel with 9 colors + open
• Compact and lightweight
• Independent DMX control of beam and LED ring effects
• Pan: 540/630°, Tilt: 200° (8-16 Bit Resolution)
• Built-in auto/sound active programs
• 0-100% linear LED dimmer
• Pan/tilt invert
• 1-25Hz strobe
• User selectable 12/23-channel DMX modes
• Easy-to-use 4-button LED control panel menu
• 3-pin DMX In/Out connections
• PowerCON™ compatible AC power In/Out
Tech Specs!
Weight & Dimensions
Width 10.5 inches (265 mm)
Depth 6.6 inches (168 mm)
Height 11.9 inches (301 mm)
Weight 11 lbs (5 kg)
Power
Operating Voltage 100-240VAC, 50-60Hz
Power Consumption 84W, 1.11A, PF: .66
Light Source
LED 1* 30W high-output white LED
76* RGB 3-in-1 SMD5050 LEDs (rings)
Optical
Beam Angle 4.7° beam angle
Luminous Intensity
63,163 Lux @ 1M,
9,480 Lux @ 2.5M,
2,185 Lux @ 5M
Color Temperature
6500K
Thermal
Max. Operating Temp. 104 degrees F (40 degrees C) ambient
Control
Protocol USITT DMX-512
DMX Channels 12/23-channel
DMX Input 3-pin XLR Male Output 3-pin XLR Female
Other Operating Modes Standalone, Master/Slave, Sound Active, Color Preset
Warranty
2-year limited warranty, does not cover malfunction caused by damage to LEDs.
