Blizzard Lighting Motif Sketch (W) White Body Color IP65 Outdoor Use

Motif Sketch™ (W) White

Meet sketch™

Sketch™ grew up always knowing he was somehow just a little different from all the rest of the lights.

While everyone else was hanging out with those loud, brash musicians, Sketch™ found himself more of a wallflower. He’s a little fella sure, but he’s got plenty where it counts.

For starters, he’s got a thick skin - IP65 to be exact. And he’s always in control thanks to his infrared remote. And even though he’s small in stature, he makes up for it by being an extra bright little guy, mainly thanks to his seven three-watt tri-color LEDs with custom-designed lenses.

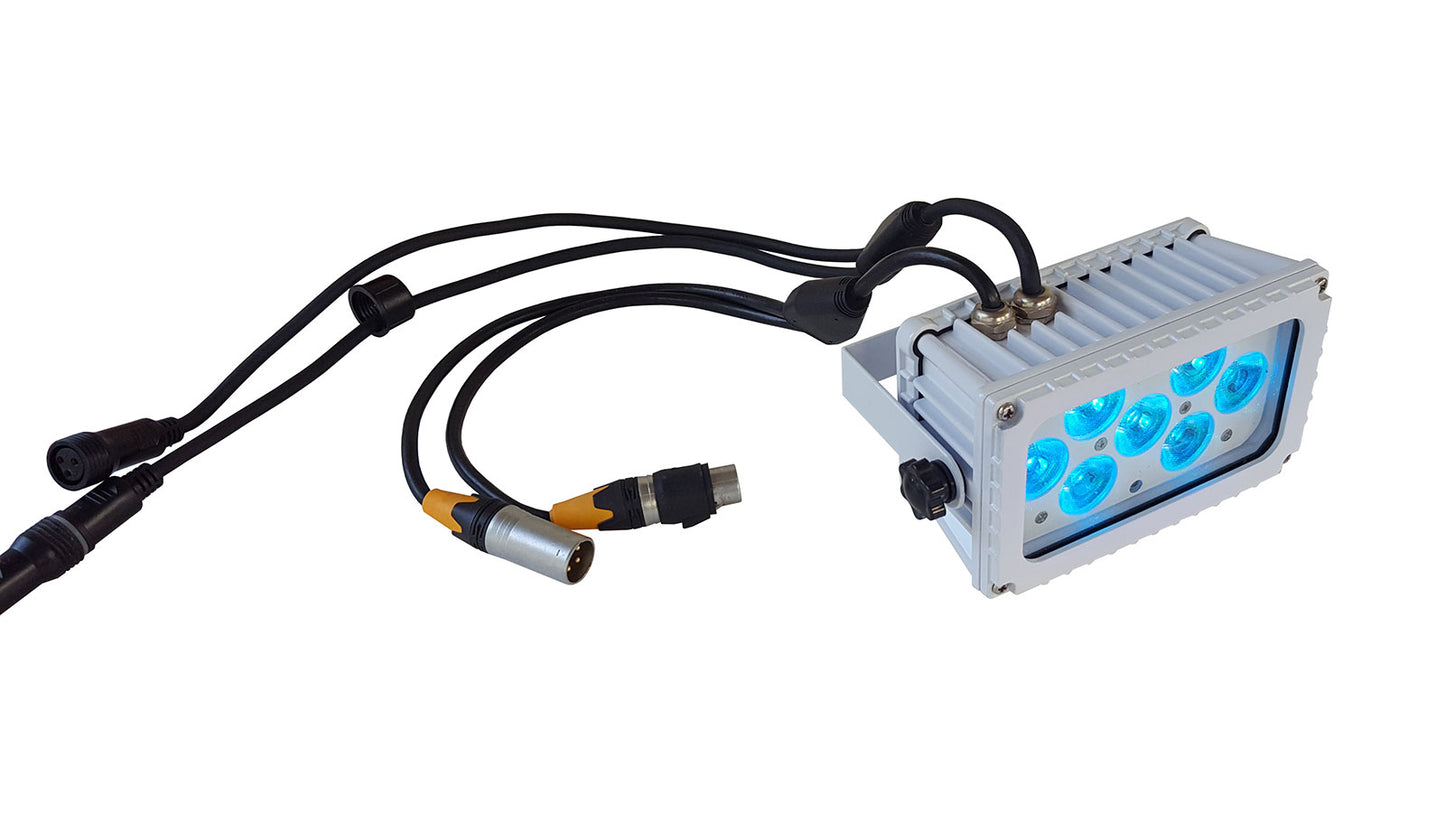

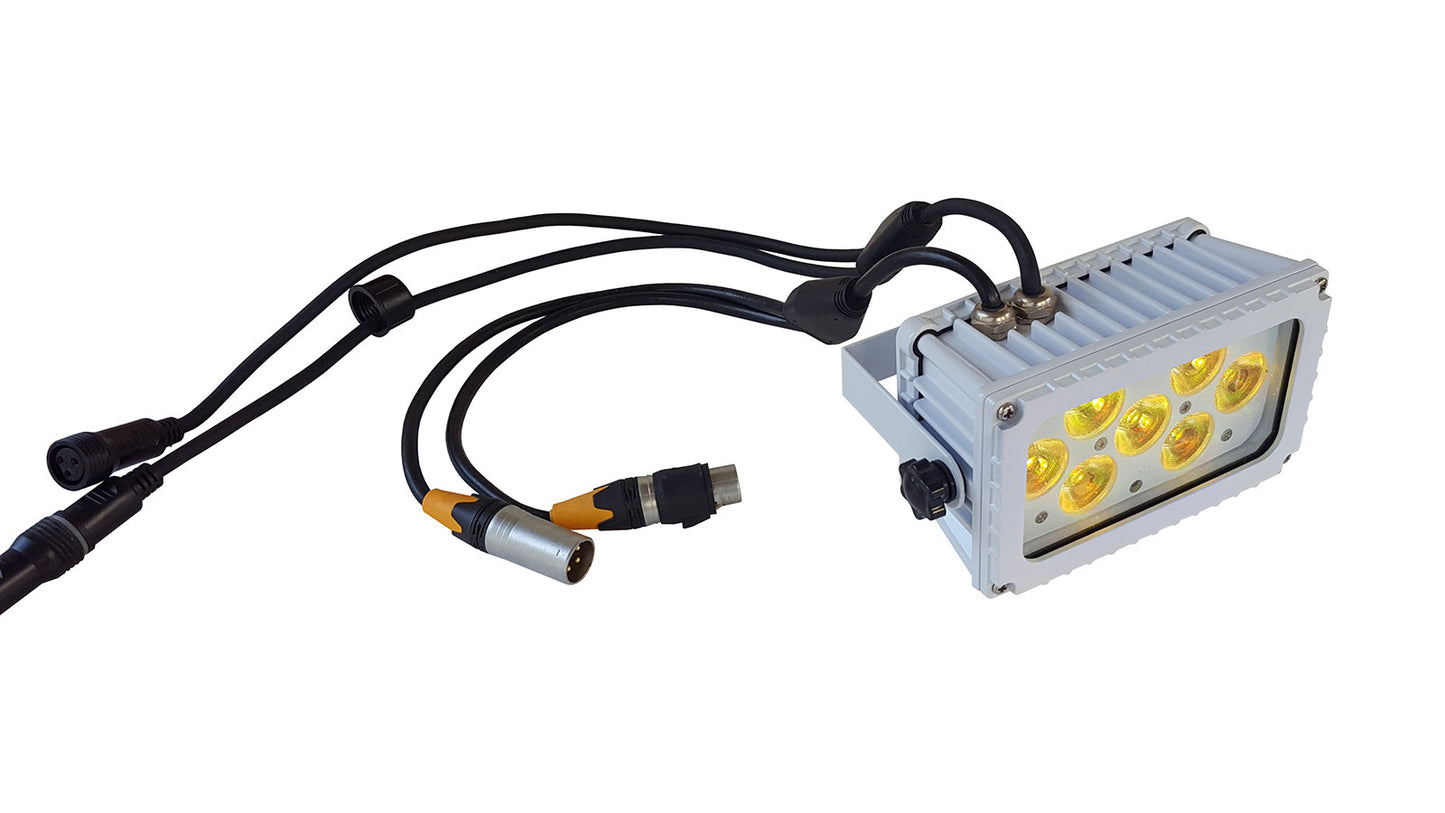

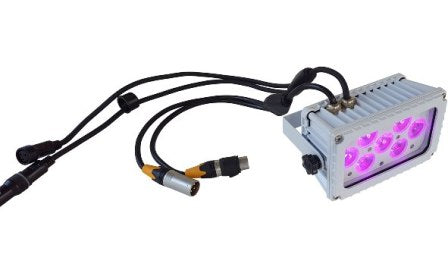

Sketch™ comes in either black or white body colors. This listing is for the white body.

In short, our little sketch™ has been a bit of an inspiration to us all.

We’d love to see sketch™ light up your life the way he has ours, whether that’s in or on your home, office, shop, or... wherever. Sketch™ is our first fixture designed specifically to beautify the many spaces of our lives off the stage. Make him feel welcome!

Main Features

• Exceptional RGB color mixing from 7x 3-watt TRI-color LEDs
• Fully controllable via IR remote control
• Advanced heat sink design for zero fan noise
• Secure mounting bracket
• Multiple built-in color presets and auto programs
• User adjustable program speed & fade times
• 0-100% variable electronic dimmer
• Variable electronic strobe
• Durable cast aluminum housing
• Tempered glass lens and watertight internal gaskets

Specifications

Power

• Operating Voltage: 100-260VAC, 50-60 Hertz
• Fuse: 2A 250V
• Power Consumption: 23W

Light Source

• LED 7x 3-watt TRI-color LEDs, 100,000 hours.

Optical

• Beam Angle: 25°

Thermal

• Max. Operating Temp.:104 degrees F (40 degrees C) ambient

Control

• Protocol: USITT DMX-512
• DMX Channels: 3-channel
• Input: 3-pin XLR Male
• Output: 3-pin XLR Female

Operating Modes

• Standalone or Master/Slave

Weight & Dimensions

• Length: 6.29 inches (16 cm)
• Width: 2.78 inches (7.5 cm)
• Height: 3.54 inches (9 cm)
• Weight: 2.87 lbs (1.3 kg)

Warranty

• 2-year limited warranty, does not cover malfunction caused by damage to LEDs

Physical Dimensions

Manual: file:///C:/Users/Owner/Downloads/motif-sketch-user-manual-rev-c.pdf

Terms

• Free shipping to the lower 48 USA states on sales of $100.00 or more.
• Items shipping to Illinois are subject to Illinois state sales tax.
• PayPal payments accepted.
• Returns accepted within 7 days of receipt of product. Buyer pays return freight.
