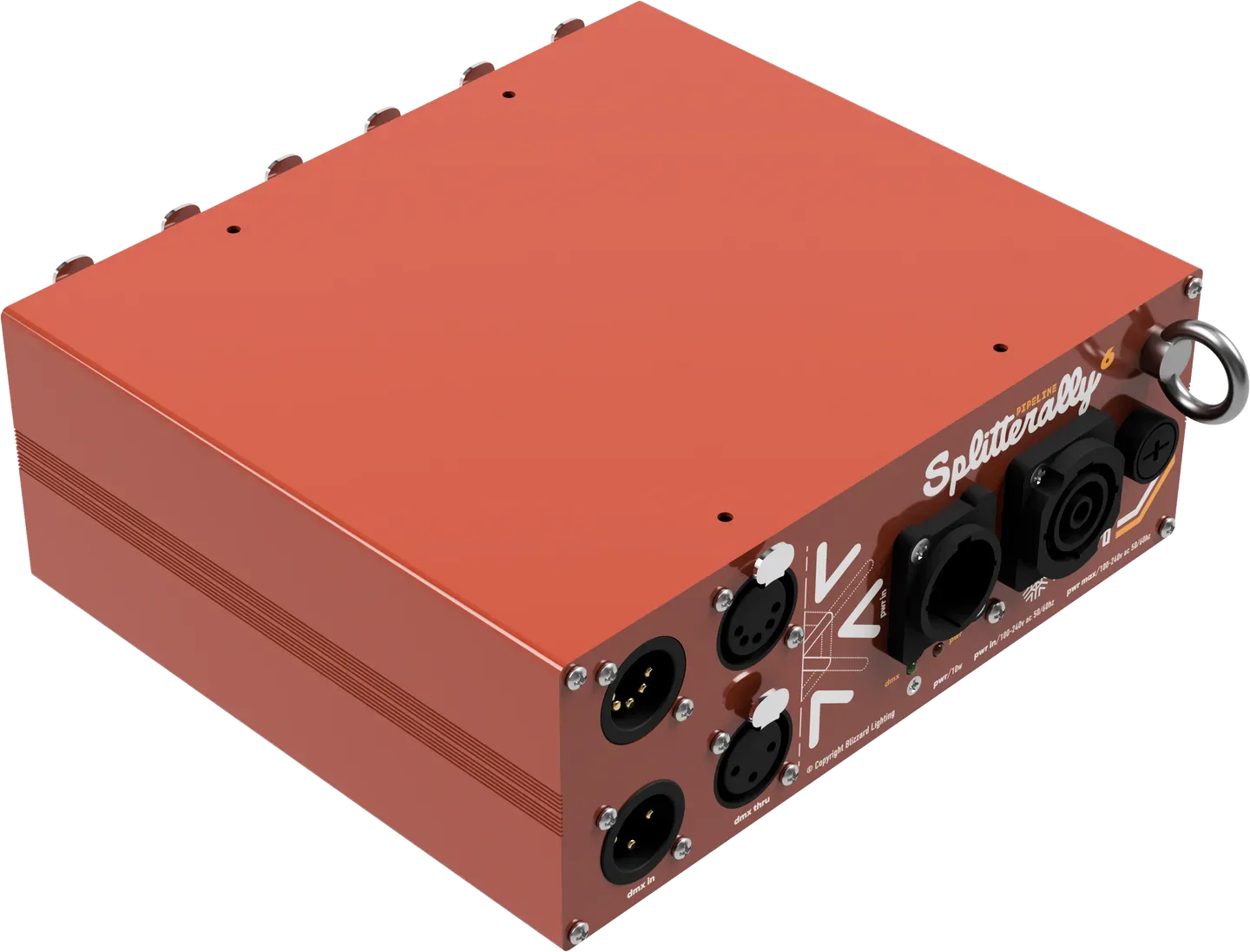

Pipeline™ Splitterally 6 is an RDM-capable DMX splitter/booster, ideal for reliable signal distribution. The front panel includes both 3-pin and 5-pin DMX input and thru ports, plus a powerCON® TRUE1-compatible input and output.
The back features six independent DMX outputs with 3-pin and 5-pin XLRs for versatile connectivity. It also includes three M10 mounting points for rigging, and 19” rackmount panel adapters are available (sold separately) for 1- or 2-unit installations.
Main Features • Indoor-rated, 6-output DMX/RDM splitter/booster • 3-pin & 5-pin DMX input + thru • 6 optically & electronically isolated outputs (3-pin & 5-pin) • powerCON® TRUE1-compatible connectors • 3x M10 threaded clamp mounts • Power & DMX status indicators on front/rear
Weight & Dimensions • Dimensions: 7.2 x 6.3 x 3.0 inches (183 x 160 x 77mm) • Weight: 2.95 lbs (1.34 kg)
