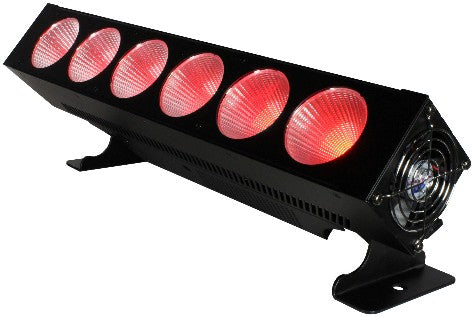

Blizzard Lighting PixelStorm COB Mini

Introducing the PixelStorm COB Mini

This is one way cool, way flexible, way original LED strip light! The Blizzard Lighting PixelStorm™ COB Mini is a rugged, well-built RGBAW strip luminaire with 6x 25W 5-in-1 COB LED lights, DMX-512 control, built-in color wheel, 33 built-in automated programs + 2 sound active modes. It also features 10 custom color banks, 3 custom program banks, variable electronic dimmer and strobe, 45° beam angle, and more.

What's In The Box?

1 x PixelStorm COB Mini Professional LED Fixture
Power Cord
User Manual

Blizzard Lighting PixelStorm™ COB Mini Features:

• Super-quiet, variable speed internal fan cooling
• Dual mounting brackets with locking knobs for positioning flexibility
• PowerCON™-compatible AC power In/Out connectors
• Flicker-free constant-current LED driver
• 3-pin male input and 3-pin female output
• Can directly power the wiCICLE® wireless system via DMX
• 6x 25W 5-in-1 COB LEDs, 100,000 hours
• Built-in color and pixel chase macros via DMX
• Virtual color wheel effect
• 33 built-in automated programs + 2 sound active modes
• RGBAW color mixing ability in standalone mode
• 10 custom color, and 3 custom program banks
• Variable electronic 32-bit dimmer (with multiple dimming modes) & strobe
• Custom global color calibration settings
• Fixture ID addressing
• Easy to use LED control panel
• Individual Pixel Control
• 5/6/11/18/23/30 or 38-channel DMX modes w/two different pixel group configurations in 18/23-channel modes
• Blizzard Lighting PixelStorm™ COB Mini Specifications:

Physical

• Width Fixture: 20.2” (512 mm), 18.3” (462.8 mm)
• Depth Fixture: 3.4” (85 mm), Bracket: 5.1” (130 mm)
• Height: 9.2” (232 mm)
• Weight: 11.3 lbs. (5.1 kg)

Power

• Operating Voltage: 100-264VAC, 50-60 Hertz
• Power Consumption: 172W, 2.11A, pf: .66

Light Source

• LED 12x 25W 5-in-1 COB LEDs 100,000 hours.

Optical

• Beam Angle: 45° beam

Luminous Intensity:
Lux/m      Red         Green           Blue              Amber            White           All
1m:        4420          5573             2148                 2299                4951      16,843
2m:         1635          2774               826                    815                2048        5,966
3m:          846           1340               390                   370                   961          3,689
4m:          536             806               232                    212                   544          2,177
5m:          362             534                174                     135                  349          1,415

Thermal

• Max. Operating Temp. 104° F (40° C) ambient

Control

• Protocol: USITT DMX-512
• DMX Channels: 5/6/11/18/23/30 or 38-channel DMX modes
• Input/Output: 3-pin XLR Male/Female

Other Operating Modes

• Standalone, Master/Slave, Sound Active, Color Preset

Warranty

2-year limited warranty, does not cover malfunction caused by damage to LEDs.

Disclaimers:

All specifications subject to change without notice.
The power connector fitted to the fixture and fixture cordare designed for compatibility with products manufactured by Neutrik AG,Neutrik USA and their related entities, however they are not manufactured by, affiliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik® and powerCON® are registered trademarks of NeutrikAG.
