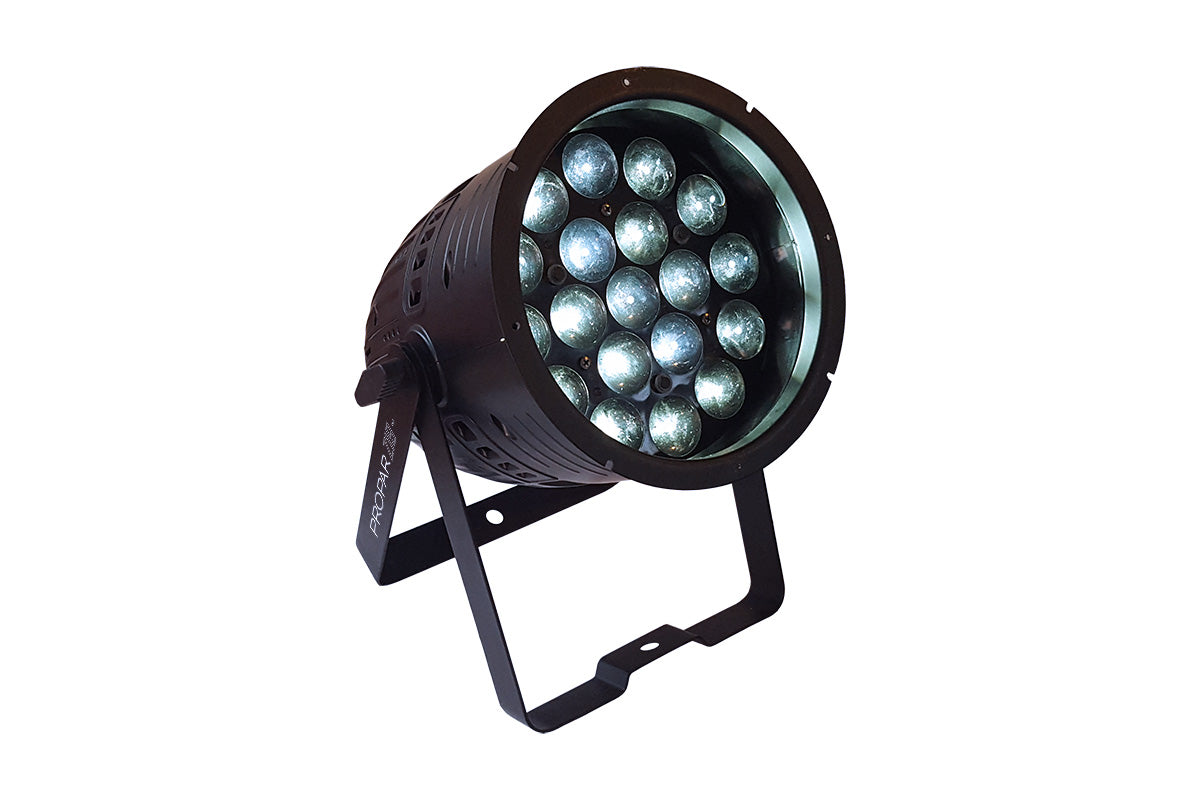

Blizzard Lighting ProPar Z19 RGBW

ProPar Z19 RGBW

19* OSRAM™ 15 watt 4-In-1 RGBW LEDs + Zoom

ProPar™ Z19 RGBW LED fixtures offer superior color mixing abilities and brightness thanks to its 19* 15-watt, high power 4-in-1 RGBW OSRAM™ LEDs, and its 5°-60° degree zoomable beam angle is an awesome dual function wash/ beam effect to add to any light show! Like the other lights in our ProPar™ line, it also sports a rugged cast aluminum chassis and provides exceptional quality, coverage and ease of use at a MUCH lower price than other fixtures in its class.

Users have the ability to run built-in programs and perform full RGBW color mixing with or without DMX control, the ProPar™ Z19 RGBW is perfect for architectural work and installs as well. Two mounting yokes add positioning flexibility, and a slew of built-in programs in DMX allow the ProPar™ Z19 RGBW to be programmed with ease.

In DMX mode, you can control the fixture with either 5/7 or 9-channels. You’ll have full control of many features such as RGBW color mixing, strobe, dimmer, and 30 built-in programs. The 4-button LED control panel also allows total control over the fixture including auto run settings, sound active mode, and R/G/B/W color balance settings!

This fixture is available with either black or white housing, and matching barn-doors are available (sold separately.)

Main Features

• RGBW color mixing via 19x 15W 4-in-1 OSRAM LEDs

• Available with black or white housing plus optional

• barndoors (sold separately)

• 5°-60° degree zoomable beam angle

• Variable electronic dimming & strobe

• Built-in color & chase + zoom macros via DMX

• Built-in automated programs via master/slave

• Built-in sound active programs

• RGBW color mixing ability in standalone mode

• 5/7 or 9-channel DMX control modes

• Easy-to-use 4-button LED control panel menu display

• Dual mounting brackets for positioning flexibility

• Rugged and well-built (It hits the gym regularly)

• 3-pin male & female DMX input/output

• PowerCon™ compatible AC power In/Out connectors

Light Source

• 19x OSRAM® 15W 4-in-1 RGBW LEDs

Control

• USITT DMX-512

• 5/7 or 9-channels

• 3-pin XLR male/female input/output

• Standalone, master/slave, auto, sound active

Optical

• 5°-60° degree zoomable beam angle

• Luminous Intensity: 15,229 Lux @ 2M (narrow), 3,009 Lux @  5M (narrow), 2,743 Lux @ 2M (wide)

Power

• Operating Voltage: 90-250VAC, 50-60 Hertz

• Power Consumption: 305W, 2.55A, PF: .96

Operating Temperature

• Max. Operating Temp.: 104 degrees F (40 degrees C) ambient

Dimensions

• Width: 10.5 inches (268 mm)

• Depth: 8.1 inches (206 mm)

• Height: 10.6 in. (270 mm), 13.7 in. (348 mm) w/brackets

• Weight: 11.5 lbs (5.2 kg)

Warranty

• 2-year limited warranty, does not cover malfunction • caused by damage to LEDs.
