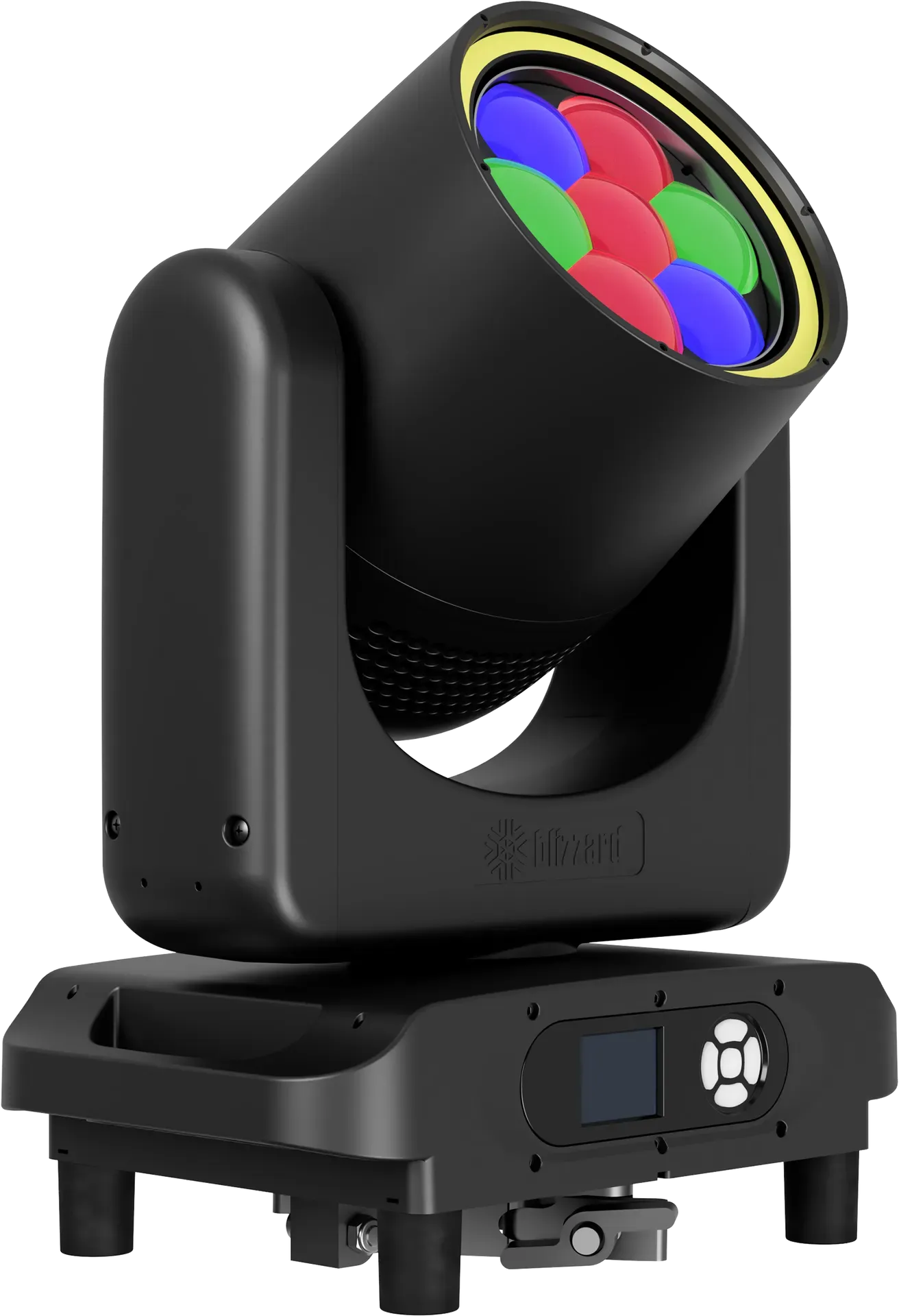

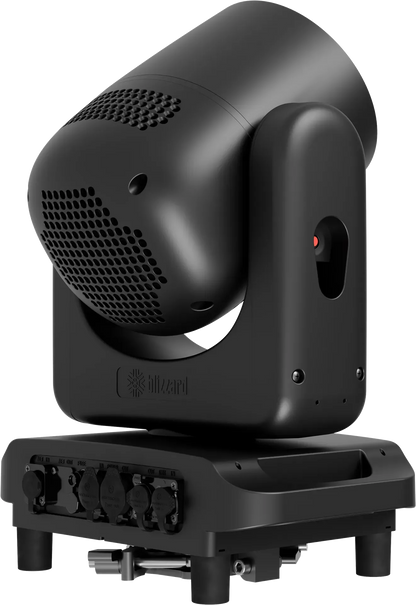

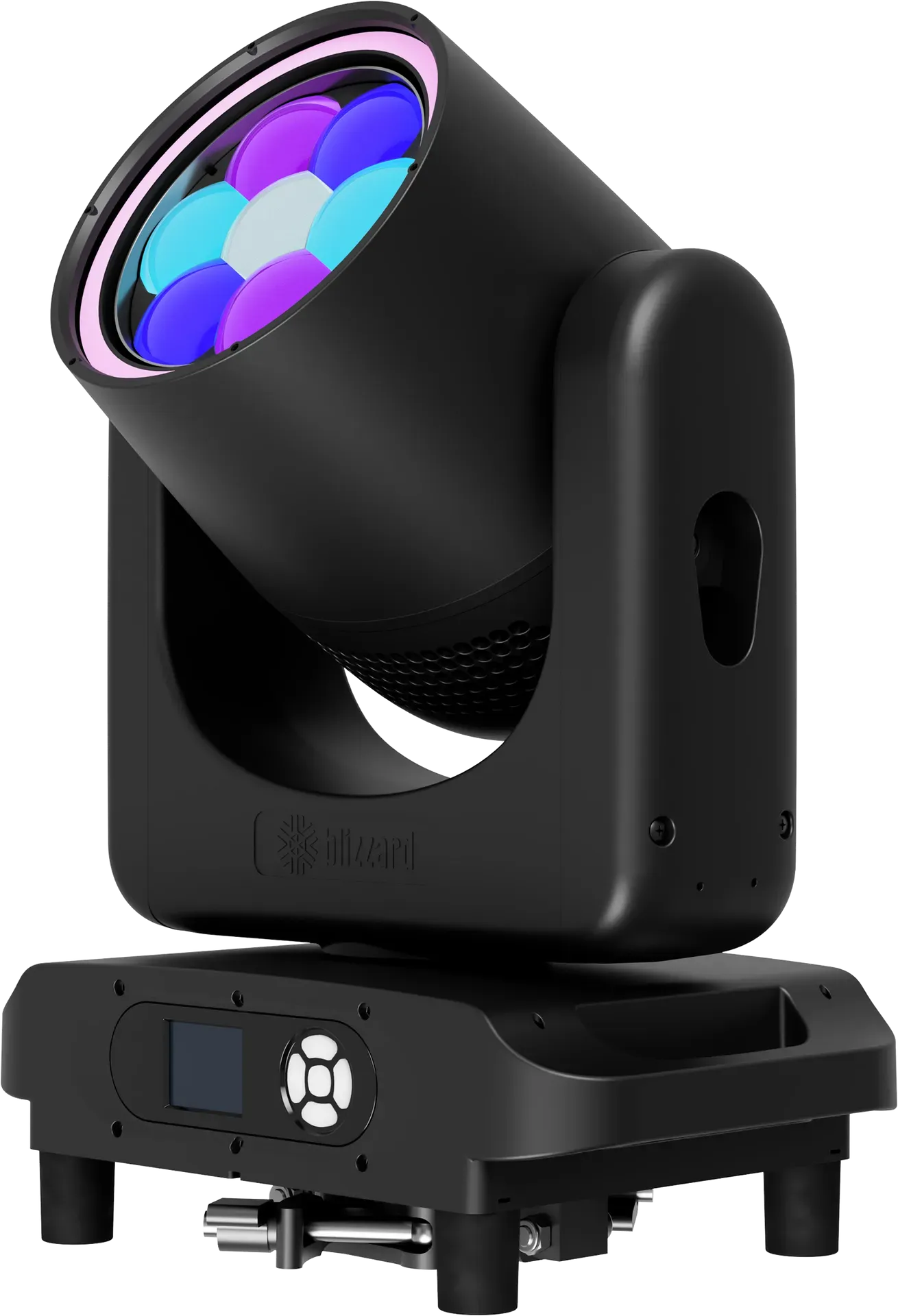

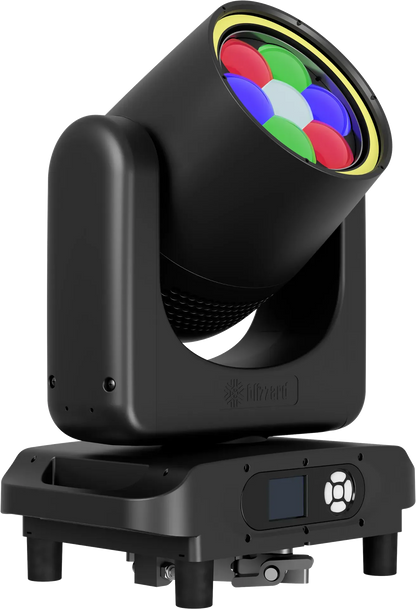

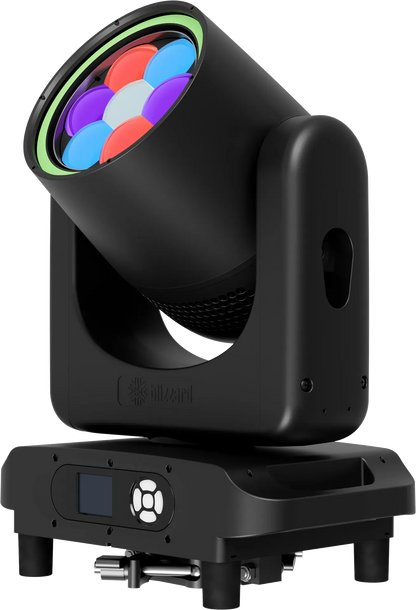

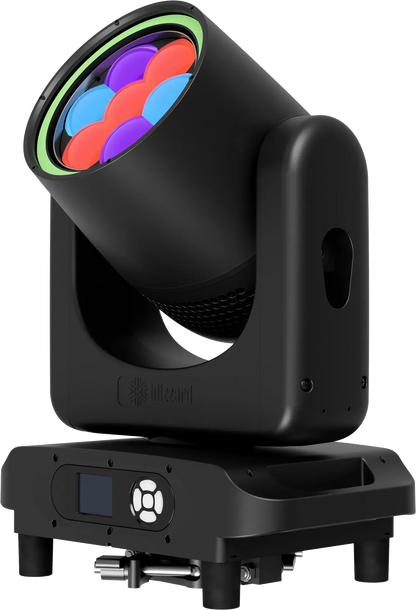

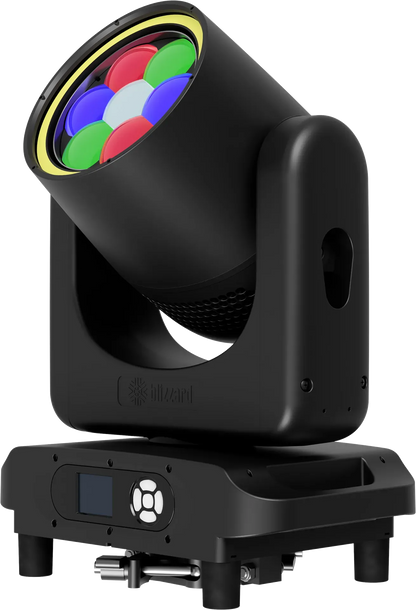

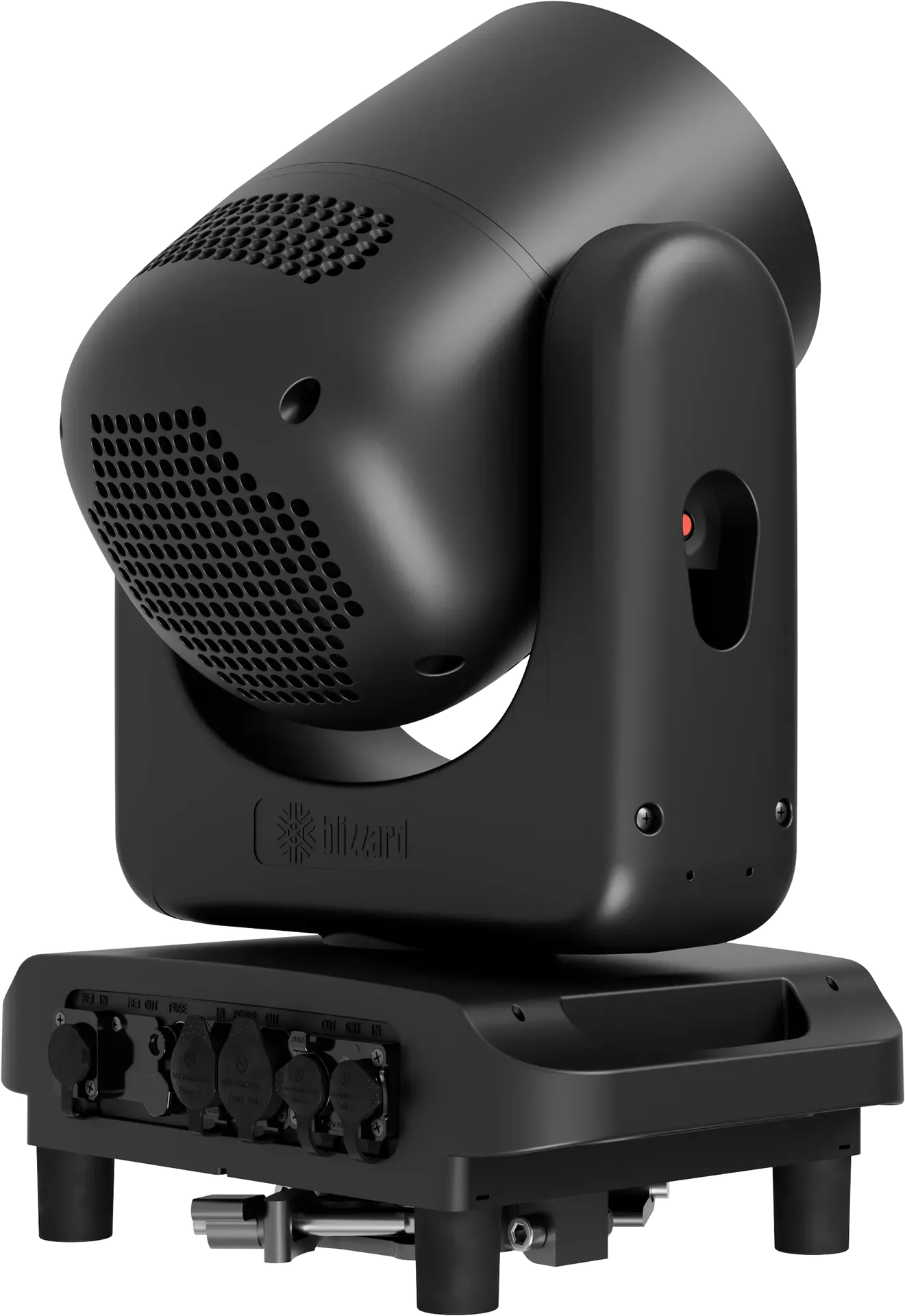

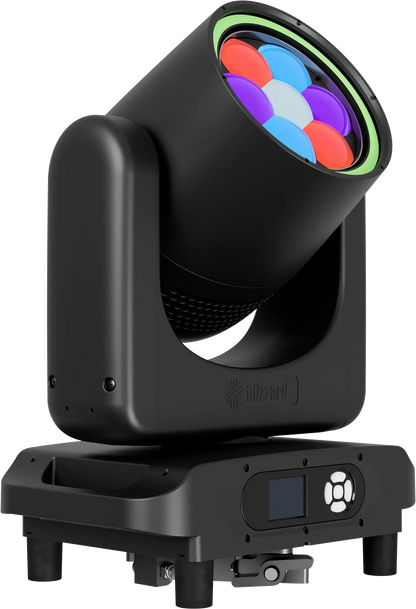

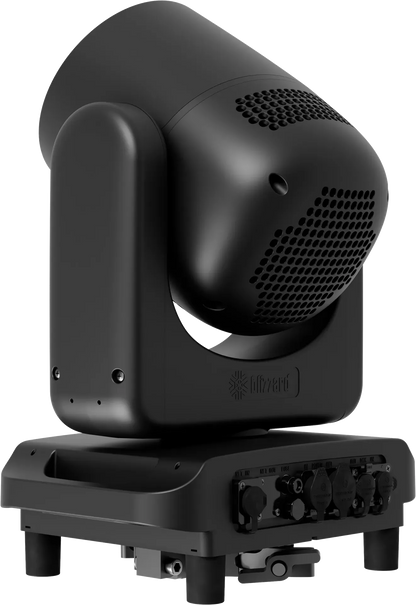

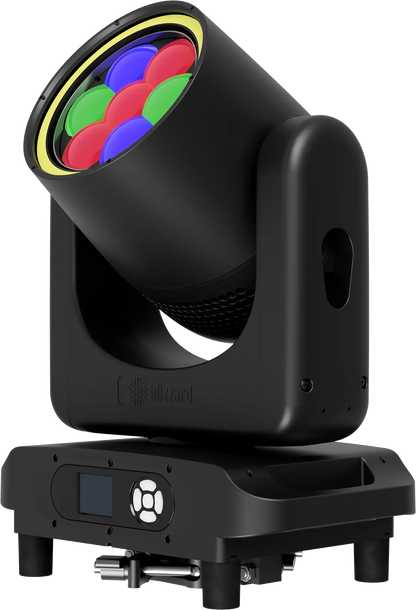

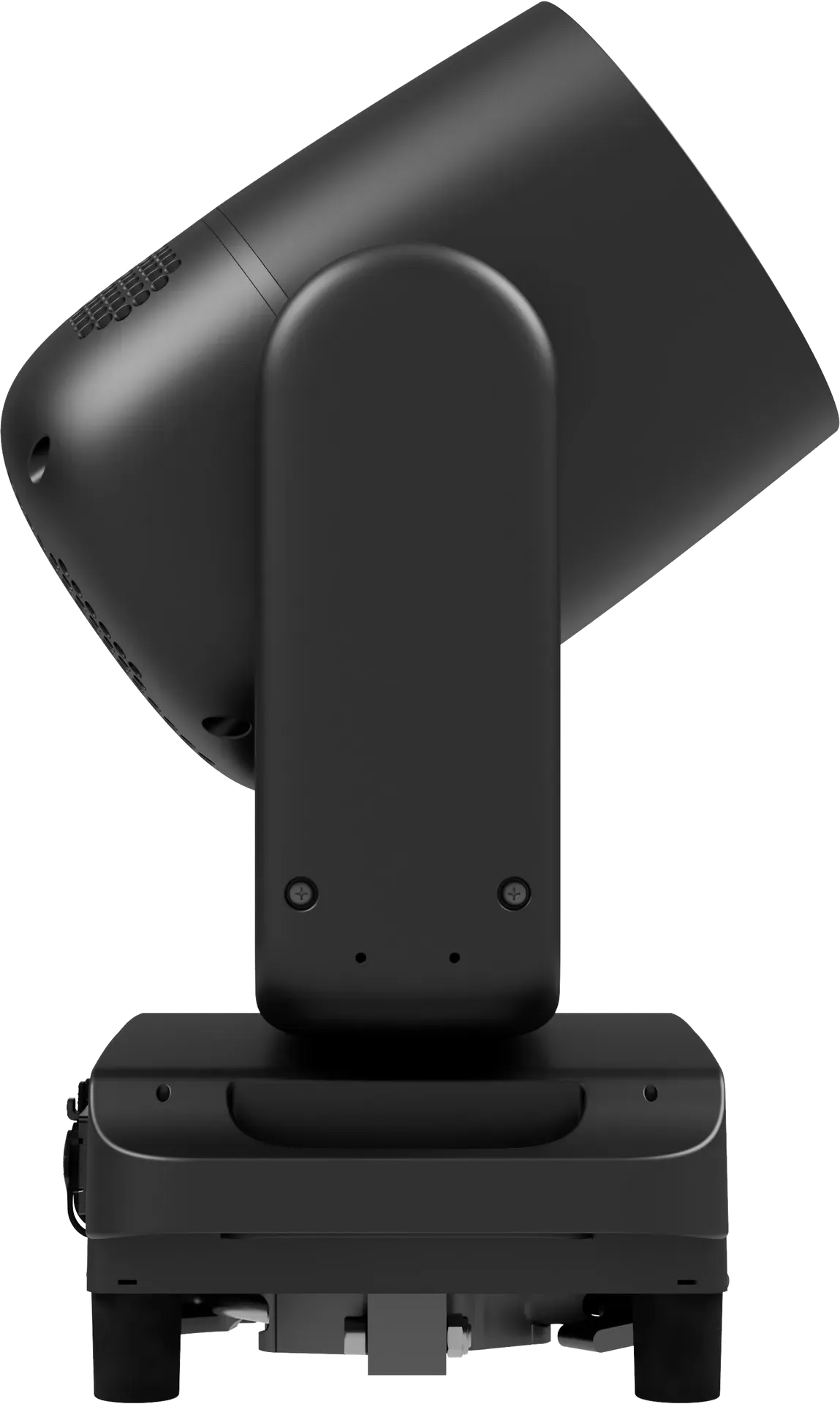

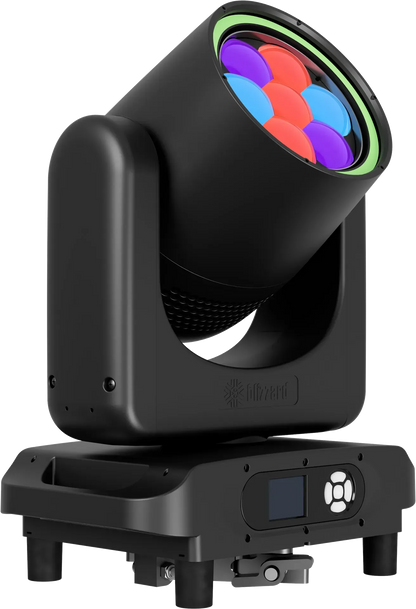

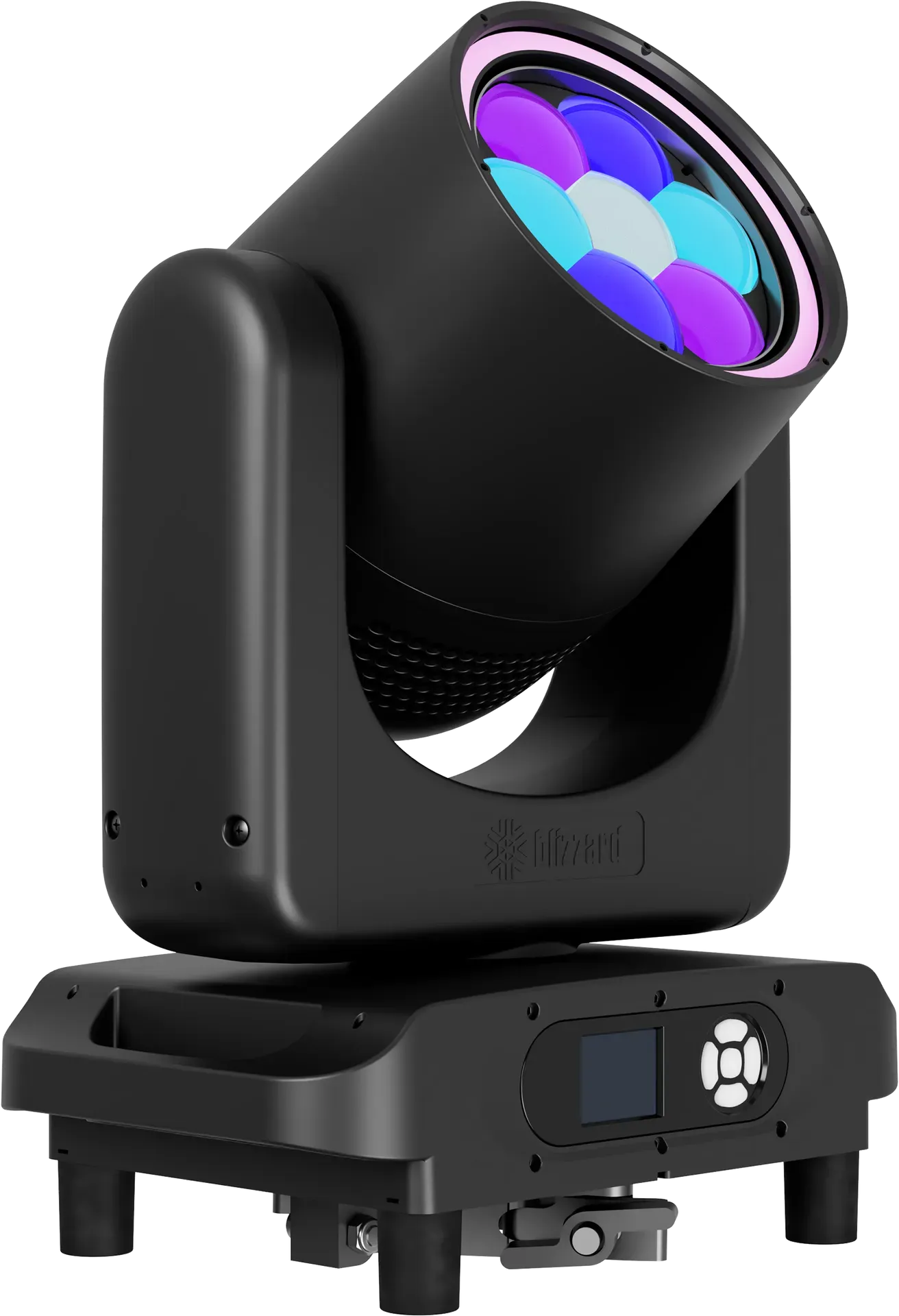

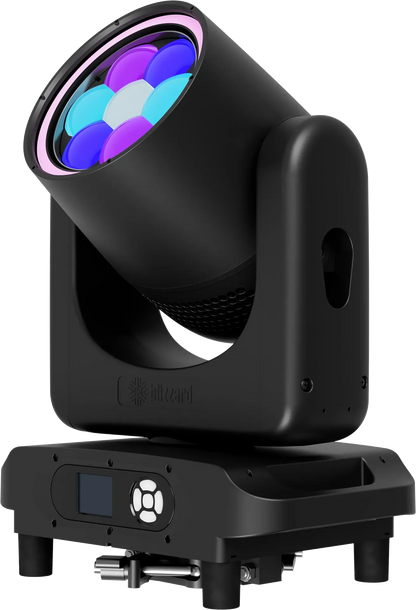

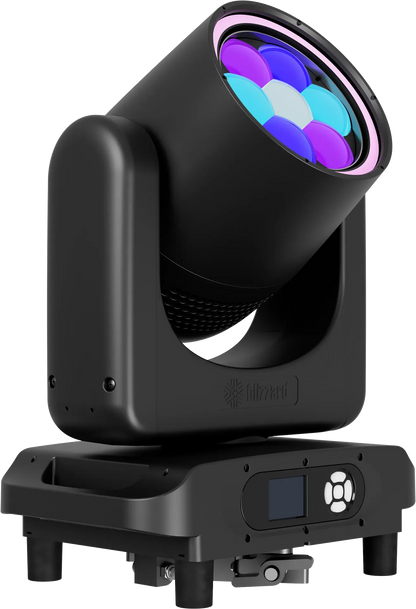

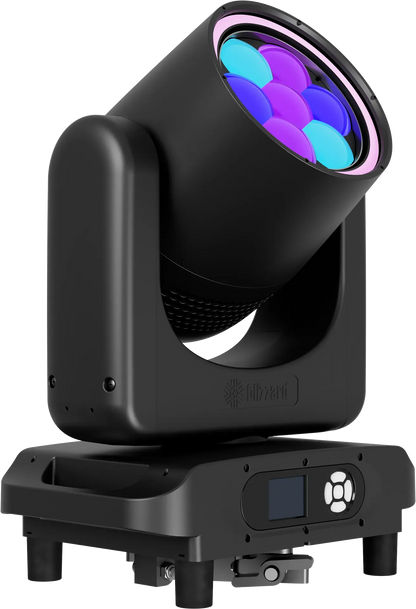

BLIZZARD TYPHON IP KALEIDO
IP66-Rated RGBW LED Pixel Beam Wash Moving Head

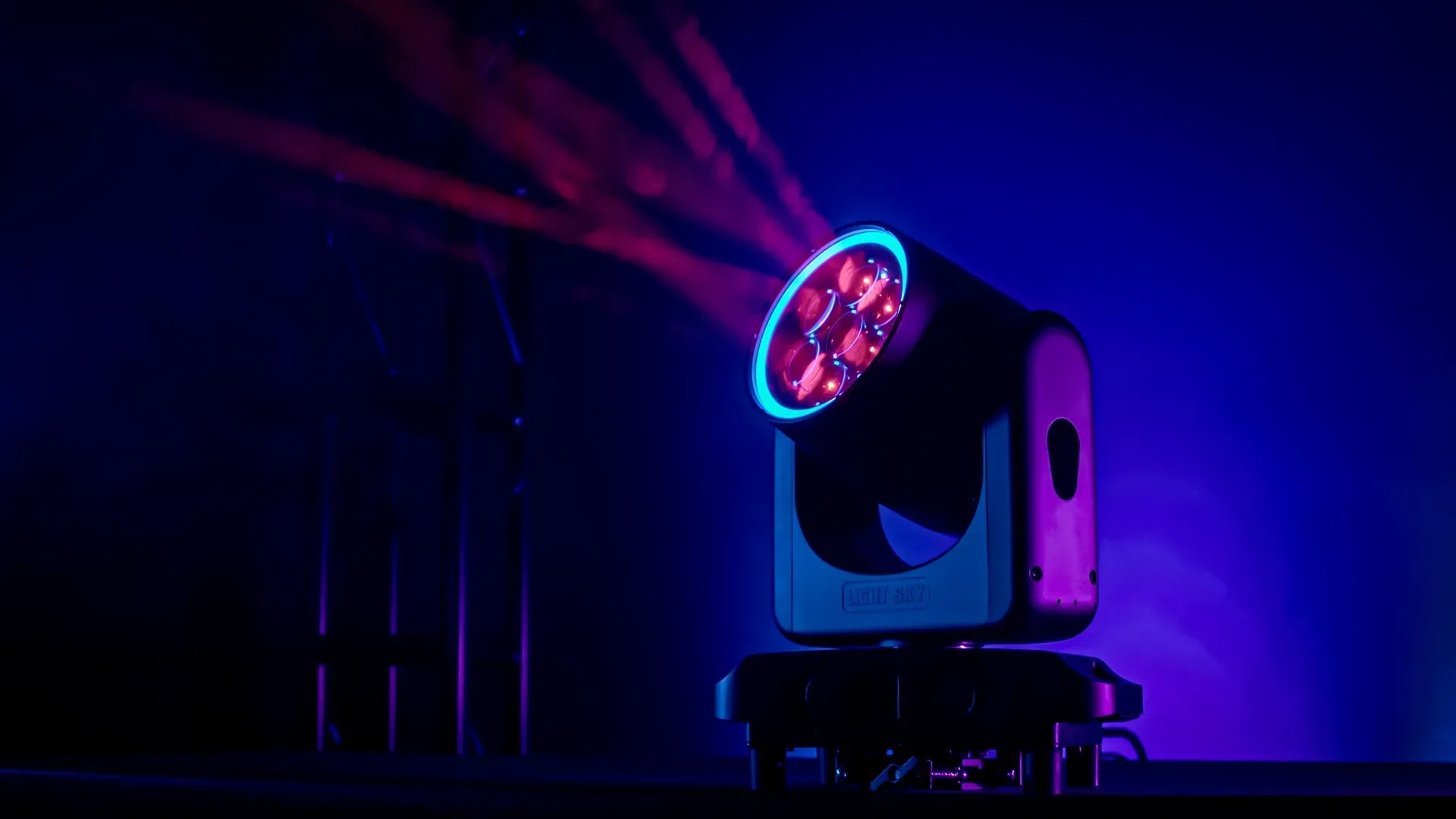

Dynamic Color and Motion

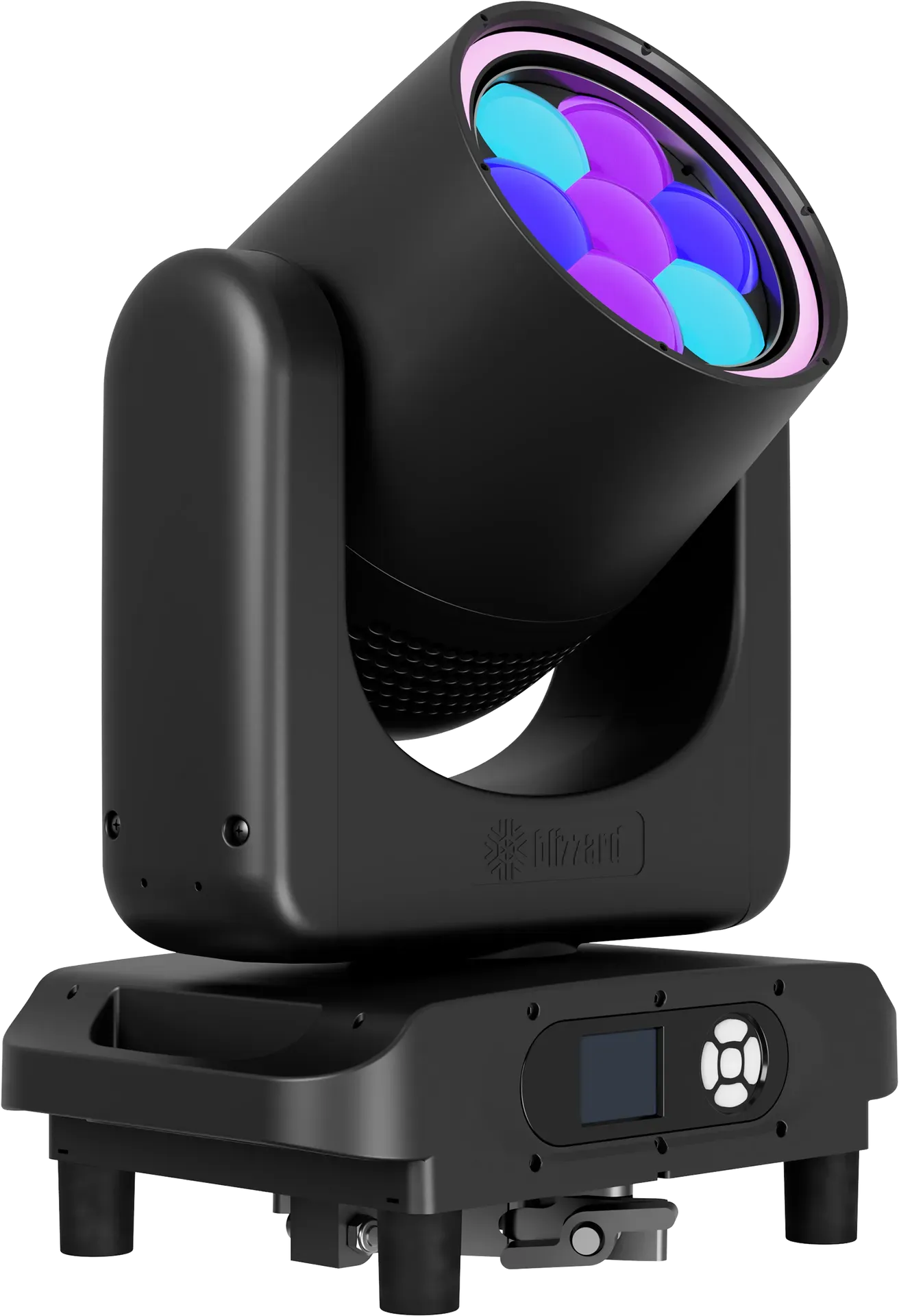

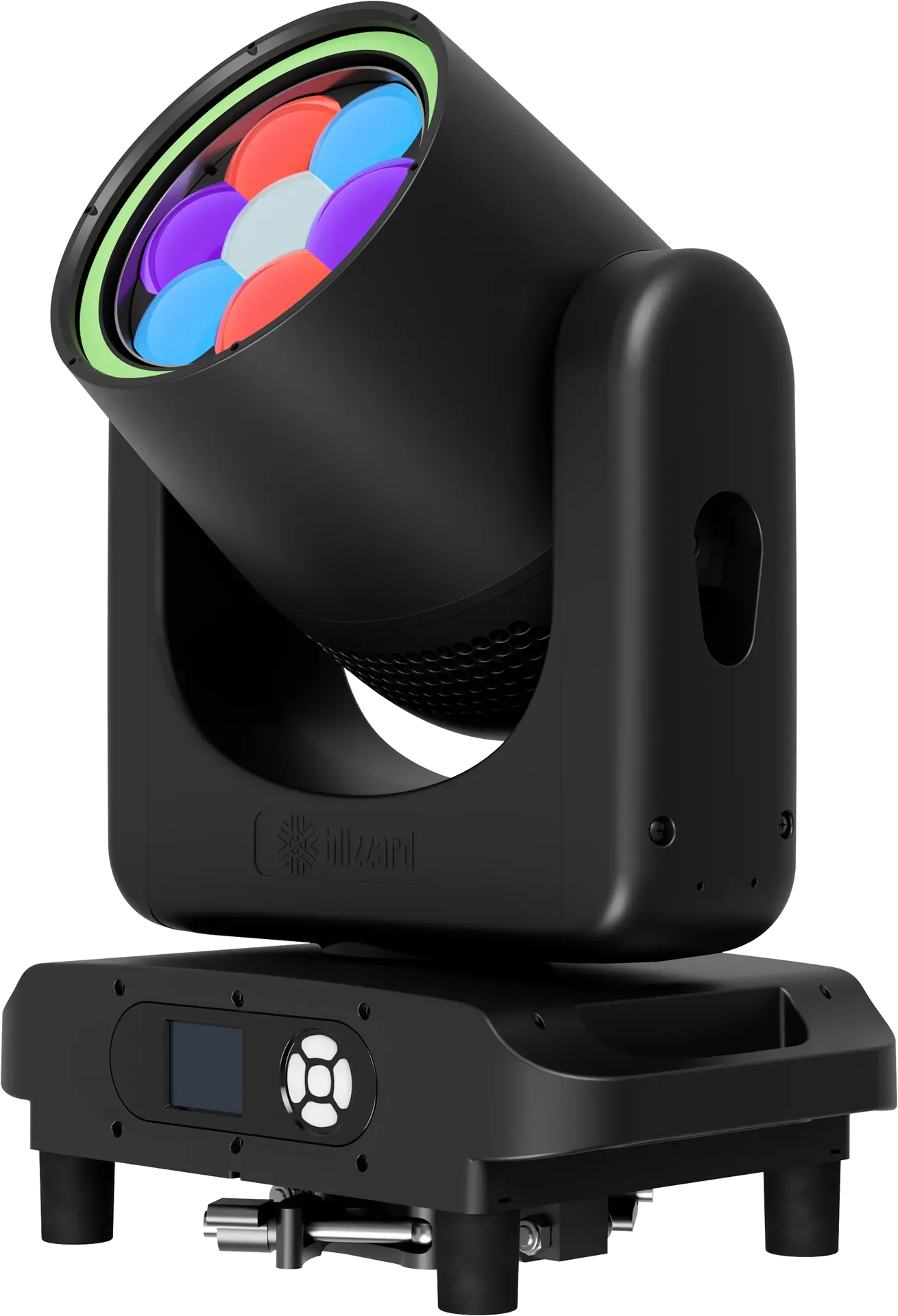

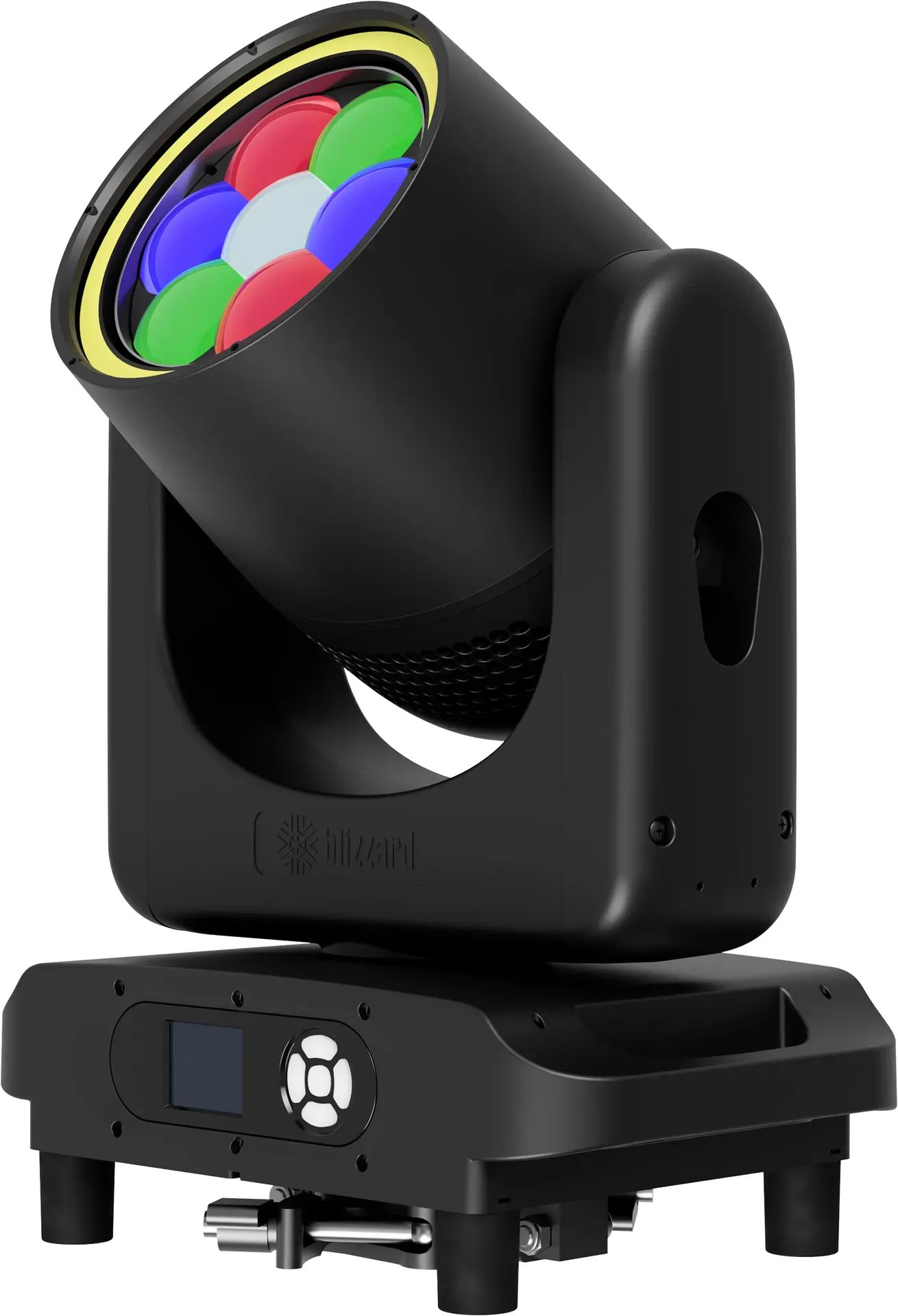

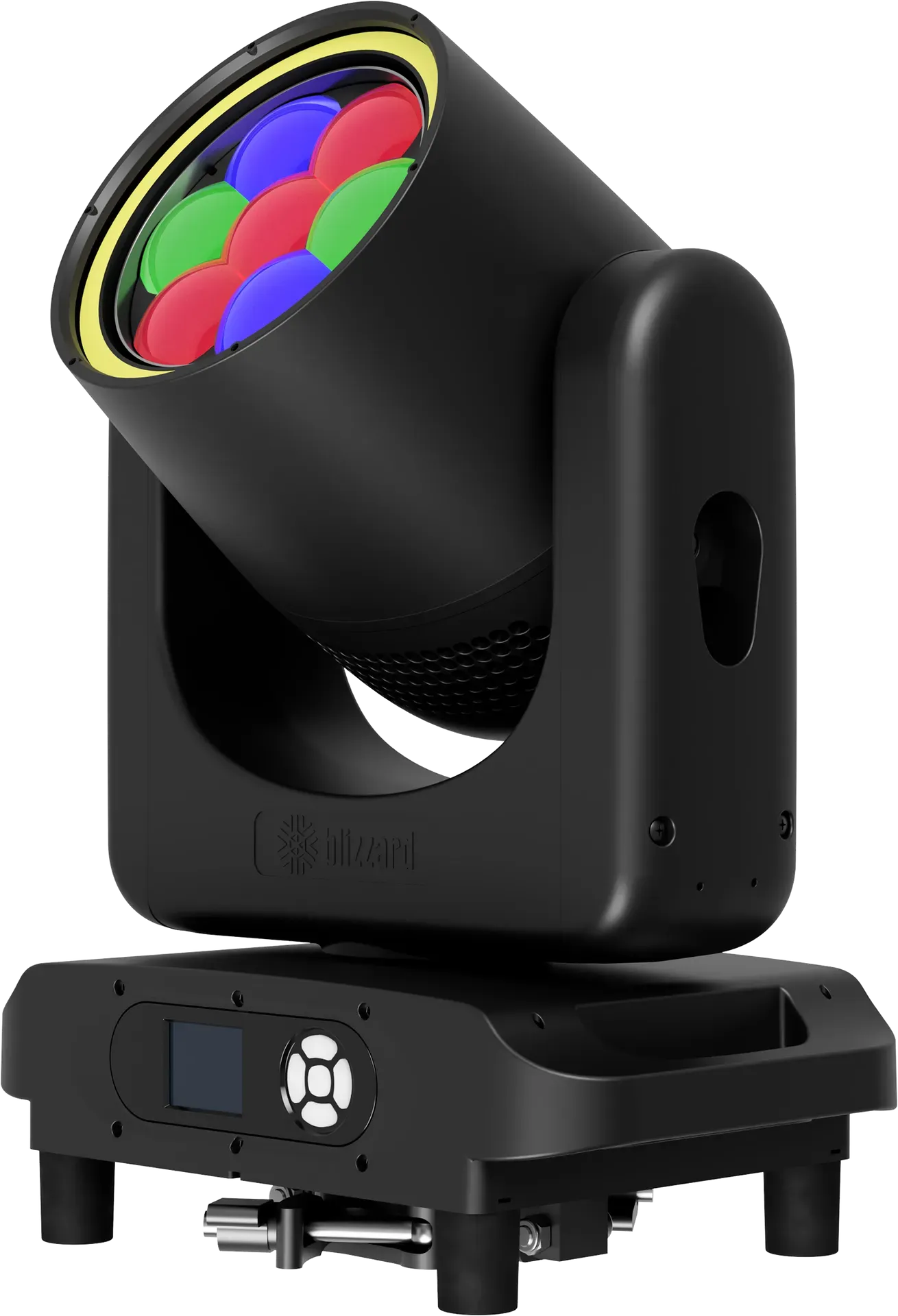

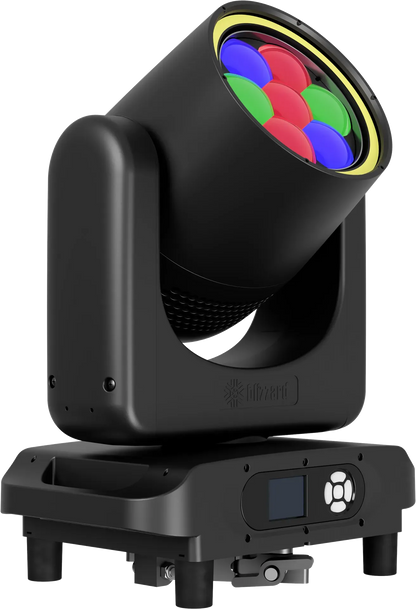

Typhon™ IP Kaliedo is a professional-grade LED moving head

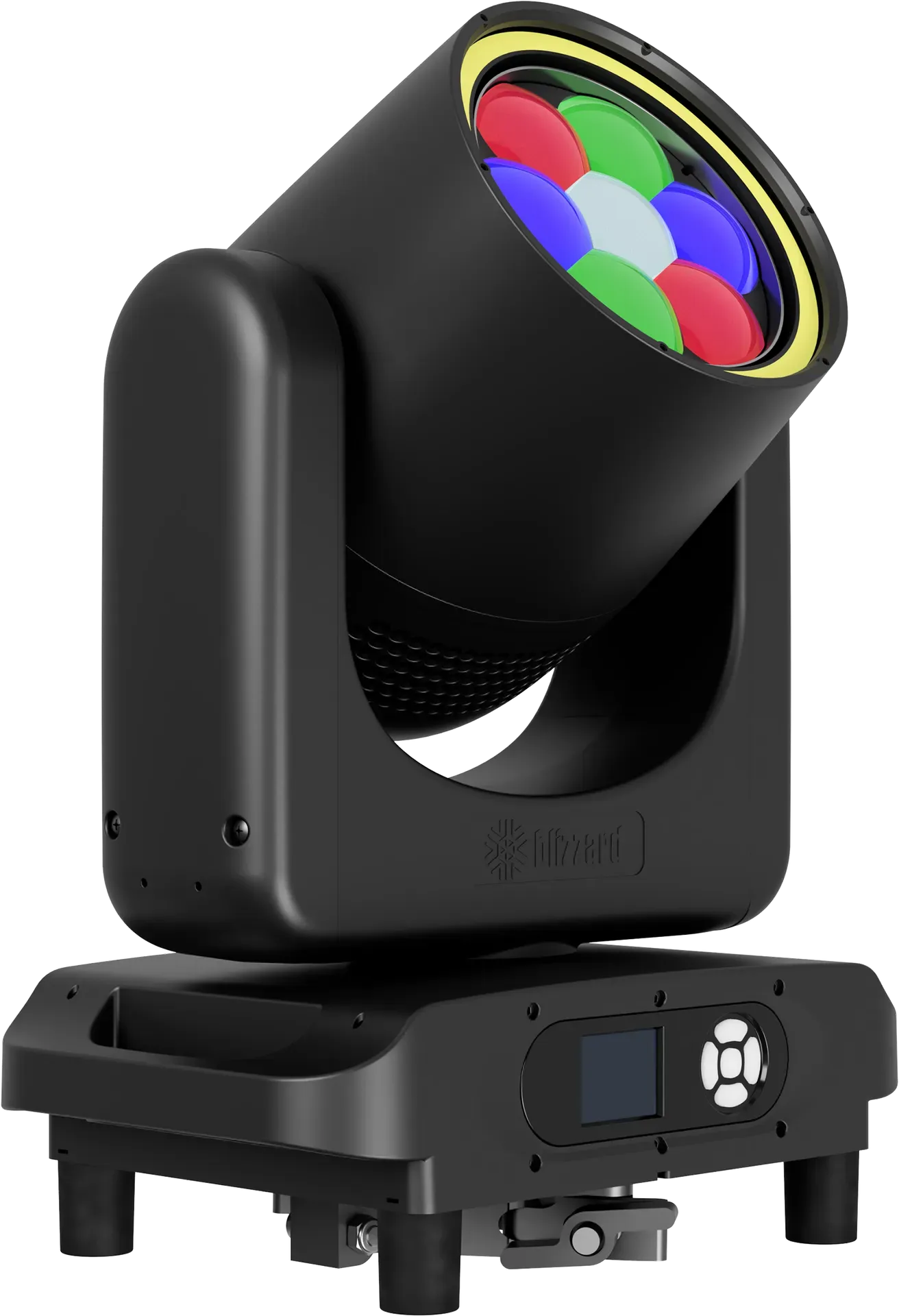

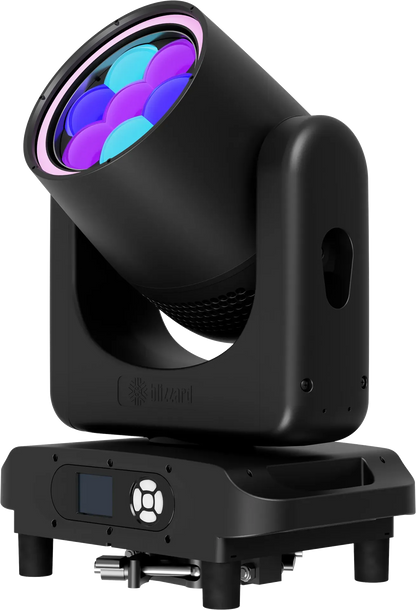

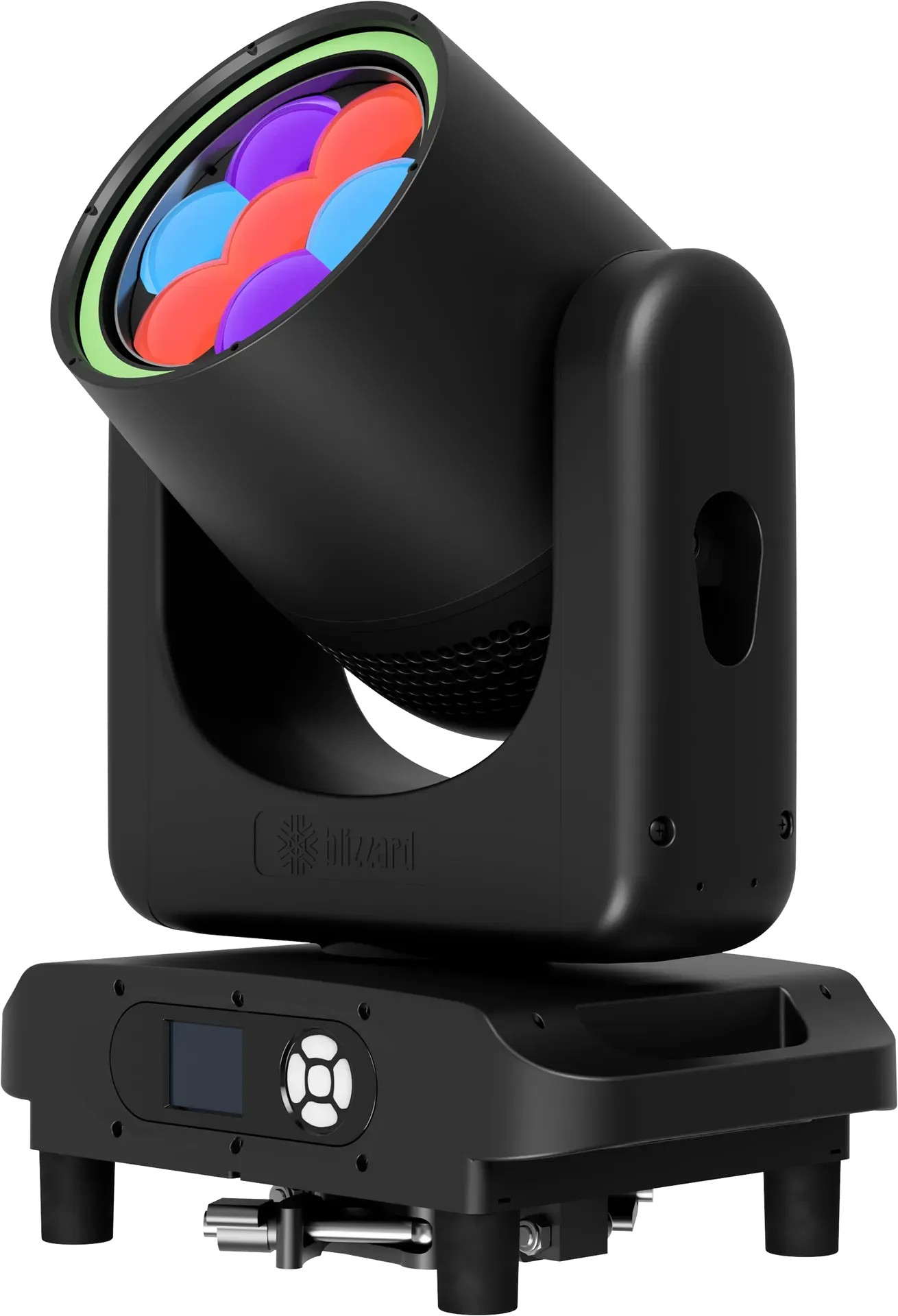

offering 7x 60W RGBW 4-in-1 LEDs plus an independent RGB ring
for dynamic visual effects. Its ultra-fast pan and tilt with an infiniterotating lens create vibrant, kaleidoscopic shows full of motion.
Packed with static and dynamic effect macros and 4x dimming
curves with adjustable speed and frequency, it’s a high-impact
performer that commands attention.
Built to Perform
This fixture features an outdoor-rated housing suitable for any
environment, and its 5°–50° motorized zoom and continuously
rotating optics easily deliver smooth, sweeping beam transitions
with fluid motion effects. Its durable construction and high-quality
internal components ensure lasting reliability, while 5-pin DMX,
RDM, Art-Net, and sACN control provide flexible, dependable
operation for professional applications.
Luminous Intensity
Lux/M 5M 7M 10M 15M
4° 23,500 11,990 5,875 2,677
50° 1,131 577 283 126
Main Features
• 7x 60W RGBW LED light source (20,000 hrs)
• CCT range: 2500K–10000K
• IP66-rated, suitable for outdoor use
• 4°–50° motorized linear zoom

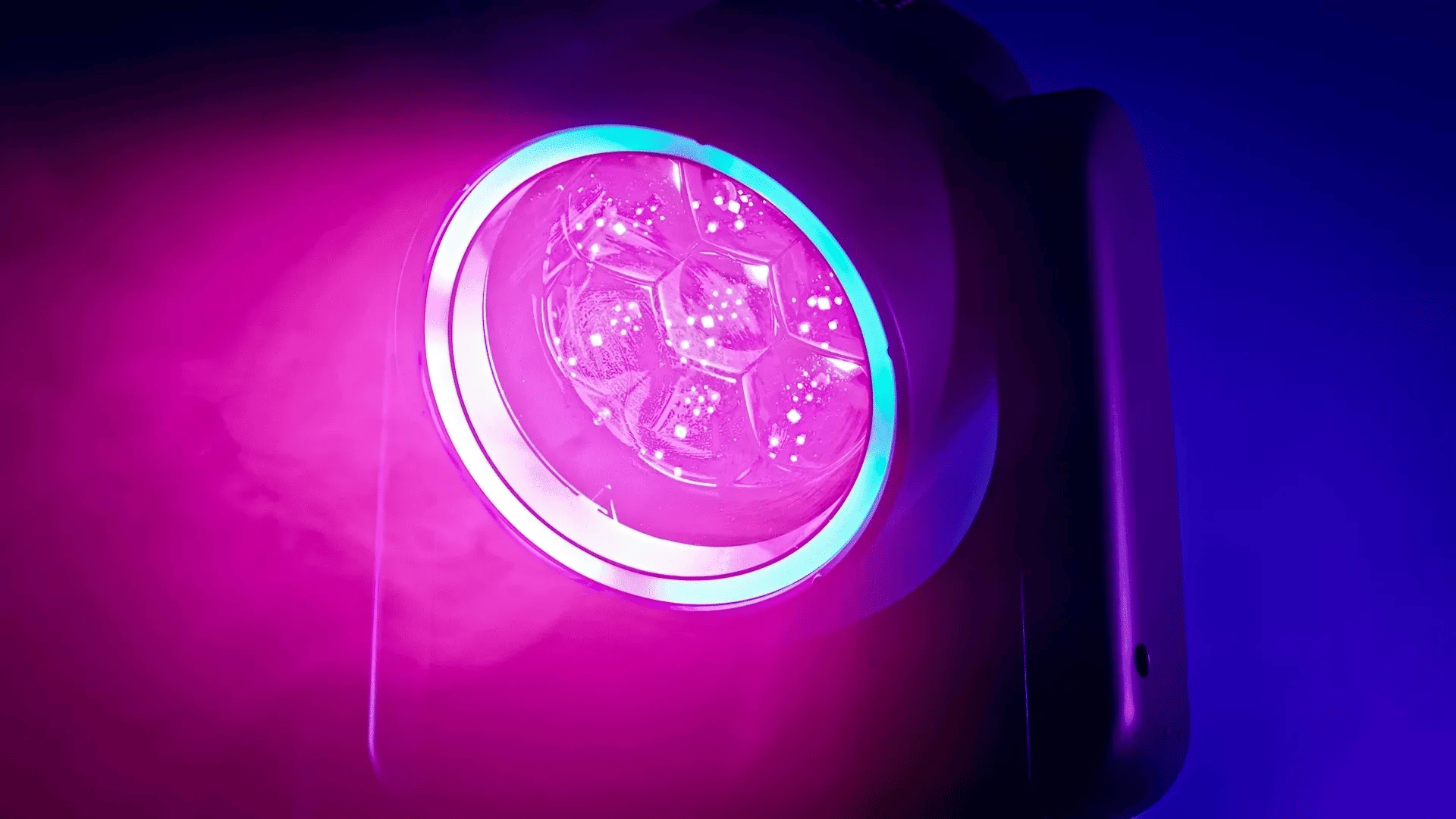

• 360° infinite rotating front lens

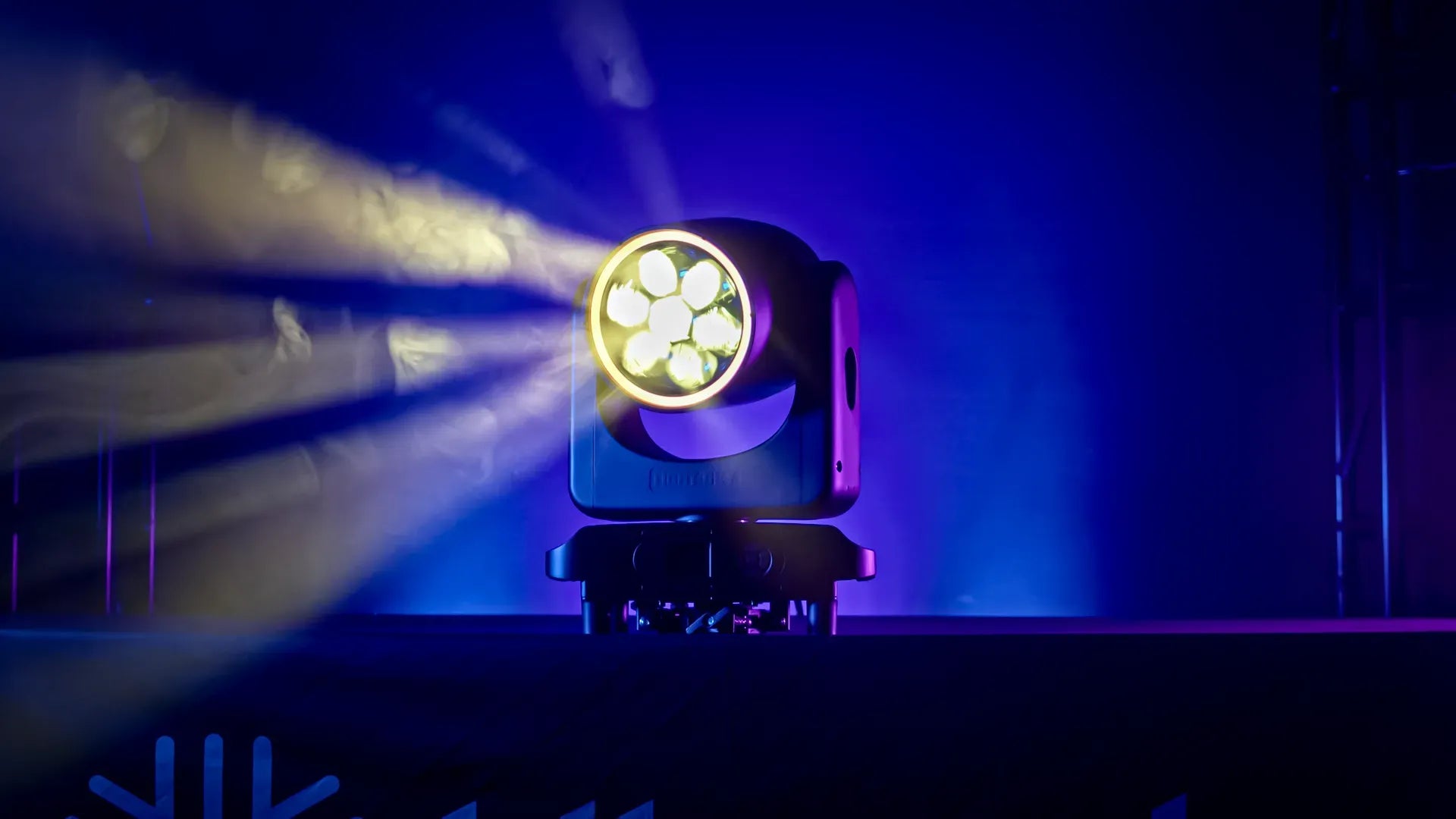

• LED ring with color-flow (aura) effects
• RGBW color mixing + rainbow effects
• Static & dynamic effect macros
• 4 dimming curves, 4 speeds, and 4 frequencies
• 1–30 Hz electronic and random strobe
• Pan: 540°, Tilt: 250° (8/16-bit)
• Fixed lock: Y-axis lock
• Integrated dual clamp assembly
• ATA-spec flight case available (holds 4 units)
Optical
Light source: 7 x 60W RGBW LEDs, 20,000 hrs
7,100 lumens
Beam angle: 4° to 32°
Zoom angle: 5° to 50°
CCT: 2500K–10000K
Weight & Dimensions
13 x 9.7 x 17.9 in (329 x245 x 454 mm)
27.2 lbs. (12.3 kg)
Optional Flight Case:33.5 x 26 x 28.6 in (850 x 660 x 725 mm)
Qty. Per Case: 4
Control
USITT DMX-512, RDM, Art-Net, sACN
5-pin DMX in/out
31/55/21/35/28-channels
5-button control menu with LCD display
Power + Current
100-240VAC, 50-60 Hz
Consumption: 480W, 4.8A, PF: 0.9
PowerCON® TRUE1-compatible in/out
Warranty + Certifications
2-year limited warranty
CE, RoHS
