Blizzard Lighting Wink / DISCONTINUED & NO LONGER AVAILABLE

Blizzard Lighting

Wink

Zoomable Beam, LED Ring + Infinite Pan/Tilt

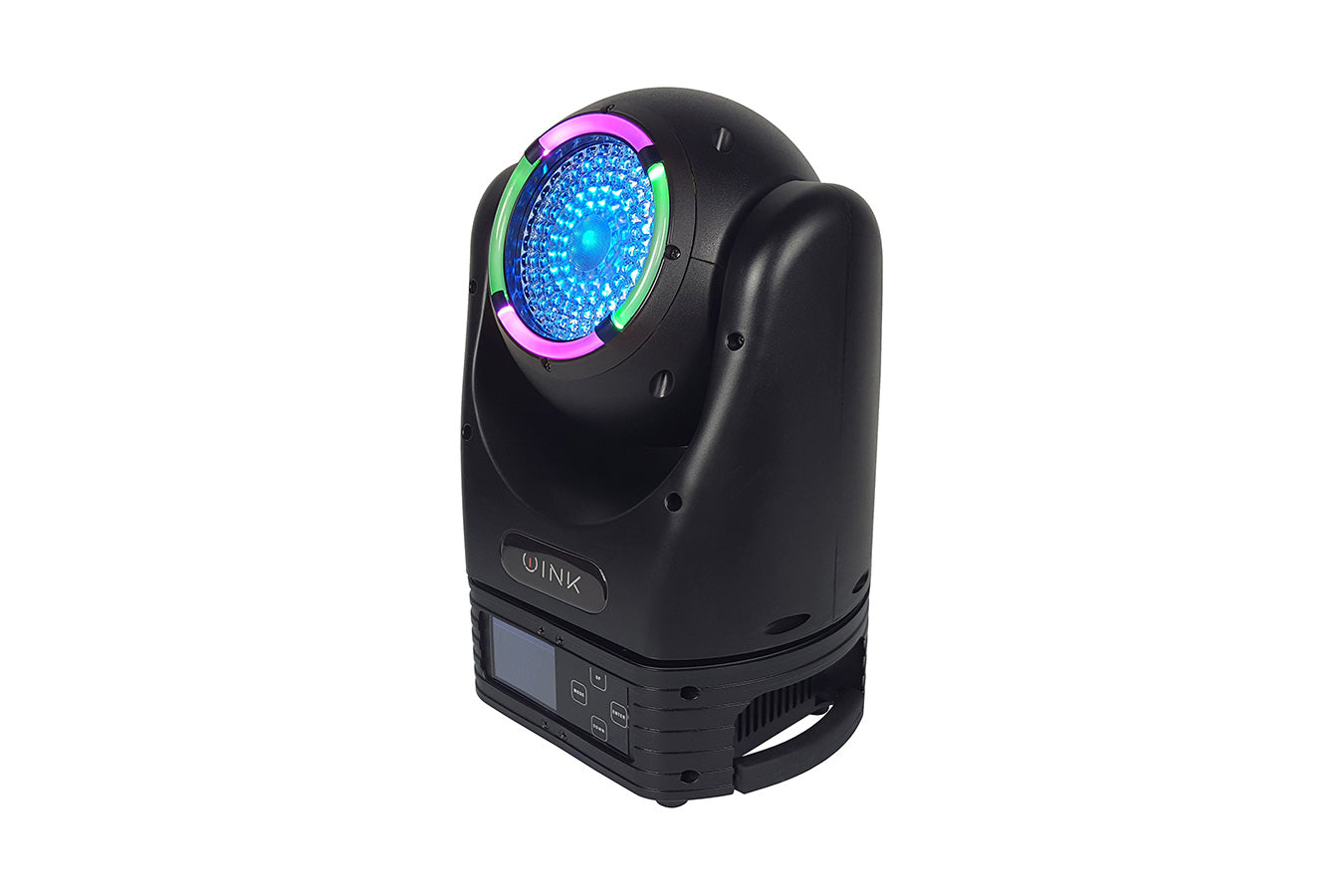

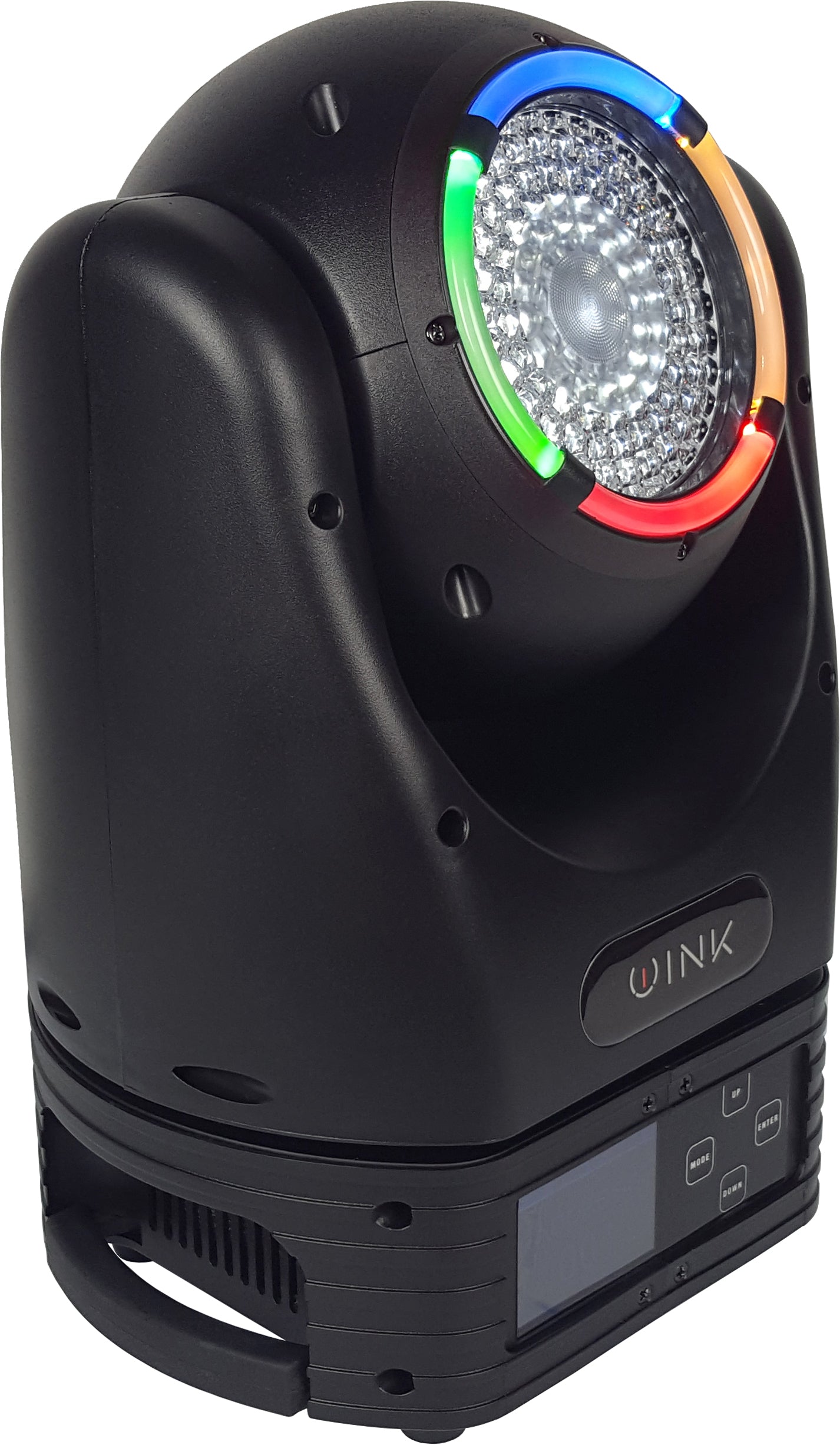

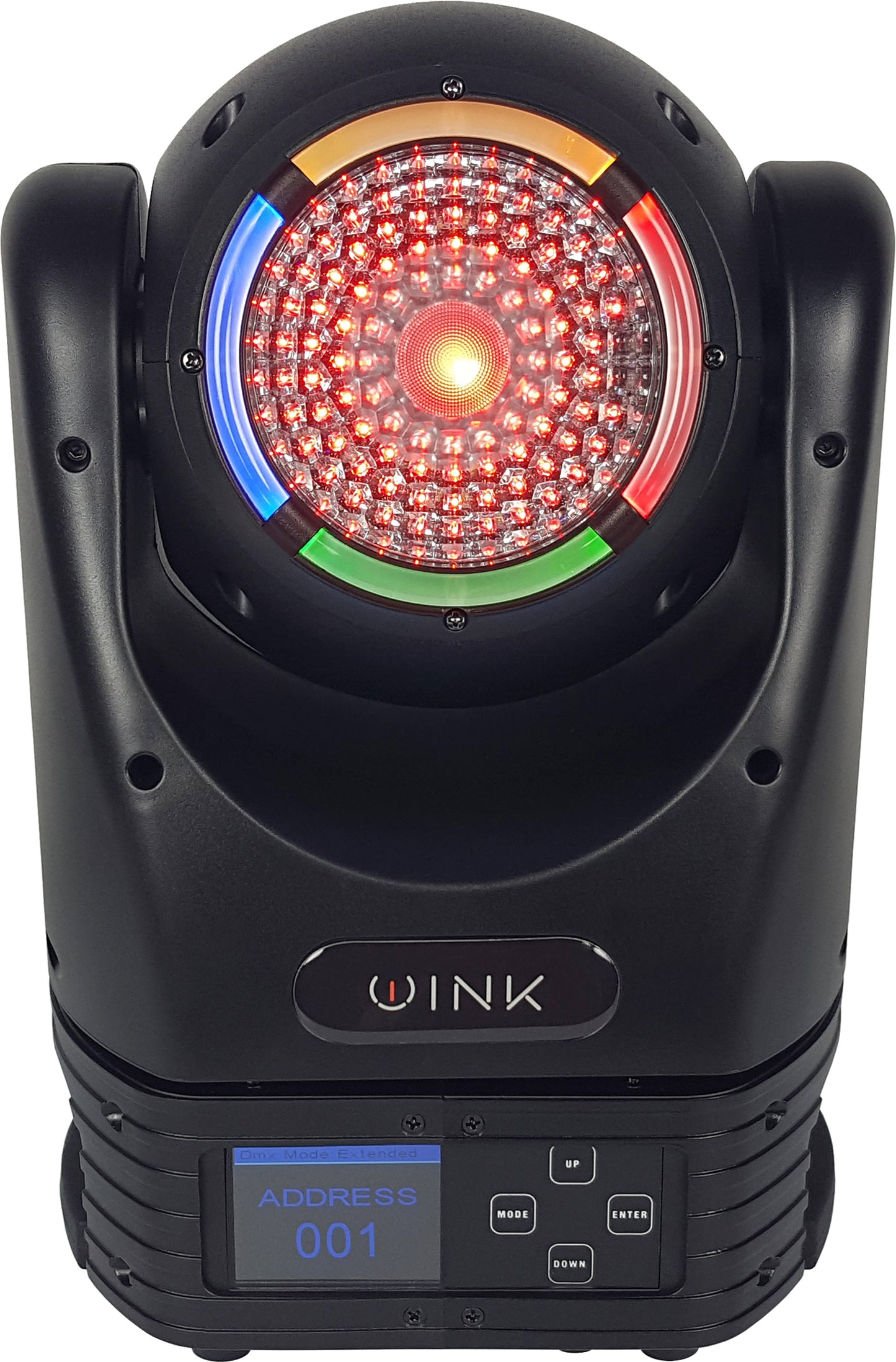

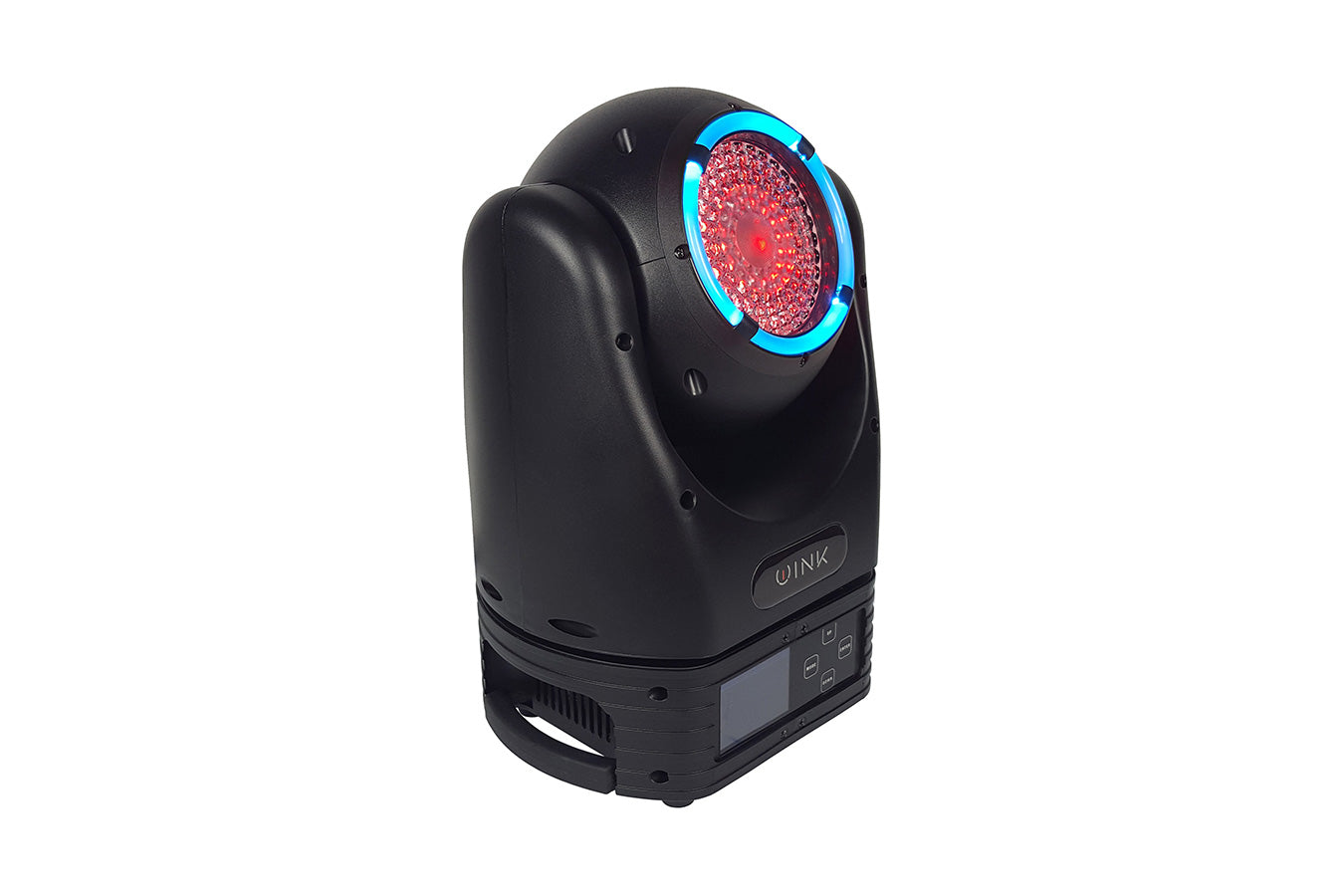

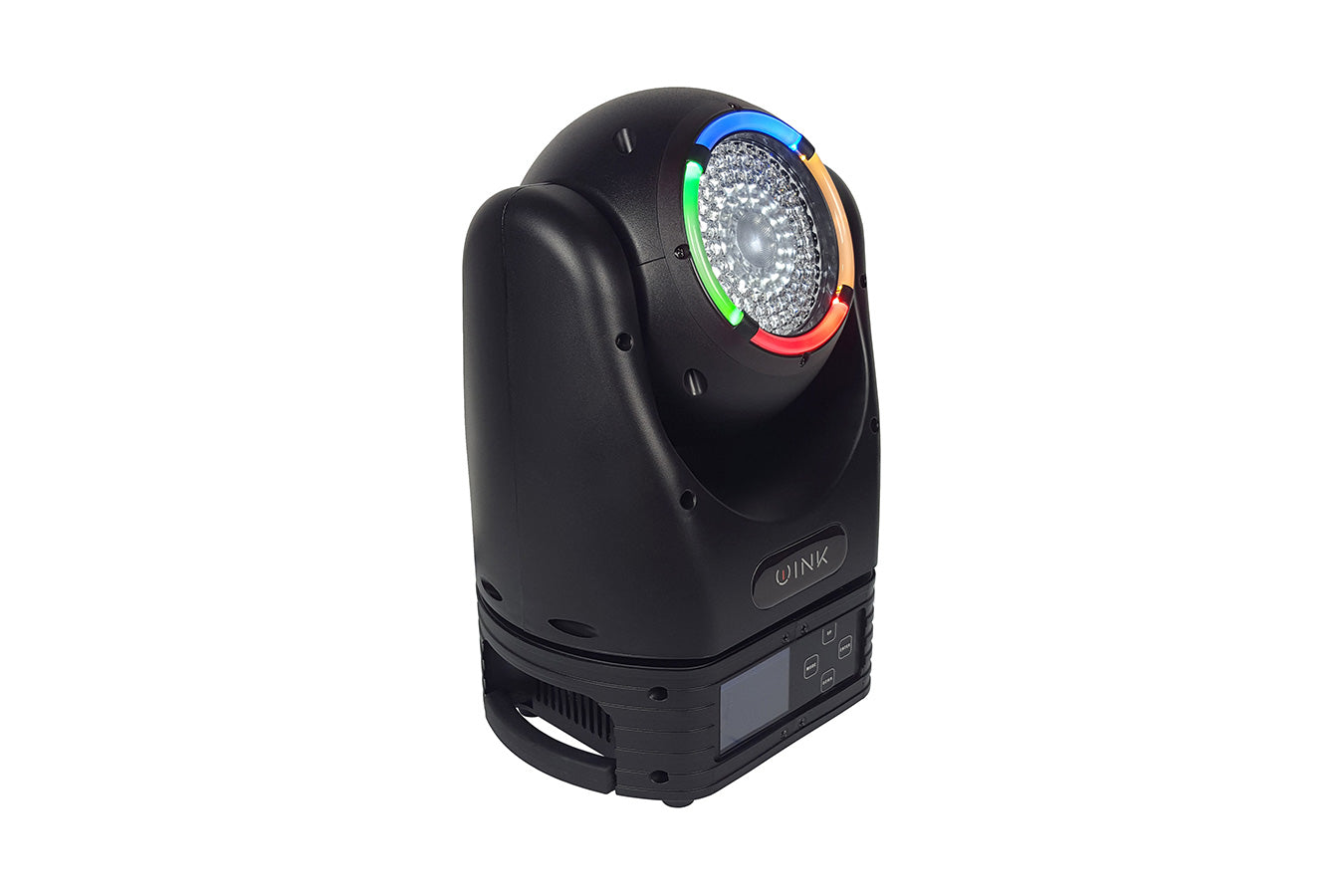

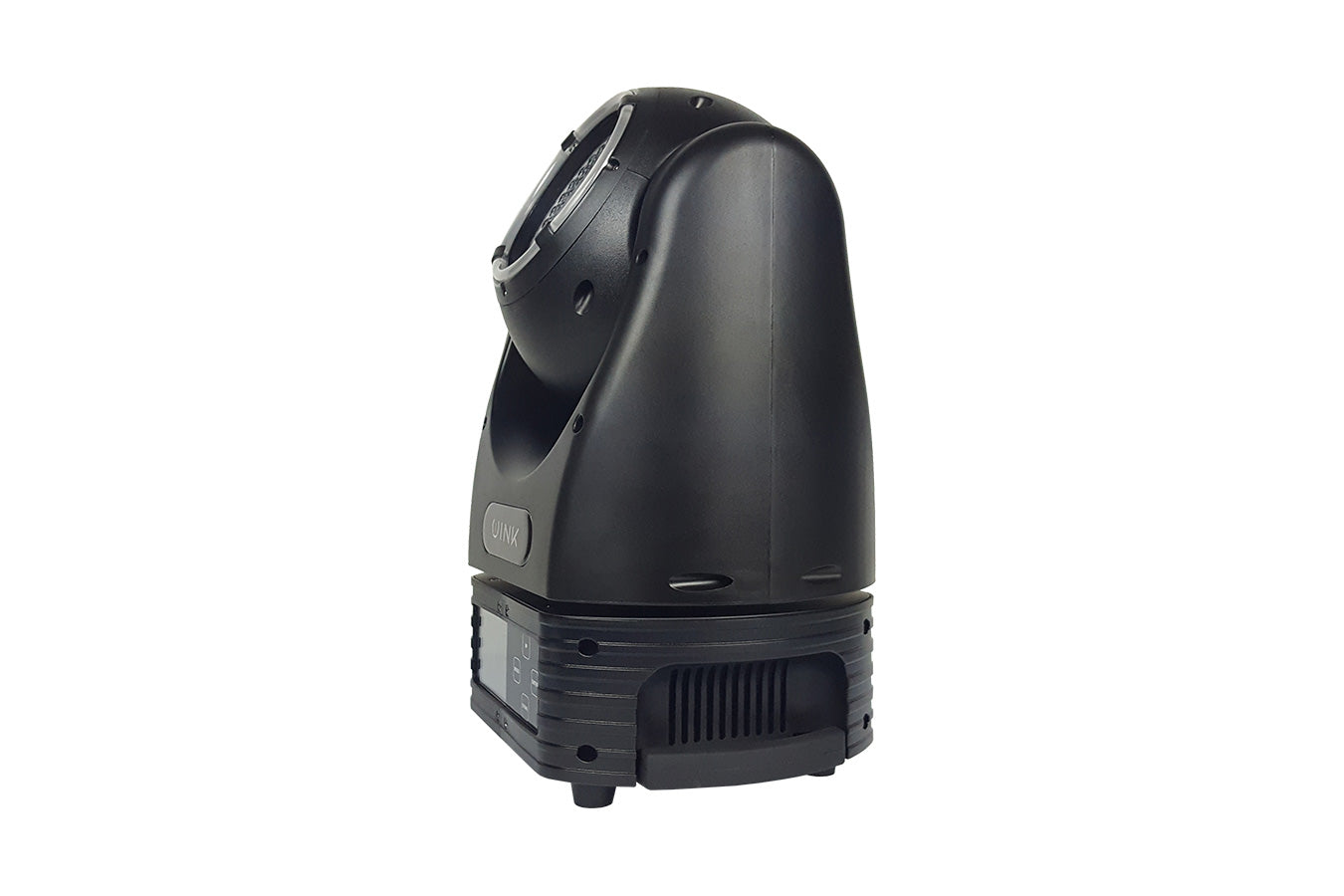

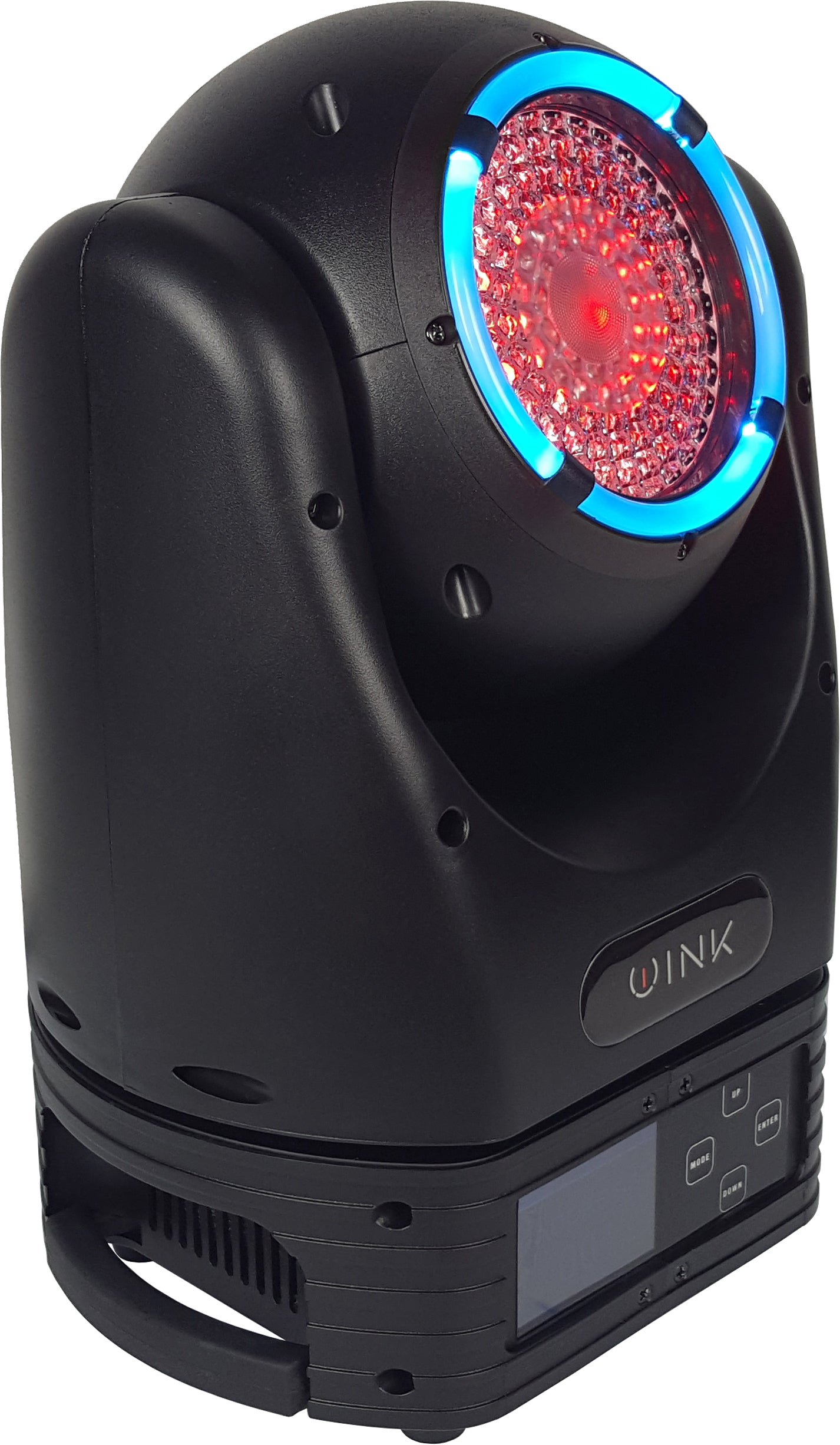

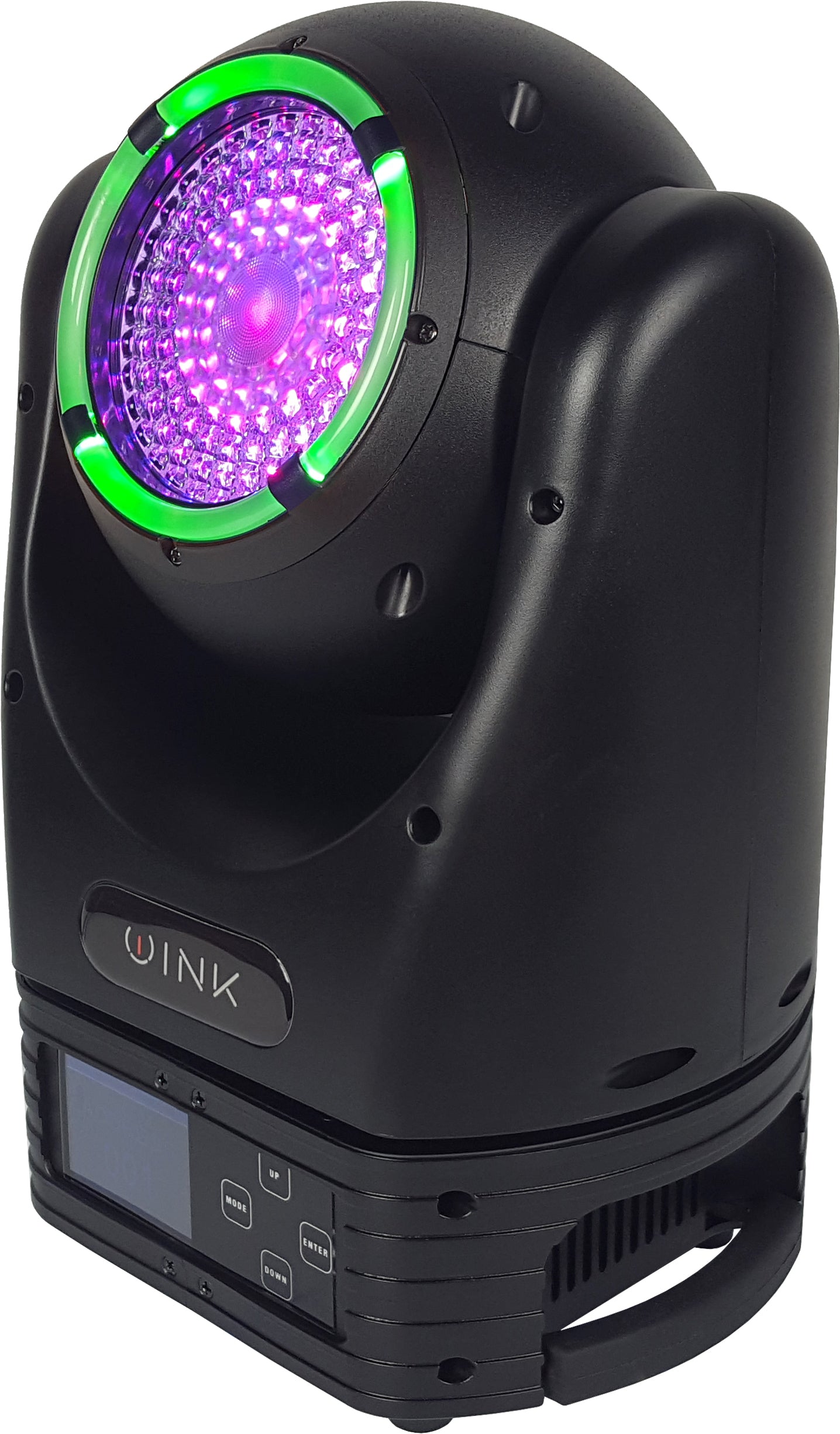

Wink™ is a powerful LED moving head fixture that is loaded with high-end features such as a 60W 4-in-1 RGBW LED in the center with 5-45° motorized zoom, plus a 4* segment LED ring with a total of 8x 0.5W RGB LEDs for extra cool eye candy effects.

It also features infinite pan/tilt for unlimited movement, 540/270° pan & tilt settings, auto mode, sound active, color presets, virtual color wheel, TFT LCD display, 3-pin DMX In/Out, powerCON™ compatible power In/Out, and a single ¼ turn omega mounting bracket.


Main Features:

• 1* 60W RGBW high-output 4-in-1 LED

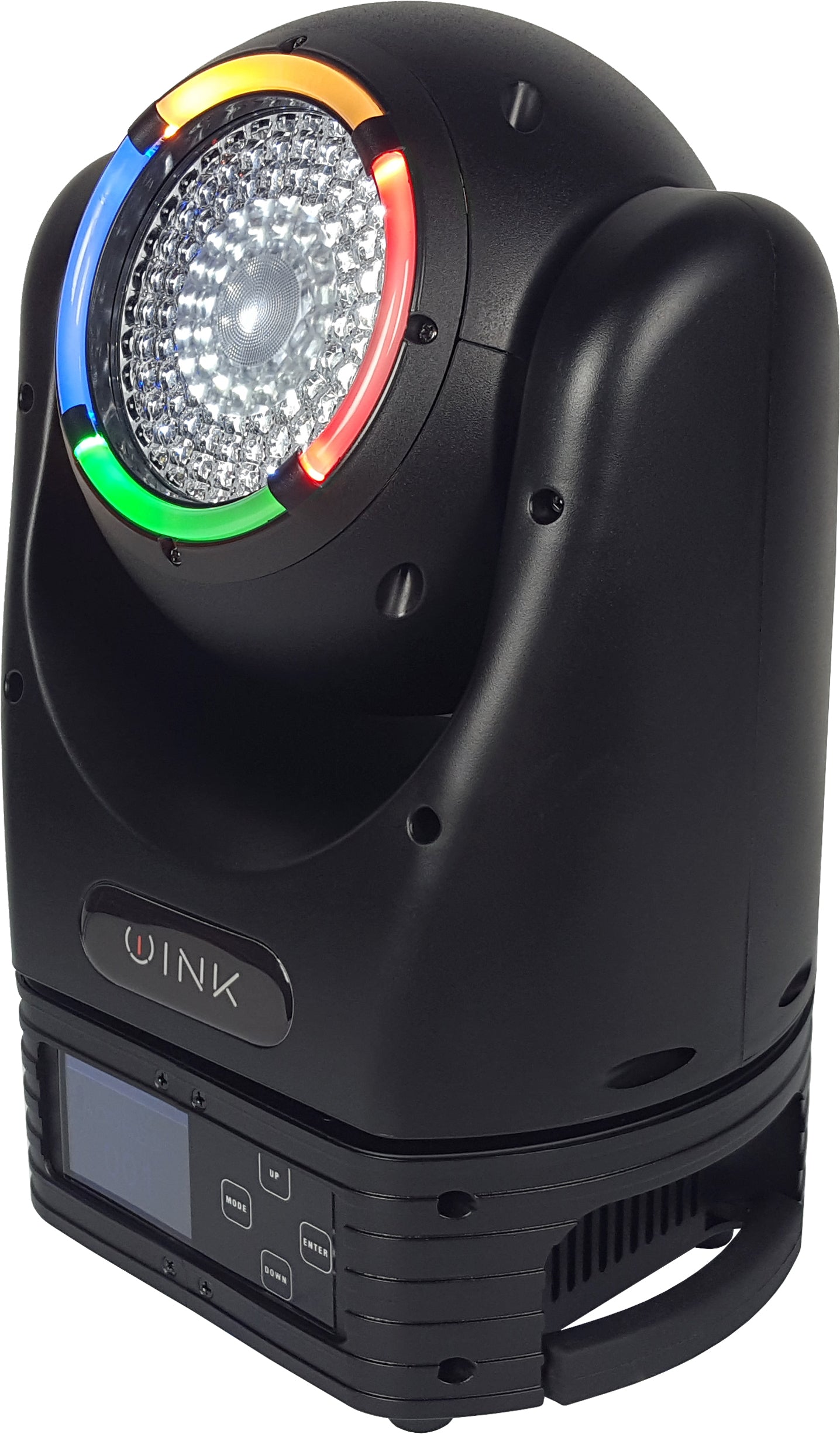

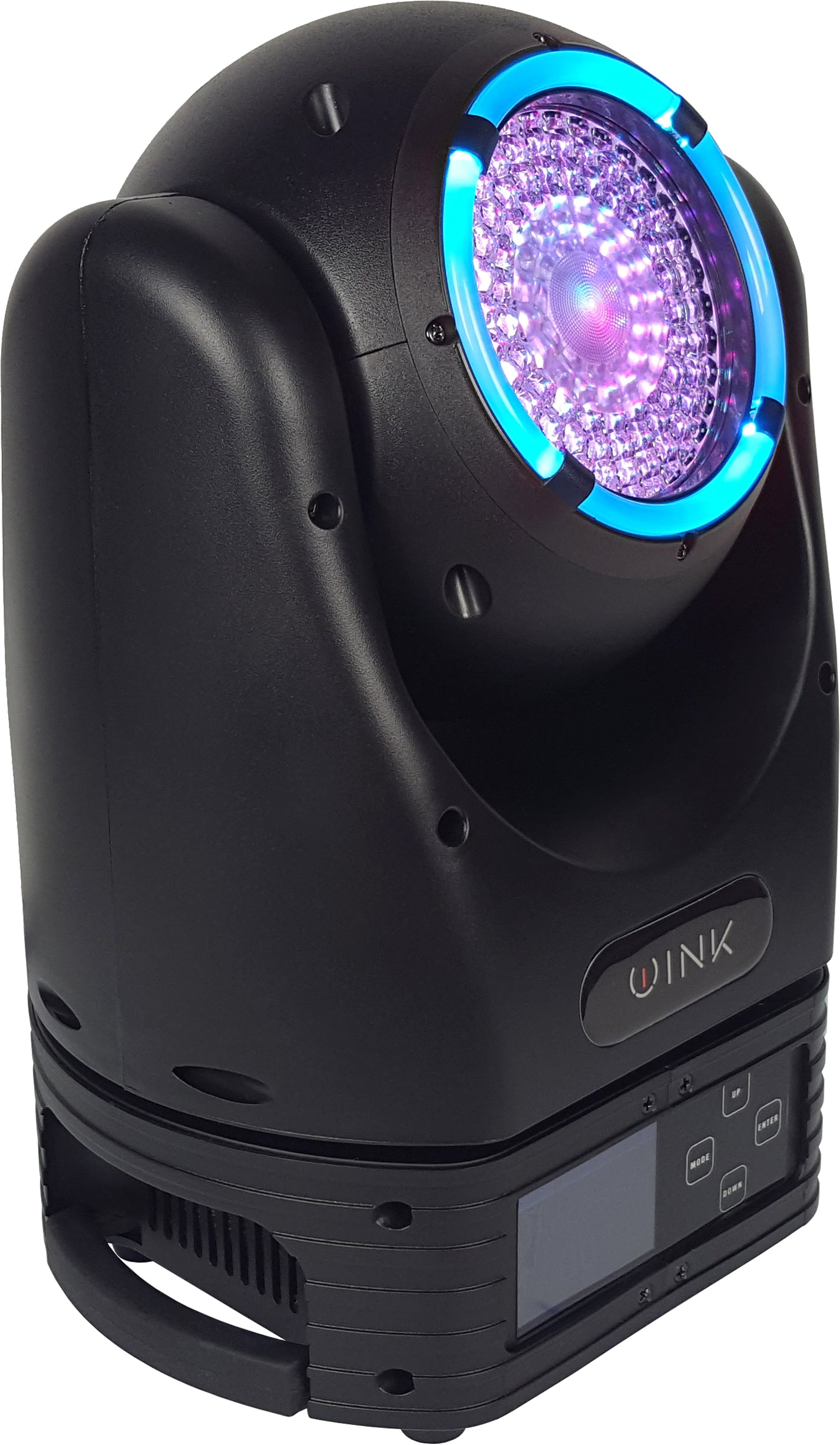

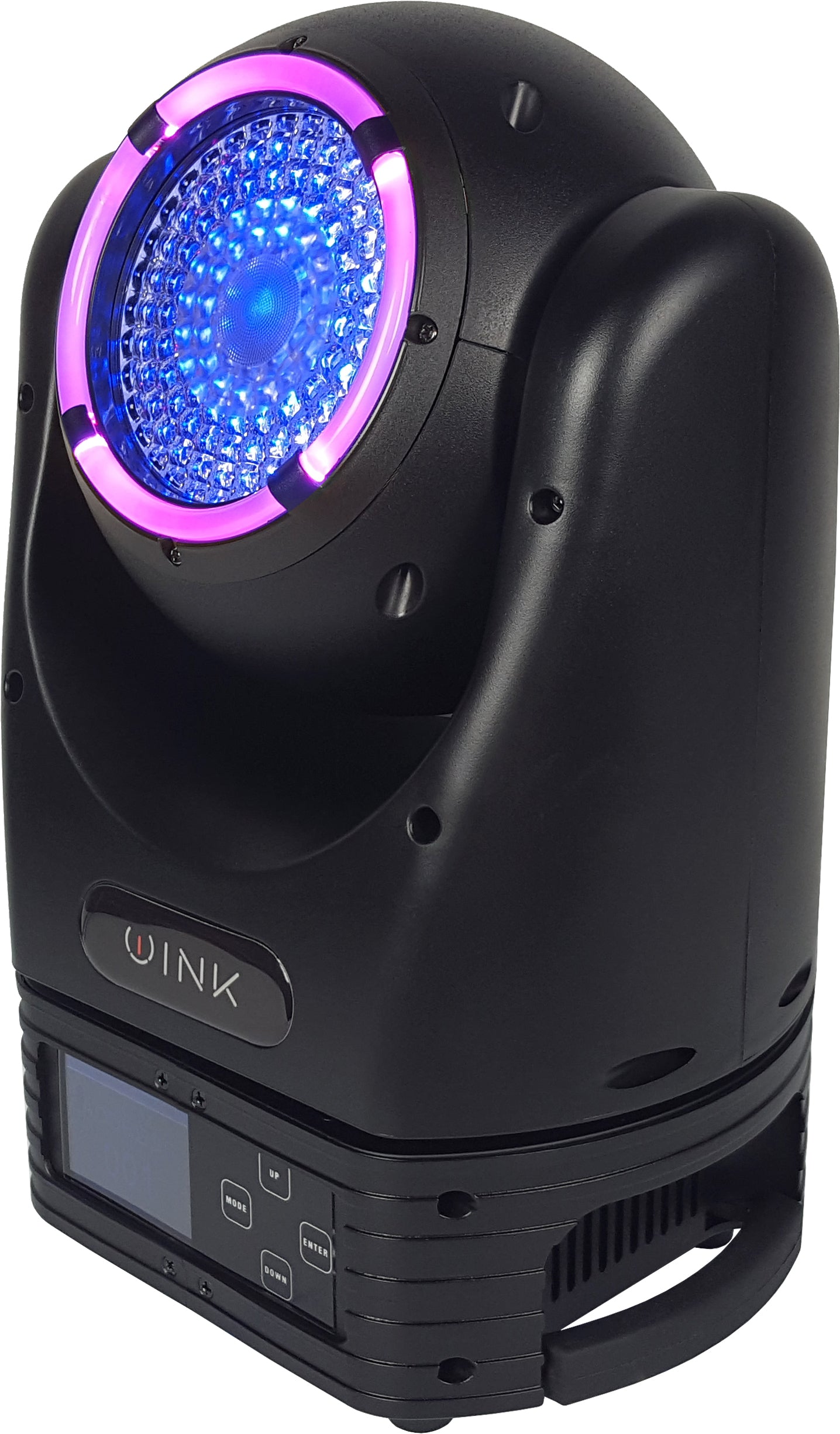

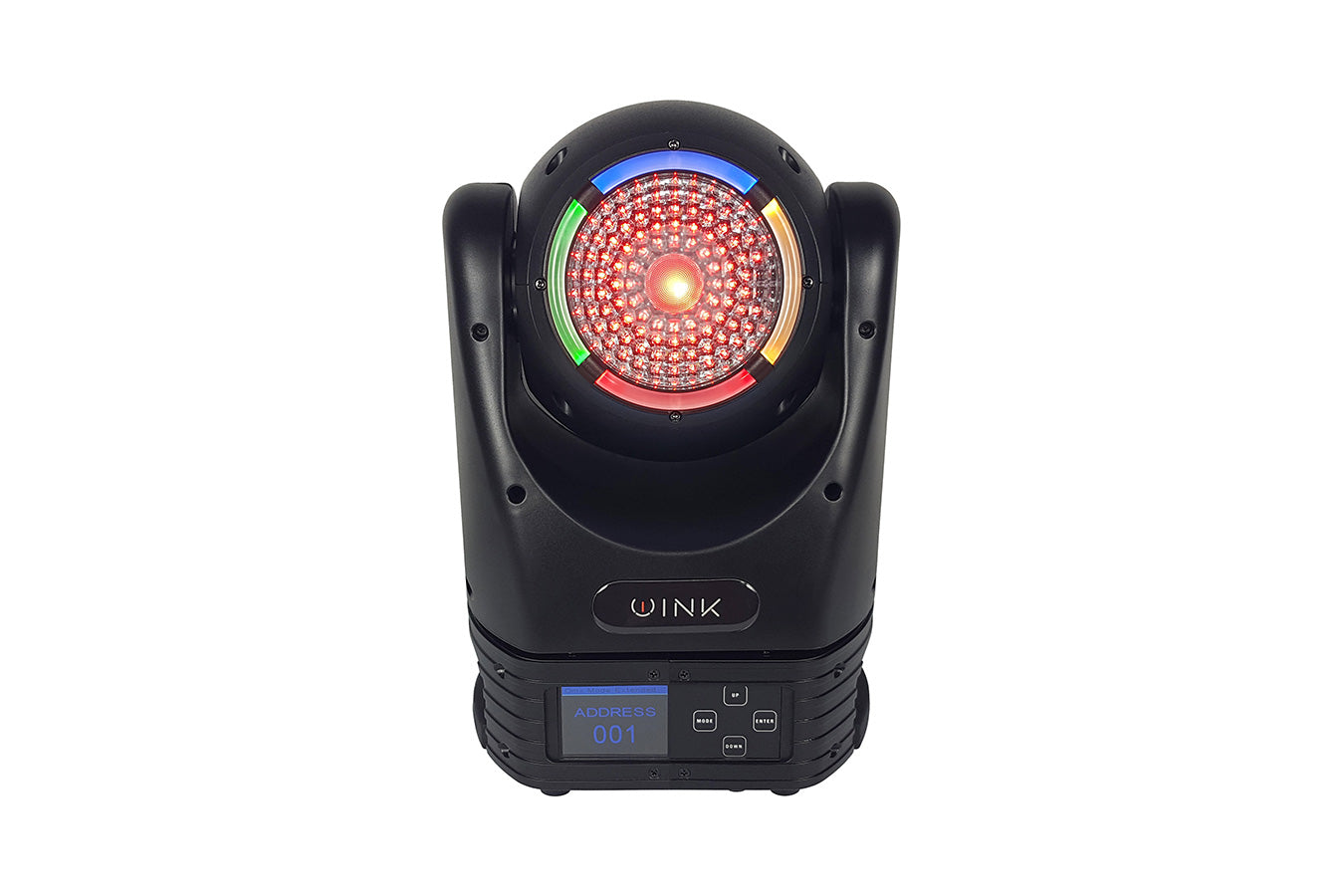

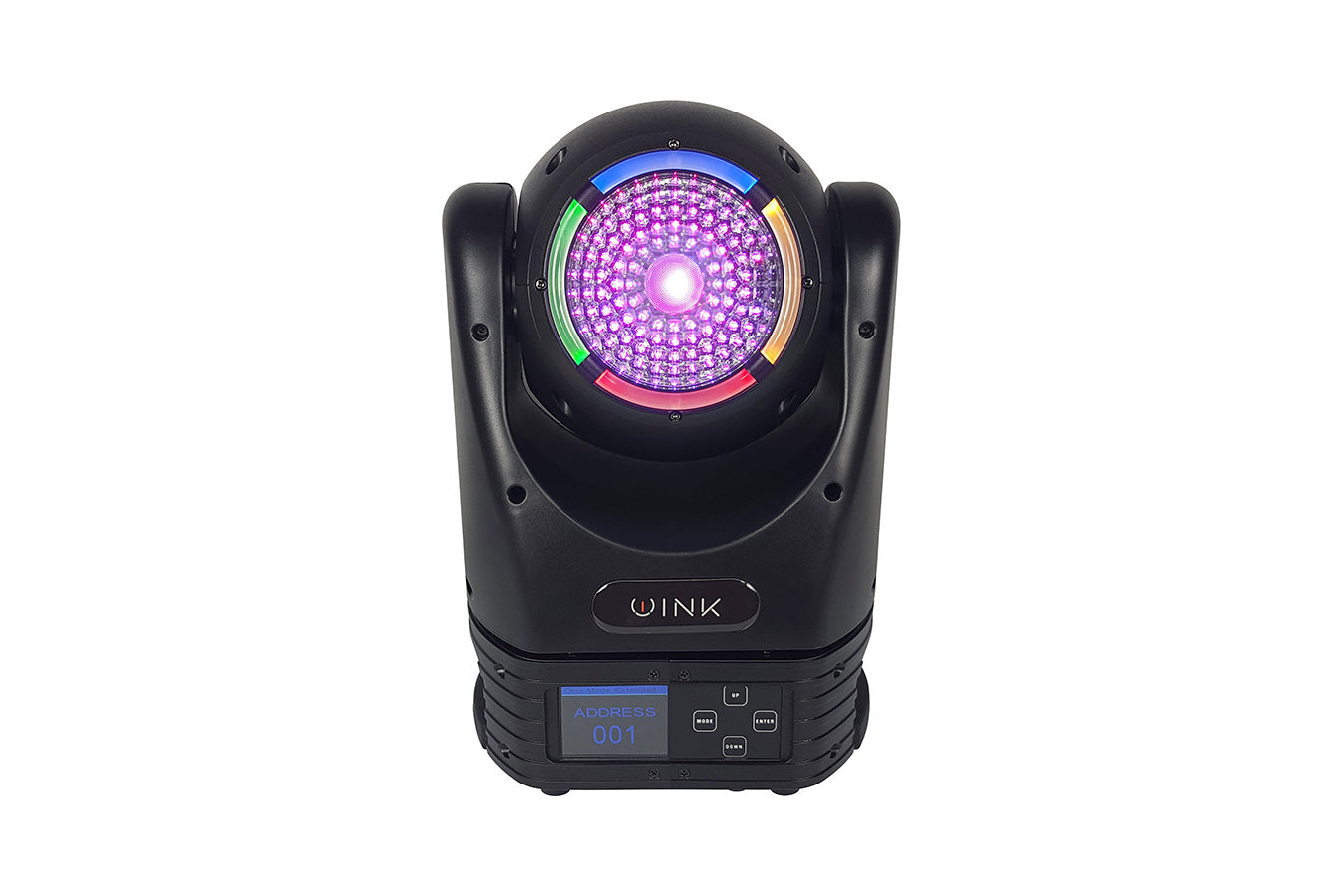

• 4-segment RGB colored ring with 8* 0.5W RGB 3-in-1 LEDs
• Individual pixel and LED ring control
• 5-45 degree zoomable beam angle
• 540°/270° tilt + infinite pan and tilt
• Fast Pan/tilt motors with 16-bit resolution
• Built-in auto and sound active programs
• Multiple static color presets and virtual color wheel
• Variable electronic dimming & strobe effects (1-20Hz)
• Flicker-free constant-current LED driver

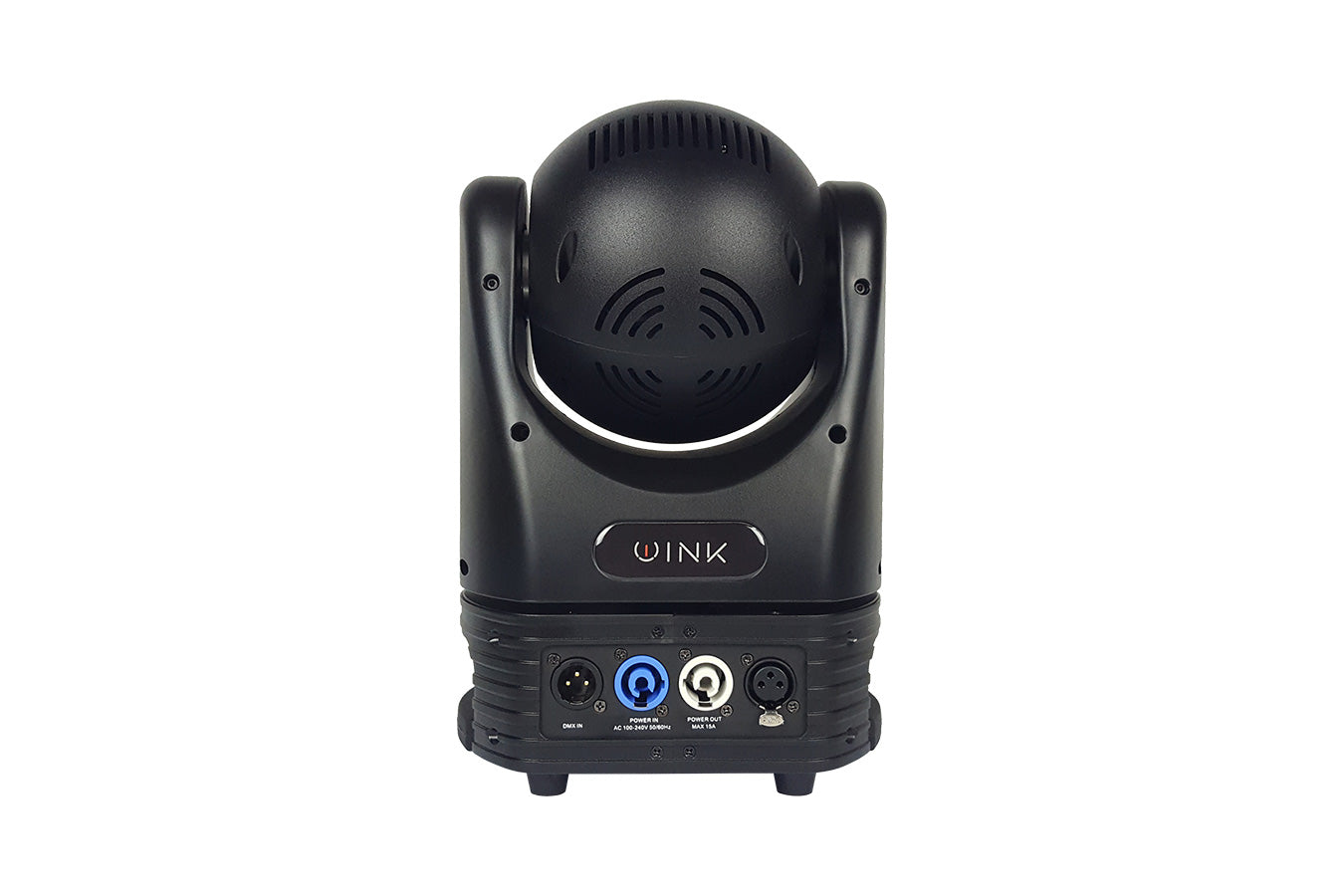

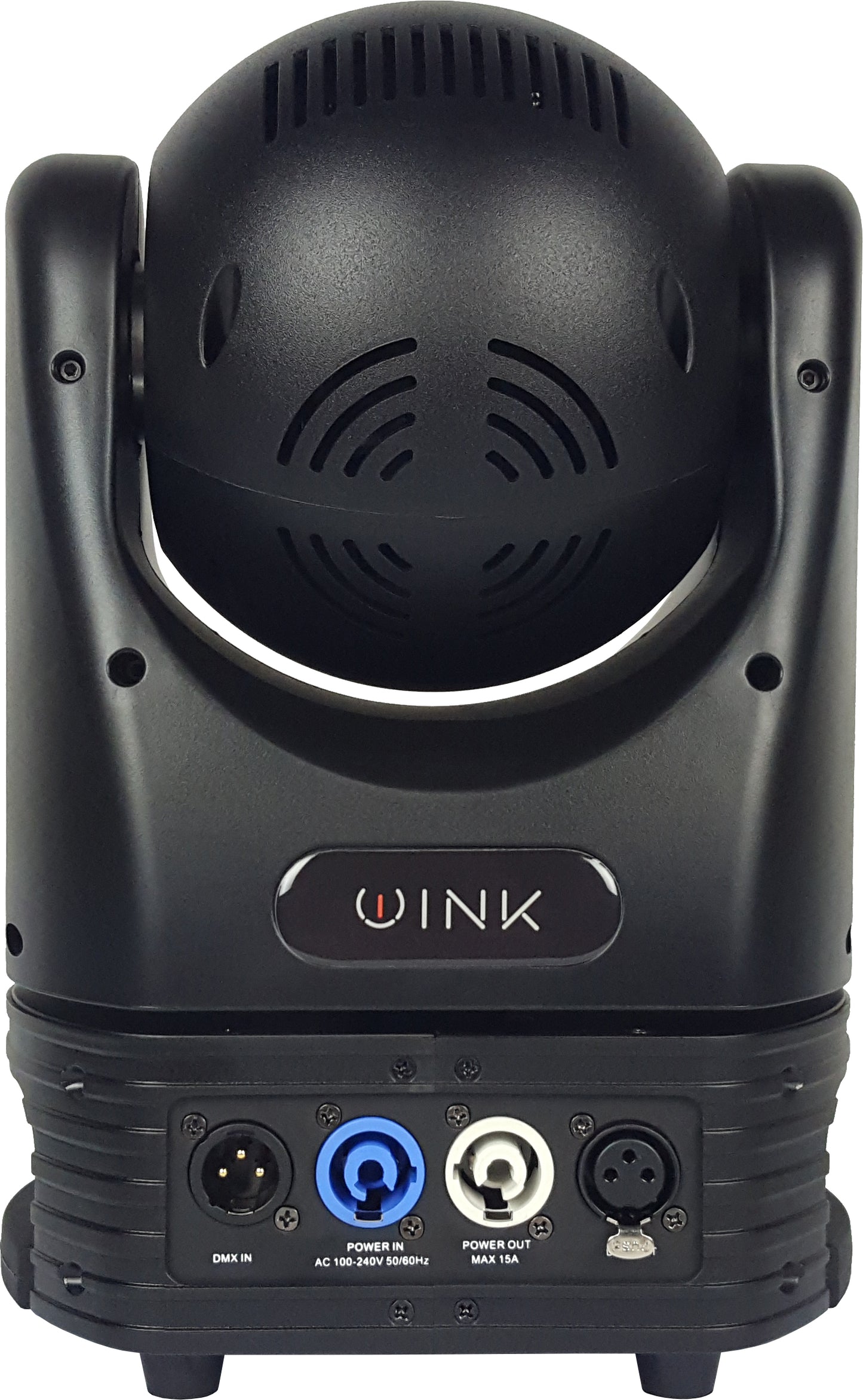

• 3-pin male input and 3-pin female output
• PowerCON™ compatible AC power In/Out connectors
• Protocol: USITT DMX-512
• 19/21/35-channel DMX modes

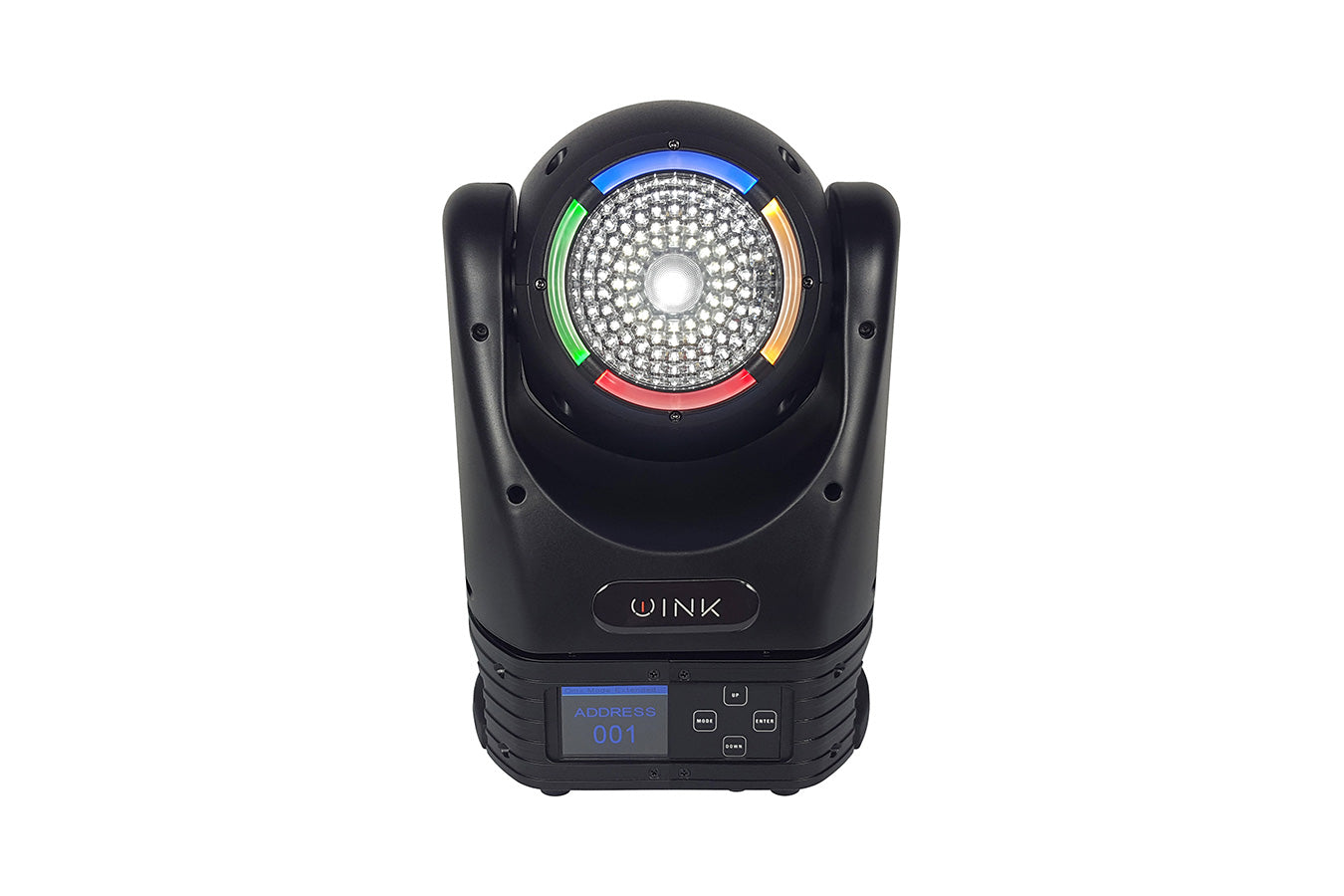

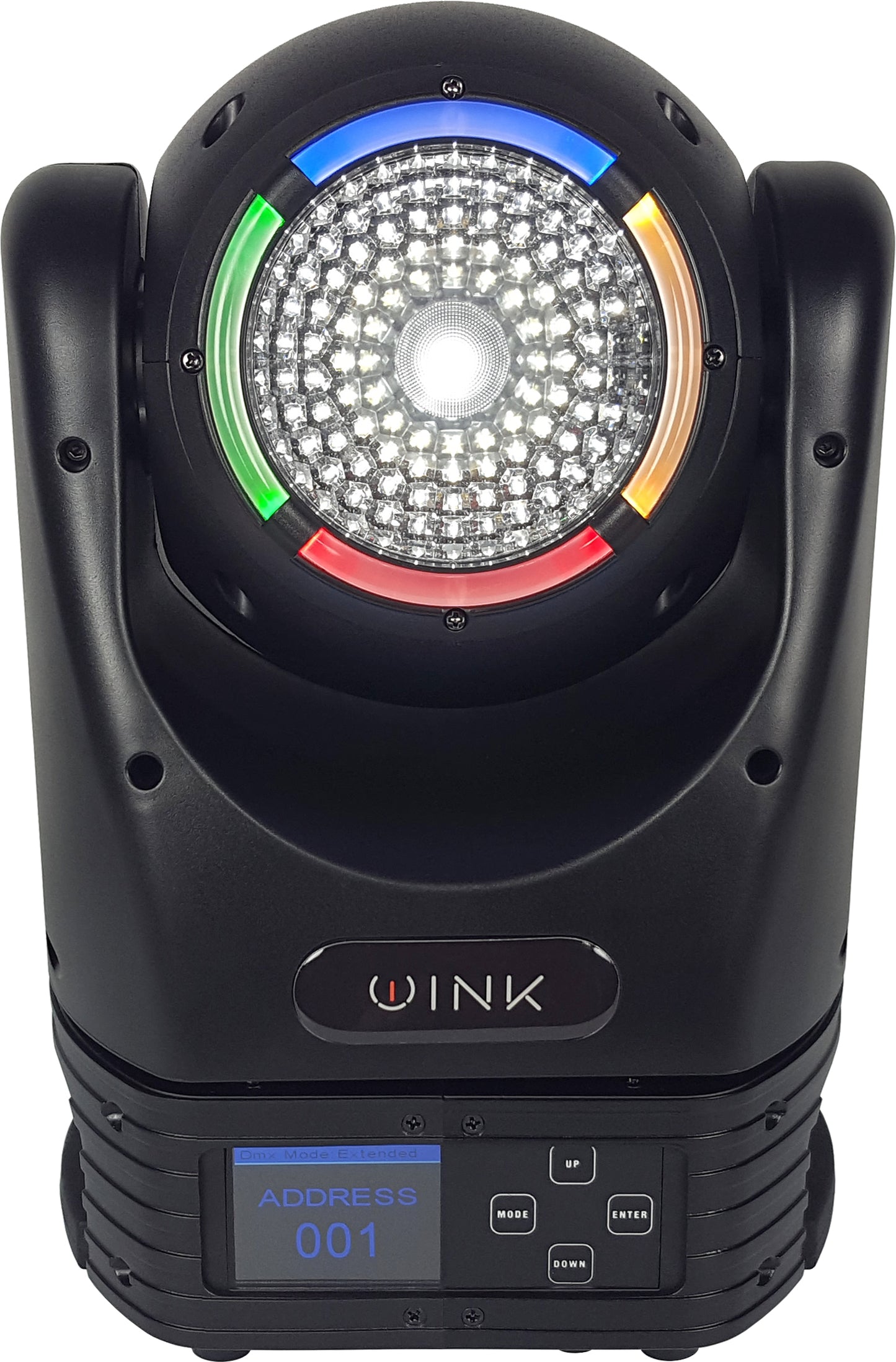

• 2.4 inch TFT color LCD display panel with 4x touch sensitive buttons

Specifications:

Power
• Operating Voltage: 100V-240VAC, 50-60Hz
• Power Consumption: 110W, 1.44A, PF: .66

Light Source
• 1x 60W RGBW 4-in-1 LED
• 8* 0.5W RGB 3-in-1 LEDs (Ring)

Thermal
• Max. Operating Temp.: 104 degrees F (40 degrees C) ambient

Movement Range
• Pan: 540 degree (8-16 bit resolution) + Infinite Pan
• Tilt: 270 degree (8-16 bit resolution) + Infinite Tilt

Control
• Protocol: USITT DMX-512
• DMX Channels: 19/21 or 35-channel DMX modes
• Input: 3-pin XLR Male
• Output: 3-pin XLR Female
• Operating Modes: Standalone, Master/Slave, Auto, Sound Active

Warranty
• 2-year limited warranty, does not cover malfunction caused by damage to LEDs.
