Lux Reactor
High-Output Vintage-Style Linear Blinder w/RGB Aura Effects

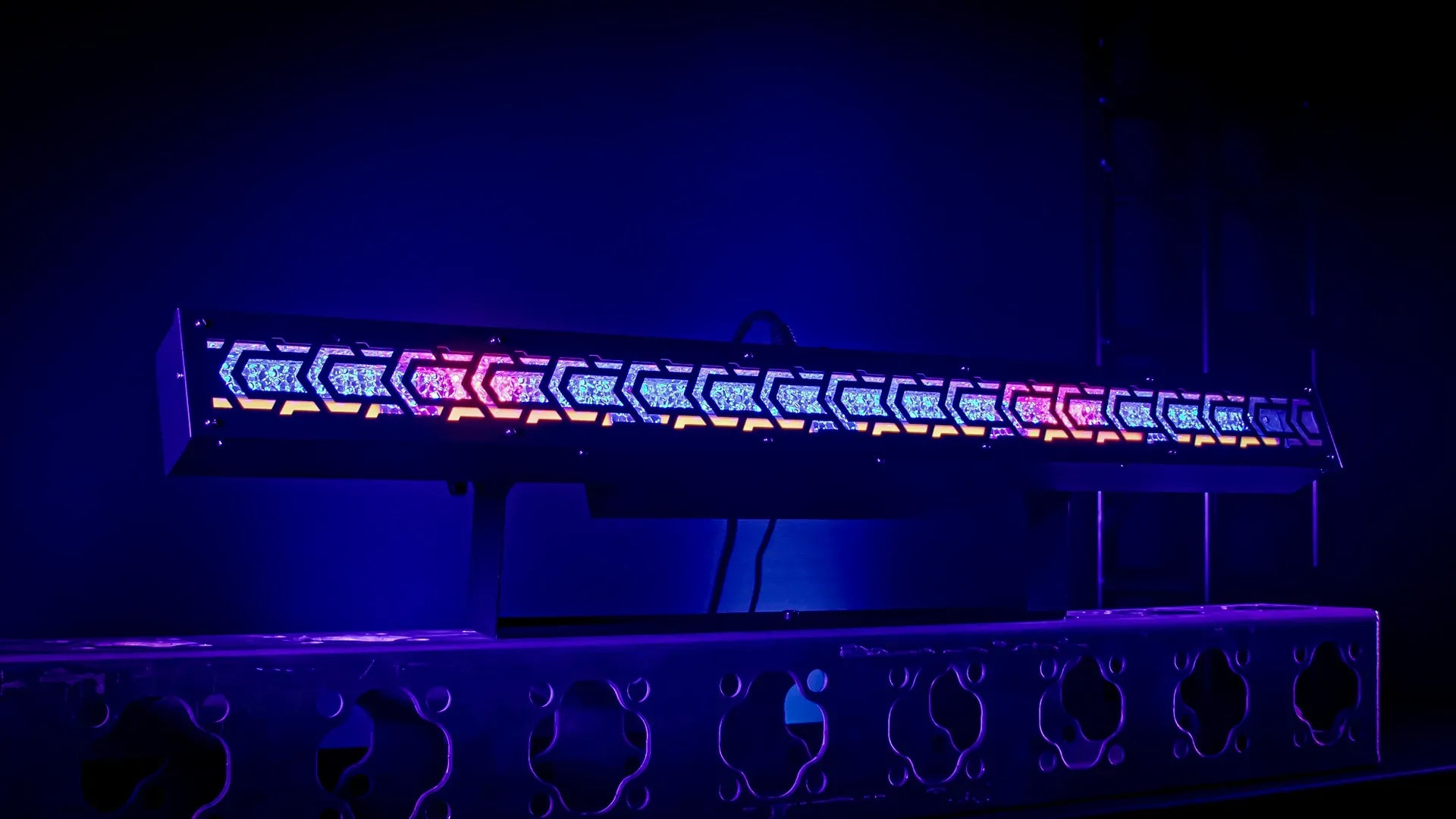

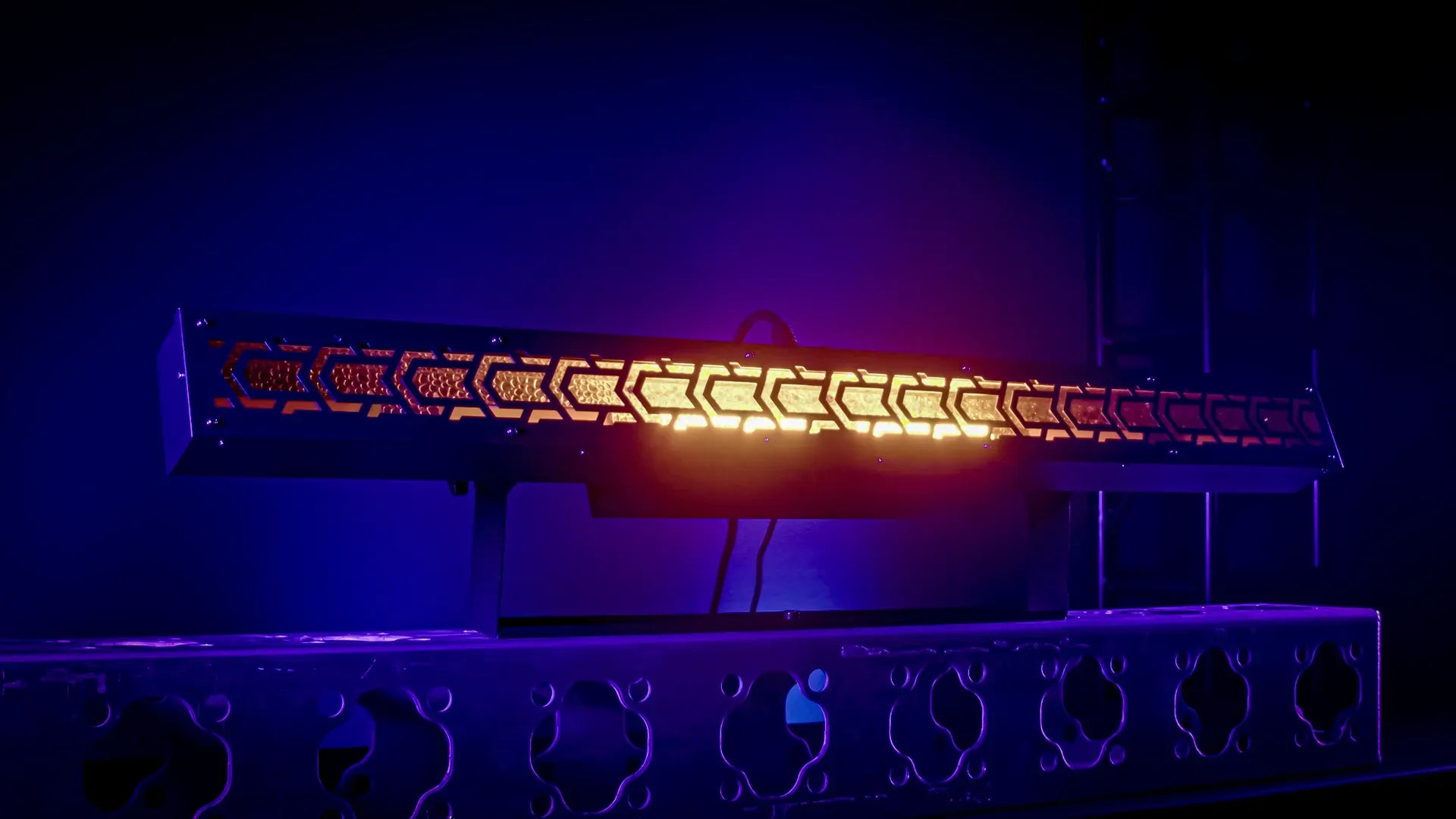

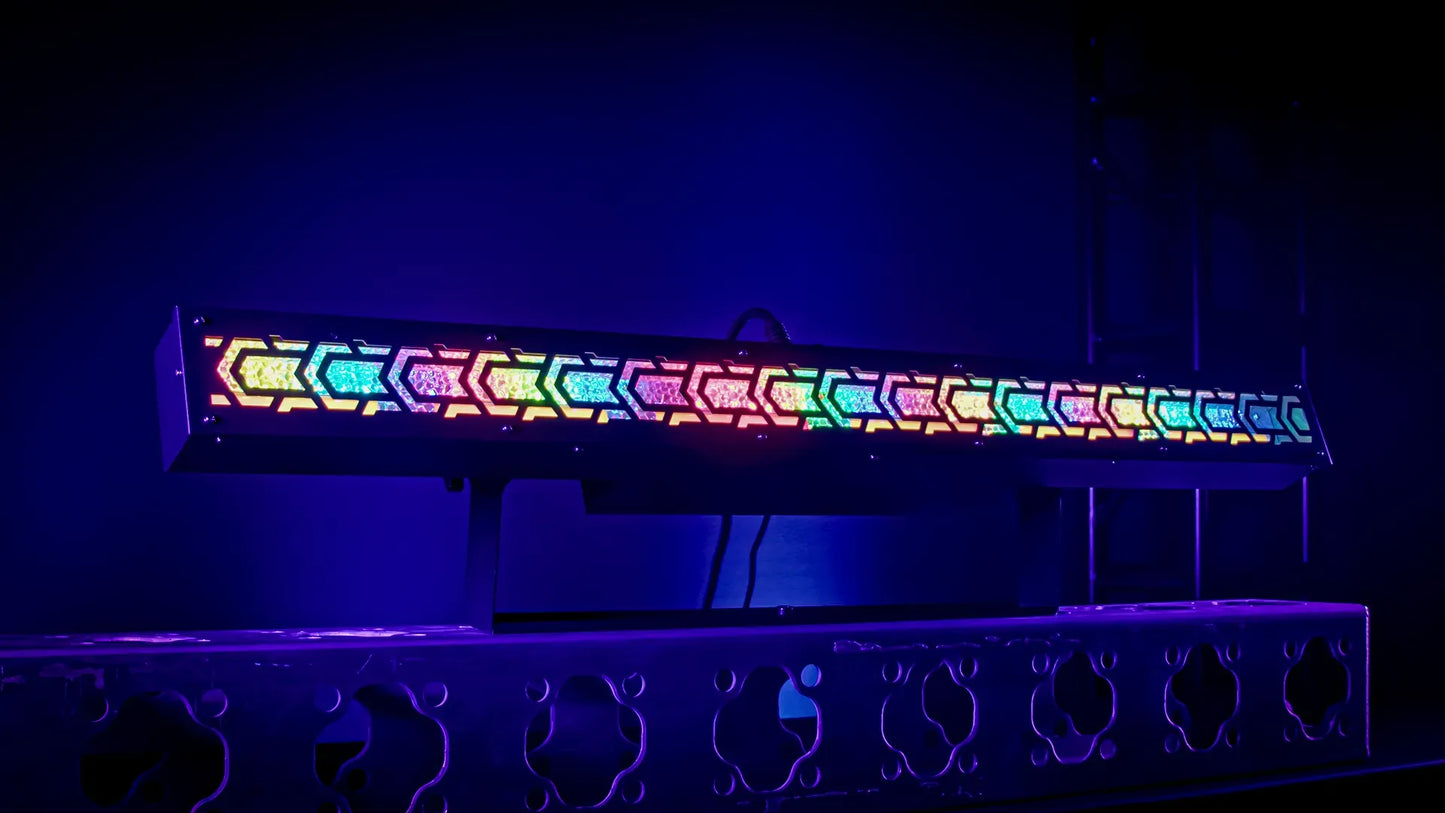

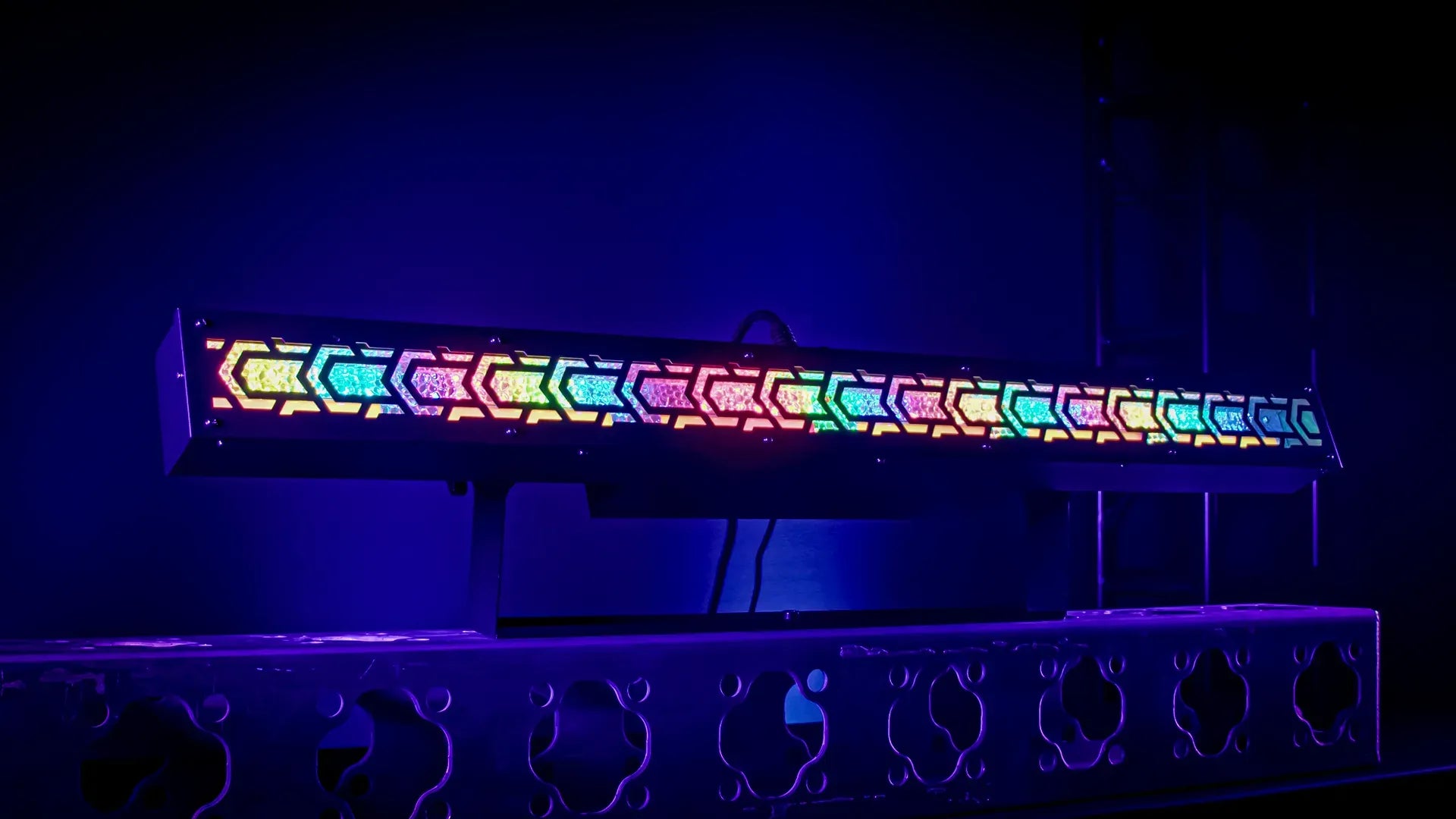

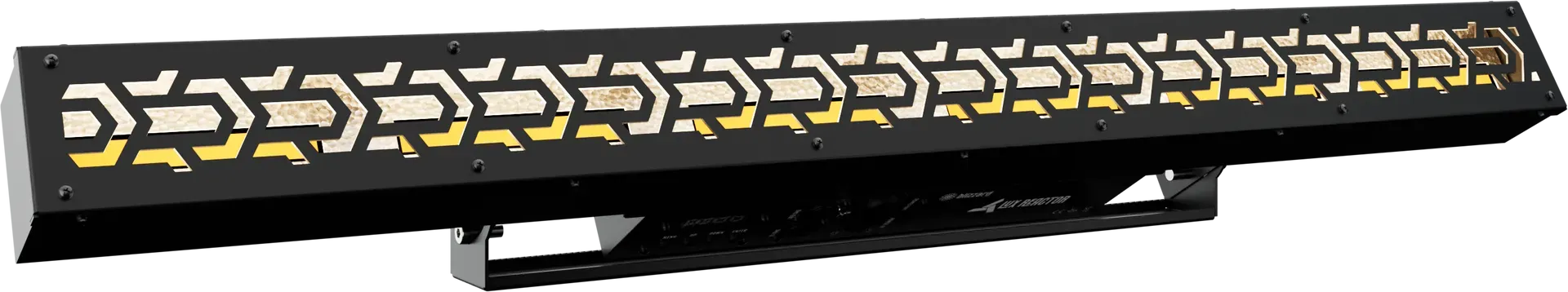

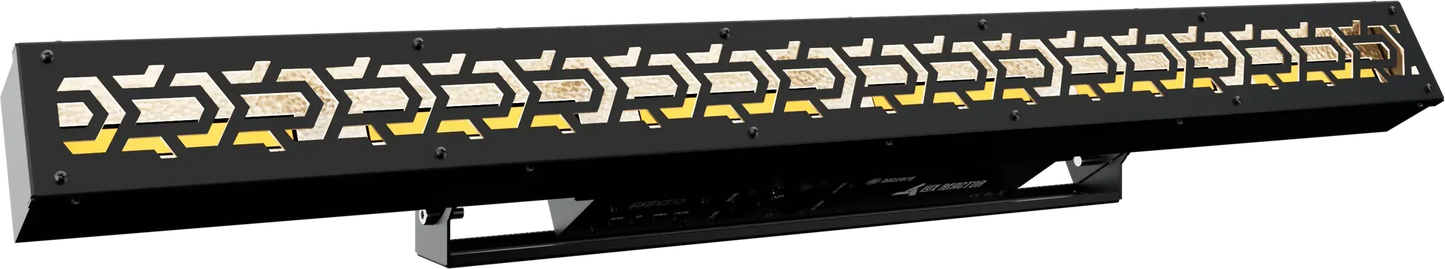

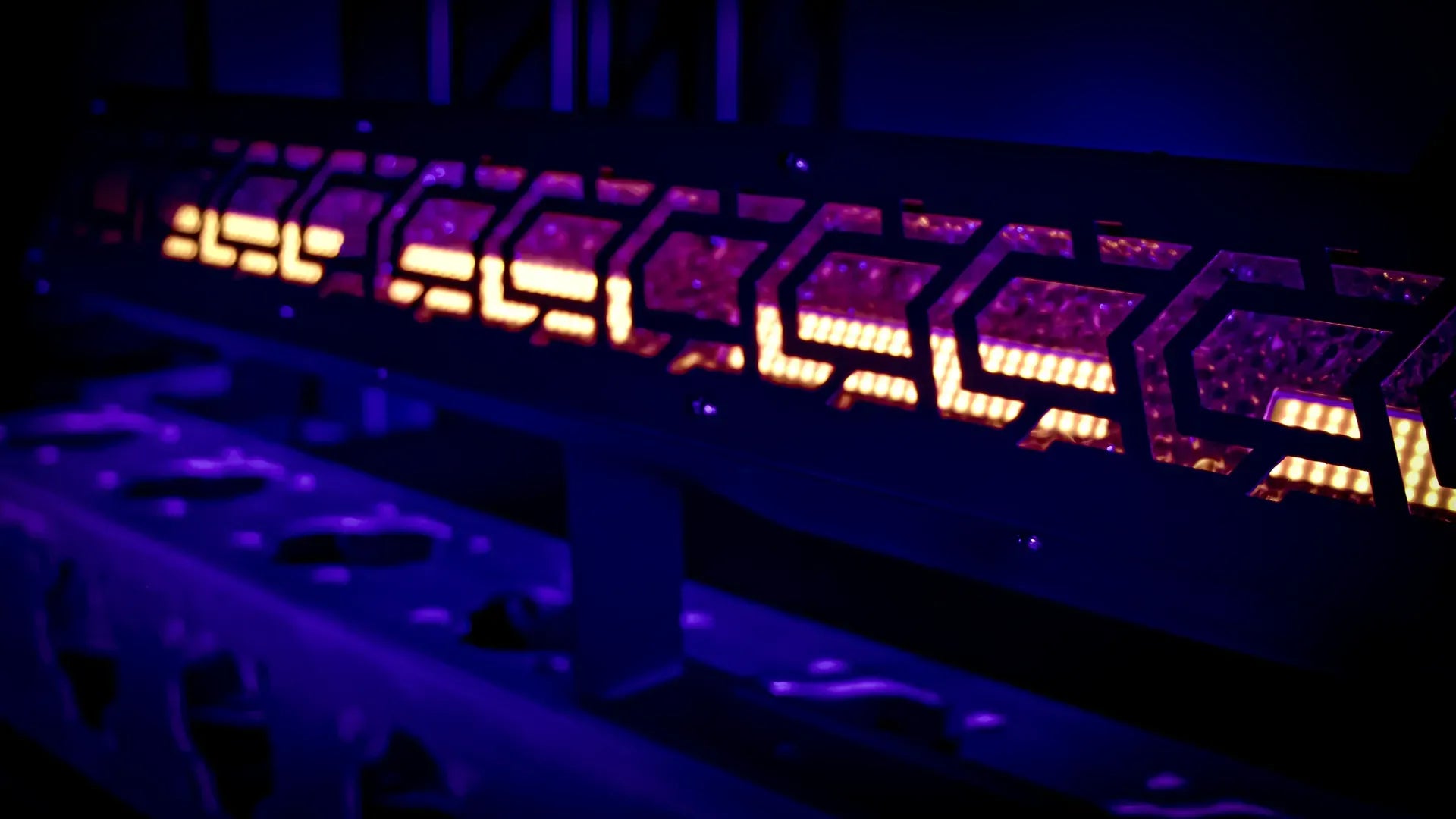

Vintage White + RGB Effects The Lux Reactor™ is a 1-meter linear blinder and RGB effect fixture that combines 1800K vintage-style warm white output with colorful background effects. It features 6 x 60W WW LEDs for brilliant amber light and 440 x 0.2W RGB LEDs that reflect off the aluminum inner housing to create a vivid aura glow. Each of the WW LEDs and its 20 RGB groups are fully pixel mappable. High-Output Vintage-Style Linear Blinder w/RGB Aura Effects
Loaded with Features This fixture offers 11/23/32/66/73-channel DMX modes with separate or combined LED group control, built-in programs, and sound-active operation. Variable dimming and 1–20 Hz strobe effects add flexibility, while its metal housing, locking bracket, 4-button control panel, 5-pin DMX in/out, and PowerCON® TRUE1- compatible connectors make setup quick and reliable.
Main Features
• 1-meter bar with strobe and RGB aura effects
• 6x 60W vintage warm white (amber) 1800K LEDs
• 440 x 0.2W RGB LEDs for background/aura lighting
• Separate WW and RGB color control
• Multiple built-in programs with adjustable speed
• Sound-active modes in standalone operation
• Variable electronic dimming
• 1–20Hz strobe effects
• RDM (Remote Device Management)
• Durable metal housing with locking brackets
• Easy-to-use 4-button control panel
• 5-pin DMX input/output
• PowerCON® TRUE1-compatible AC input/output
Optical
6x 60W vintage warm white 1800K LEDs 440x 0.2W RGB LEDs (background)
Luminous Intensity: 554 Lux @ 2.5M 67 Lux @ 5M
Weight & Dimensions
39.5 x 3.3 x 6 in (1003 x 83.8 x 153.5 mm)
9.6 lbs (4.36 kg)
Control
USITT DMX-512, RDM
5-pin DMX in/out
4/11/66/73-channel DMX modes
4-button LED control panel menu
M/S, auto, sound active
Power + Current
100-240VAC, 50-60 Hz
Consumption: 101W, 1.31A, PF: .66
PowerCON® TRUE1- compatible in/out
Warranty
And of course, the Lux Reactor™ is backed by Blizzard’s 2-year Warranty
