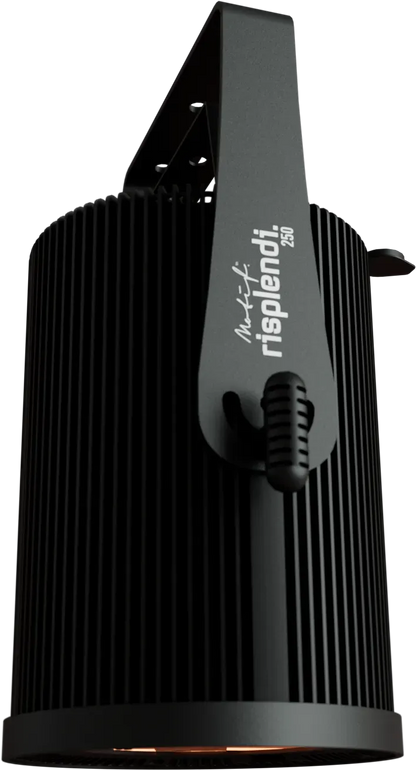

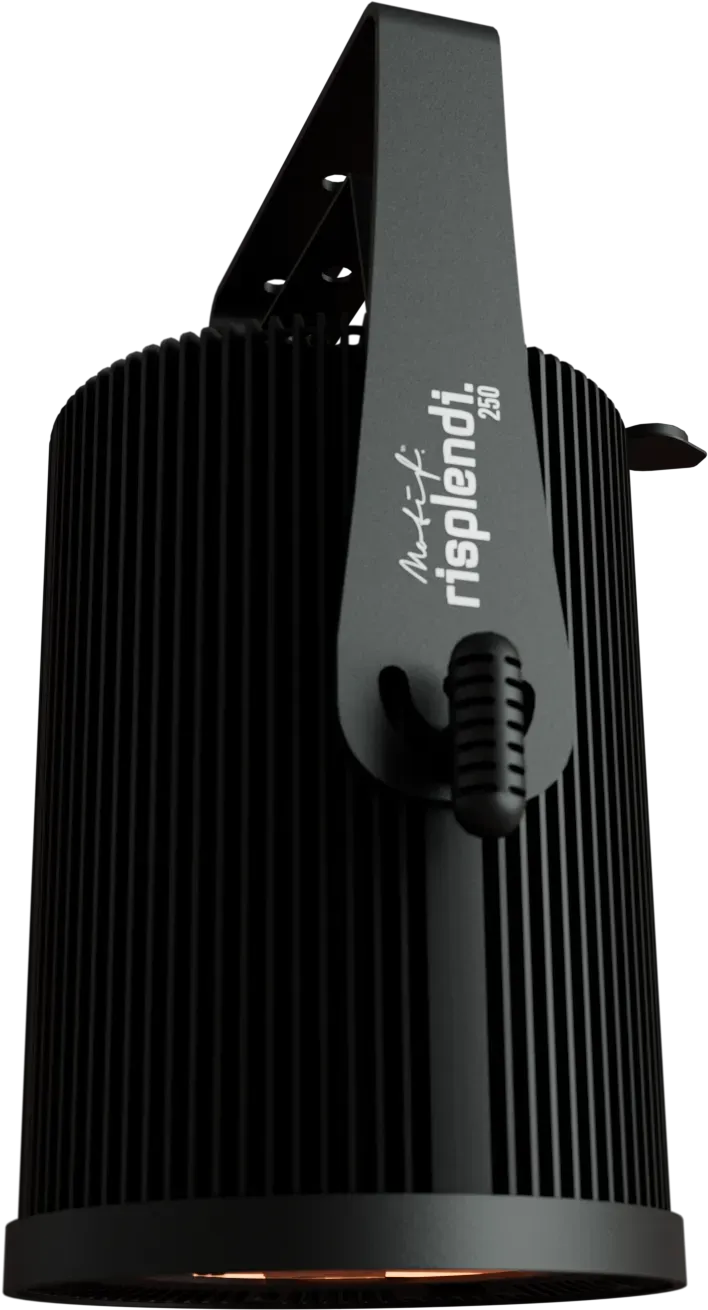

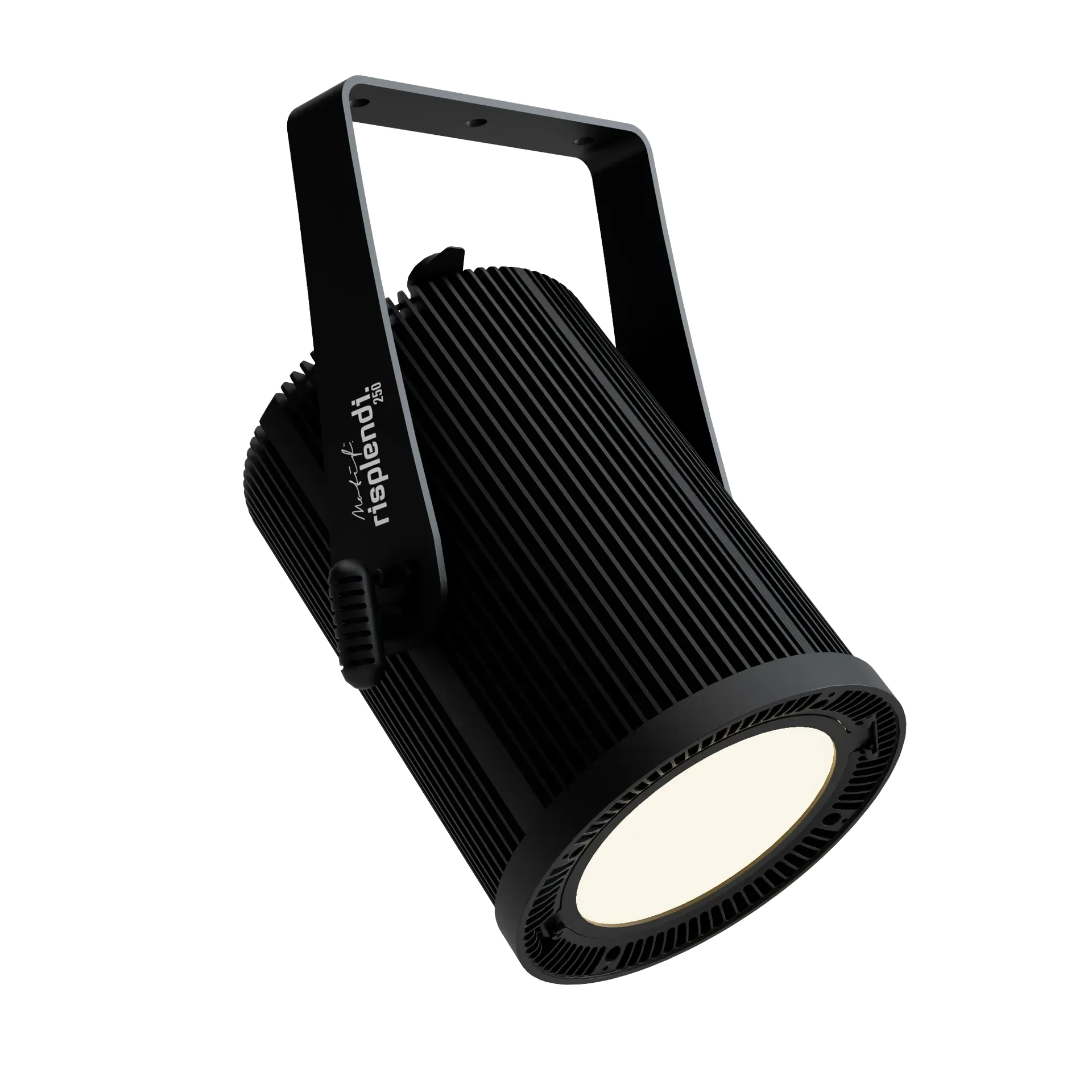

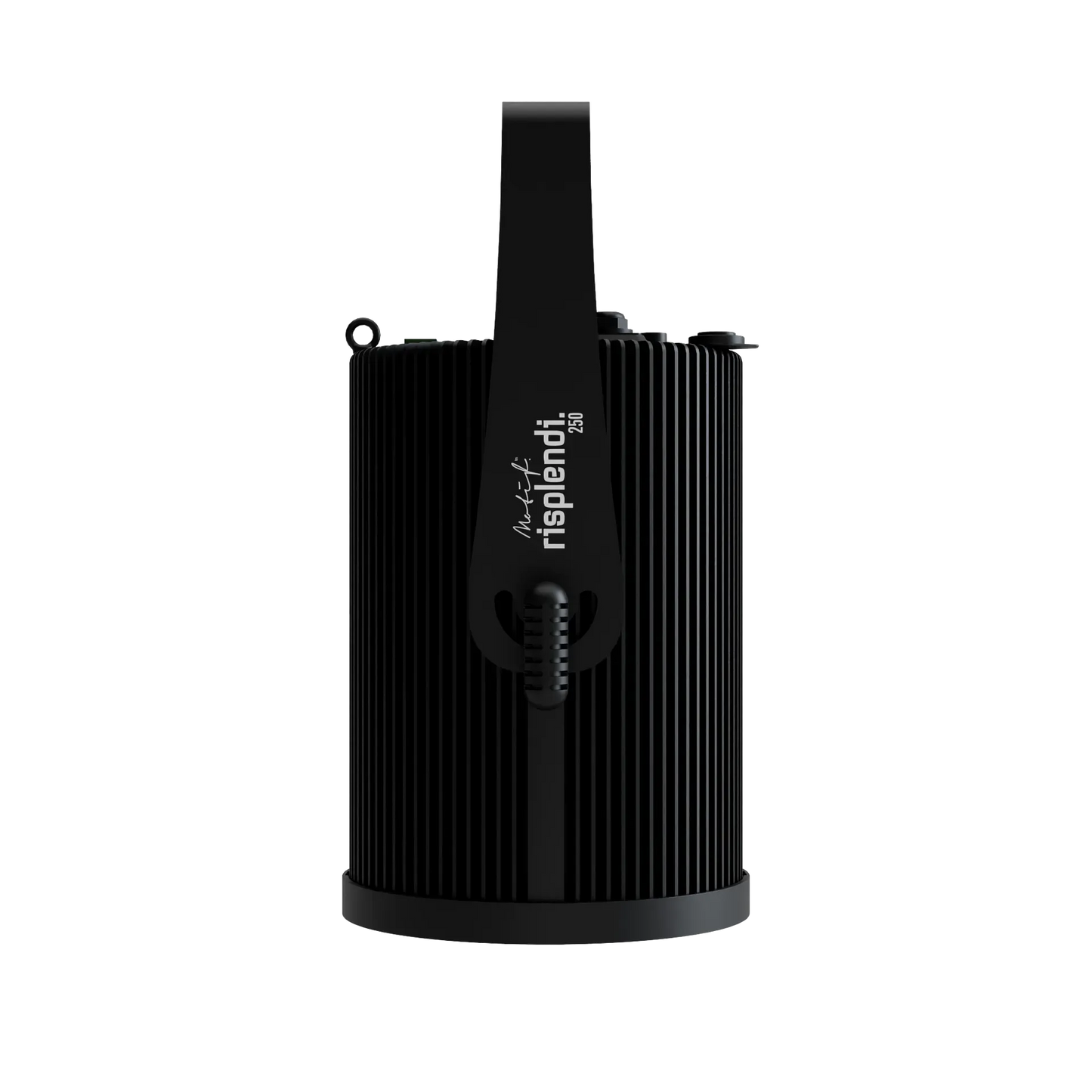

Motif™ Risplendi 250 (Black)
250W, Full Color LED Pendant
RGBAL Color Mixing

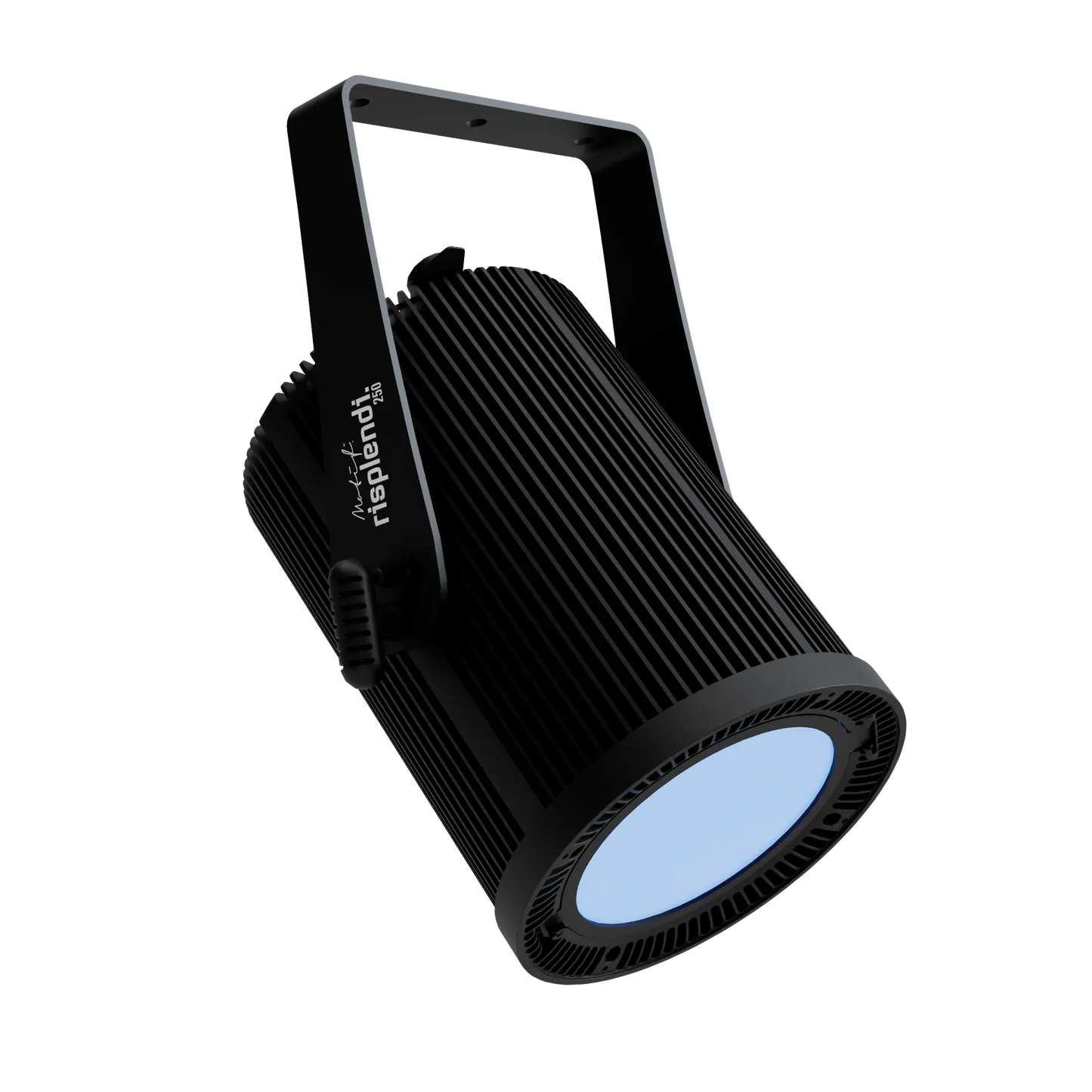

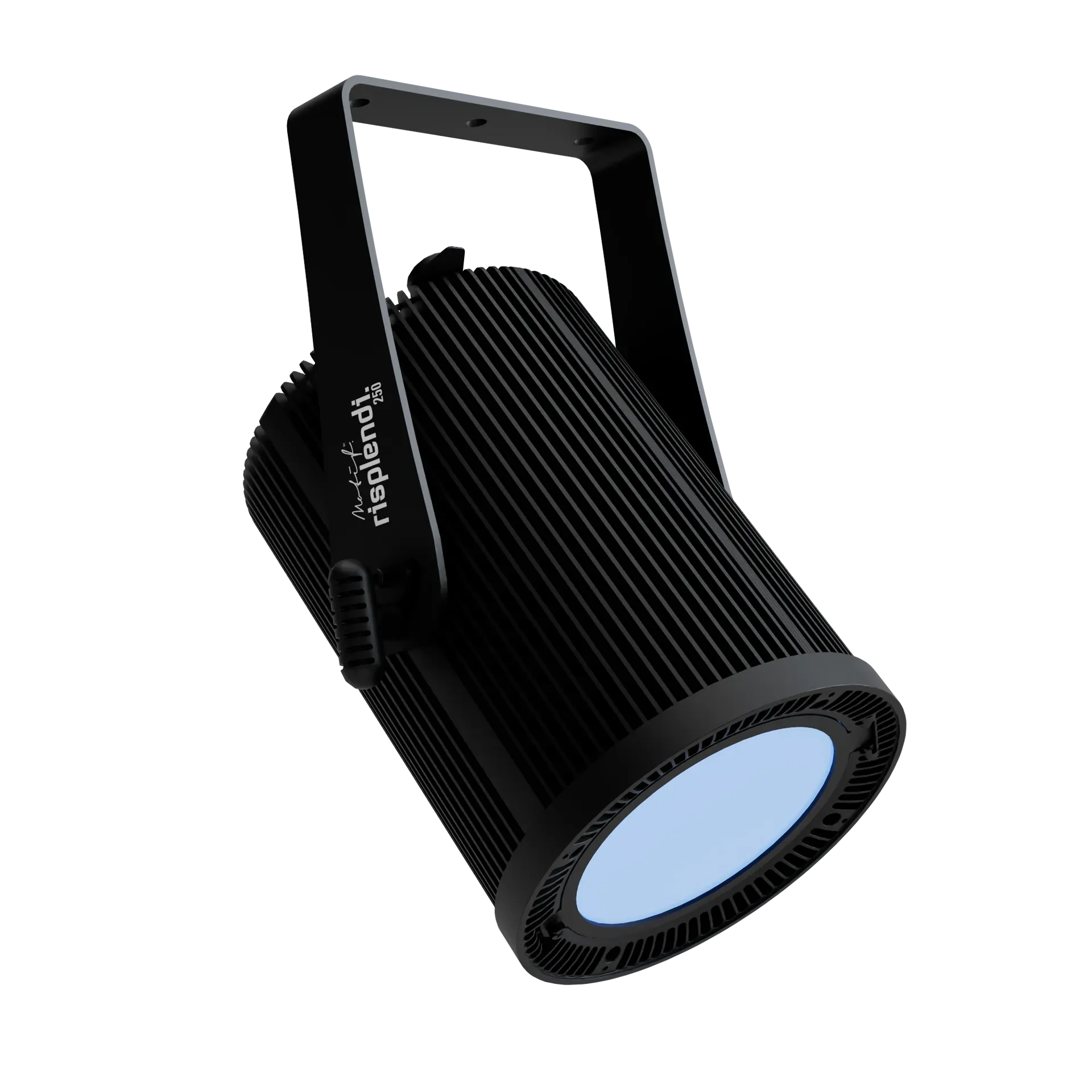

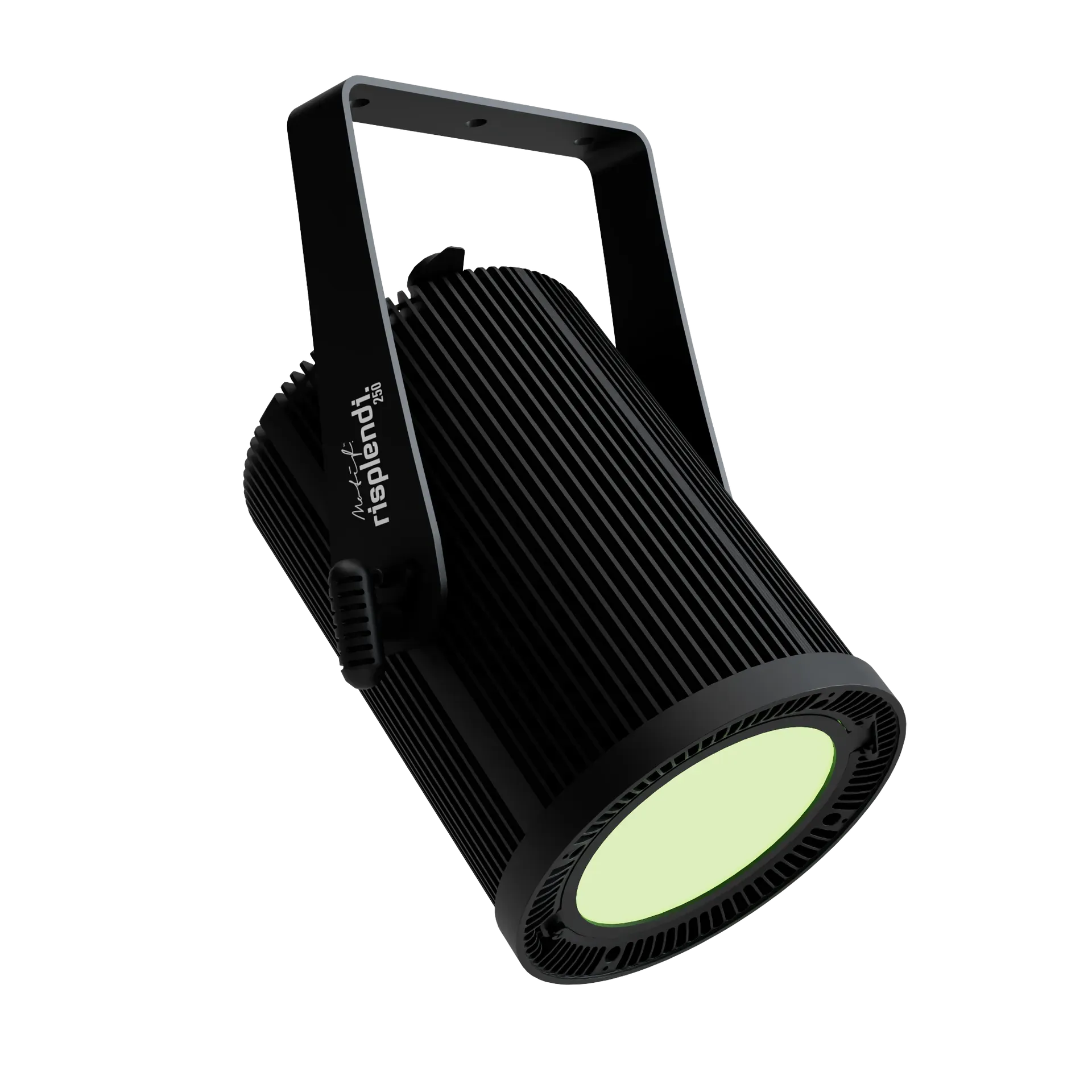

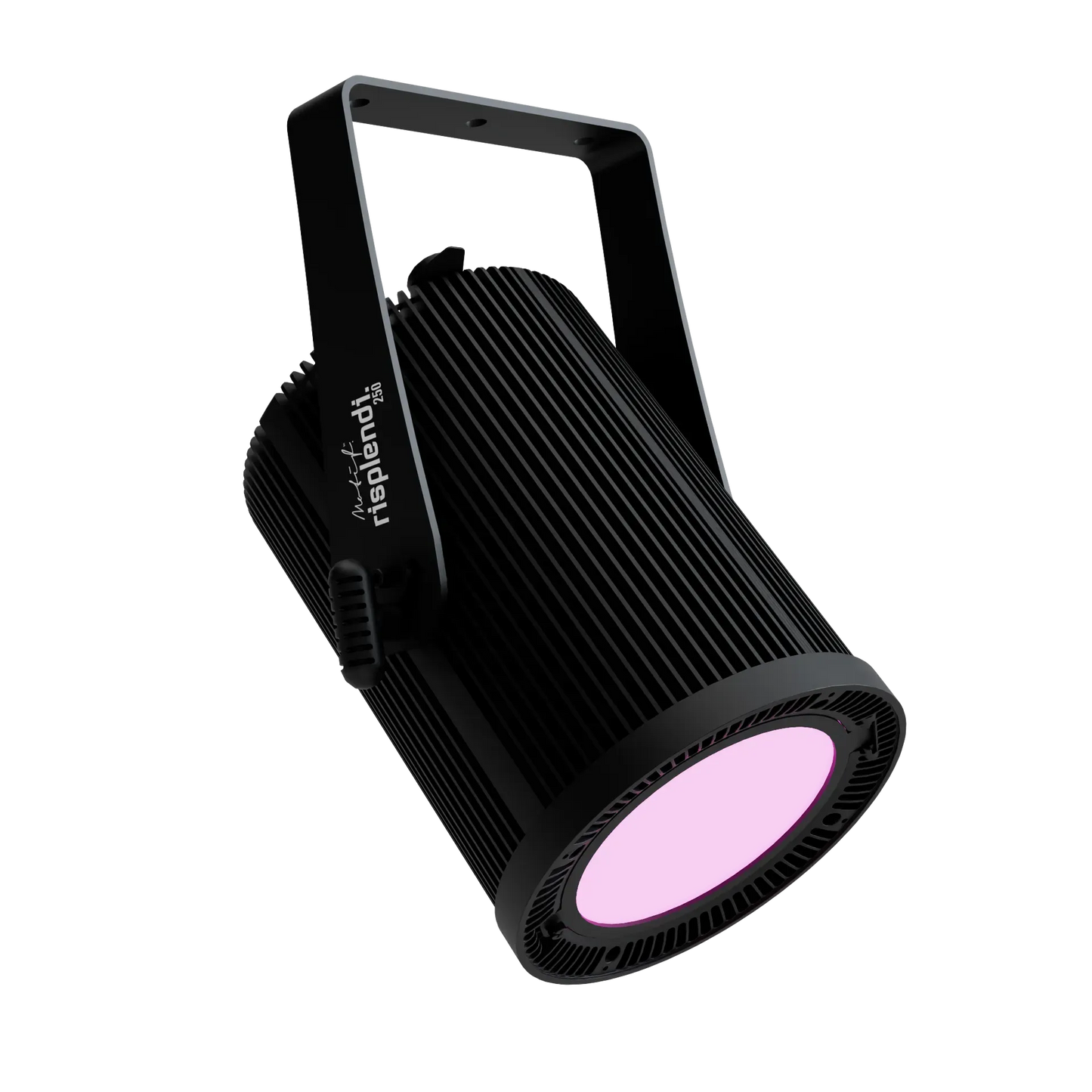

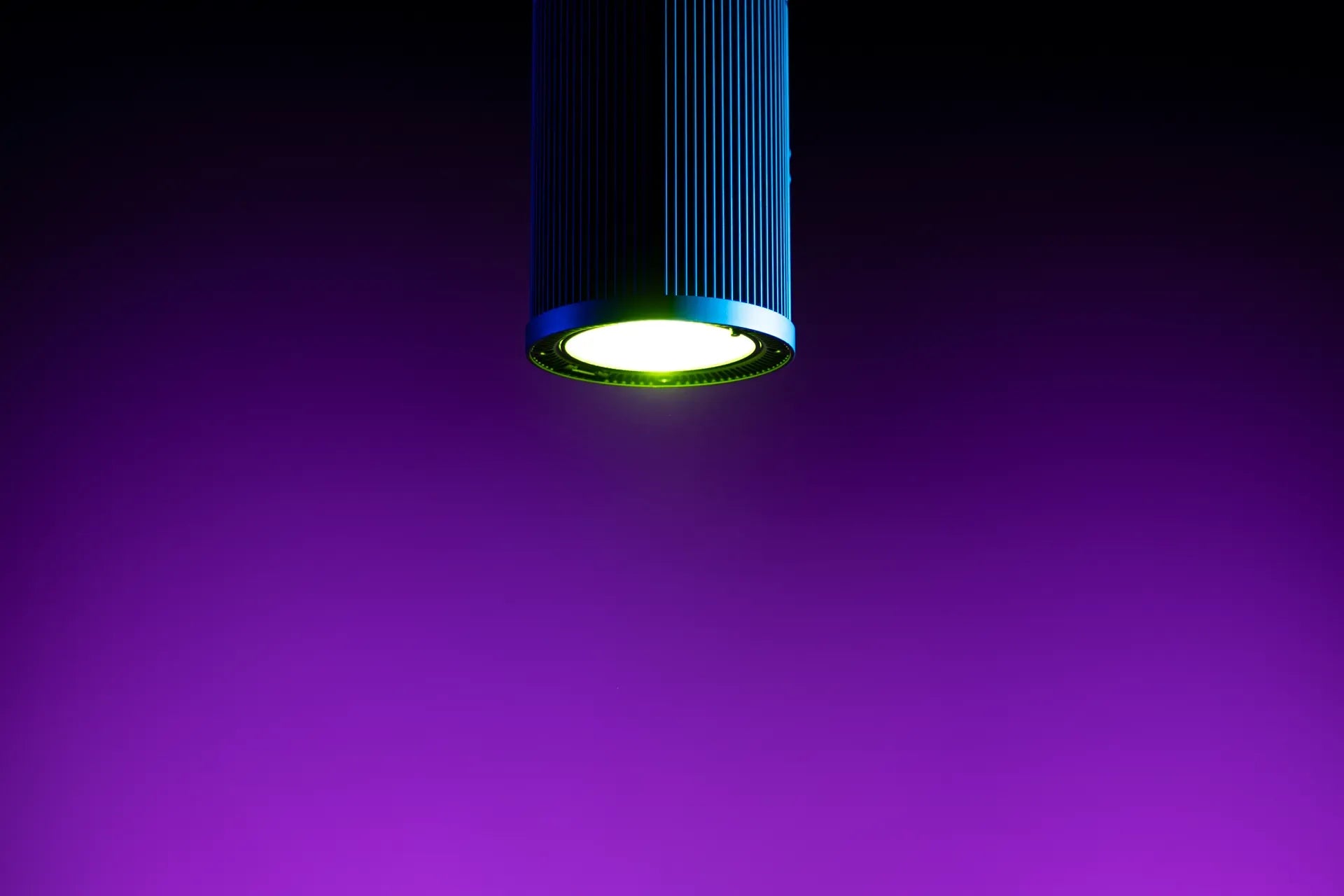

Motif™ Risplendi 250 is an ETL listed, full color architectural pendant light with a 250W RGBAL COB LED light source. It offers high CRI white and vivid mixed colors that can easily provide reading-level brightness when installed in high ceilings. It comes with a pre-installed 80° diffuser lens and 3 replaceable Fresnel lenses (35°, 45°, and 60°) for a variety of beam angles.
Versatile & Adaptable

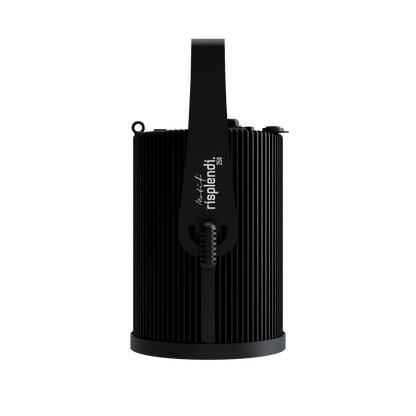

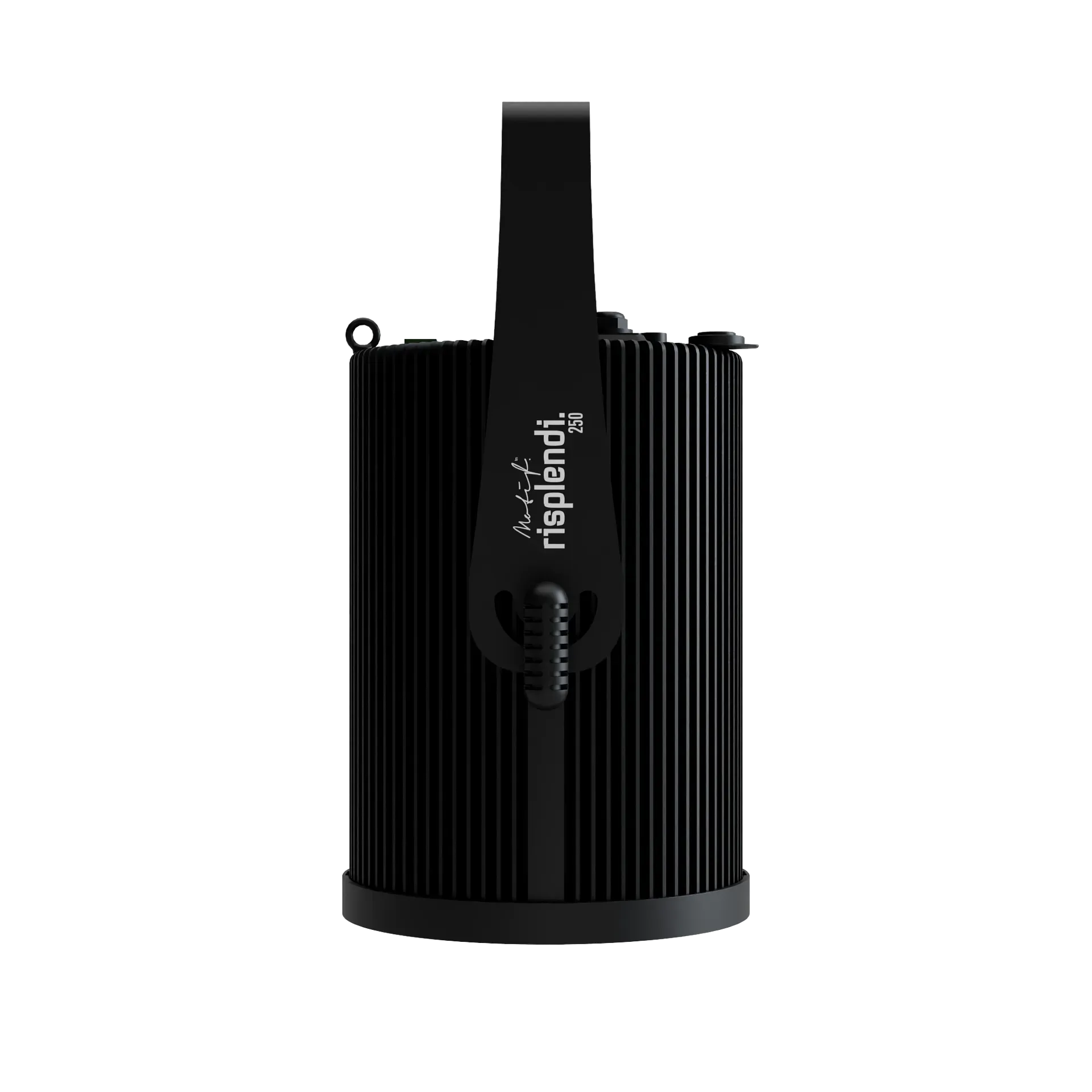

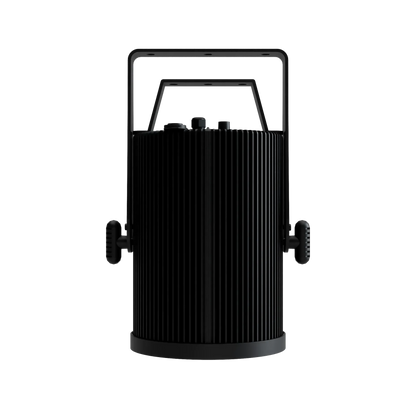

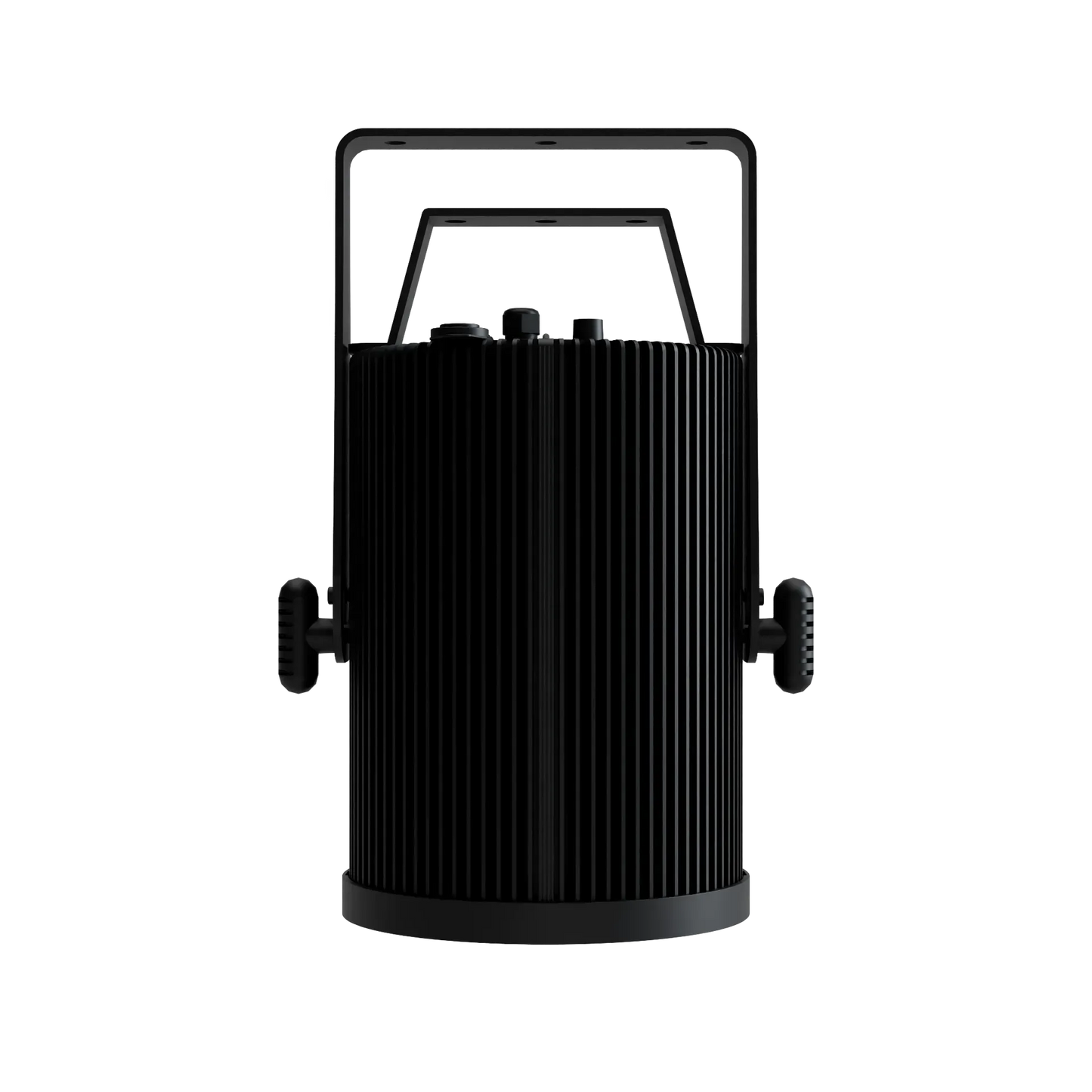

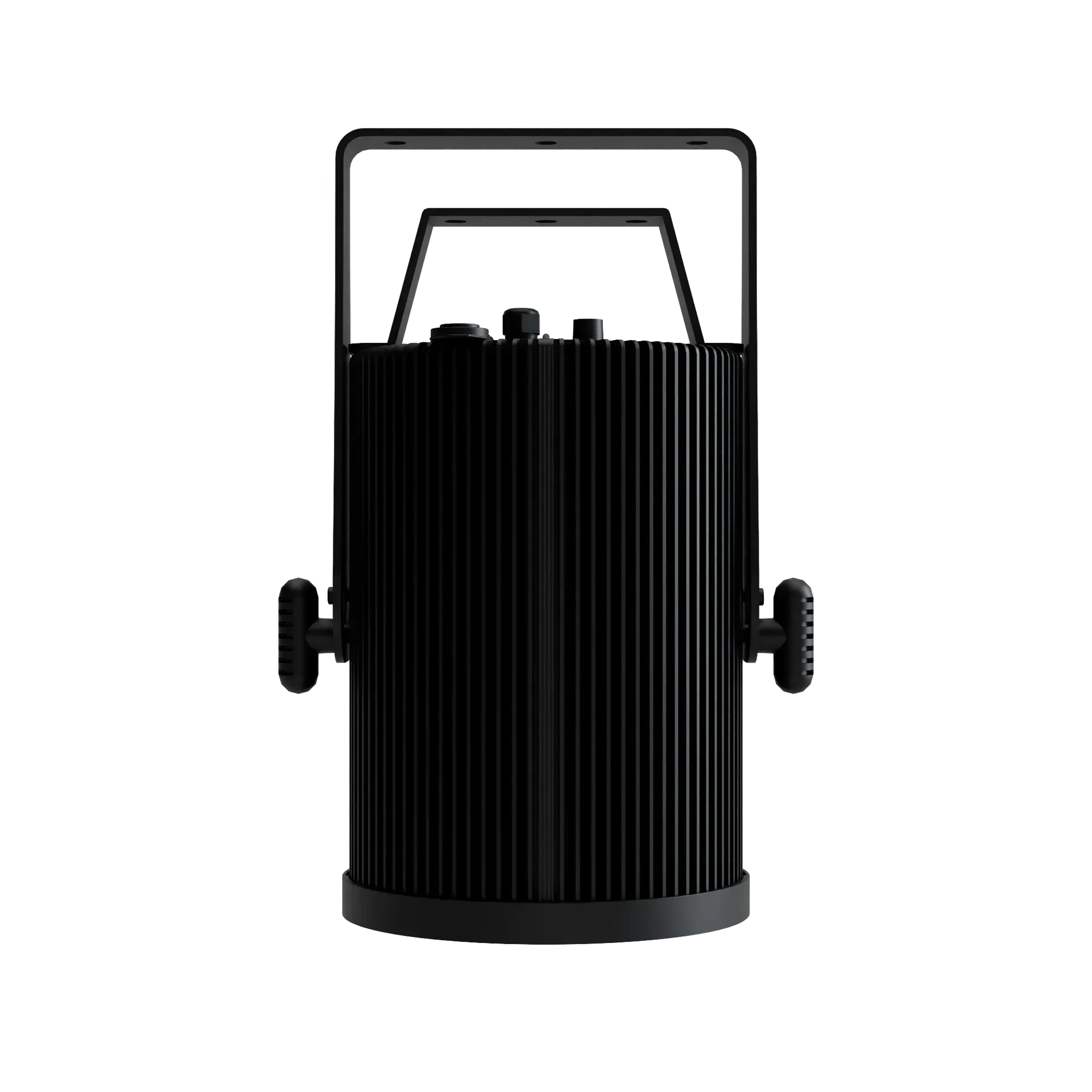

Its stylish aluminum housing comes in your choice of black, white, or space gray, and its mounting options include an adjustable yoke or a stable bracket for permanent vertical installations. It offers switchable power that includes a powerCON TRUE1™ compatible input and terminal block for hardwiring, plus it also has emergency power connections, so you’ll never be left in the dark.
Luminous Intensity
Lux/Meter 2.5 Meter 5 Meter 7.5 Meter
35° Lens 5,976 1,822 815
45° Lens 5,722 1,640 734
60° Lens 4,296 1,059 489
80° Lens 1,759 488 226
Main Features
• Light source: 250W RGBAL COB LED
• Built-in color & chase macros via DMX
• Built-in automated programs via master/slave
• Color mixing ability in standalone mode
• 4x light collimating lenses (35°, 45°, 60°, 80°)
• Convection cooled aluminum housing
• Dual mounting brackets for positioning flexibility
• Adjustable LED refresh rates (1200Hz-20KHz)
• PowerCON® TRUE1™ compatible power input
• Hardwired AC power connections
• Power backup connector (42-48V DC, 20W)
• 5-pin XLR input & output connections

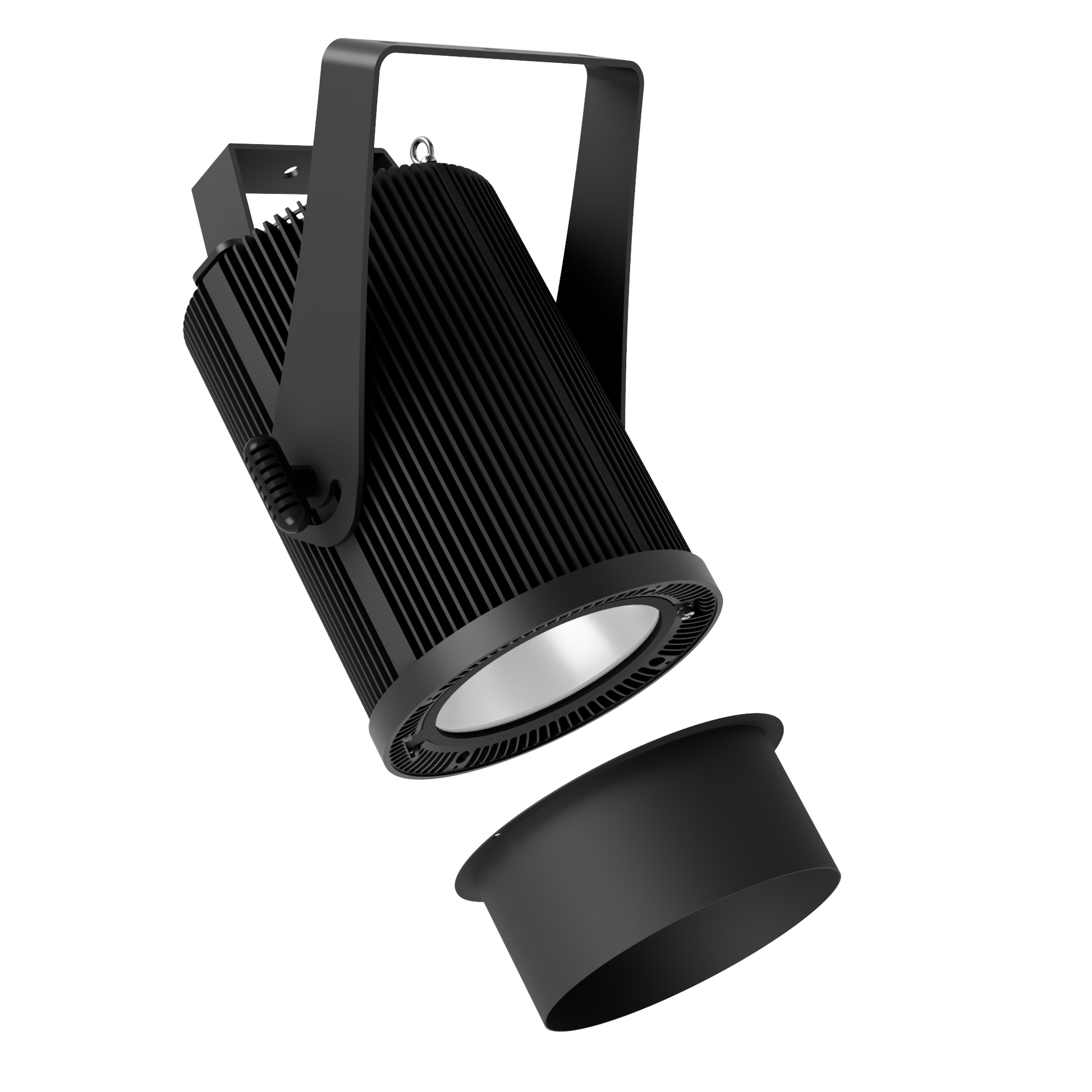

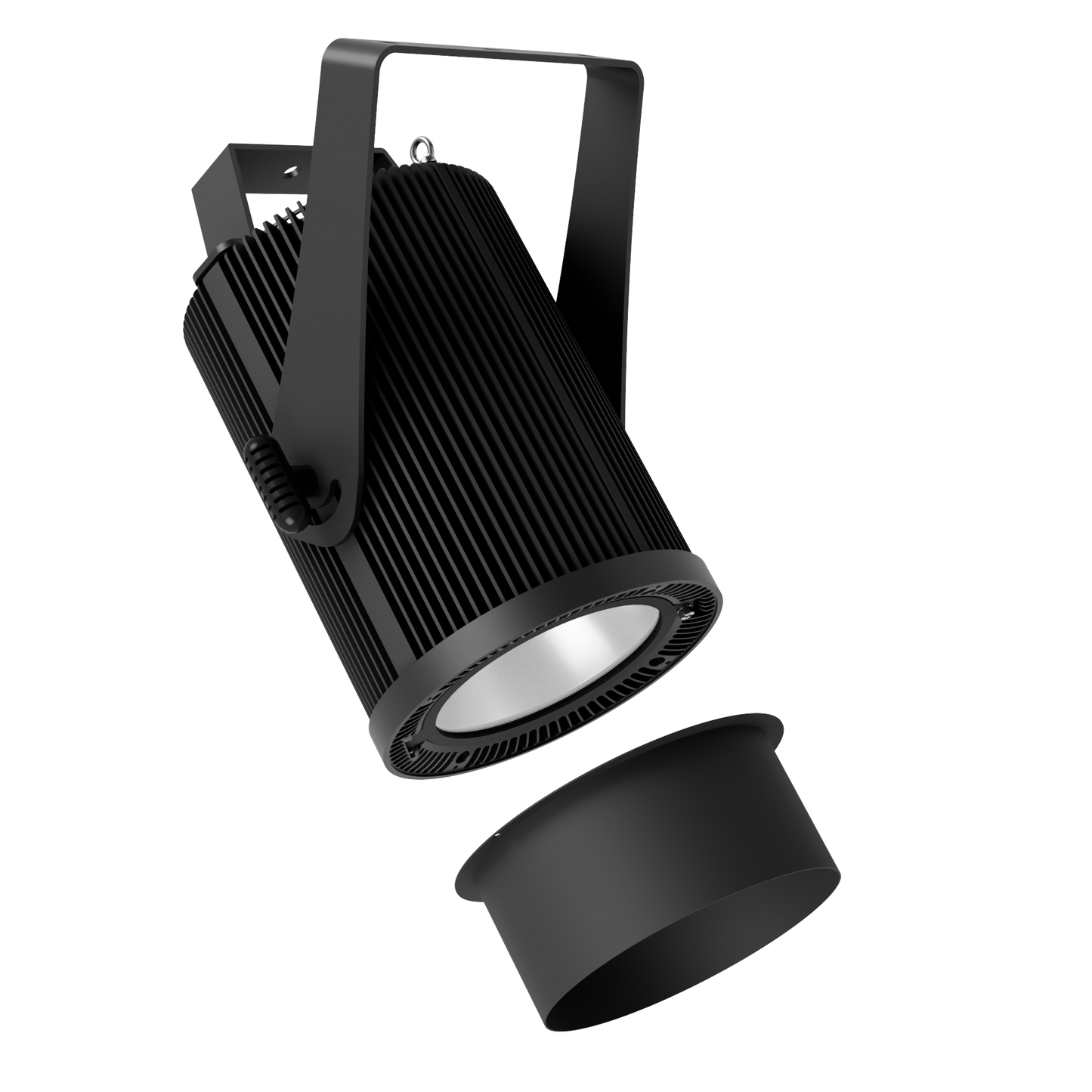

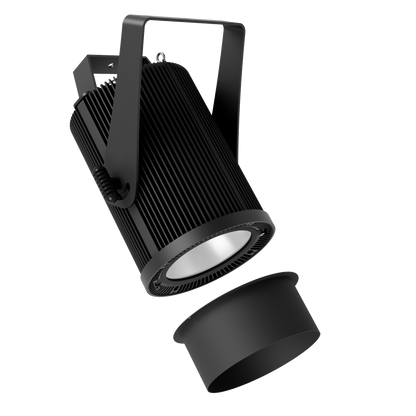

• 8.5 cm snoot, full shield attachment (sold separately)
Optical
250W RGBAL COB LED, 100,000 hrs.
4x interchangeable light collimating lenses:
35°, 45°, 60°, 80°
PWM refresh rates: 1200Hz-20KHz
Weight & Dimensions
13.7” x 10.5” x 7.9” (348 x 266 x 200 mm)
15 lbs. (6.8 kg)
Control
USITT DMX-512, RDM
5-pin DMX in/out
5/7/11-channel DMX
4-button menu with OLED display
DMX512, M/S, standalone, auto mode
Power + Current
100-240VAC, 50-60 Hz
Consumption: 204W, 1.81A, PF: .98
PowerCON™ TRUE1- compatible input + hardwire connections
Warranty + Certifications
7-year limited warranty
cETLus certified
