Blizzard MystACL Z
Blizzard MystACL Z
SKU:685450873703
Out of stock
Couldn't load pickup availability
MystACL™ Z

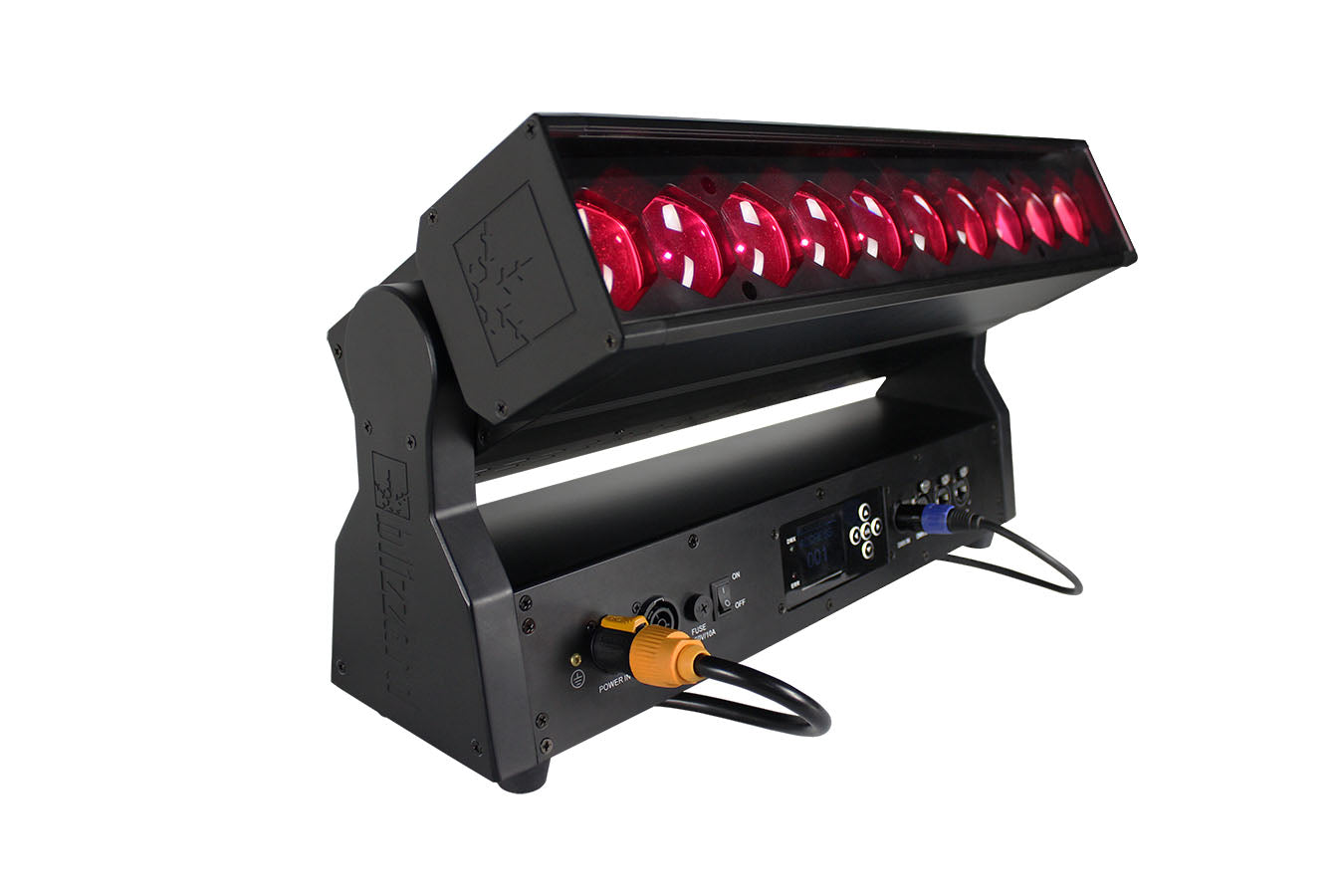

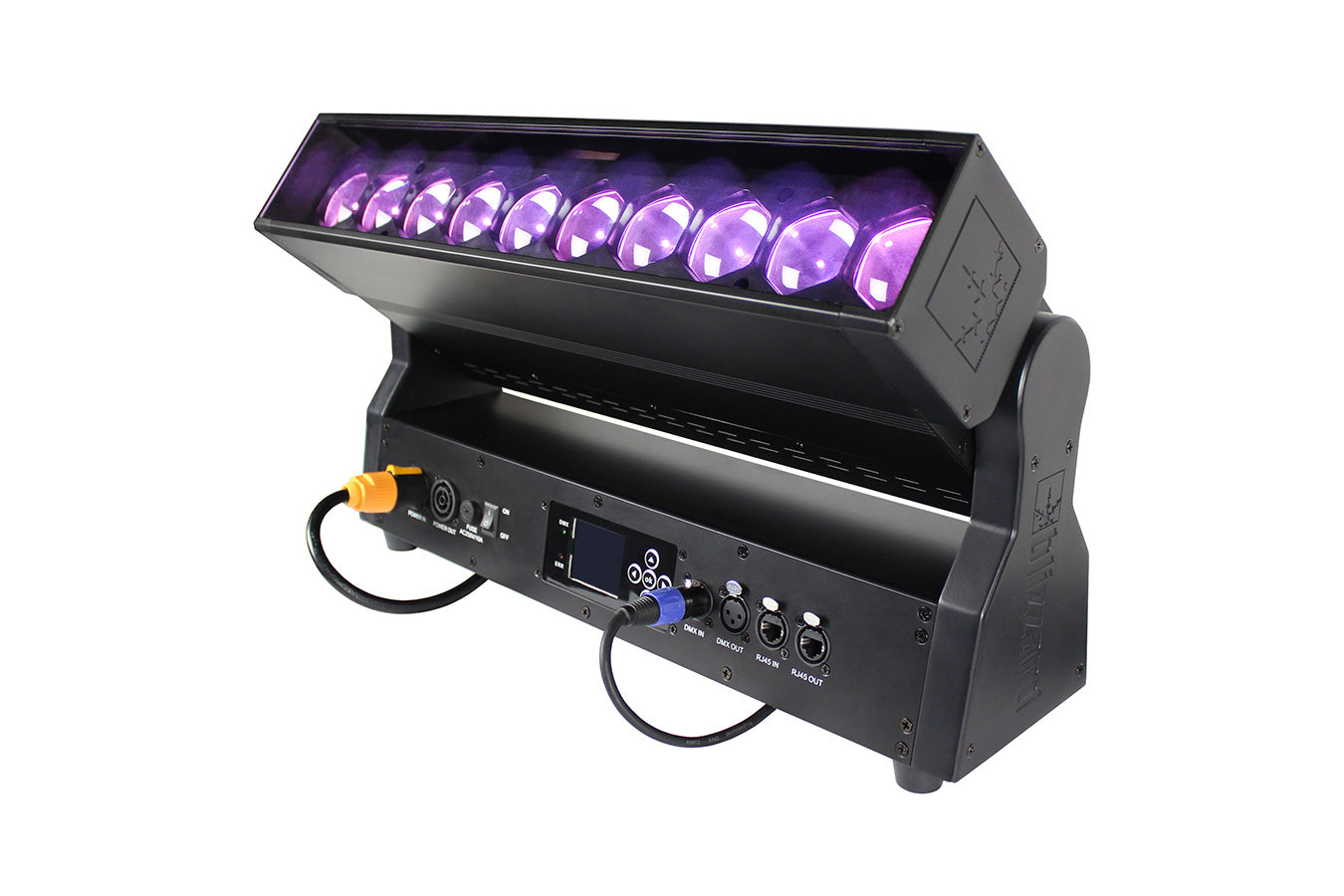

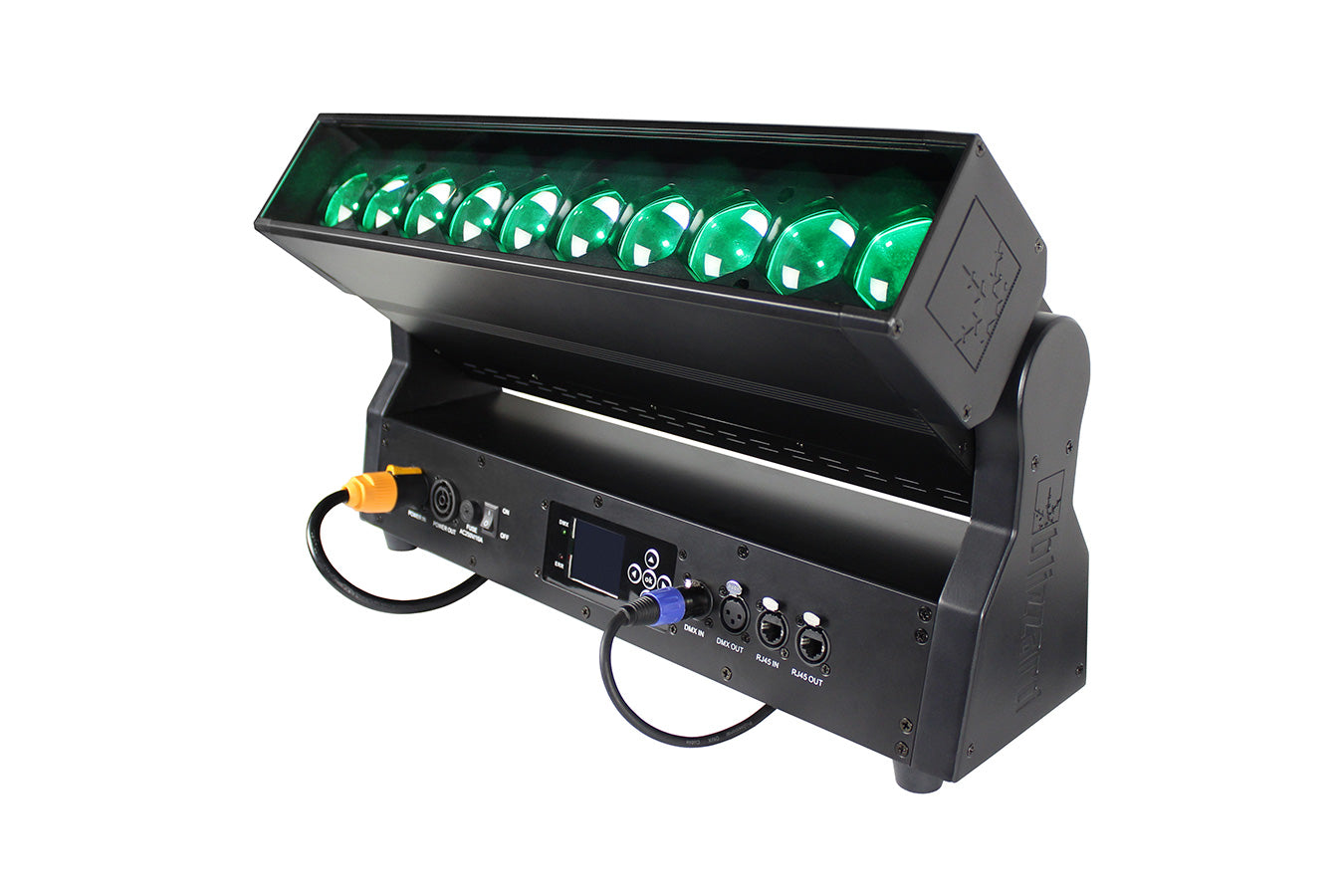

10x 30W LED Zoom Bar with Motorized TiltRGBW LEDs + Zoom MystACL™ Z is a high-performance LED bar loaded with 10* 30W OSRAM™ Ostar 4-in-1 RGBW LEDs. DMX control offers full pixel mapping capabilities, plus 3 to 60 degree zoom, creating effects that range from a narrow angle light curtain to a wide angle wash. 10x 30W LED Zoom Bar with Motorized Tilt
Loaded with Features
It also features 210 degree motorized tilt (8-16 bit), unique 3-layer pixel set & macro effects, multiple built-in programs, color presets, 3/5-pin DMX + RJ45 input/output connections (Art-Net ready), and powerCON® TRUE1-compatible power input/output connections.
Main Features
• 10x 30W OSRAM™ Ostar RGBW 4-in-1 LEDs
• Fast and precise 3-60° zoomable beam angle
• 8-16 bit motorized 210 degree tilt
• Pixel mapping capabilities via DMX
• 3-layer effects with pixel sets & macros
• Macros with patterns + multiple color presets
• Smooth electronic dimming, 0-100%
• 1-10Hz strobe effects

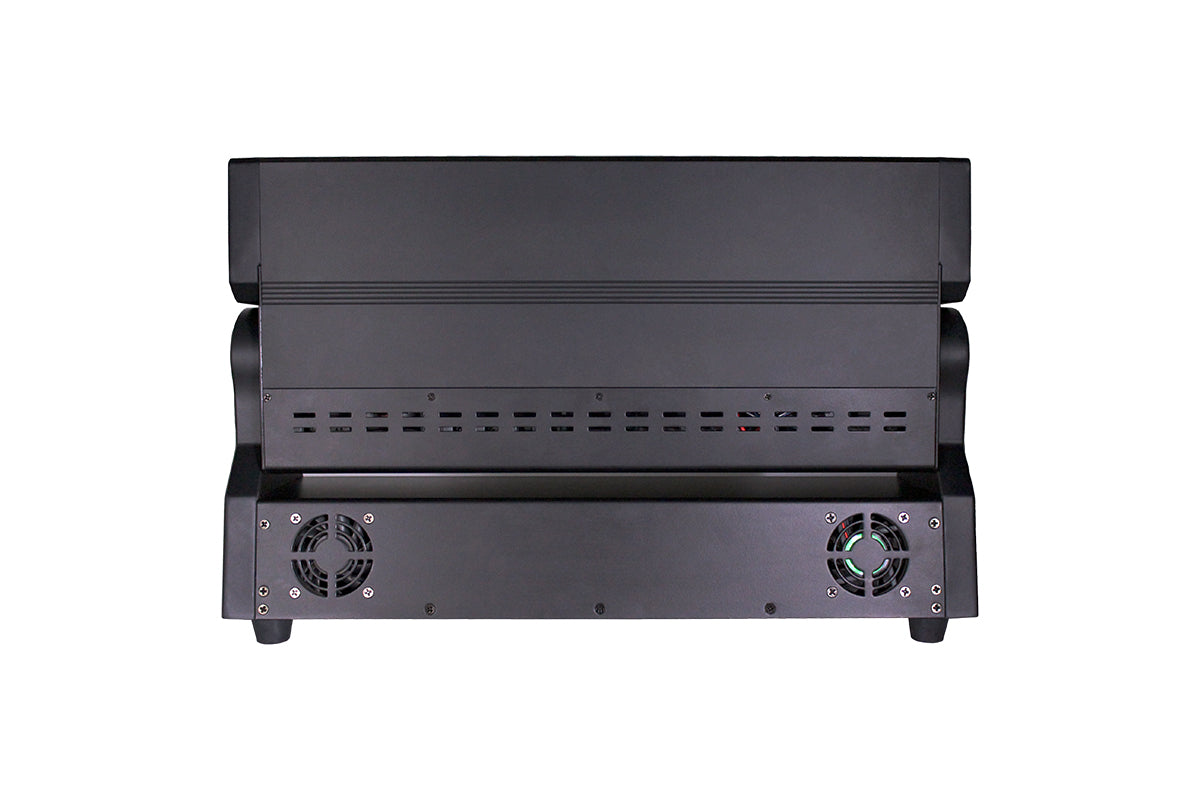

• Efficient low noise fan cooling system
• 3/5-pin DMX + RJ45 input/output connections
• PowerCON® TRUE1-compatible input/output
• Dual omega brackets with 1/4-turn fasteners
PRODUCT SPECIFICATIONS
Overview
8-16 bit motorized 210 degree tilt
10,524 Lux @ 2.5M (narrow) 1,015 Lux @ 2.5M (wide)
6,105 Lux @ 5M (narrow) 241 Lux @ 5M (wide)
Flicker-free LEDs
Optical
10x 30W OSRAM™ Ostar RGBW 4-in-1 LEDs, 50,000 hours
3-60° zoomable beam angle
Weight & Dimensions
19.7" x 5.9" x 13.4" (50 x 15 x 34 cm)
20.1 Lbs. (9.5kg)
Control
Protocol: USITT DMX-512, Art-Net
DMX channels: 13/26/28/46-channel modes
Easy-to-use 5-button control panel with LCD display
Operating modes: DMX512, master/slave, auto, sound active
Power & Current
100-240VAC, 50-60Hz
Power Consumption: 261W, 2.26A, PF: .99
PowerCON™ TRUE1-compatible AC power In/Out
Warranty
2-year limited warranty
- Returns accepted within 7 days of receipt of product. Buyer pays return freight.
