NEXYS FLUX
Modular Innovation

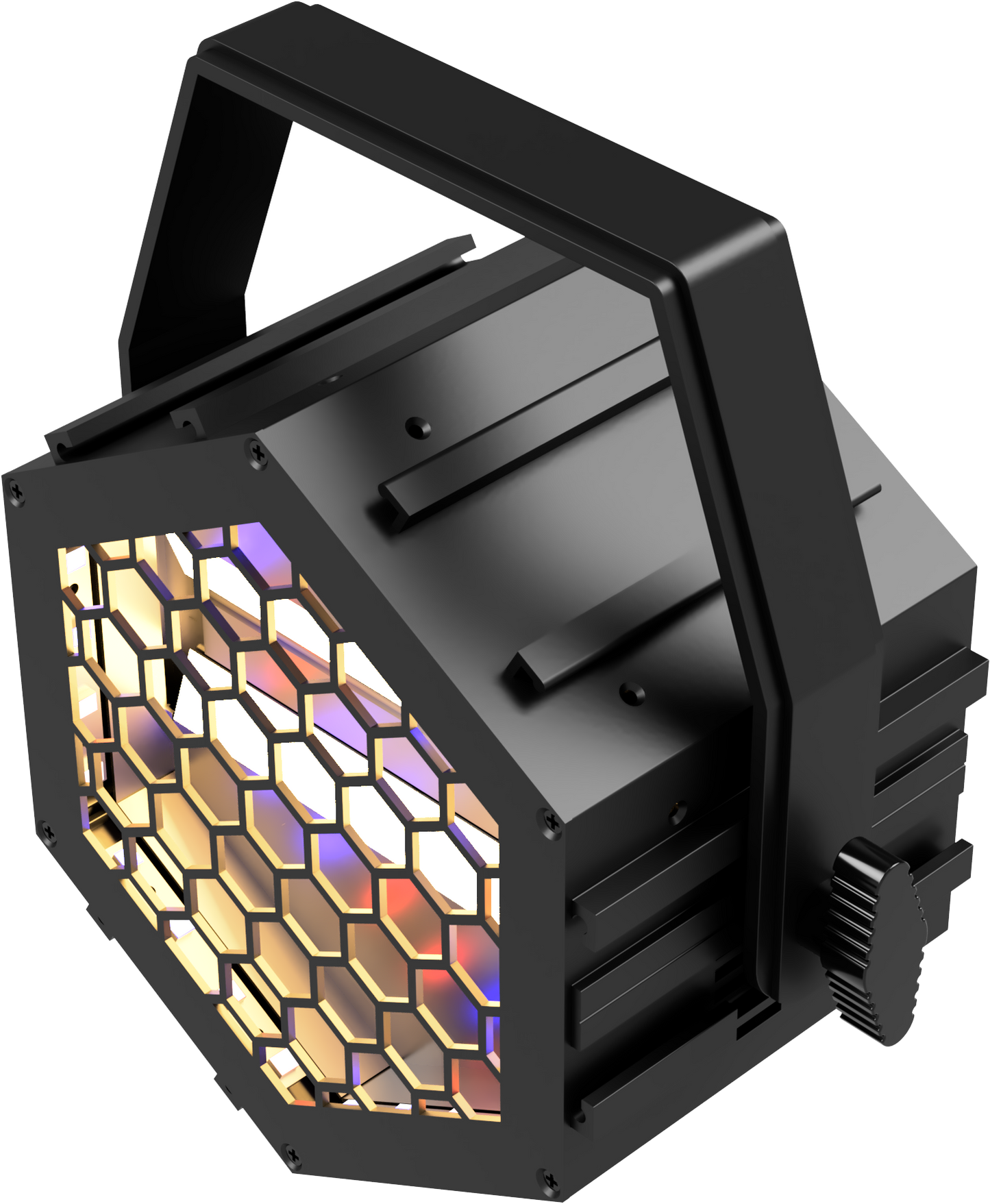

Nexys™ Flux is 1 of 3 modular LED fixtures in the Nexys™ Series, designed with unique interlocking housings. These lights can connect together seamlessly in any configuration to assemble captivating visual arrays. This specific model boasts a vintage ambiance, its 80W, 2000K WW LED acts as a retro strobe/blinder with a broad 120° beam. Meanwhile, its 6-pixel RGB backlight adds dynamic, contrasting color effects.
Loaded with Features
It offers smooth dimming, strobe, built-in programs, and individual control of each of its 6 inner pixel ring groups. Then for ease of use and seamless integration into any application, all Nexys™ Series fixtures come with dual mounting brackets, Omega bracket mounting points (Omega bracket not included), a 4-button LCD control menu, 5-pin DMX in/out, and powerCON-TRUE1 compatible in/out connections.
Main Features
• 1x 80W Warm White LED (2000K)
• 24x SMD 5050 RGB 0.5W LEDs (backlight)

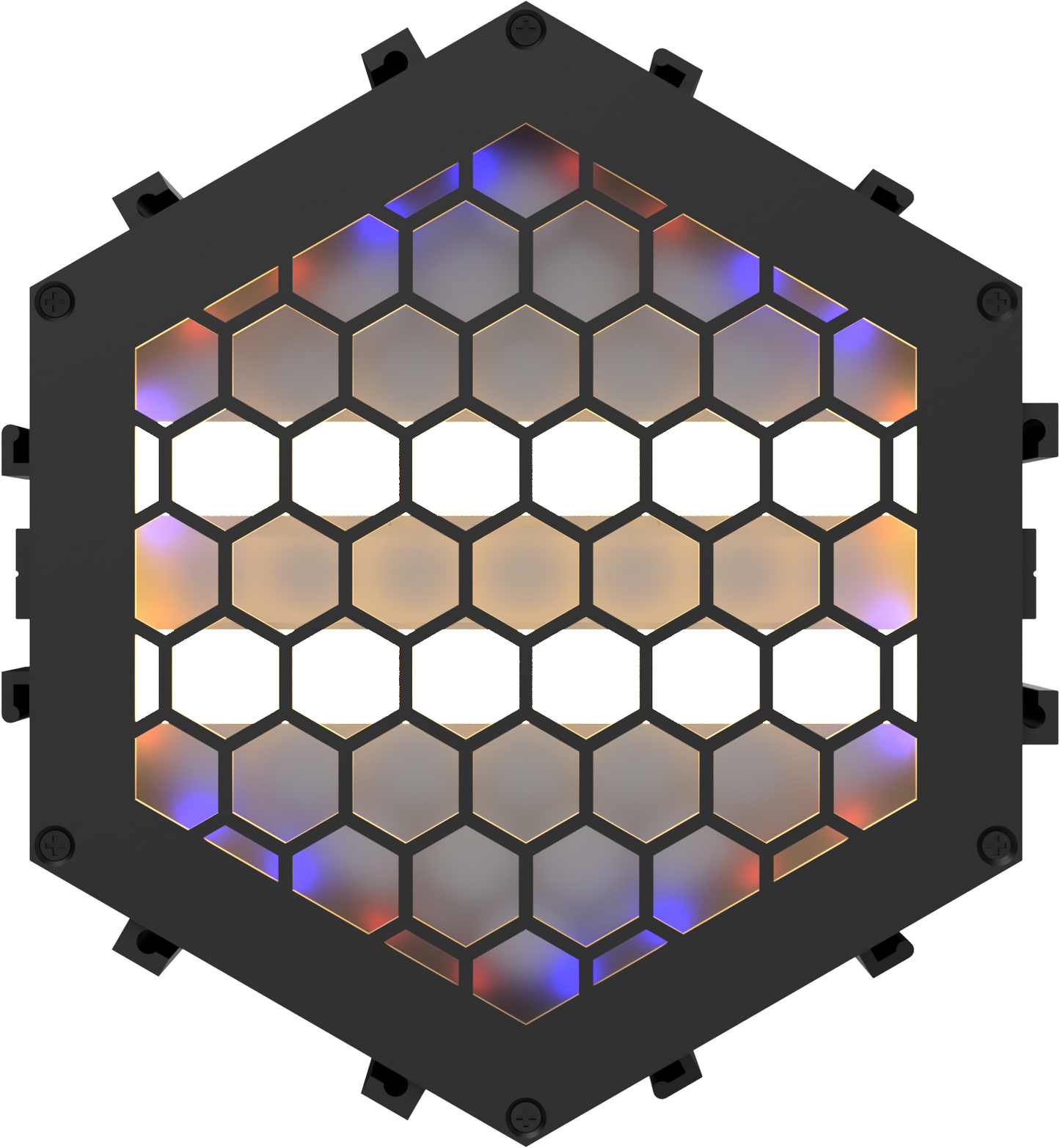

• LED ring group sections (6x4 pixels)
• Smooth dimming (0-100% )
• Warm white strobe + RGB LED backlight effects
• Built-in programs and manual color mixing
• 5-pin DMX in/out connections
• powerCON™ TRUE1 compatible power in/out
• Reflective aluminum inner housing
• Dual mounting brackets + omega clamp connections
• Interlocking housing design to join multiple fixtures
• Heavy-duty aluminum enclosure
Optical
1x 80W Warm White 2000K LED
24x SMD 5050 RGB 0.5W LEDs (6x4 LED sections)
120° beam angle
213 Lux @ 2.5M 56 Lux @ 5M
Weight & Dimensions
6.8” x 4.9” x 17.9” (173.5 x 124 x 200.1 mm)
5.6 lbs. (2.6 kg)
Control
Protocol: USITT DMX-512
5-pin DMX in/out
4/8/20-channel DMX
4-button menu with LCD display
DMX512, M/S, auto mode
Power + Current
100-250VAC, 50-60 Hz
Consumption: 83W, 1.1A, PF: .63
PowerCON® TRUE1 compatible in/out
Warranty + Certifications
2-year limited warranty

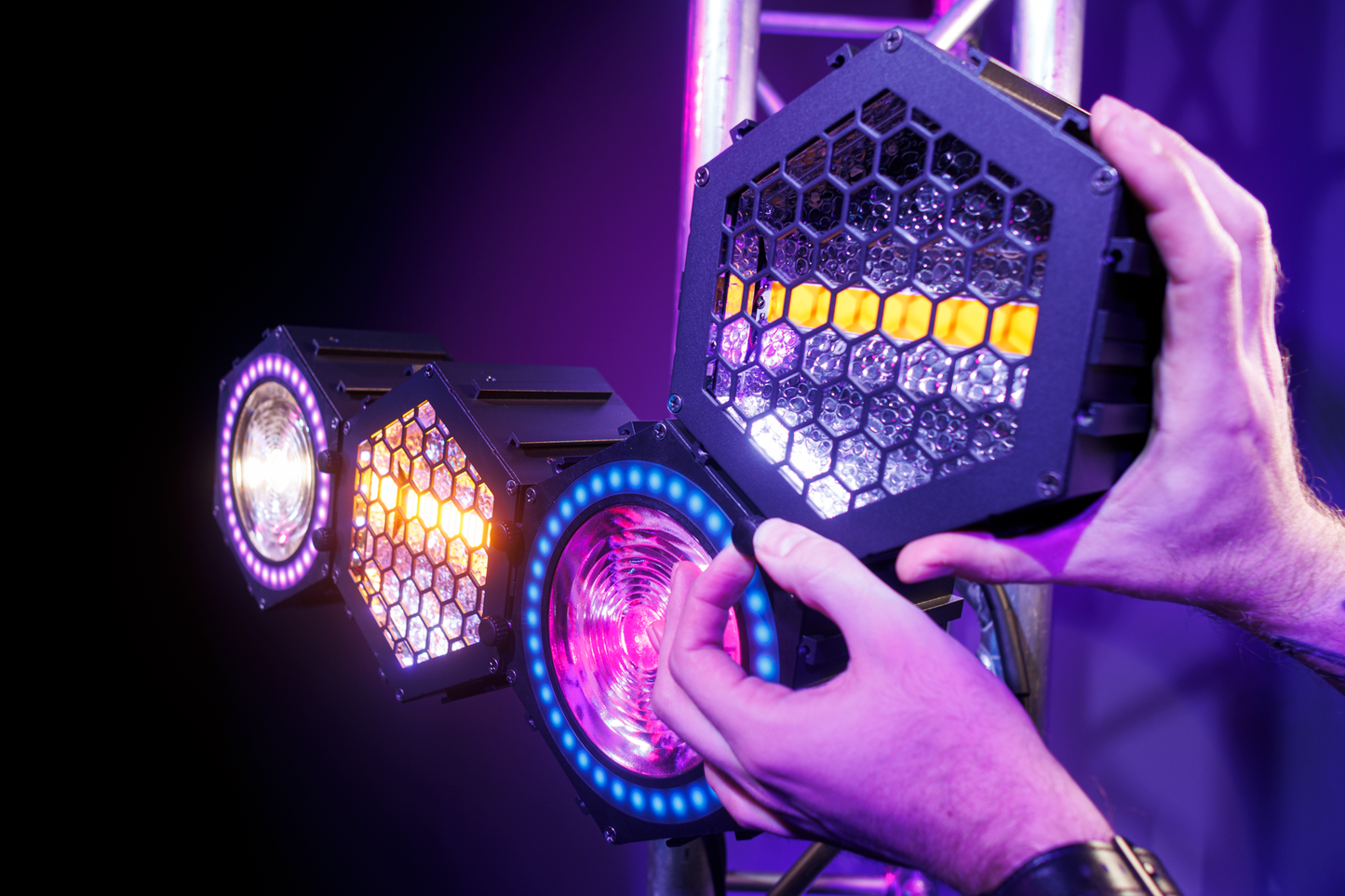

Two Fixture Example 2x thumbscrews (front & back) Three Fixture Example 3x thumbscrews (front & back)
An unlimited number of fixtures can be connected and rigged together, provided proper safety protocols are followed.
