NEXYS WW
Modular Innovation
Nexys™ WW is 1 of 3 modular LED fixtures in the Nexys™ Series, designed with unique interlocking housings. These lights can connect together seamlessly in any configuration to assemble captivating visual arrays. This specific model boasts a 80W LED with a 10° Fresnel lens for a sharp warm white beam. Additionally, it features an outer 6-pixel RGB diffused ring and an inner 6-pixel RGB backlight for enhanced visual effects.
Loaded with Features
It offers smooth dimming, strobe, built-in programs, and individual control of each of its 6 inner, and 6 outer pixel ring groups. Then or ease of use and seamless integration into any application, all Nexys™ Series fixtures come with dual mounting brackets, plus an Omega bracket with quick-lock quarter turn fasteners (clamp not included), a 4-button LCD control menu, 5-pin DMX in/out, and powerCON-TRUE1 compatible in/out connections
Main Features
• 1x 80W WW LED (3200k)with Fresnel lens
• 36x SMD 5050 RGB 50mW LEDs (outer ring)
• 18x SMD 5050 RGB 50mW (backlight)
• LED ring group sections (outer: 6x6, inner: 6x3)
• Smooth dimming (0-100% )
• WARM WHITE BEAM + RGB diffused ring & backlight
• Built-in programs and manual color mixing
• 5-pin DMX in/out connections
• powerCON™ TRUE1 compatible power in/out
• 2x mounting + 1x quarter turn fastening Omega bracket
• Interlocking housing design to join multiple fixtures
• Heavy-duty aluminum enclosure
An unlimited number of fixtures can be connected and rigged together, provided proper safety protocols are followed!
Optical
1x 80W flicker-free WW LED
36x and 18x SMD 5050 RGB 50mW LEDs (outer and backlight)
10° beam angle
6,107 Lux @ 2.5M 1,354 Lux @ 5M
Weight & Dimensions
6.8” x 4.9” x 17.9” (173.5 x 124 x 200.1 mm)
5.3 lbs. (2.6 kg)
Control
Protocol: USITT DMX-512
5-pin DMX in/out
6/11/42-channel DMX
4-button menu with LCD display
DMX512, M/S, auto mode
Power + Current
100-250VAC, 50-60 Hz
Consumption: 65W, .87A, PF: .64
PowerCON® TRUE1 compatible in/out
Warranty + Certifications
2-year limited warranty

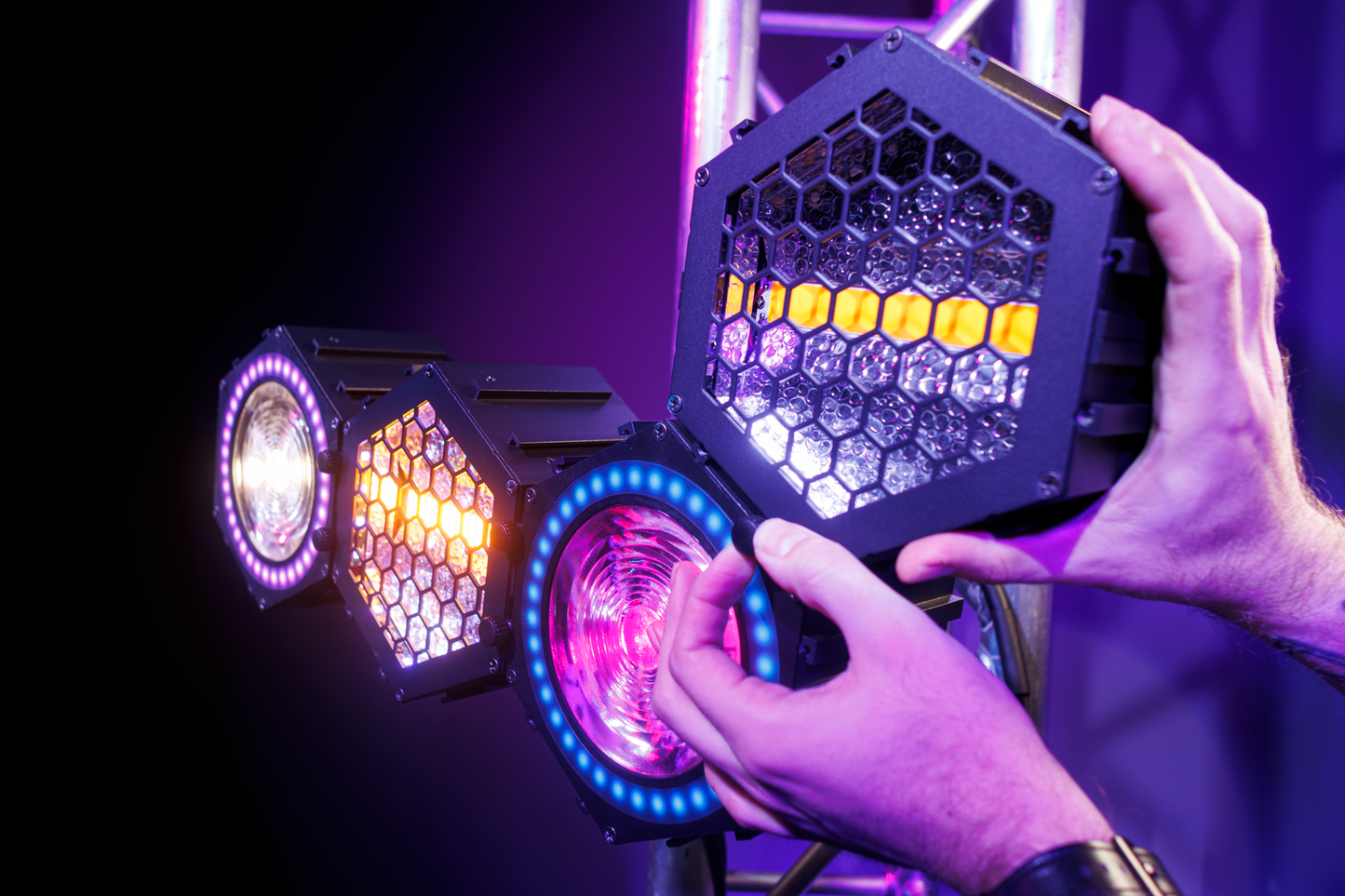

Two Fixture Example 2x thumbscrews (front & back) Three Fixture Example 3x thumbscrews (front & back)
An unlimited number of fixtures can be connected and rigged together, provided proper safety protocols are followed.
