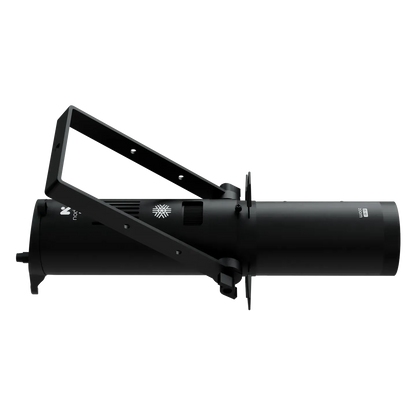

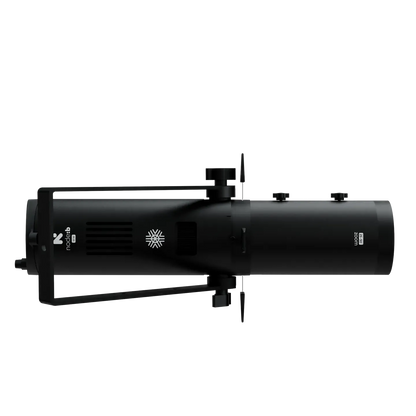

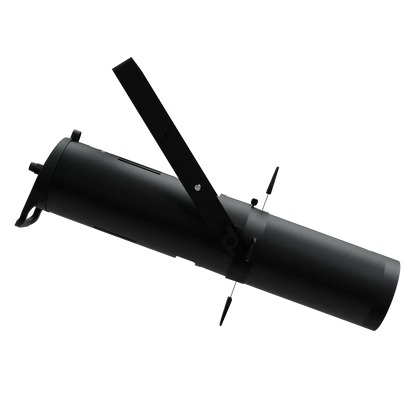

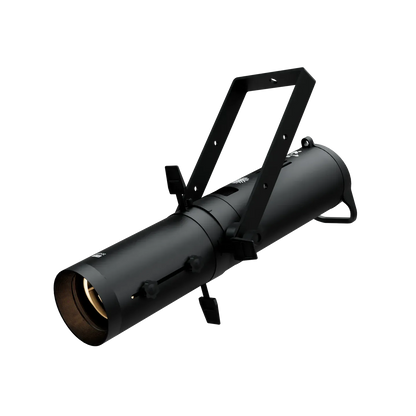

Blizzard node:b WW/ Engine ONLY (Lens sold separately)

Blizzard node:b WW/ Engine ONLY (Lens sold separately)

$479.99
$639.99 $479.99
Innovative LED Price Sold out
FREE Ground Shipping!

SKU:node: b WW

2 in stock
BLIZZARD node:b WW
ENGINE ONLY
Modular Architectural Lighting System
PLEASE NOTE: Lens sold separately!

Compact, 2800K WW Lighting System

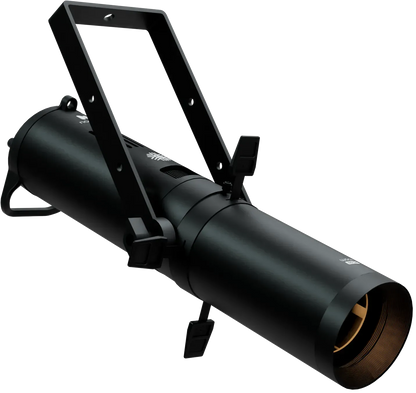

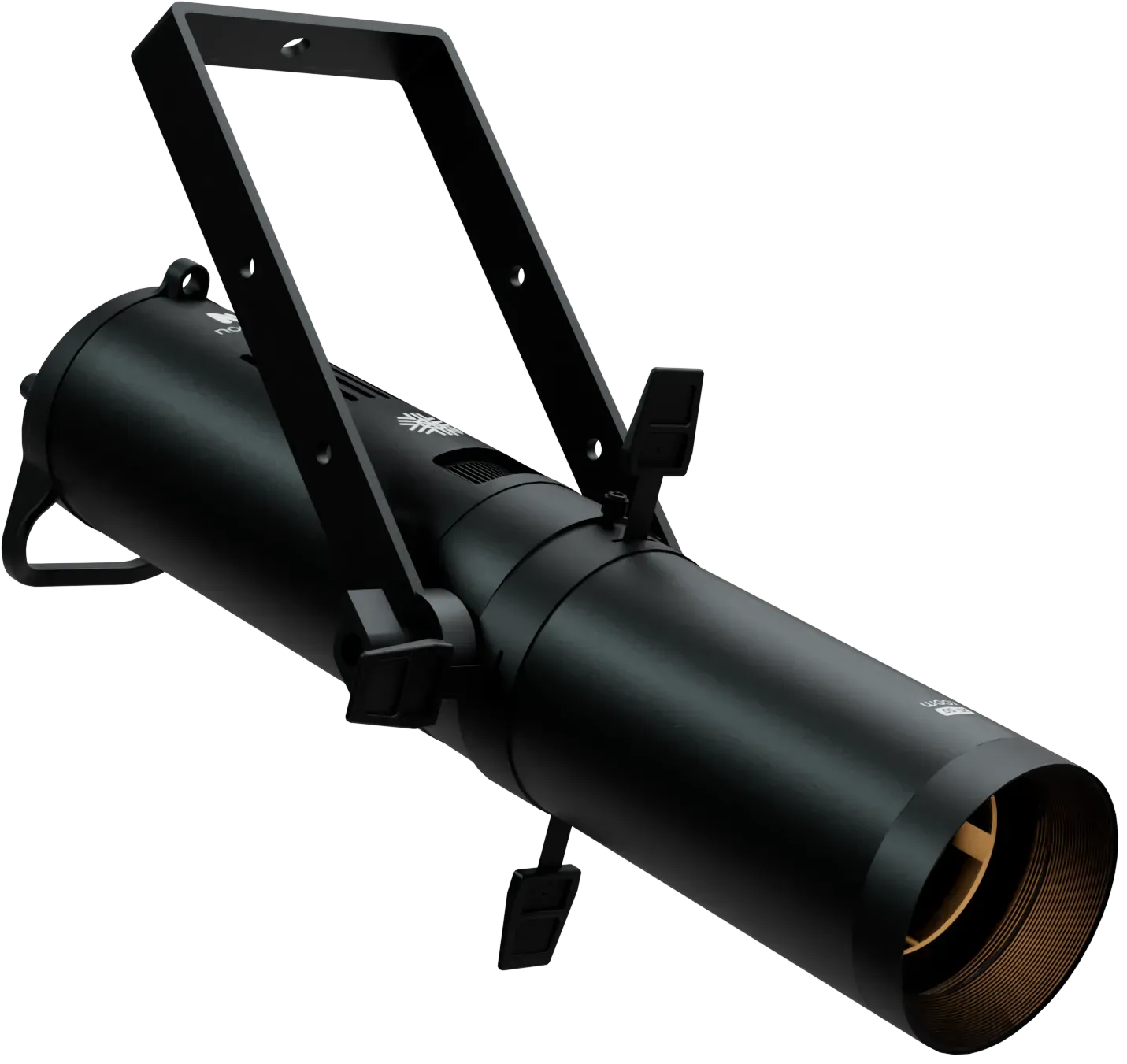

The ETL-listed node:b™ WW pairs a high-output 150W, 2800K LED light engine with a variety of replaceable lens types to fit many applications ranging from gobo projection, to typical hard-edged profile use or even a smooth, vibrantly colored wash. This fixture is ideal for those in need of flexibility in their lighting.

Modular & Flexible Design
There are 3x lenses available for node:b™ fixtures with the choices of 15-30° or 25-50° profile zoom lenses with 4-blade manual shutters and focus, or a 16-65° Fresnel zoom lens. Lenses are sold separately.
User-selectable dimming curves, dimming speed, and frequency mode settings are also accessible from its 4-button OLED control menu.

Luminous Intensity

WW Engine + 15-30° Profile Zoom Lens:

Lux/Meter         2.5 Meter         5 Meter

15° (narrow)    5,739 Lux         1,542 Lux

30° (wide)        1,257 Lux             632 Lux


WW Engine + 25-50° Profile Zoom Lens:

Lux/Meter         2.5 Meter          5 Meter

25° (narrow)     2,223 Lux           550 Lux

50° (wide)         1,257 Lux           326 Lux


RGBAL Engine + 16-65° Fresnel Zoom Lens:

Lux/Meter           2.5 Meter            5 Meter

16° (narrow)                 1,598 Lux                     433 Lux

65° (wide)                        519 Lux                     138 Lux



Main Features
• 150W, WW (2800K) LED light source
• Small in size, 10cm fixture diameter
• Glass optical lens
• High CRI: 97
• 1-25Hz strobe effects
• Adjustable LED refresh rates (1,000-8,000 Hz)
• 16-bit dimming and 4x dimming curves
• Selectable dimming speeds (low, medium, high)
• Gobo pattern holder (gobos not included)
• Multiple fan settings (full, auto, silent)
• Dual mounting brackets for flexible positioning
• 5-pin male/female XLR input & output
• Available with black or white colored housing


Optical
  • 150W 2800 K WW LED
  • Glass optical lens
  • CRI: 97
  • Flicker-free resolution
  • Gobo holder: 68.6mm outer, 24mm inner, 0.4mm thickness
Weight & Dimensions
  • 13.4” x 3.94” x 3.94” (34 x 10x 10 cm)
  • 5.3 lbs. (2.4 kg)
Control
  • Protocol: DMX, RDM
  • 3-pin DMX in/out
  • 1,2,3,4-channels

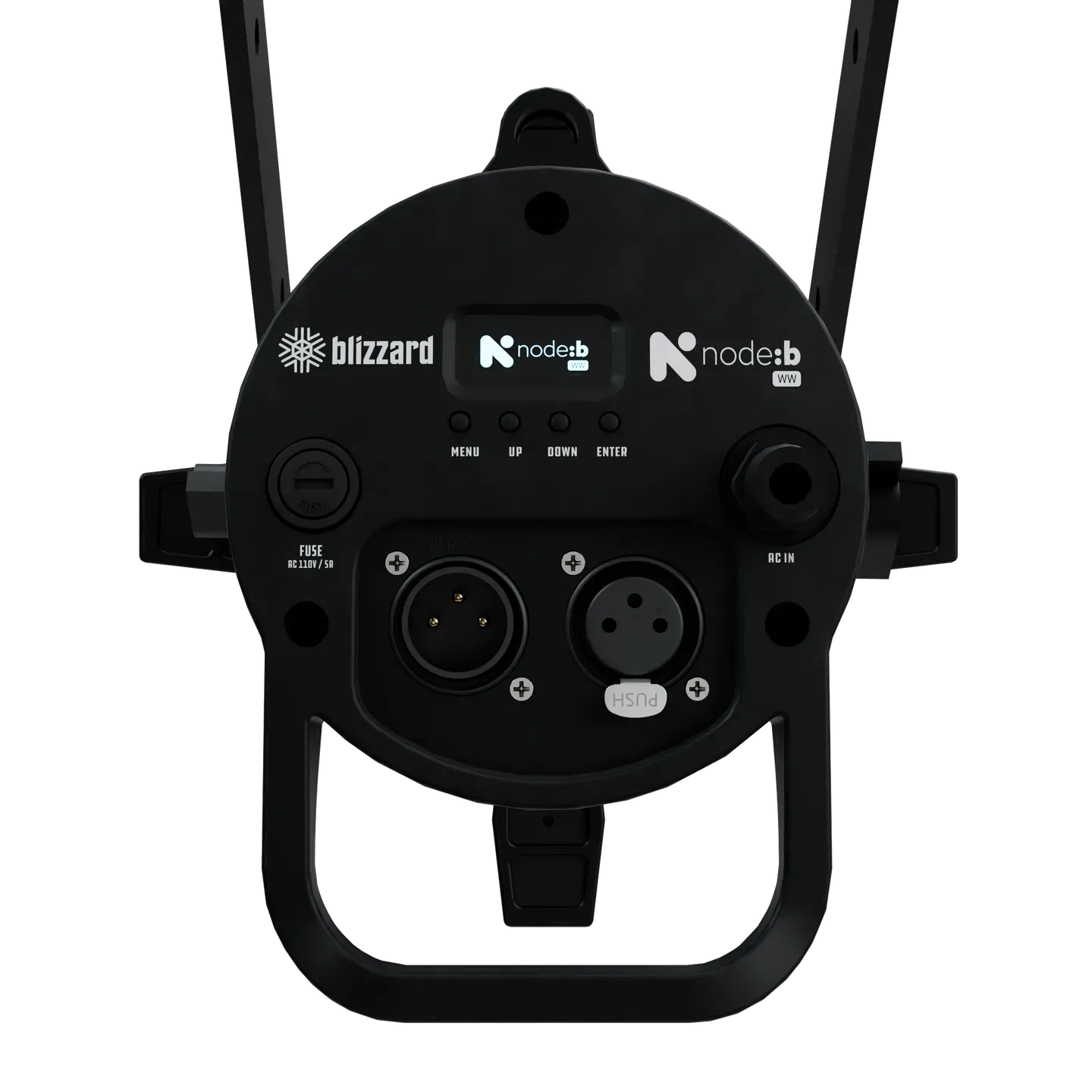

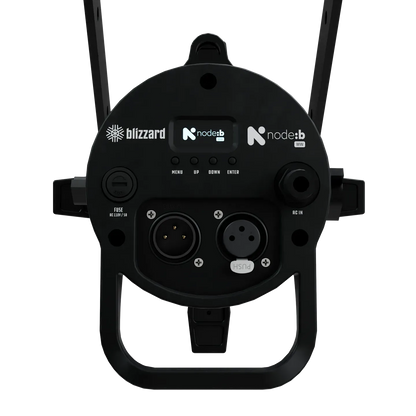

  • 4-button menu with OLED display
  • DMX512, master/slave, standalone
Power + Current
  • 100-240VAC, 50-60 Hz
  • Consumption: 130W 1.42A, PF: .95
  • Heavy-duty, fixed power cord

Warranty + Certifications
2-year limited warranty
cETLus certified
