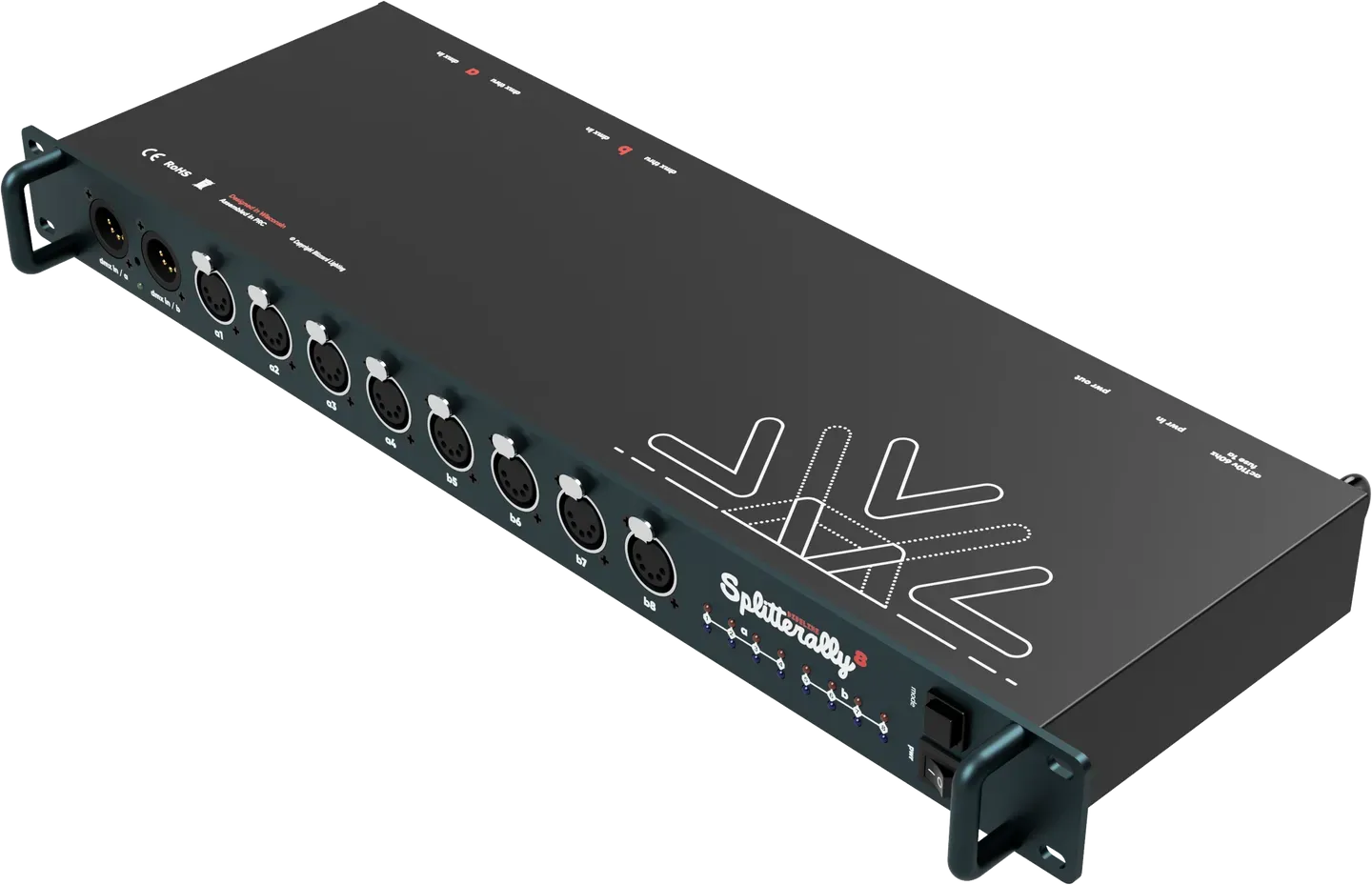

Blizzard Pipeline Splitterally 8

BLIZZARD

Pipeline Splitterally 8

                                  Dual 4/8-Way DMX Splitter + Booster

Flexible Signal Distribution
The Pipeline™ Splitterally 8 is a rackmountable DMX splitter and
booster. It offers dual modes with 1x8 (mode A) or 2x4 (mode
B) operation, making it ideal for managing single or dual DMX
 universes. Dual DMX inputs with through outputs on the rear
 panel (A/B) provide raw pass-through connections for seamless
 integration into any DMX setup.


Designed for Convenience
This unit is designed for simplicity and efficiency. The front panel
features a power switch, a mode button, 5-pin DMX inputs (A/B),
and eight 5-pin DMX outputs for versatile signal routing. In Mode
A, all outputs distribute the same DMX signal. In Mode B, outputs
1-4 handle Universe A, while outputs 5-8 manage Universe B,
 ensuring flexible setup options for any lighting configuration.

 Main Features
 • 19-inch, 1U rack space DMX signal splitter/booster
 • Dual operation modes: 1x8 or 2x4
 • Rear DMX In (A/B) + thru connections
 • 5-pin DMX inputs and outputs
 • Front-panel mode selection switch
 • LED indicators for quick signal monitoring
 • powerCON® TRUE1-compatible input/output
 • Safety loop and fuse protection
 • Front-panel handles for convenient installation

 Additional Features
 • Boosts DMX signal for long cable runs
 • Works with all DMX512 equipment
 • Electrical isolation between inputs and outputs
 • Clearly labeled connections
 • Rugged, durable housing
 • Compact and lightweight for easy portability

 Weight & Dimensions
 19 x 5.8 x 1.8 in. (482.2 x 148 x 44.7 mm)
 5.8 lbs (2.62 kg)

Connectors
Front: 2x 5-pin DMX inputs + 8x 5-pin DMX outputs
Rear: powerCON® TRUE1 compatible input/output

DMX input + thru (A)
DMX input + thru (B)

 Power + Current
 110V, 60 Hz
 Consumption: 4W,
 0.05A, PF: 0.68
 Fuse: 1A, 250V

Warranty
 2-year limited warranty
