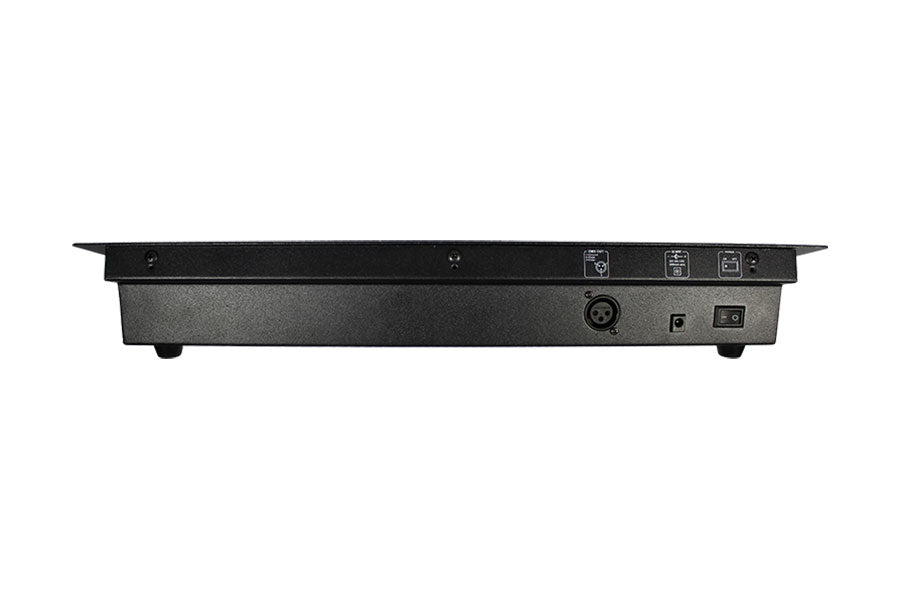

Blizzard ProKontrol™ MH

blizzard LIGHTING

ProKontrol™ MH DMX Lighting Controller with Built-in Moving Head movement & chase programs

Perfect For Moving Head Fixtures!

The ProKontrol™ MH is a professional universal intelligent lighting controller with RDM protocol compatibility. Once properly patched it’s the perfect controller for any moving head fixture, allowing ease of use with its dedicated PAN and TILT wheels. With the ProKontrol™ MH, you can control up to 32 fixtures composed of 18 channels each.

Programs can be triggered by music, midi, automatically or manually. You can also run up to 5 chases, and all the scenes can be executed at the same time!

On the surface of the ProKontrol™ MH, you will find a variety of programming tools such as 16 universal channel sliders, quick access “Movement” and built-in “Color Effect” buttons, plus an LCD display indicator for easy navigation of all controls and menu functions.

And the all-metal enclosure means you’re getting one tough unit, which will last for many years to come!

Take Kontrol™ of your lights like a pro with the ProKontrol™ MH!

Features

• DMX512 standard with RDM protocol compatibilty
• 512 DMX channels
• Controls up to 32 fixtures, each with up to of 18 DMX channels
• Fixture starting addresses and channels can be soft patched
• 32 chases, able to run 5 chases simultaneously
• 32 scenes, all scenes are able to be operated simultaneously
• 9 built-in effect buttons for moving head fixtures, plus 7 built-in color effect buttons
• USB port for firmware updates and data backup
• Sound control via built-in microphone

Specifications

Power

• Operating Voltage DC9V, 800mA max (From included power supply)

Thermal

• Max. Operating Temp. 104° F (40° C) ambient

Control

• Protocol USITT DMX-512
• DMX Channels 512
• Output 3-pin XLR Female

Weight & Dimensions

• Length 19 inches (48.26 cm)
• Width 5.1 inches (13 cm)
• Height 3.1 inches (7.9 cm)
• Weight 1.4 lbs (3 kg)

Warranty

• 2-year limited warranty

Manuals

• User Manual for the ProKontrol™ MH (Rev A)
• ProKontrol™ MH Cutsheet
