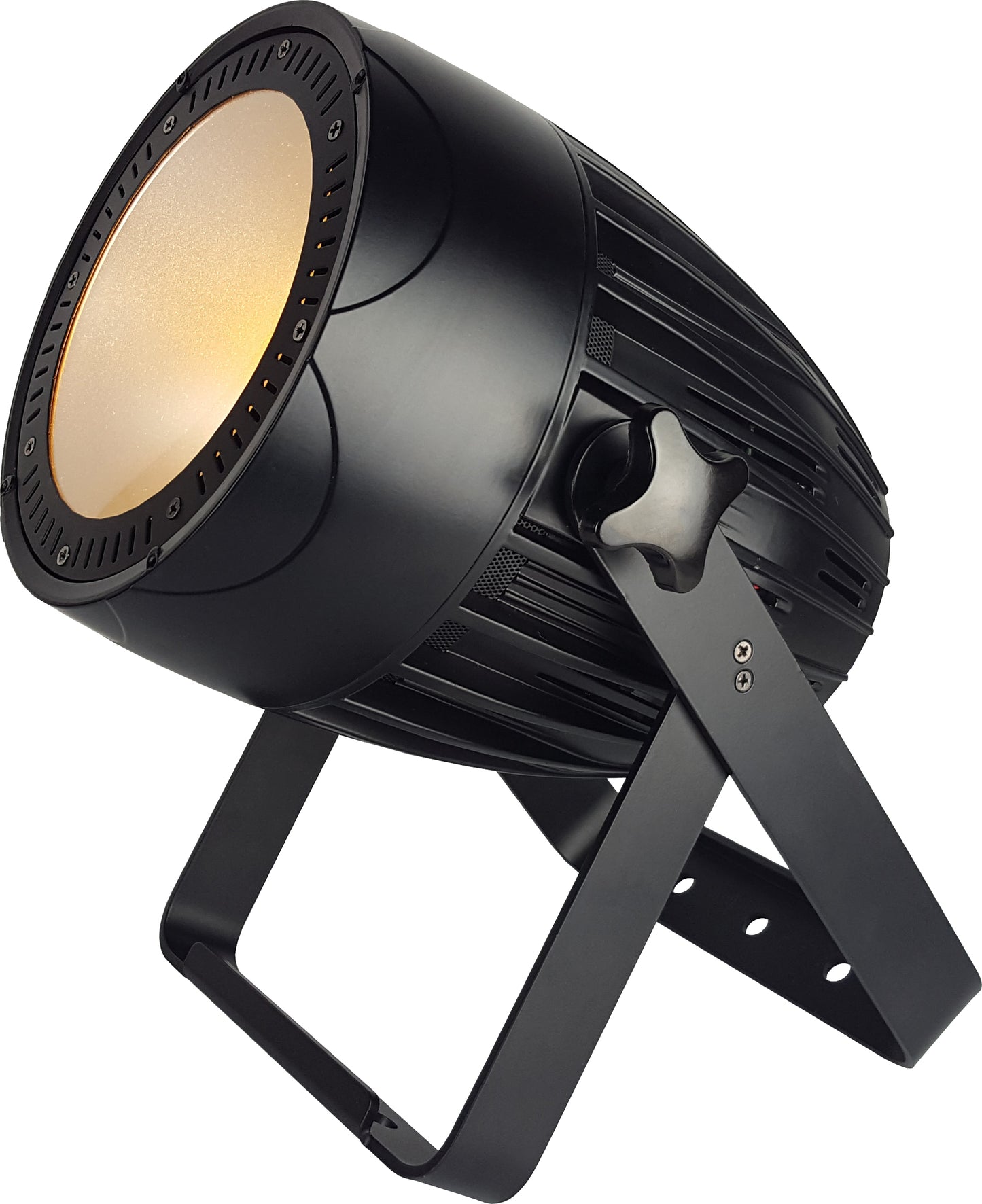

Meet the ProPar™ COB RGBAW
200W RGBAW 5-in-1 LED PAR
ProPar™ COB RGBAW is packed with pro features, starting with its high-output 200W 5-in-1 RGBAW COB LED light source with a wide 45° beam angle for superior color mixing and coverage. It’s equipped with a constant current LED driver to ensure smooth fades and a flicker-free performance in video applications.
You get easy access to its 22 built-in static colors including 7 white color temperatures ranging from 2700-9000K, 15 color macros with speed controllable color jumping and fade effects. It comes with auto mode, sound active mode, 1-20Hz strobe effects, and RGBAW color mixing; all directly accessible by using its 4-button LCD control panel, or via DMX with master slave capability.
ProPar™ COB RGBAW gives you complete control with 4 user-selectable dimming curve modes that give you smoother and slower dimming capabilities. It also has 2 separate dimmer response settings for either normal or halogen lamp emulation for more gentle changes in brightness.
It comes with dual mounting brackets with secure locking knobs, industry standard powerCON® compatible power input and output connections, 5-pin DMX input and output connections, and a 3/8” threaded down rod mounting point centered on the rear panel of the fixture.
Main Features
• 200W RGBAW COB LED, 100,000 hours
• RGBAW color mixing in standalone and DMX modes
• Built-in auto programs via master/slave, standalone
• Built-in sound active modes via master/slave, standalone
• Flicker Free, constant current LED driver
• Easy-to-use 4-button LCD digital control panel
• Wide 45° beam angle
• Heavy-duty composite housing
• 3/8” downrod mounting point connection
• Dual mounting yokes allow flexibility in positioning
• User selectable 2/3/5 or 10-channel DMX modes
• PowerCON® compatible AC input/output
• 5-pin DMX in/out connections
Luminous Intensity:
1M 2M 3M 4M 5M
12,178 lux 3,612 lux 1,607 lux 975 lux 609 lux
1131.3 fc 335.5 fc 149.3 fc 90.6 fc 56.6 fc
Optical
- 1x 200W RGBAW 5-in-1 COB LED, 100,000 hours
- 45° beam angle
- Luminous intensity: 1,607 Lux (149.3 fc) @ 3m | 609 Lux (56.6 fc) @ 2m
- Optional barndoors available (sold separately)
Weight + Dimensions
- Width: 11.7” (288 mm)
- Depth: 10.7” (272 mm)
- Height: 8.4” (221.9 mm)
- Weight: 11.7 lbs. (5.3 kg)
Control
- Protocol: USITT DMX-512
- 2/3/5 or 10-channel DMX modes
- 5-pin DMX in/out
- 4-button LCD display menu
- Standalone, M/S, sound active, color preset
Power + Current
- Operating Voltage: 100- 240VAC, 50-60 Hz
- Power Consumption: 187W, 2.4A, PF: .67
Warranty + Certifications
- 2-year limited warranty, does not cover malfunction caused by damage to LEDs
- cETLus certified
The connector fitted to the fixture and fixture cord are designed for compatibility with products manufactured by Neutrik AG, Neutrik USA and their related entities, however they are not manufactured by, affiliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik® and powerCON® are registered trademarks of Neutrik AG.
