BLIZZARD
STICKnado™ Hammerhead
IP65-Rated, RGBL Wash + Pixel FX
Imminent Impact
With its 16x 20W RGBL 4-in-1 LEDs + 10-45° asymmetrical lenses,
the IP65-rated Sticknado™ Hammerhead produces an impressive
blend of color and striking visuals, perfect for a wide range
of applications. The addition of Lime to the RGB color mixing
enhances the color rendering for more natural tones, delivering
consistent coverage as well as dynamic pixel effects.
Fully Loaded
It features multiple channel modes, allowing for full fixture wash
effects or control over individual and grouped LED pixels. Multiple

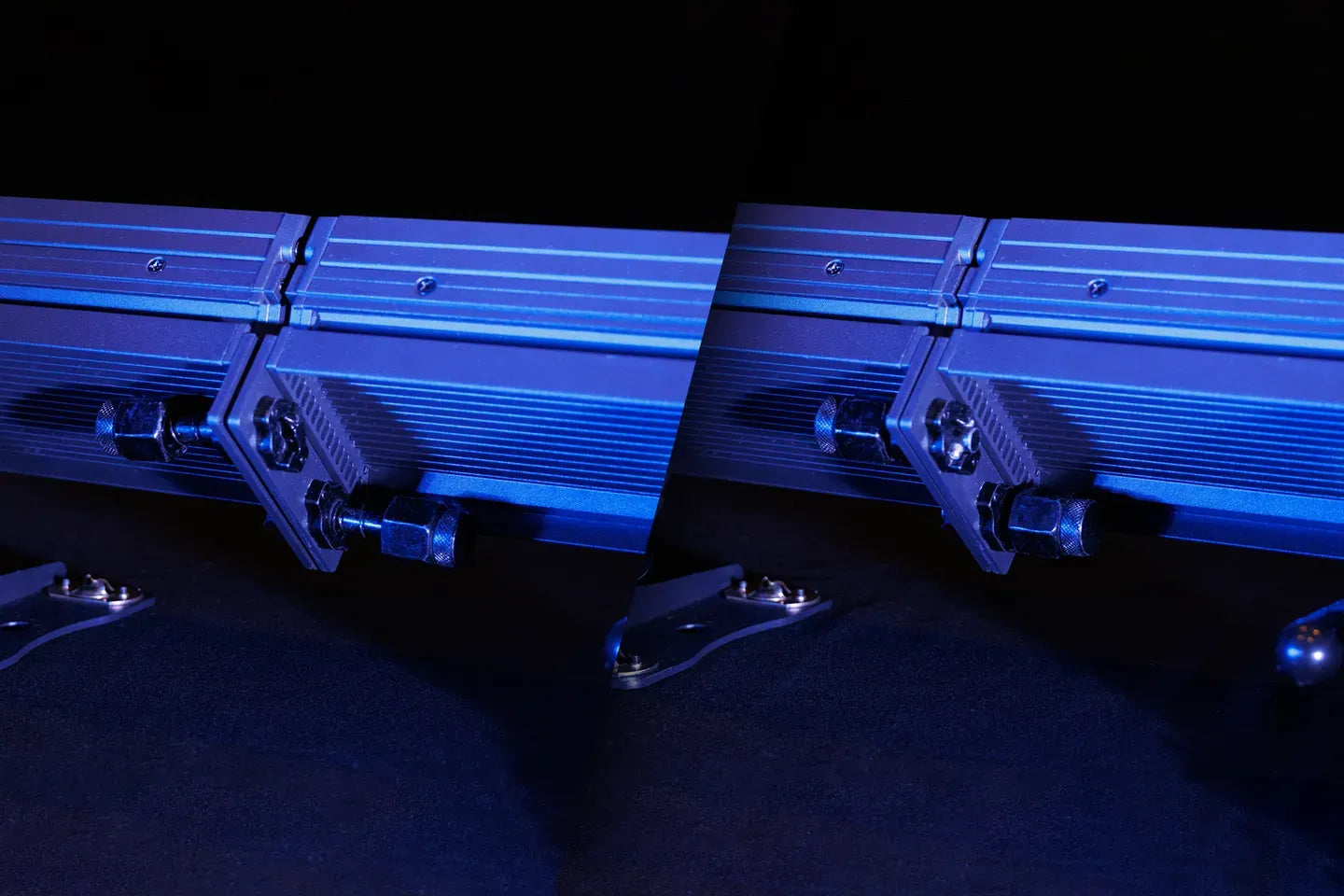

units can be aligned end-to-end with the included hardware,
expanding design possibilities. With 33 built-in macros, 3
customizable programs, and smooth operation, this fixture excels
in both stage and outdoor environments.
Luminous Intensity
Beam 2.5M 3M 4M 5M
10-45° 4045 3406 1594 840
Main Features
• Color mixing via 16x 20W RGBL 4-in-1 LEDs
• 10-45° asymmetrical beam spread
• Flicker-free constant-current LED driver
• Built-in color and pixel chase macros via DMX
• Virtual color wheel effects
• 33 built-in macros and 3 customizable programs
• IP65-rated outdoor LED fixture
• Efficient convection cooling
• Dual mounting brackets with locking knobs
• Interlocking housing design
• Easy-to-use 4-button OLED control menu
• 5-pin DMX in/out + powerCON-compatible AC in/out connections
Optical
16x 20W RGBL 4-in-1 LEDs (100,000 hours)
Flicker-free LEDs
10-45° asymmetrical beam angle
Weight & Dimensions
39.4” x 5.9” x 6.6” (1000.3 x 149.4 mm x 167 mm)
20.9 lbs (9.5 kg)
Control
USITT DMX-512, RDM
5-pin DMX in/out 3/4/5/10/14/22/38/48/64 or 70 DMX channels
4-button menu with OLED display
DMX512, M/S, auto mode Power + Current
100-240VAC, 50-60 Hz
Consumption: 192W, 1.66A, PF .99 PowerCON® TRUE1-compatible in/out
Warranty
2-year limited warranty
