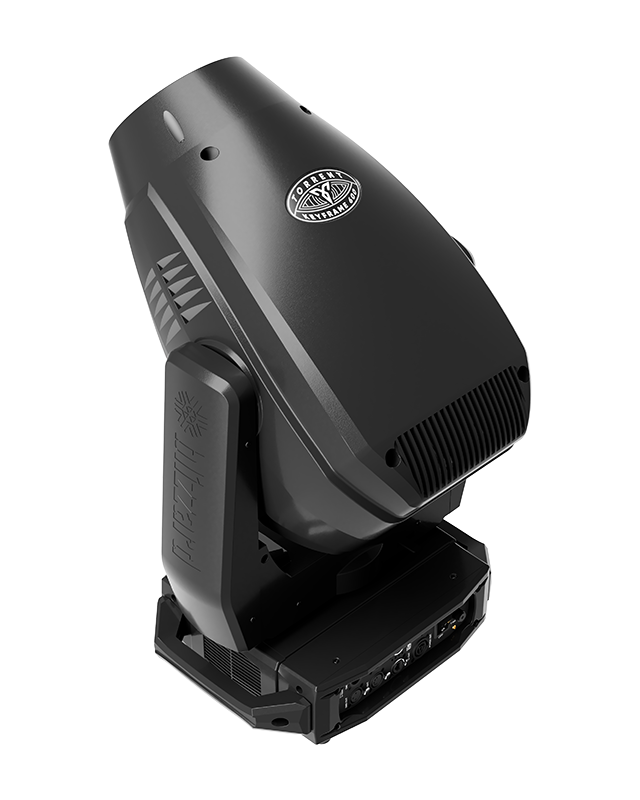

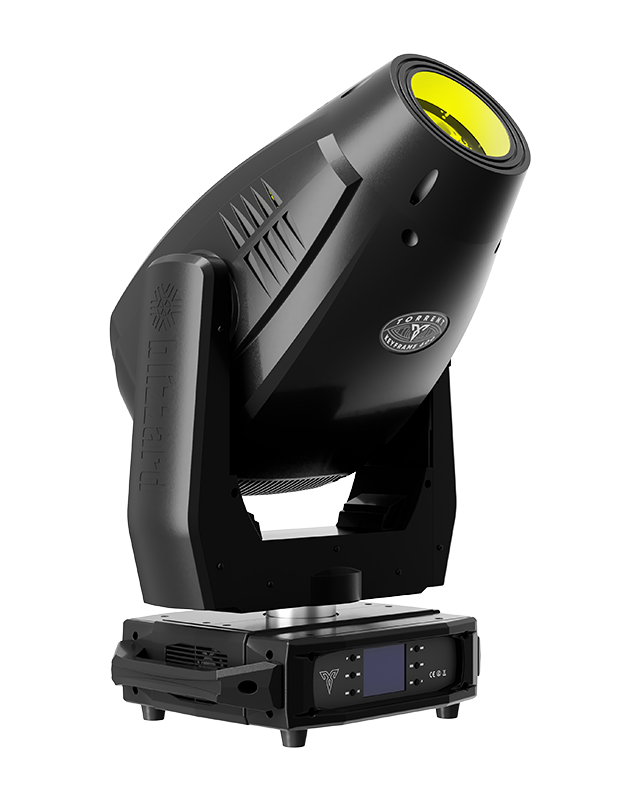

BLIZZARD Torrent Keyframe 600
Super Bright LED Profile Spot Moving
Head with CMY Color Mixing & Framing
Shutter System
Powerful Output

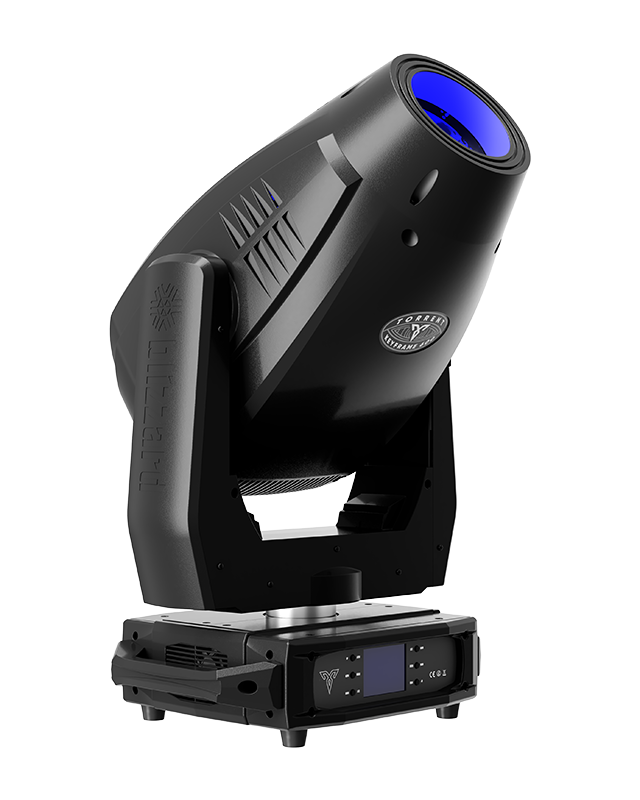

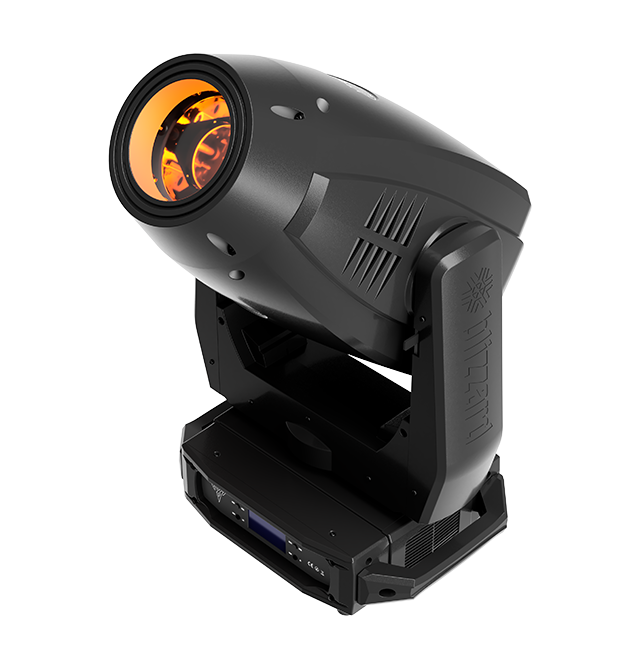

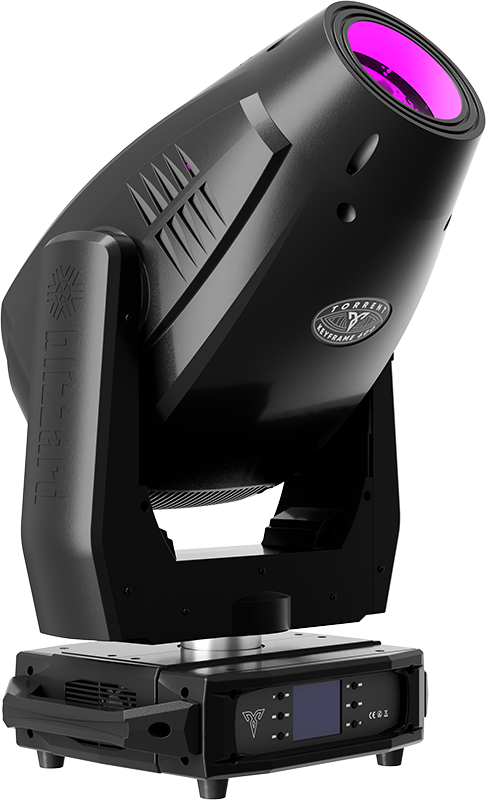

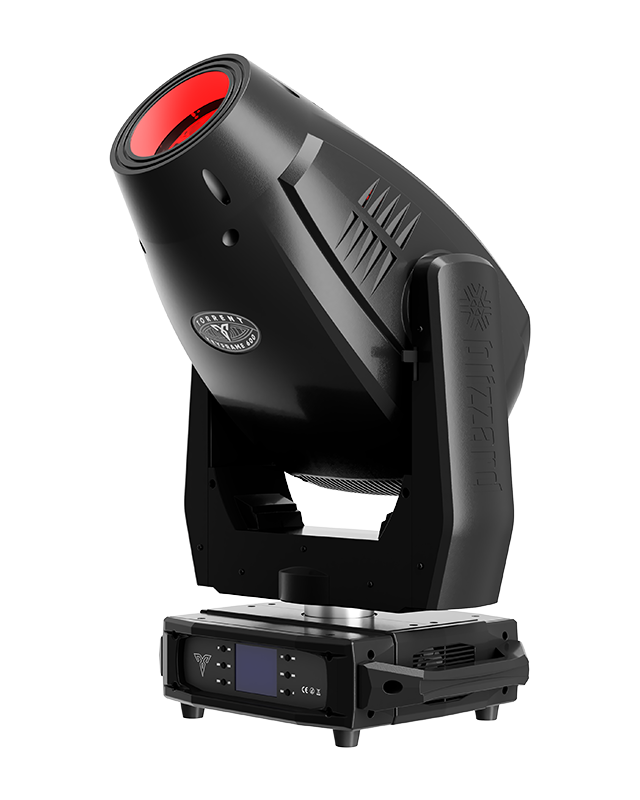

Torrent™ Keyframe 600 is a full-featured framing spot fixture with a
600W white (6500K) LED optical engine. It is an ideal solution for
applications in need of a professional quality fixture with intense beams,
rich colors, and sharp gobos.
Fully Loaded
This fixture is equipped with 6 rotating + 8 fixed gobos, 6 color wheel +
white, CMY + CTO color mixing, variable CRI, 3-facet circular + 6-facet linear
rotating prisms, 16-bit adjustable focus & zoom (7-40°), frost, iris, animation
effect wheel, and tons more.
Framing Shutter System
It has a full blackout, 4 blade framing shutter system which allows
smooth 8/16-bit control per blade, plus it can rotate +/- 45° allowing you
endless possibilities to create totally unique gobo transitions, and most
excellent aerial effects.

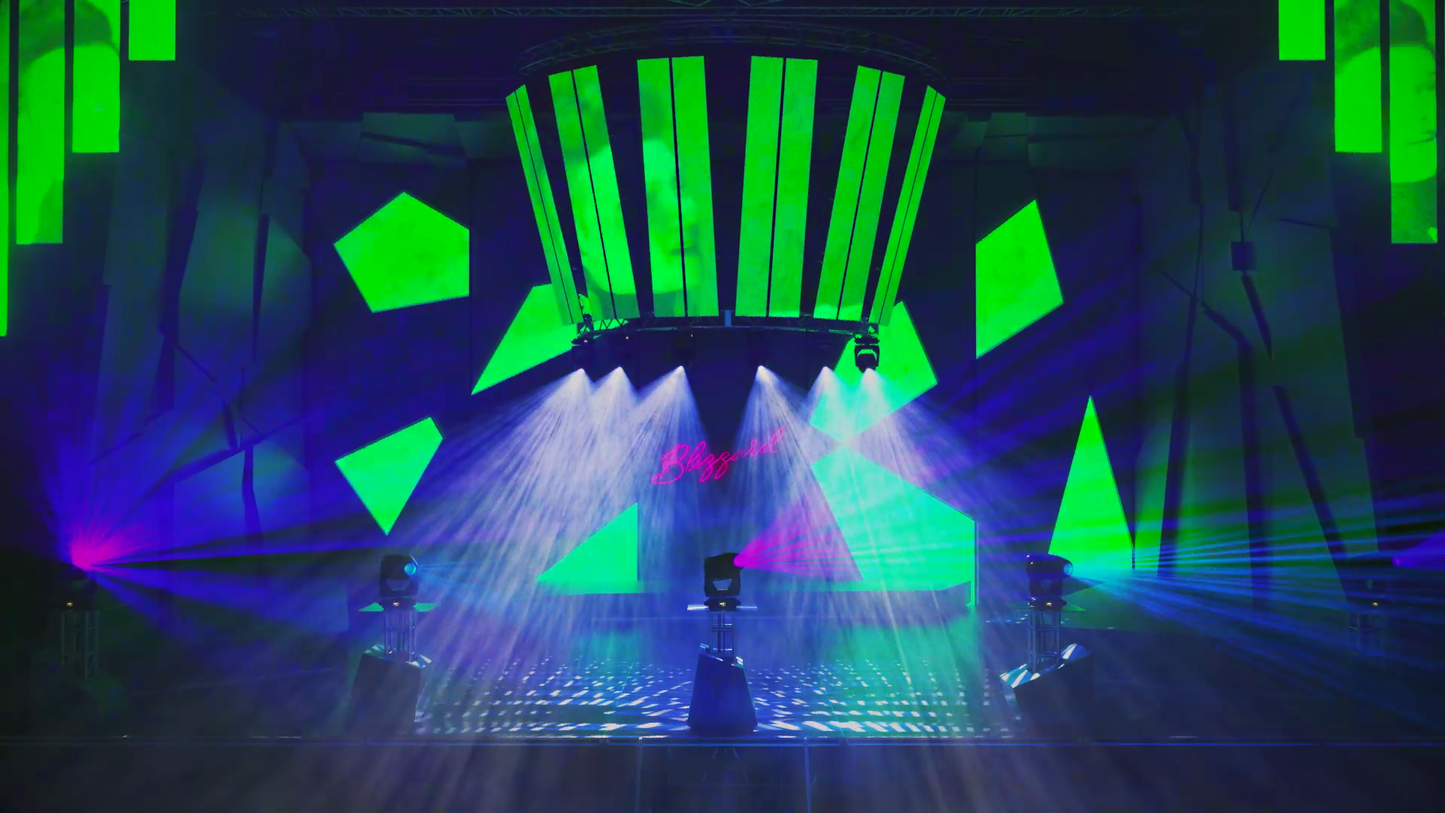

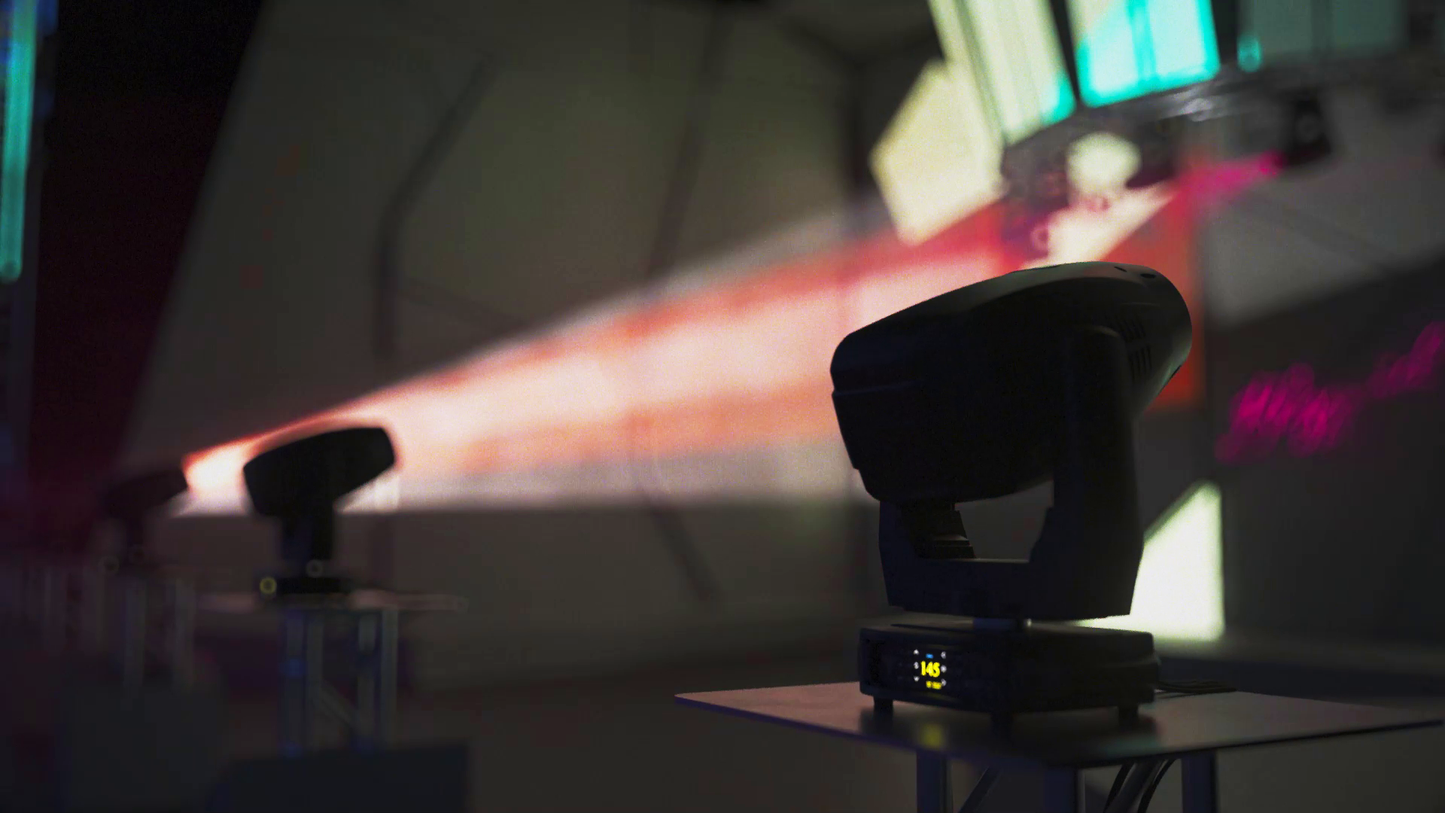

High Performance
An impressive live performer, this fixture offers fast and precise
540°/270° pan and tilt movements (user-selectable 540°, 360°, 180°
pan and 270°, 180°, 90° tilt), and it also provides flicker-free operation
that’s perfect for video use with 6 different PWM settings.
Controllability
There are 2 DMX personalities to choose from (36/52 channels), and its
6-button touchscreen menu allows easy navigation of manual settings. It

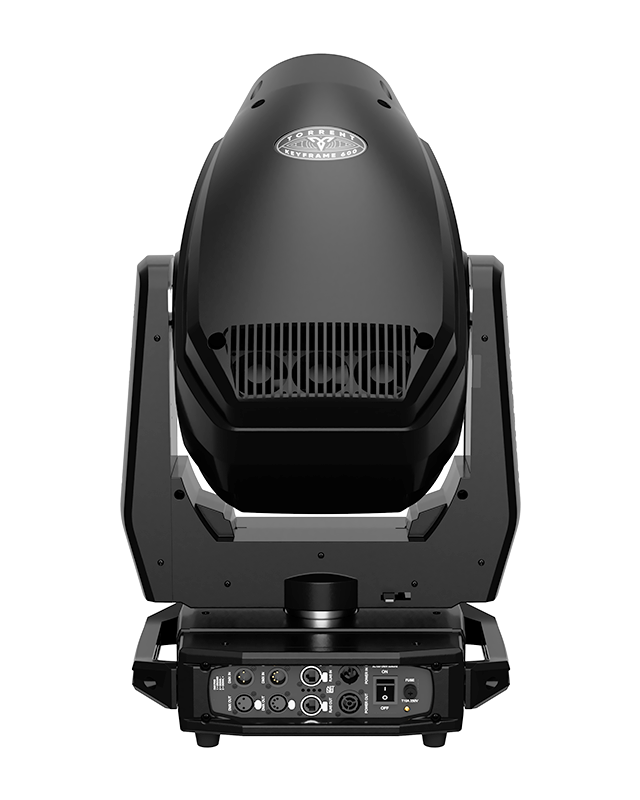

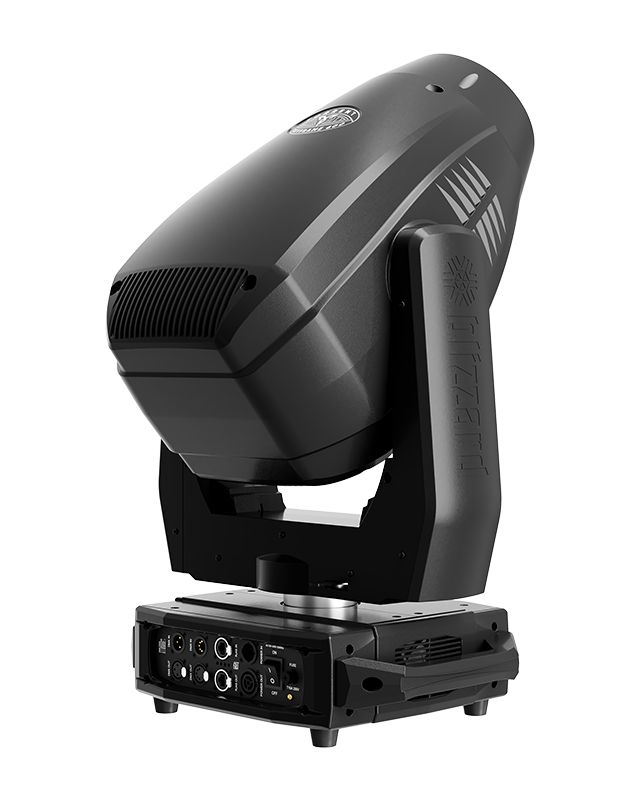

features 3/5-pin DMX in/out + powerCON True1-compatible in/out, and
Art-Net support via RJ45 in/out. It is also RDM ready.

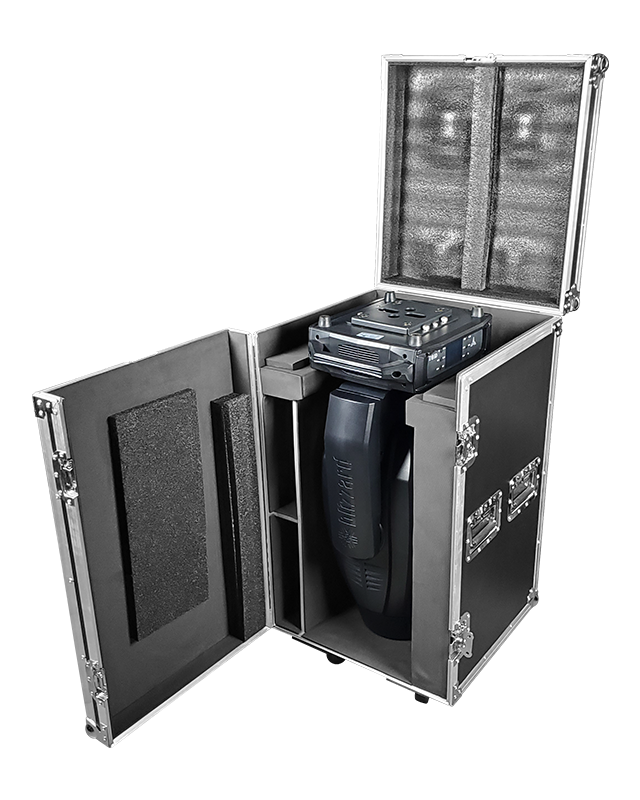

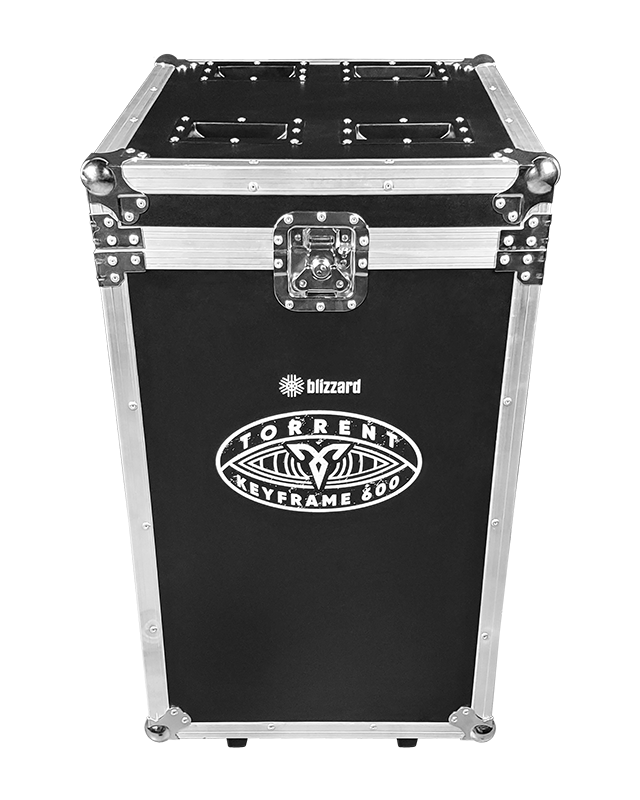

ATA Spec Case
Each fixture is delivered in a front-loading ATA spec road case. Features
include 3/8” plywood construction, ABS exterior laminate, tongue &
groove aluminum extrusions, spring loaded handles, steel ball corners,
recessed hardware, foam lined interior, and locking casters.
Main Features
• 600W, 6500K white LED light source
• 4 blade framing shutter system with rotation (+/- 45°)
• Rotating gobo wheel with 6 gobos (2 glass & 4 metal) +open
• Fixed gobo wheel with 8 metal gobos +open
• 6 color wheel + white (open)
• CMY + CTO color mixing system
• Variable CRI filter (71 ~ 91)
• P/T ranges: 540°, 360°, 180° pan / 270°, 180°, 90° tilt
• 16-bit smooth dimming + 4 selectable dimming curves
• 7-40° linear motorized zoom
• Frost, iris, and continuous animation effect wheel
• 3-facet circular + 6-facet linear rotating prisms
• 0-25Hz strobe + variable, pulse, and random effects
• Flicker-free + 6 PWM setting options
• 8-16 bit focus (1M to infinite + auto)
• 6-button control panel with touchscreen LCD display
Optical
600W white (6500K)
LED light source
CRI: (71 ~ 91)
Zoom range: 7°- 40°
Selectable PWM (Hz):
600, 1,200, 2,000, 4,000,
6,000, 15,000
Weight & Dimensions
Fixture:
17.2 x 11.6 x 29.7 inches
71.6 lbs. (32.5kg)
Case:
18.9 x 20.5 x 32.7 inches
56.3 lbs. (25.5kg)
Control
Protocol: DMX-512, Art
Net, sACN, RDM
3/5-pin XLR in/out, RJ45
in/out
36/52-channel DMX
6-button LCD menu with
touchscreen display
Power + Current
100-240VAC, 50-60Hz
Power consumption:
930W, 8.49A, PF: .99
Fuse: 10A, 250V
PowerCON™ TRUE1
compatible AC power
input/output
Warranty
2-year limited warranty, does not cover
malfunction caused by damage to LEDs
