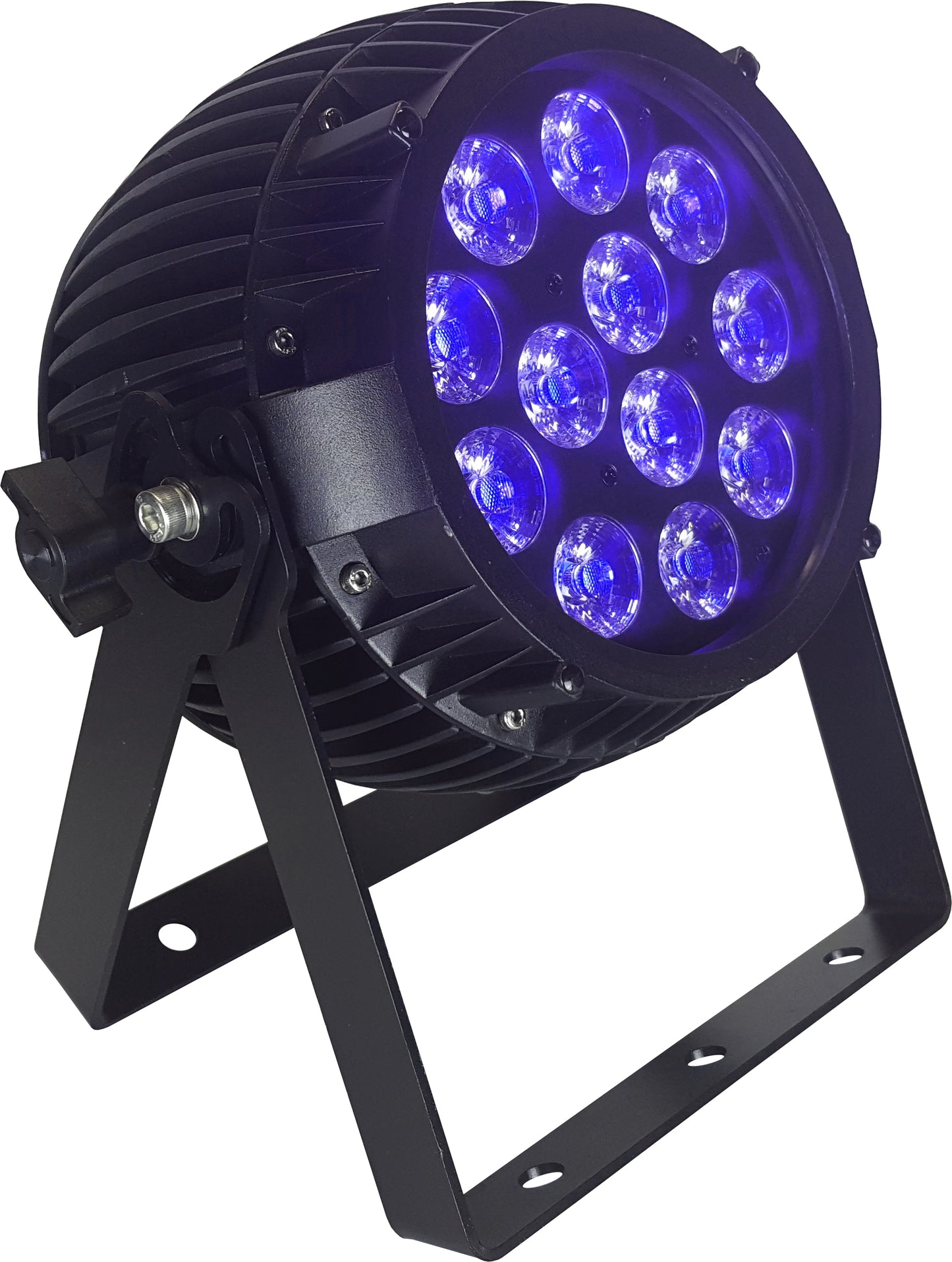

MEET THE TOURNADO™ IP W-DMX
MAIN FEATURES
• RGBAW+UV color mixing via 12x 15W 6-in-1 LEDs
• 2.4Ghz built-in wireless W-DMX™ receiver
• LED control panel with 4 touch sensitive electronic buttons
• Super-sharp 25° beam angle
• Variable electronic dimming & strobe
• Built-in color & chase macros via DMX
• Virtual color wheel effect
• Built-in automated programs via master/slave
• User selectable 4/5/6/7/9 or 12-channel DMX modes
• Convection cooled cast aluminum housing
• Dual mounting brackets for positioning flexibility
• Flicker-free constant-current LED driver
• IP rated locking power and 3-pin DMX connections
Weight & Dimensions
- Width 10.7 inches (27 cm)
- Depth 5.7 inches (14.4 cm)
- Height 12.1 in (307.9 mm)
- Weight 11.5 lbs (5.2 kg)
Power
- Operating Voltage AC 100V-264V/47-63HZ
- Power Consumption 100W, 1.35A, PF: .6
Light Source
- LED 12x 15W 6-in-1 LEDs 100,000 hours.
Optical
Luminous Intensity
Lux/m Red Green Blue Amber White ALL
1m 2,566 3,054 2,950 1,687 4,730 13,700
2m 722 914 885 500 1,276 3,900
Thermal
- Max. Operating Temp. 104 degrees F (40 degrees C) ambient
Control
- Protocol USITT DMX-512
- DMX Channels 4/5/6/7/9 or 12-channel DMX modes
- Input 3-pin XLR Male
- Output 3-pin XLR Female
- Other Operating
- Modes Standalone, Master/Slave, Auto, Color Preset
Warranty
- 2-year limited warranty, does not cover malfunction caused by damage to LED’s.
