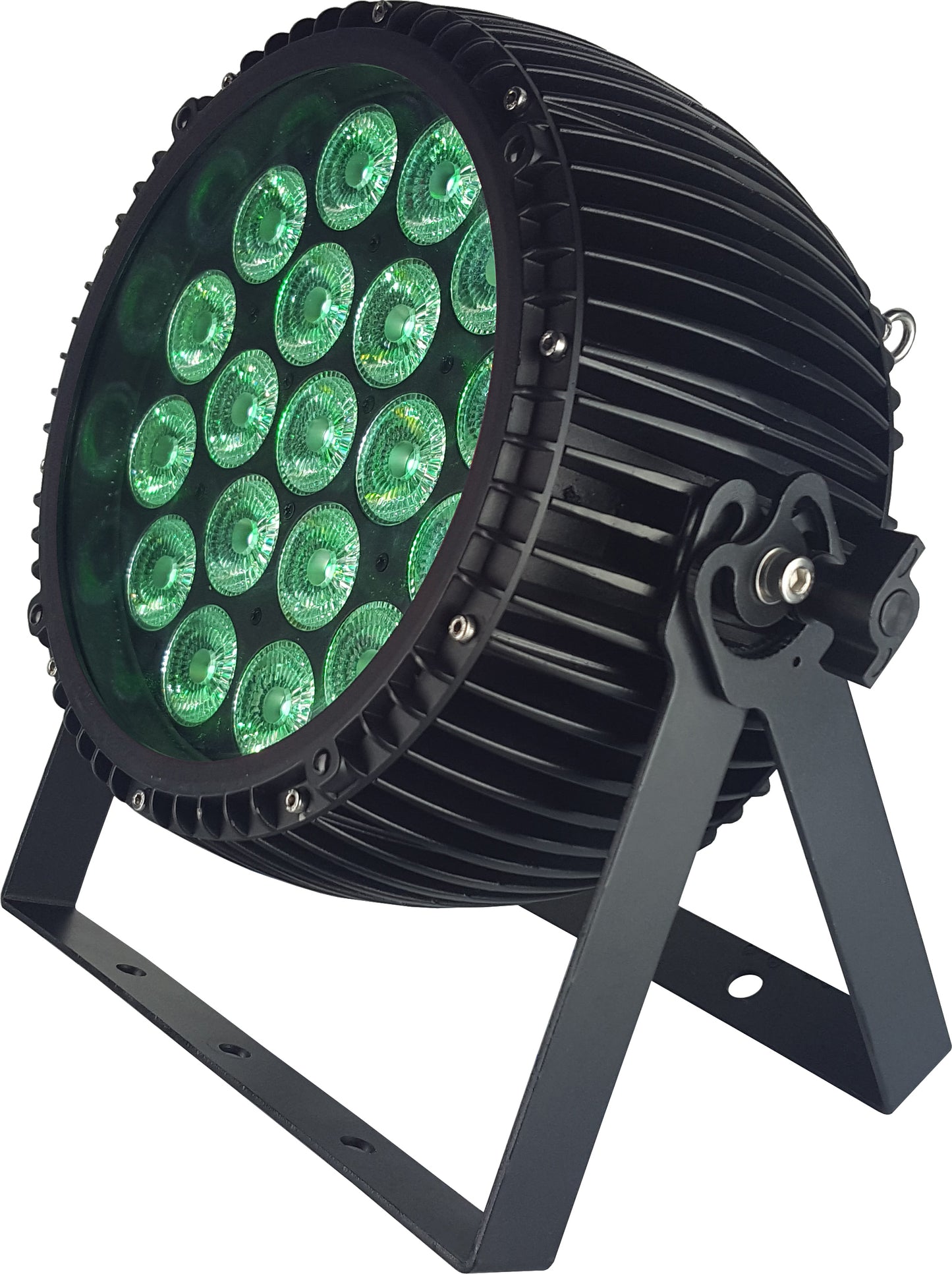

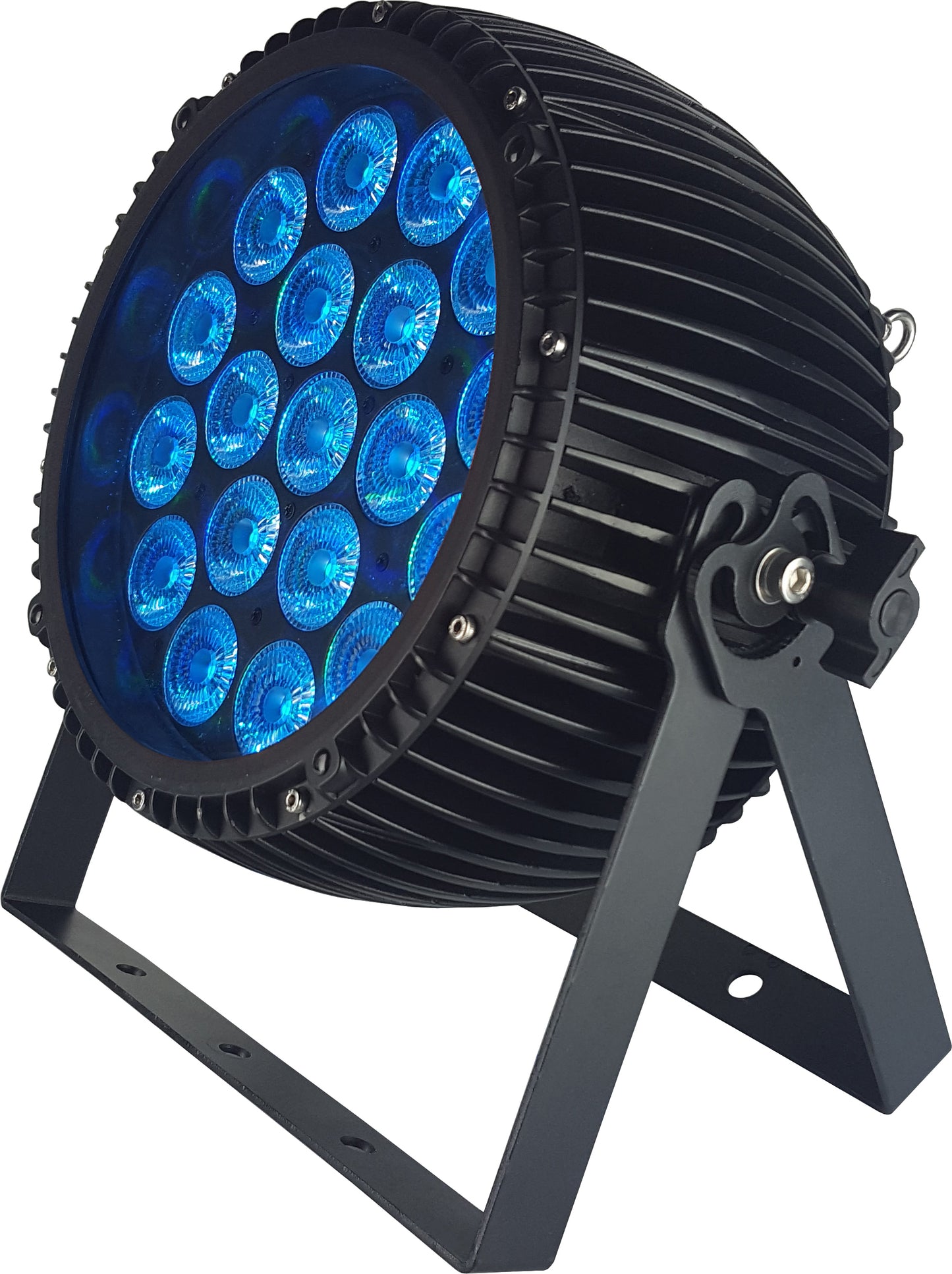

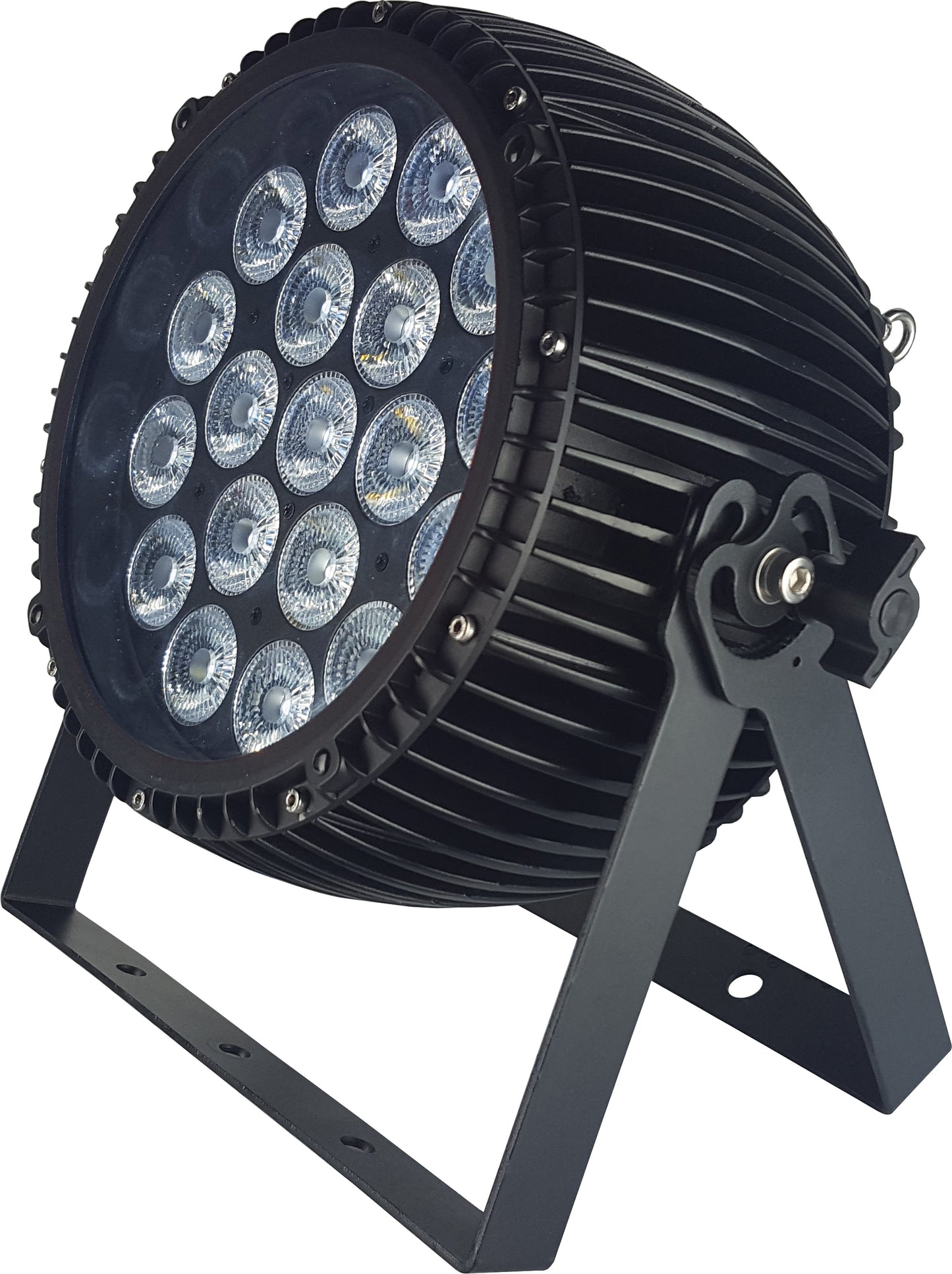

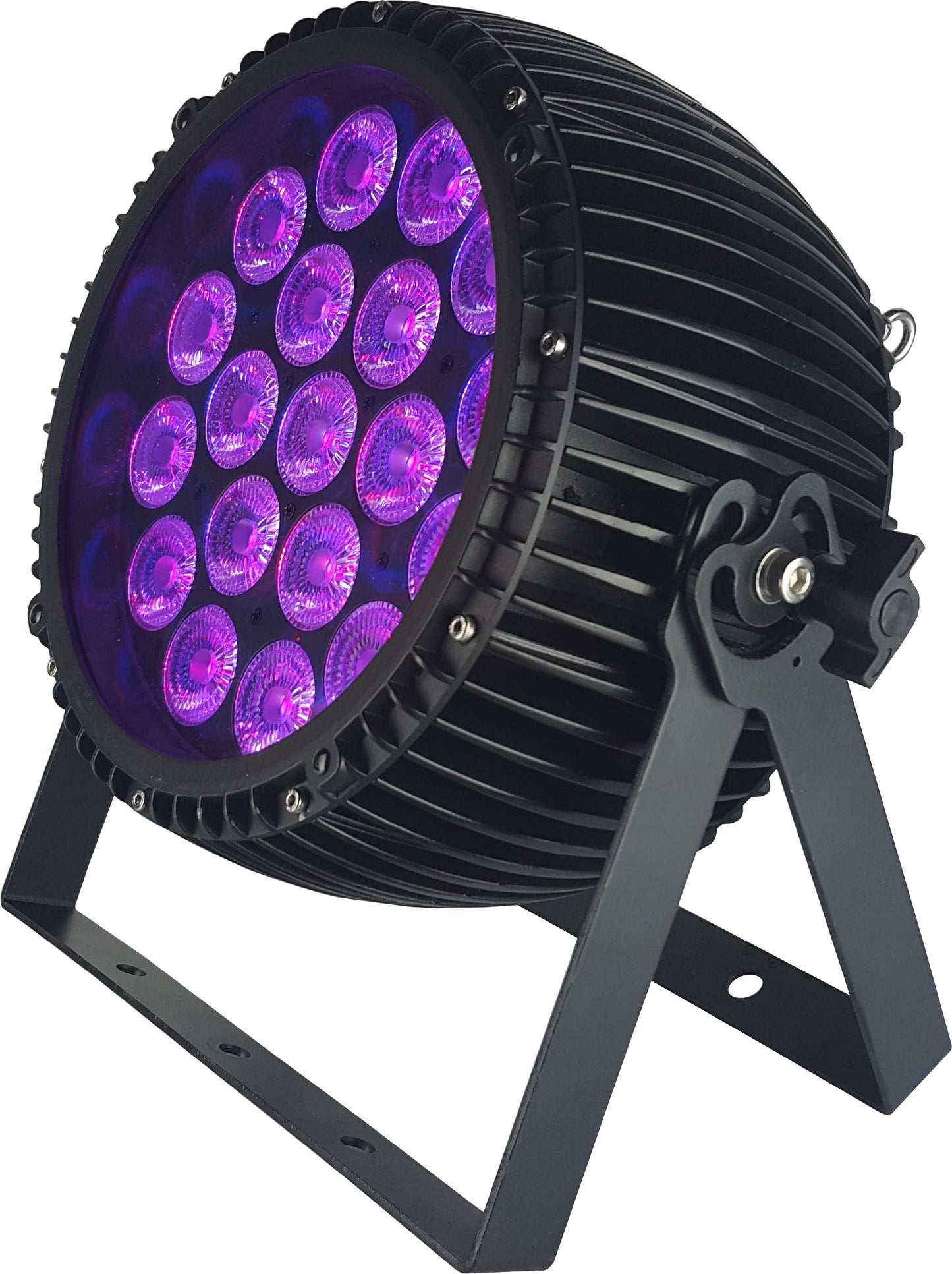

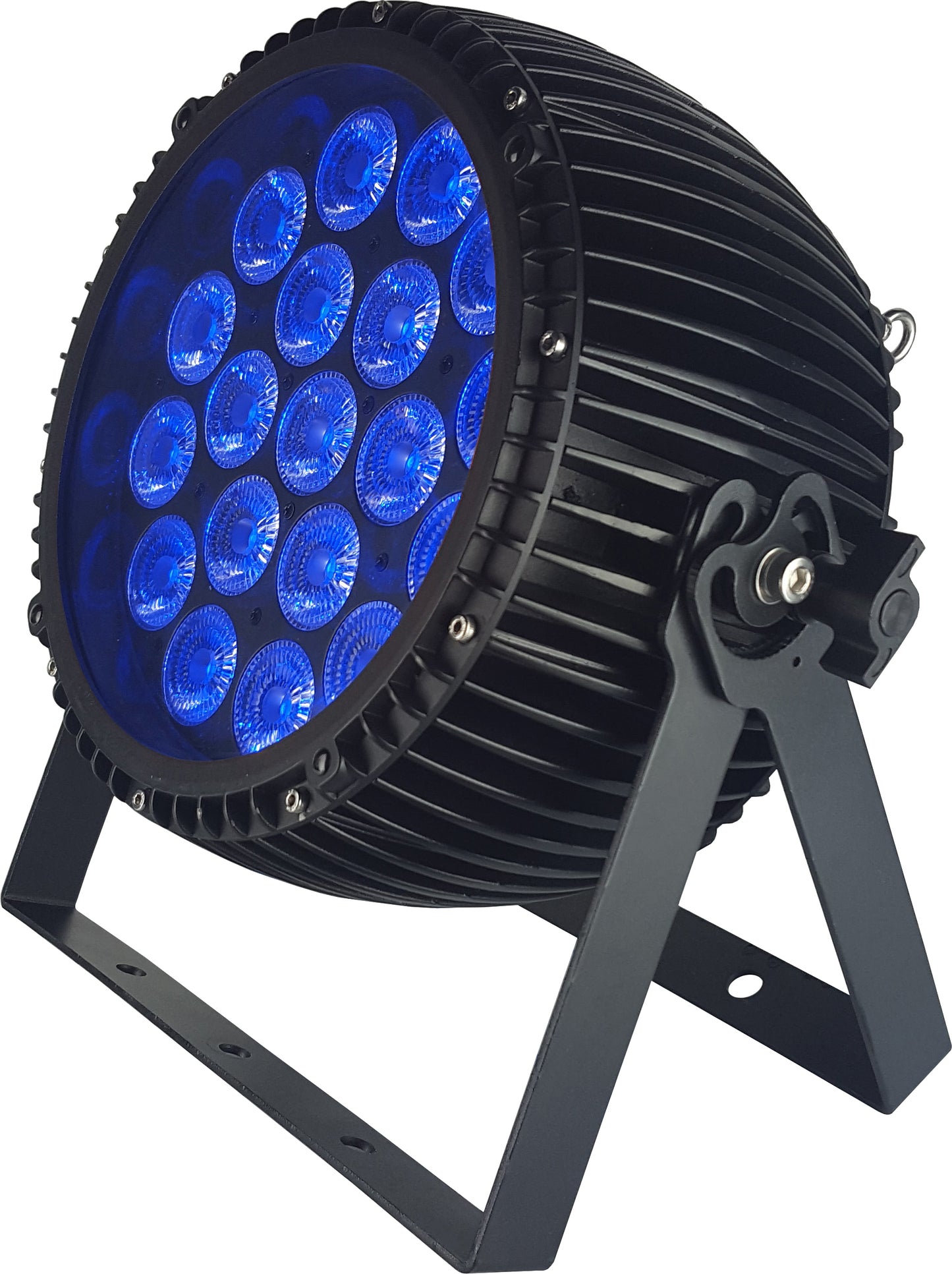

19* 15W 4-in-1 LED IP65 Rated PAR with built-in W-DMX wireless receiver
Rocking someone like a hurricane? Been thunderstruck? Making it rain men? No matter what kind of tempest you bring to the stage you need the TOURnado™ WIMAX Series from Blizzard Lighting.
The TOURnado™ WIMAX Quadra brings more lightning for your thunder with higher output than ever before. Get super bright RGBW color mixing from 19x 15W 4-in-1 LEDs with advanced 25° optics.

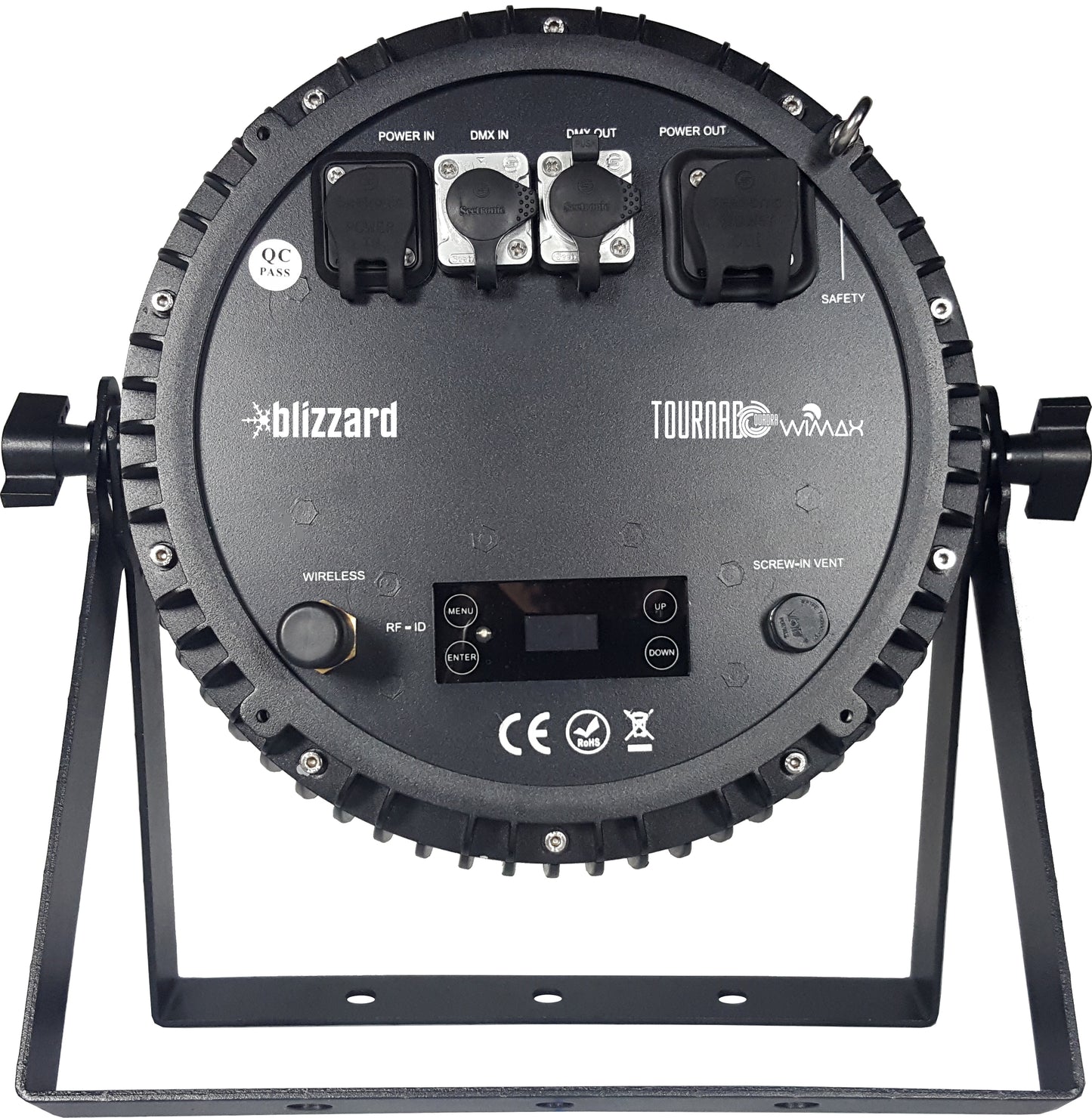

The TOURnado™ WIMAX Quadra weathers almost any storm. It’s IP65 outdoor rated and sports a larger natural convection cooled cast aluminum housing than previous models. It has a tempered glass lens and watertight internal gaskets. The back has outdoor rated 3-pin XLR data and AC power input/output connectors with rubber seals.
It’s time to truly unleash the storm and go wireless. The built-in W-DMX™ receiver works seamlessly with any W-DMX™ product and provides ultra-stable wireless communication for more than 500 meters (line-of-sight)!
All TOURnado™ WIMAX fixtures have a 4-button control panel with an OLED display. You have total control including master/slave settings, 5 auto modes, custom programs (up to 3* 20 scene programs), fade, strobe, manual color adjustments, multiple user-selectable 32-bit dimming modes and more.
Riders on the storm, time to mount up and experience the TOURnado™ WIMAX Quadra.
Main Features
• Color mixing via 19x 15W RGBW 4-in-1 LEDs
• IP65 rated outdoor LED fixture
• OLED control menu with 4x touch sensitive buttons
• 25-degree beam angle
• Built-in wireless W-DMX™ receiver
• Built-in color & chase macros via DMX
• Built-in automated programs via master/slave
• Color mixing ability in standalone mode
• 4/6/10-channel DMX profiles w/32-bit dimming
• Convection cooled cast aluminum housing
• Dual mounting brackets for positioning flexibility
• Flicker-free constant-current LED driver
• IP rated locking power and 3-pin DMX connections
• Dimensions: 14x6.7x13.3 inches (355x172x337 mm)
• Weight: 17.0 lbs (7.7 kg)
Optical
- Light Source: 19* high output 15-watt RGBW LEDs
- Beam Angle: 25°
- Flicker-free LEDs
- Luminous Intensity: 12,344 Lux (1,146.8 fc) @ 2.5m | 3,415 Lux (317.3 fc) @ 5m
Wireless Receiver
- Transmission band: 2.4Ghz ISM (2.4- 2.525Ghz)
- Channels: 512
- Receiver sensitivity: -94dBm
Control
- Protocol: USITT DMX-512
- 4/6/10-channel DMX modes
- Standalone, master/slave, DMX modes
- IP65 Seetronic 3-pin DMX input/output
- 4-button OLED control menu display
Power + Current
- 100-264VAC, 47-63 Hz
- Power Consumption: 180W, 1.54A, PF: .99
Warranty + Certifications
- 2-year limited warranty, does not cover malfunction caused by damage to LEDs
- cETLus certified
